12 Valve Cummins Serpentine Belt Diagram and Installation Guide
Understanding the serpentine belt system on your 12 Valve Cummins engine is key to maintaining optimal performance. The serpentine belt drives multiple components such as the alternator, power steering pump, water pump, and air conditioning compressor. A properly aligned and tensioned serpentine belt is crucial for preventing breakdowns and keeping these systems functioning smoothly.
The serpentine belt diagram for a 12 Valve Cummins engine illustrates the routing of the belt around pulleys and accessories. Refer to this diagram to ensure proper belt installation or replacement. If the belt is incorrectly routed, it can lead to improper functioning of various systems, causing overheating, electrical issues, or steering problems.
It is also vital to check the condition of the serpentine belt regularly. Look for signs of wear, such as cracks, fraying, or glazing. If you notice any of these signs, it’s time to replace the belt to avoid further damage to your engine components. Follow the steps outlined in your vehicle’s manual and the diagram to safely remove and install a new belt.

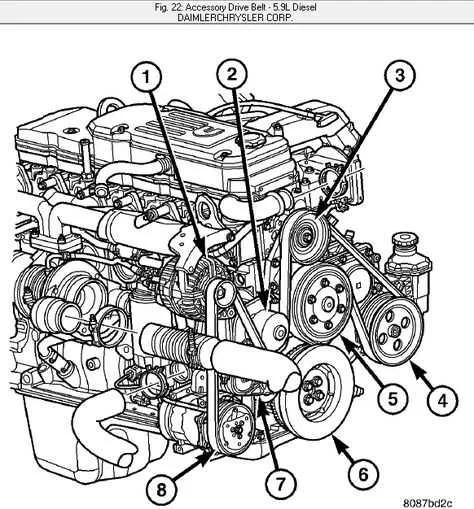

12 Valve Cummins Serpentine Belt Diagram
For accurate operation, follow the serpentine belt diagram specific to the 12 Valve Cummins. The serpentine belt should route from the crankshaft pulley over the tensioner, and then across the alternator, power steering pump, water pump, and air conditioning compressor. Ensure the routing matches the diagram to avoid misalignment or damage to any components.
Inspect the belt for signs of wear regularly. Look for cracks, glazing, or fraying that may indicate the need for a replacement. A worn belt can lead to performance issues or cause engine components to fail. Adjust the tension if necessary, as a belt that is too loose or too tight can reduce the lifespan of the serpentine belt and the pulleys it operates.
When replacing the belt, carefully follow the diagram to ensure proper alignment. The belt tensioner should be checked for proper functionality as well. A malfunctioning tensioner can cause incorrect tension, leading to belt slippage or damage. Use the service manual for torque specifications to avoid overtightening the belt during installation.
Refer to the factory diagram for the most accurate routing information. This ensures you’re following the proper path for your 12 Valve Cummins serpentine belt, which directly affects the longevity of your engine’s accessories and components.
Locating the Serpentine Belt Diagram on a 12 Valve Cummins Engine
To find the serpentine belt diagram on a 12 Valve Cummins engine, follow these steps:
- Check the Engine Compartment – The diagram is often located on the underside of the hood, usually on the fan shroud or near the radiator. Look for a label with clear illustrations of the serpentine belt routing.
- Consult the Service Manual – If the diagram is not visible in the engine compartment, the service manual for your vehicle should contain the necessary details. Look for the section specific to the engine’s accessories or serpentine belt system.
- Look on the Belt Tensioner – Some Cummins engines have the diagram printed directly on the belt tensioner assembly. This will show the correct routing, especially if you need to replace the belt.
- Online Resources – If you’re unable to locate the diagram in the engine bay or manual, search for it online. Several websites and forums offer downloadable diagrams for specific engine models, including the 12 Valve Cummins.
By following these steps, you can quickly locate the serpentine belt diagram to assist with maintenance or repairs on your 12 Valve Cummins engine.

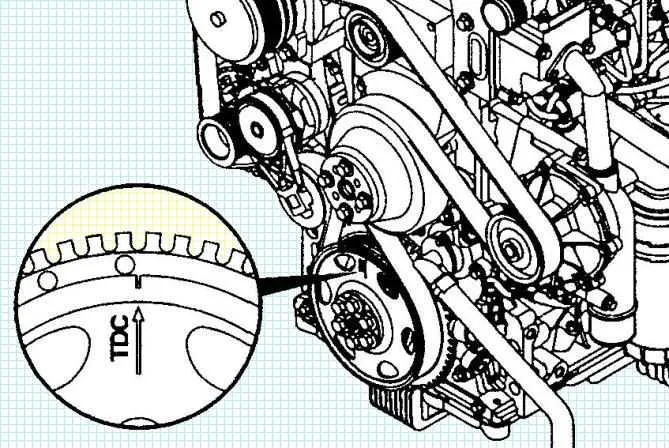

Step-by-Step Guide to Replacing the Serpentine Belt on 12 Valve Cummins
Start by ensuring the engine is off and cool. Disconnect the negative terminal of the battery to avoid any accidental electrical shorts.
Locate the serpentine belt tensioner. Use a socket wrench to relieve tension by rotating the tensioner clockwise, which will loosen the belt. Remove the belt from the pulleys, noting its routing for reinstallation.
Inspect the old serpentine belt for signs of wear, cracks, or damage. If any issues are found, it’s a good idea to replace it even if you’re just performing maintenance.
Align the new serpentine belt with the correct pulley sequence. Refer to the diagram, which can typically be found near the engine bay, or consult the service manual for your 12 Valve Cummins model. Ensure the belt sits properly in the grooves of each pulley.
Once the belt is aligned, rotate the tensioner clockwise again to allow the belt to slip into place. Ensure the belt is tight and properly seated in all pulleys before proceeding.
Double-check the routing and ensure that no pulleys are skipped or misaligned. Once confident, reconnect the negative terminal of the battery.
Start the engine and observe the belt in operation. Ensure there’s no abnormal noise or slipping. If everything looks good, the replacement is complete.
Troubleshooting Common Serpentine Belt Issues in 12 Valve Cummins
If you notice squealing or unusual noises coming from your engine, it may be due to a worn or damaged serpentine belt. Start by inspecting the belt for any visible cracks or fraying. A cracked belt can slip or fail to grip, causing performance issues.
Check the belt tensioner. A faulty tensioner can lead to improper tension, which causes the belt to slip or become loose. Use a tension gauge to measure the tension and replace the tensioner if it’s not within the manufacturer’s specifications.
Another issue could be misalignment of the serpentine belt. Ensure all pulleys are aligned properly. Misalignment can cause uneven wear on the belt and lead to premature failure. You can align the pulleys using a straight edge or a laser alignment tool to ensure precision.
Examine the pulleys themselves for any signs of damage or wear. A damaged pulley can create resistance, causing the belt to work harder than it should. Replace any pulleys that show signs of wear or have rough spots on their surface.
If the belt is slipping, it may be due to oil or coolant contamination. Check for leaks near the engine components that drive the serpentine belt. Any fluid leaks should be addressed immediately to prevent further damage to the belt.
Lastly, consider the age of the serpentine belt. Even if there are no obvious signs of wear, belts degrade over time. If the belt has been in use for a long period, it’s advisable to replace it to prevent unexpected failure.
