12 Valve Cummins Belt Diagram and Component Overview
Proper belt alignment is crucial for the smooth operation of the 12 Valve Cummins engine. When working with this engine, understanding the belt routing diagram can save time and prevent unnecessary repairs. Start by locating the main drive components, including the alternator, power steering pump, and water pump, as these are key parts of the system.
Correct belt tension is important. Ensure the belt is neither too tight nor too loose. Excessive tightness can strain the engine components, while too much slack can cause slipping and damage. Always refer to the manufacturer’s specifications for optimal tension settings.
Check the routing diagram for accurate belt path installation. Ensure the serpentine belt is properly positioned around each pulley to prevent misalignment. Double-check the belt’s condition regularly to avoid unexpected failures. Replace it if you notice cracks, fraying, or excessive wear.

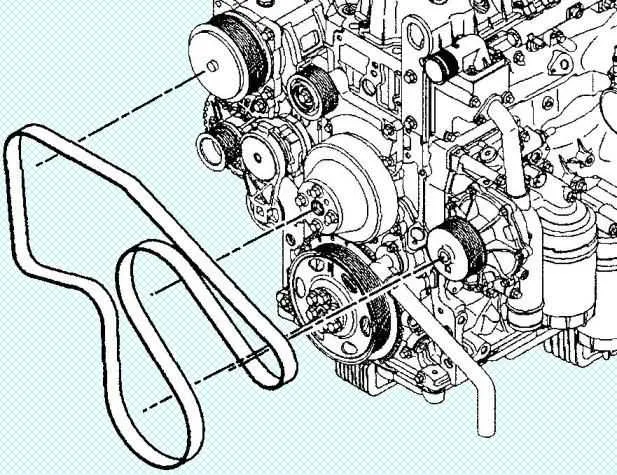

12 Valve Cummins Belt Diagram
The 12 Valve Cummins engine requires precise belt routing to ensure smooth operation. The main components driven by the belt system include the alternator, power steering pump, air conditioning compressor, and water pump. Refer to the belt diagram for accurate belt placement and routing to avoid premature wear and misalignment.
Ensure that the tensioner pulley is properly adjusted. An incorrectly tensioned belt can cause slippage, which may lead to overheating or component failure. Tighten the belt according to the manufacturer’s specifications, and always check for cracks or wear on the belt surface. If any wear is visible, replace the belt immediately to avoid breakdowns.
Pay special attention to the alignment of all pulleys and components. Misaligned pulleys can cause uneven wear on the belt and lead to a significant reduction in engine performance. Check the pulleys regularly for any signs of rust or debris, as these can interfere with proper belt movement.
When replacing the belt, use only OEM or recommended belts. After installation, run the engine briefly and inspect the belt to ensure proper tension and alignment. Regular maintenance and timely belt replacement are key to maintaining engine reliability and avoiding costly repairs.

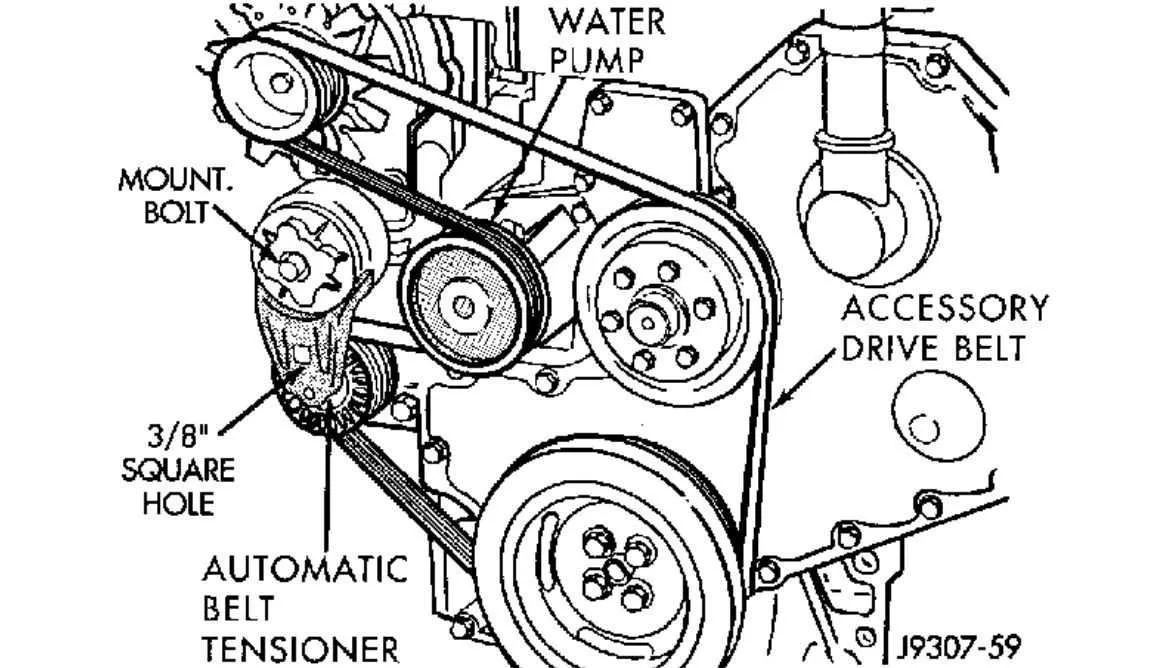

Understanding the Belt Routing for 12 Valve Cummins Engines
The 12 Valve Cummins engine utilizes a specific routing pattern for its belts to ensure proper operation of the engine components. It is crucial to follow the correct routing to avoid damage and ensure that the engine runs smoothly.
The main components driven by the belts include the alternator, power steering pump, water pump, and air conditioning compressor. A well-maintained belt routing system prevents premature wear and ensures optimal engine performance.
| Component | Belt Route |
|---|---|
| Alternator | Driven by the main serpentine belt, passing over the crankshaft pulley and tensioner. |
| Power Steering Pump | Connected to the main serpentine belt, it is located next to the alternator and typically runs parallel to the AC compressor belt. |
| Water Pump | Driven by the timing gear, its function is separate from the serpentine belt system but integral to the overall cooling system. |
| Air Conditioning Compressor | Powered by a separate belt from the main serpentine belt, usually located near the bottom of the engine. |
To correctly route the belts, start from the crankshaft pulley, ensuring the serpentine belt goes around the tensioner before reaching the alternator and power steering pump. Ensure there is no slack in the system, as this could lead to belt slip or failure.
Always check belt alignment and tension at regular intervals. Misalignment can cause excessive wear or potential belt failure. If the belt is too tight or too loose, adjust the tensioner accordingly to prevent damage.
Common Belt System Issues and How to Troubleshoot Them
One of the most common issues in a 12 Valve Cummins belt system is belt wear and cracking. Inspect the belt regularly for visible signs of wear. If the belt shows cracks or significant wear, replace it immediately. A worn-out belt can lead to slippage, reducing performance and damaging other components.
Another frequent issue is improper belt tension. If the belt is too loose or too tight, it can cause premature wear or failure. Use a tension gauge to check the tension regularly and adjust it according to the manufacturer’s specifications. Pay attention to any unusual noise, such as squealing, which often indicates incorrect tension or misalignment.
Misalignment of pulleys can also cause issues with the belt system. Check that all pulleys are aligned properly by using a straight edge or alignment tool. Misaligned pulleys lead to uneven belt wear and may cause the belt to slip or break. If misalignment is detected, inspect the mounting hardware and replace any worn bearings.
Belt slipping is a common problem in high-load conditions. If the belt slips during acceleration or under load, check for oil or coolant leaks that may have reached the belt. Clean any contaminants from the belt and pulleys to restore proper grip. If the issue persists, consider replacing the belt with one that has a higher friction coefficient suitable for heavy-duty operations.
Lastly, ensure that the tensioner is in good working condition. A malfunctioning tensioner can cause fluctuations in belt tension, leading to inconsistent operation. If the tensioner is not maintaining proper tension, replace it promptly to avoid further damage to the belt system.
How to Replace the Belts in a 12 Valve Cummins Engine
Start by disconnecting the negative battery terminal to ensure safety while working on the engine.
Locate the belt tensioner and use a wrench or ratchet to relieve tension on the serpentine belt. Carefully remove the belt from the pulleys, starting from the alternator or power steering pump, depending on the configuration of your engine.
Inspect the old belt for wear and damage. If the belt shows signs of cracking, fraying, or excessive wear, replace it with a new one that matches the specifications for the 12 valve Cummins engine.
Install the new belt by routing it around the pulleys according to the belt diagram specific to your engine model. Ensure the belt sits properly in the grooves of each pulley.
Reapply tension to the belt by adjusting the tensioner until the belt is tight but not overly stretched. Double-check the alignment of the belt on all pulleys to avoid any misalignment during operation.
Reconnect the battery and start the engine. Listen for any unusual sounds, such as squealing, which may indicate improper tension or misrouting of the belt. Verify the belt is operating smoothly and that the tension remains consistent.
Once confirmed, recheck the belt tension after a few hours of operation to ensure it has not loosened.
