Transmission Hydrostatic Craftsman LT2000 Drive Belt Diagram and Maintenance Guide

To get your Craftsman LT2000 back on track, the drive belt needs to be properly aligned. This diagram will show you how to replace or repair the drive belt in the most effective way. Accurate belt positioning is key to ensuring that your mower operates smoothly and avoids unnecessary strain on the transmission system.

First, locate the hydrostatic transmission and identify the drive belt path. The diagram outlines the exact routing, helping you avoid confusion when installing the new belt. The drive belt connects critical components, like the engine and the rear axle, and a precise fit ensures that both power transfer and smooth operation are maintained.

Refer to the provided diagram and follow each step closely for a seamless installation. Pay attention to the tension adjustments, as improper tension can lead to premature wear or even failure of the new belt. Ensure that all components are aligned properly to prevent slipping or unnecessary friction that could damage the mower over time.

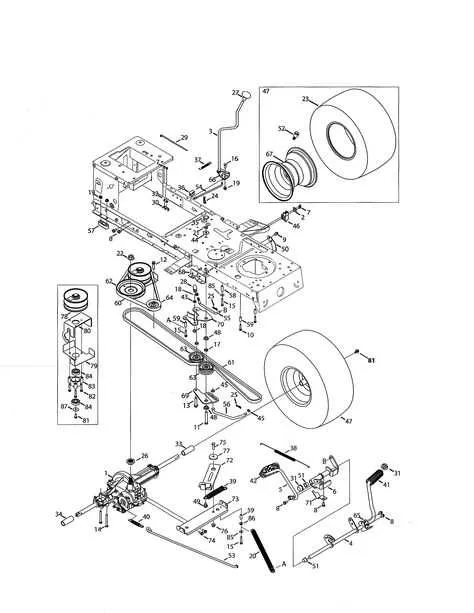

Transmission Hydrostatic Craftsman LT2000 Drive Belt Diagram

The transmission hydrostatic drive belt for the Craftsman LT2000 is a crucial component in transferring power from the engine to the wheels. When replacing or inspecting the belt, it’s essential to follow the diagram closely to ensure proper routing. The belt’s path involves specific pulleys and tensioners, and any deviation can lead to malfunction or premature wear.

To begin, locate the main drive belt near the engine’s flywheel. The belt runs from the engine pulley, wrapping around the transmission pulley, and then to the idler pulley. Be sure the belt is properly aligned with all the guide pulleys, as any misalignment can lead to increased wear and reduced performance.

Check that the belt tension is correct by adjusting the idler pulley. If it’s too loose, it may slip; if it’s too tight, it could cause excessive strain on the system. Always refer to the diagram for the correct orientation of each pulley and ensure the belt does not overlap or come into contact with any other moving parts.

Replace the drive belt if it shows signs of cracking, fraying, or wear. Keep the diagram handy for reassembly to ensure the new belt follows the same path as the old one. A correct installation will improve overall performance and extend the life of the transmission system.

How to Identify the Correct Drive Belt for Craftsman LT2000

Check the model number on the original drive belt to ensure compatibility with the Craftsman LT2000. You can find this number on the belt itself or in the user manual. If the belt is worn or damaged, measure its length and width to compare with replacement options. The typical length for Craftsman LT2000 belts ranges from 87 to 95 inches, with a width of 1/2 inch or 5/8 inch, depending on the specific model year.

Next, confirm the belt type: the LT2000 uses a V-belt or an industrial strength belt designed to handle the mower’s power. The correct part number for the LT2000 can be found on Craftsman’s parts website or by contacting customer service. Be sure to match the belt’s material–often a rubber or reinforced composite that resists wear and stretching.

If you’re unsure about the part number, consult the mower’s manual or search for a parts diagram that includes drive components. Cross-reference these details with the belt options available at local suppliers or online stores.

After identifying the correct belt, it’s a good idea to check the pulleys for any signs of wear or damage. A faulty pulley can lead to premature belt wear, affecting performance and requiring further maintenance.

Step-by-Step Guide to Replacing the Drive Belt on Craftsman LT2000

First, ensure the engine is turned off and the ignition key is removed. Disconnect the battery to avoid any electrical issues during the process.

Lift the rear of the mower using a jack or block to create enough clearance for working underneath. Place safety stands or supports for added stability.

Remove the mower deck. Begin by detaching the pins and brackets that hold the deck in place. This will give you easier access to the drive belt area.

Locate the drive belt. It runs from the engine pulley to the transmission pulley. Before removing it, take note of how the belt is routed. A diagram in the owner’s manual can be helpful, or you can snap a photo for reference.

Loosen the tension on the belt by removing any spring-loaded tensioners or guides. Depending on the model, you may need to remove a few bolts to release the tensioner completely.

Once the tension is released, slide the old belt off the pulleys. If the belt is stuck or difficult to remove, check for any obstructions or debris and clear them away.

Install the new drive belt by following the original routing. Carefully thread it over the pulleys, ensuring it sits properly in the grooves. Reinstall the tensioner and tighten the bolts or springs to apply the correct tension on the new belt.

Before reassembling the deck, manually rotate the pulleys to check for smooth belt movement. Make sure the belt is aligned and correctly positioned on each pulley.

Once confirmed, reattach the mower deck. Secure the pins and brackets back in place, ensuring everything is tightened properly.

Finally, reconnect the battery, lower the mower, and test the mower at a slow speed to ensure everything works smoothly and the new belt is functioning correctly.

Common Issues with Craftsman LT2000 Drive Belts and How to Fix Them

If your Craftsman LT2000 isn’t moving as smoothly as it should, a worn or damaged drive belt could be the cause. Below are common problems and how to address them:

• Slipping Belt: If the drive belt slips or doesn’t provide consistent movement, check for wear and tear. A loose belt can cause inefficient operation. To fix this, inspect the belt for cracks, frays, or signs of stretching. Tighten the tensioner or replace the belt if necessary.
• Squealing Noise: A high-pitched squeal while driving may point to a misaligned or dirty belt. Ensure the belt is seated correctly on all pulleys. Clean the belt and pulleys with a cloth to remove any debris or grease. If the noise persists, check for belt wear and replace if needed.
• Belt Off Track: A belt that’s come off the pulleys can prevent the mower from functioning. This is often caused by improper installation or worn pulleys. Inspect the pulleys for wear and realign the belt to the correct position. Make sure the pulleys rotate freely and replace any damaged parts.
• Broken Belt: If the drive belt snaps, it’s usually due to age or overuse. A broken belt will immediately stop the mower from operating. To fix, replace the broken belt with a new one, ensuring it matches the manufacturer’s specifications. Always inspect the surrounding components for damage before replacing.
• Excessive Vibration: If your mower shakes or vibrates excessively, the belt may be out of alignment or damaged. Inspect the belt for visible damage or signs of misalignment. Realign or replace the belt, and check for any bent or damaged pulleys.

Regularly check your drive belt and surrounding components to avoid sudden failures. Keeping your Craftsman LT2000 in top shape will ensure longer-lasting performance.
