Craftsman T140 Drive Belt Diagram and Installation Guide

If your Craftsman T140 lawn tractor is experiencing issues with power transmission, the problem might be traced to the drive belt. Understanding the drive belt diagram can save you time and effort when diagnosing and fixing any belt-related problems. Follow this simple guide to ensure you’re looking at the right components.

The drive belt connects the engine to the transmission, transferring power to the wheels. It’s a critical part of the tractor’s movement system, and a properly installed belt is necessary for smooth operation. Referencing the diagram will help you spot any misalignments or worn-out sections that might cause slippage or failure.

Start by ensuring that the belt is correctly routed through all the pulleys as shown in the diagram. Pay attention to any markings or instructions that might clarify the exact positioning of the belt. Improper routing can lead to premature wear or even complete belt failure.

If you’re replacing the belt, double-check the part number and specifications to make sure you have the correct replacement. A good understanding of the drive belt diagram will allow you to confidently install the new belt without unnecessary complications.

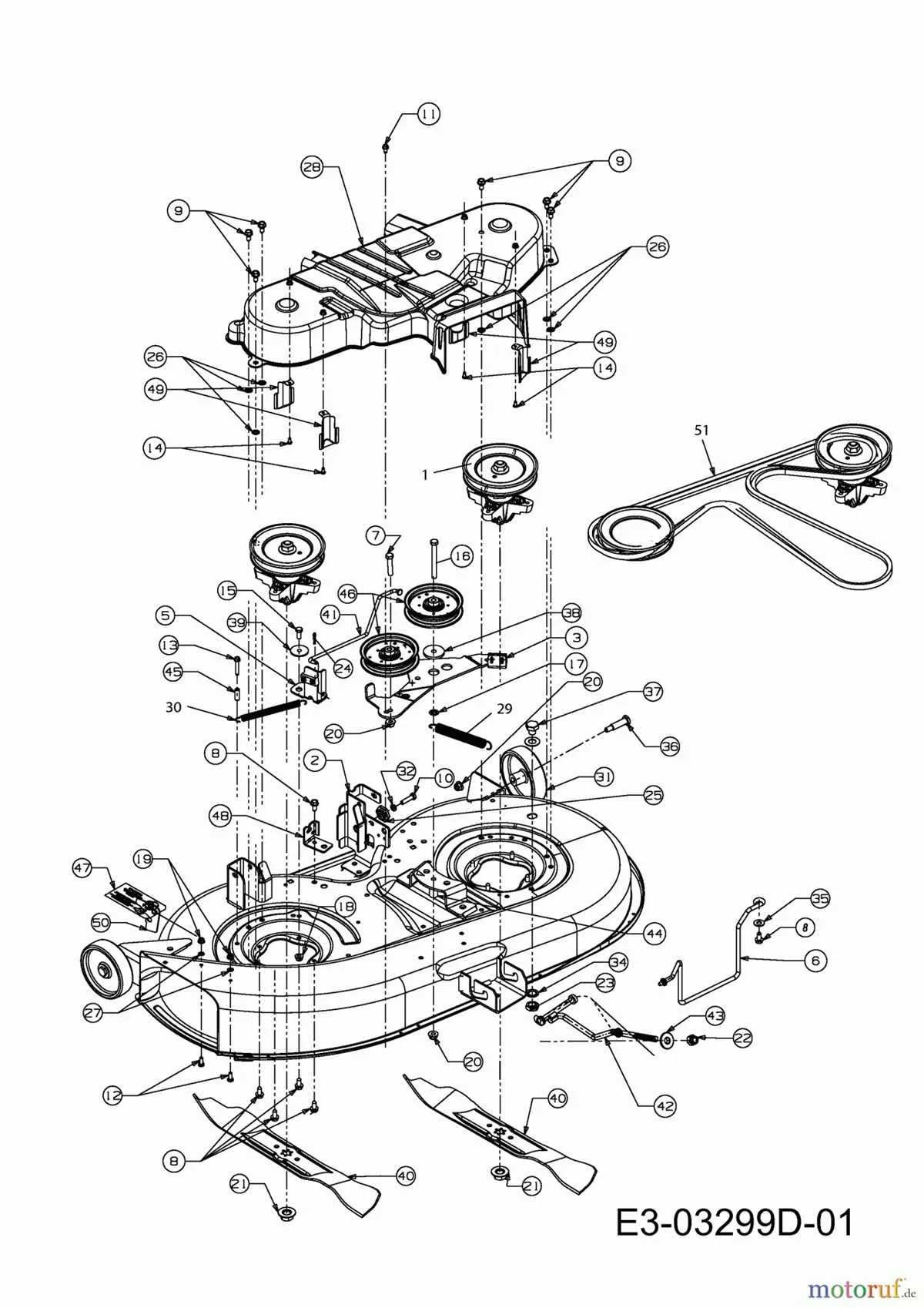

Craftsman T140 Drive Belt Diagram

To replace or repair the drive belt on your Craftsman T140, following the correct diagram is critical for a smooth operation. The belt routing ensures that the mower’s transmission and cutting system work together efficiently.

First, disconnect the battery and elevate the mower for easy access to the belt area. The drive belt runs from the engine’s drive pulley to the transaxle pulley. This path includes routing over an idler pulley and tensioner, which maintains the correct belt tension.

When installing a new belt, ensure that it is positioned correctly on all pulleys. The belt should sit snugly in the grooves of each pulley without slack. Pay special attention to the routing over the idler pulley, as improper positioning can lead to premature wear.

If you’re having difficulty identifying the correct routing, refer to the specific diagram for your model year, as there may be slight variations between versions. This diagram will provide a clear illustration of the path the belt should follow, helping to avoid mistakes during installation.

After replacing the belt, check the tension. It should be taut but not overly tight. If it feels too loose or tight, adjust the tensioner accordingly. A well-tensioned belt will prevent slipping and reduce wear on both the belt and pulleys.

How to Identify the Correct Drive Belt Model for Craftsman T140

To identify the right drive belt for your Craftsman T140, check the model number and specifications listed on the mower’s user manual or the manufacturer’s website. The correct belt size is crucial for smooth operation and optimal performance.

Start by inspecting the existing drive belt. Measure its length and width if it is still intact, as this will provide the most accurate match. The Craftsman T140 typically requires a 5/8″ wide belt, but the length may vary depending on the specific configuration of your mower. Cross-reference these measurements with the belt chart available from Craftsman or authorized retailers.

Alternatively, you can locate the model number of your mower, often found on the frame near the engine or under the seat. Use this number to search for the correct part number for the drive belt. The Craftsman website and trusted third-party parts suppliers offer a detailed breakdown of compatible parts based on your mower’s model.

For added precision, if you’re unsure about the correct fit, consult a Craftsman dealer or technician. They can confirm the exact part needed based on your mower’s serial number, ensuring no mistakes are made during the replacement.

Make sure the replacement belt matches the original in material and construction. Some belts are designed to handle specific operating conditions like high temperatures or heavy-duty use. Opt for a belt from the original manufacturer for the best compatibility.

Step-by-Step Guide to Installing the Drive Belt on Craftsman T140

Remove the old drive belt before installing a new one. Start by lifting the mower deck. Use a jack or another stable tool to elevate the machine. Once lifted, disengage the blade drive mechanism to prevent any movement while you work.

Next, locate the drive belt tensioner. Release the tension by moving the spring or adjusting the tensioner arm. This will give you the slack needed to remove the old belt. Carefully detach the belt from the pulleys, making sure not to damage any parts as you remove it.

Inspect the pulleys for wear or debris. Clean them thoroughly before installing the new belt. Check for any signs of damage or misalignment. If everything looks good, proceed with placing the new belt. Route it according to the pulley diagram specific to the Craftsman T140 model, ensuring that it follows the correct path through the tensioner, engine pulley, and mower deck pulleys.

Once the belt is in position, re-engage the tensioner to apply proper tension to the belt. Be sure the belt is not too tight or too loose. Adjust it as needed to ensure smooth operation.

Test the belt by manually rotating the pulleys to ensure the belt moves freely without resistance. If everything looks good, lower the mower deck and reconnect any components you may have detached. Perform a quick test run to confirm that the belt is functioning correctly and the mower operates smoothly.

Common Issues with Drive Belt Alignment on Craftsman T140

Misalignment of the drive belt on your Craftsman T140 mower can cause several performance issues. Here’s how to spot and fix the most common alignment problems.

• Incorrect Belt Tension: If the belt is too tight or too loose, it won’t align properly with the pulleys. This can lead to belt wear, slipping, or even breakage. Adjust the tension by loosening the tensioner and re-aligning the belt to achieve a snug but not overly tight fit.
• Pulley Misalignment: Over time, pulleys can become misaligned due to wear or damage. Inspect each pulley for wobbling or signs of wear. Ensure they are seated correctly and aligned with the drive belt path. If necessary, replace damaged pulleys.
• Incorrect Routing: Ensure the drive belt is routed according to the manufacturer’s diagram. A common mistake is installing the belt incorrectly, which can result in improper belt alignment. Double-check the diagram for guidance.
• Worn or Damaged Belt: A worn-out belt can cause slippage and misalignment. Inspect the belt for cracks, fraying, or missing teeth. Replace it if necessary to restore proper alignment.
• Clogged or Dirty Pulleys: Dirt and debris can accumulate on pulleys, causing them to lose grip on the belt. Clean the pulleys regularly to avoid this issue.

If you notice any of these problems, addressing them promptly can prevent further damage and ensure your mower runs smoothly. Regular maintenance, including checking belt alignment, will keep your Craftsman T140 in optimal working condition.
