Craftsman R110 Belt Diagram and Assembly Guide

If you’re working with the Craftsman R110 and need to replace or adjust the belt, a clear diagram can save a lot of time and frustration. Understanding the exact path of the belt is key to maintaining smooth operation. The diagram shows not only the routing of the belt but also the correct placement of components, ensuring the system runs efficiently.

The belt routing for the Craftsman R110 typically follows a specific path through pulleys and the engine drive system. Following the diagram step-by-step makes it easy to see how the tensioner and other parts work together. Make sure to check the orientation of each pulley and the belt’s tightness to avoid any malfunction.

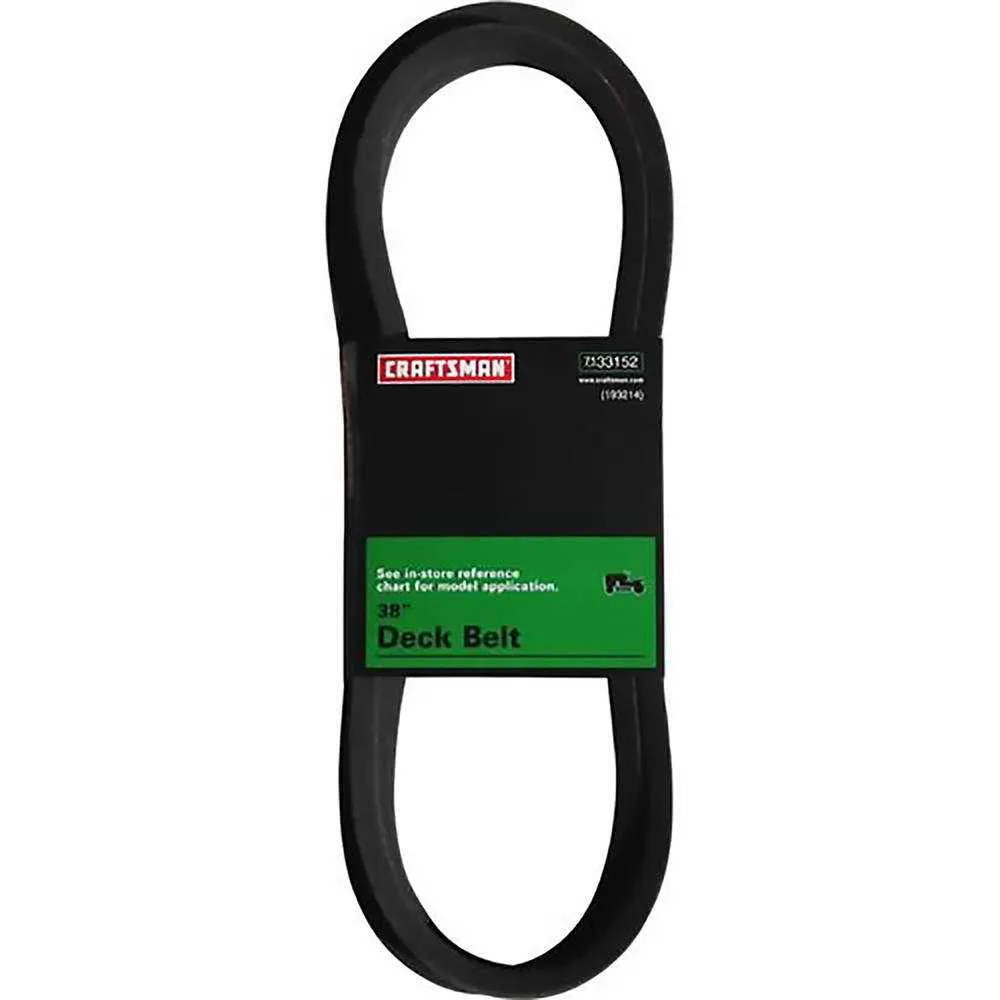

Key Tips: Always confirm that the replacement belt matches the manufacturer’s specifications. Also, pay close attention to the diagram when reinstalling the belt–misrouting can lead to damage or reduced performance. Once in place, spin the belt by hand to ensure proper alignment before starting the engine.

Craftsman R110 Belt Diagram Guide

To replace or repair the belt on your Craftsman R110, follow these clear steps using the belt diagram as a reference. This guide will help you understand the correct routing for the drive belt, ensuring smooth operation.

1. Start by disconnecting the spark plug to prevent any accidental engine start-ups while working on the mower.

2. Lift the mower deck to gain access to the belt system. Most models have a deck lift lever, so use that to raise the deck to its highest position.

3. Identify the belt tensioner located on the left side of the deck. This will be crucial for loosening the belt. You may need to release the tension by moving the tensioner arm away from the belt.

4. Carefully remove the belt from the pulleys by following the routing as shown in the diagram. The diagram will indicate the correct path, ensuring you avoid misplacing the belt or causing unnecessary wear.

5. To install the new belt, follow the diagram carefully. Ensure the belt sits properly in each pulley groove, and double-check that it’s not twisted or misaligned.

6. After the new belt is installed, reapply the belt tension by repositioning the tensioner arm. Ensure the belt has enough tension, but not too much, as this could damage the system.

7. Lower the deck and reconnect the spark plug. Start the mower to test the belt’s operation. Listen for any unusual sounds and make sure the belt moves smoothly without slipping.

Referring to the belt diagram throughout this process will make sure everything is in place. It’s important to regularly inspect the belt for wear and replace it as needed for optimal performance.

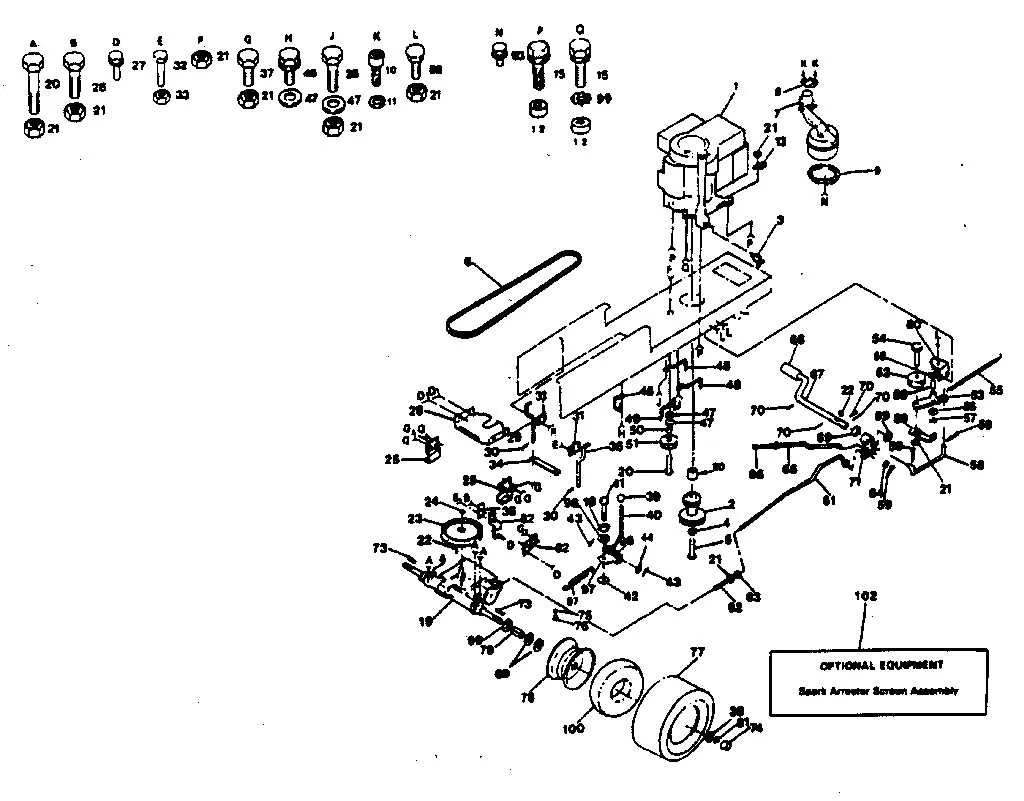

How to Read the Craftsman R110 Belt Diagram for Easy Assembly

Examine the diagram carefully before beginning the assembly. Focus on the positioning of each part and how the belt fits within the system. Follow the route of the belt as shown on the diagram, making sure each segment is in its correct alignment. Start by locating the pulleys; these are key reference points for correct belt placement.

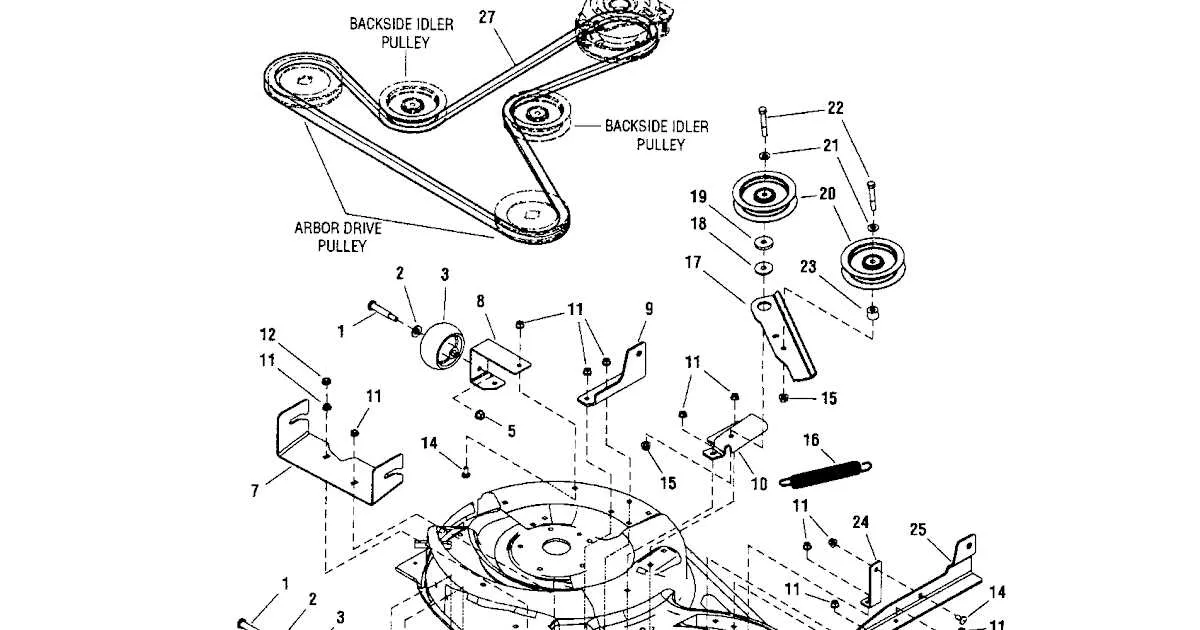

The diagram shows the belt’s path around the engine and deck pulleys. Check the tensioner location and ensure the belt fits into its designated groove. Ensure that the idler pulleys are positioned where the diagram indicates, as improper placement will affect the functionality of the belt system. If the belt has twists or misalignments, adjust them accordingly, keeping the diagram as your primary guide.

Pay attention to the size and direction of the belt loops. The Craftsman R110 diagram will highlight the specific curves that help the belt travel smoothly across the pulleys. Each section of the belt must follow the path shown, with the correct orientation for optimal performance. Do not force the belt into positions that seem unnatural, as this can damage both the belt and the machine.

If the diagram includes multiple options or configurations, verify the correct version for your specific model. Be sure to check for any special notations indicating different assembly methods or updates to the original design.

Common Issues with the Craftsman R110 Belt Alignment and How to Fix Them

Misaligned belts are a common issue with the Craftsman R110, often leading to poor performance or even damage to the mower. Here’s how to fix the most frequent alignment problems:

• Belt Slipping Off the Pulley: This usually happens when the belt is not properly centered on the pulleys. Check the belt for wear or damage and ensure it’s seated correctly in the grooves of both the drive and idler pulleys. If the belt has worn down, replace it with a new one.
• Uneven Belt Tension: If the belt is too loose or too tight, it can cause poor engagement. Tighten the tensioning bolt on the idler pulley to adjust the tension. The belt should have minimal slack but shouldn’t be overly tight to avoid strain on the engine or pulleys.
• Misaligned Pulleys: If the pulleys themselves are misaligned, the belt will rub against the edges, causing wear and noise. Inspect the pulleys for damage or loose bolts. Use a wrench to adjust any pulleys that are out of alignment, ensuring they are parallel to the engine and other components.
• Incorrect Belt Routing: The R110 belt should follow a specific path around the pulleys. If you notice abnormal wear patterns or strange sounds, verify the belt routing against the diagram in the user manual. A misrouted belt can lead to rapid wear and potential failure.
• Clogged or Dirty Pulleys: Debris buildup on the pulleys can interfere with belt movement. Clean the pulleys with a brush and inspect them for any obstructions. A buildup of grass or dirt can prevent the belt from running smoothly, which could lead to slipping or improper function.

Regular maintenance, such as cleaning and inspecting the belt and pulleys, will prevent these issues from becoming bigger problems. Keeping everything aligned and tensioned correctly will extend the life of your Craftsman R110 and improve its performance.

Step-by-Step Instructions for Replacing the Belt on the Craftsman R110

Before beginning, make sure you have the right replacement belt for your Craftsman R110. You’ll also need basic tools: a wrench, a socket set, and a screwdriver.

1. Prepare the Mower

Turn off the engine, remove the key, and disconnect the spark plug wire to prevent any accidental starts. Place the mower on a stable surface with plenty of room to work.

2. Lift the Mower Deck

Use a wrench to adjust the height of the mower deck to its highest setting. This will give you better access to the belt and pulleys. Secure the mower so it doesn’t move during the process.

3. Remove the Deck Cover

Using a screwdriver or socket wrench, remove any screws or bolts securing the deck cover. Lift the cover off to reveal the belt and pulleys underneath.

4. Loosen the Tension Pulley

Locate the tension pulley. Use a wrench or socket to loosen it, reducing the pressure on the belt. This step will make it easier to remove the old belt.

5. Remove the Old Belt

Carefully slide the old belt off the pulleys, starting with the largest pulley and moving to the smaller ones. If the belt is worn or torn, it should come off easily. Be cautious of any sharp edges on the pulleys.

6. Install the New Belt

Place the new belt over the pulleys in the same configuration as the old one. Follow the diagram in the user manual if needed. Ensure the belt is properly aligned on each pulley.

7. Reapply Tension to the Pulley

Once the new belt is in place, tighten the tension pulley again to put pressure on the belt. The belt should be snug but not overly tight. Test the movement of the belt by rotating the pulleys by hand.

8. Reassemble the Deck

Replace the deck cover and secure it with the screws or bolts you removed earlier. Double-check that everything is firmly in place.

9. Reconnect the Spark Plug

Reconnect the spark plug wire to the spark plug. Your mower is now ready for use with the new belt installed.

Check the belt’s tension and overall functionality after a short run to ensure everything is working smoothly.
