Complete Craftsman GT6000 Drive Belt Diagram and Installation Guide

Check the tensioner pulley and idler alignment before placing the Craftsman GT6000 drive belt to avoid misrouting. Align the belt with each pulley groove, ensuring a snug fit without twisting or stretching. Accurate positioning prevents premature wear and maintains consistent mower performance.

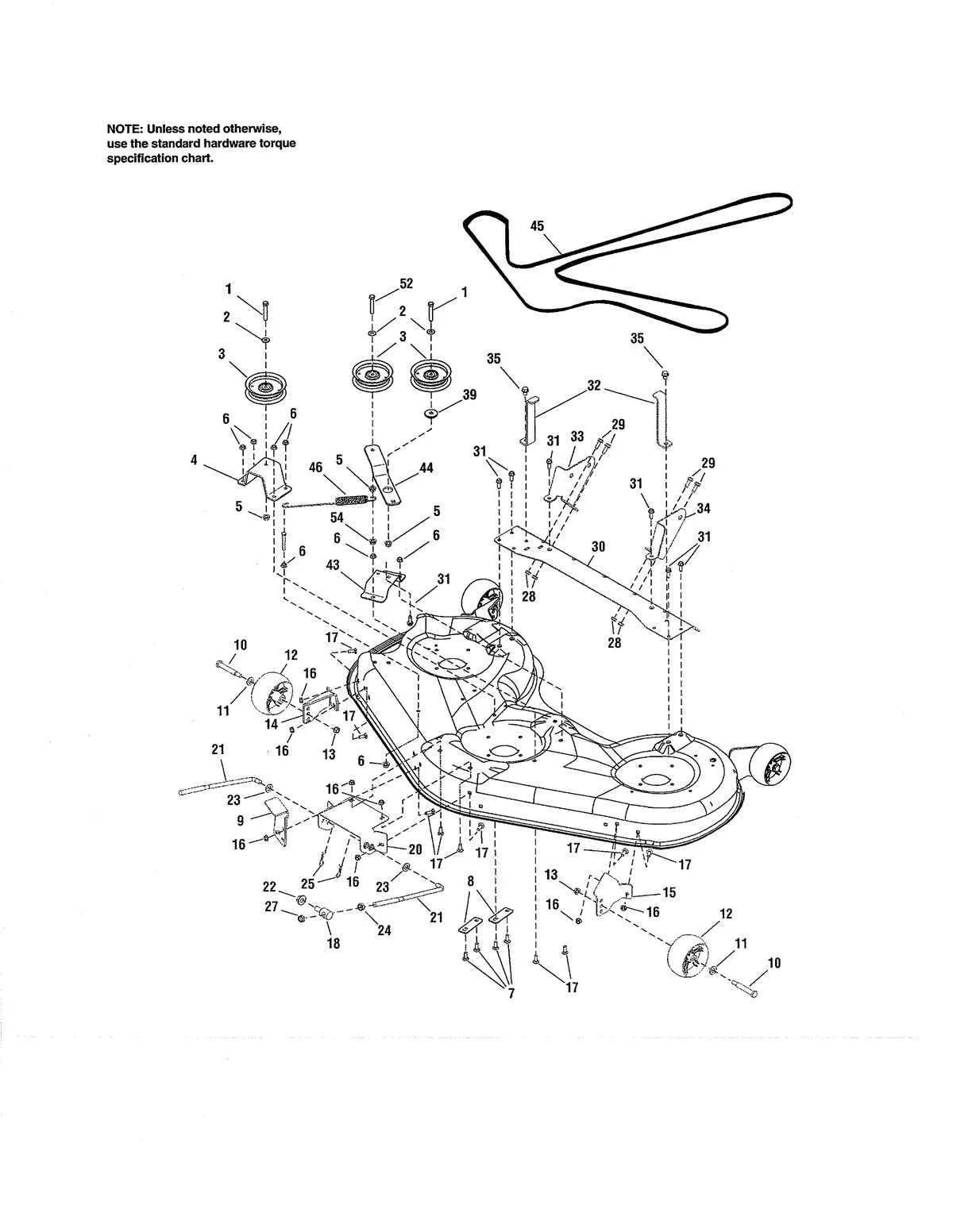

Identify each pulley according to the GT6000 diagram, starting from the crankshaft pulley and following the exact routing path over the deck, alternator, and tensioner. Using the diagram during installation reduces the risk of belt slippage or engine strain, keeping the mower running smoothly across all cutting conditions.

Regularly inspect the belt for cracks, fraying, or glazing along the contact surfaces. Replace the belt immediately if damage appears to maintain proper operation. Lubricate moving pulleys sparingly and ensure the tensioner moves freely to sustain consistent tension throughout the drive system.

Follow the diagram for winter storage or deck removal, looping the belt carefully to avoid sharp bends. Proper handling and alignment extend belt life and ensure a reliable start when mowing resumes in the next season.

Comprehensive Guide to Craftsman GT6000 Drive Belt Diagram and Installation

Begin by locating the drive belt routing diagram on your Craftsman GT6000 mower. This diagram is typically found under the seat or inside the mower deck panel. Confirm that the diagram matches your model year to avoid misalignment issues.

Before removing the old belt, disconnect the spark plug to prevent accidental engine starts. Use a wrench to release the tensioner pulley, allowing the belt to slide off the pulleys smoothly. Inspect all pulleys and the tensioner for wear or damage before installing the new belt.

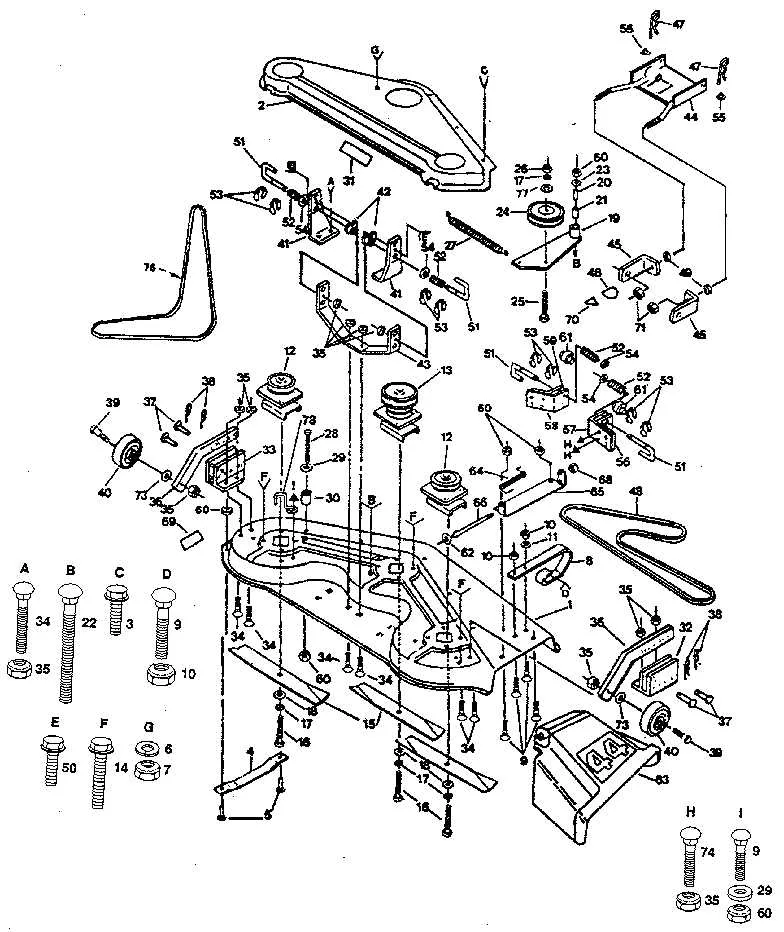

Follow the routing diagram carefully. Identify each pulley: engine crankshaft, deck spindles, idler pulleys, and the tensioner. Loop the belt around the engine pulley first, then sequentially guide it around the idler pulleys and deck spindles according to the diagram. Ensure the belt sits properly in all pulley grooves.

After routing, adjust the tensioner to apply the correct tension. The belt should move slightly under pressure but must not sag or be overly tight. Incorrect tension can cause premature wear or slippage.

Test the installation by manually rotating the mower deck and checking that all pulleys turn freely without the belt slipping off. Reconnect the spark plug and engage the blades briefly to confirm proper belt operation.

• Check the belt width and length to match OEM specifications.
• Clean pulleys of debris or grass build-up before installation.
• Replace any worn or cracked pulleys to extend belt life.
• Keep the belt routing diagram accessible for future maintenance.

Properly routing and tensioning the Craftsman GT6000 drive belt ensures smooth operation, reduces wear on components, and maintains optimal mower performance.

Locating and Identifying Drive Belt Components on Craftsman GT6000

Begin by positioning the mower on a flat surface and engaging the parking brake. Ensure the engine is off and the key is removed for safety. Locate the main deck pulley at the front center of the mower; this is where the drive belt transfers power to the blades. The idler pulley sits adjacent to the main deck pulley, slightly to the side, and maintains tension on the belt. Check for a smooth, rotating surface to identify the idler.

The transmission pulley is located beneath the mower, connecting the engine output to the rear wheels. It can be identified by its larger diameter and direct link to the drive axle. The drive belt itself runs over these pulleys in a specific routing pattern. Look for notched or ribbed surfaces on the belt that match the pulley grooves; this confirms correct alignment.

Additional smaller idler pulleys control slack along the belt path. These are mounted on spring-loaded arms and are usually marked with arrows or labels indicating belt direction. Carefully trace the belt from the engine pulley to the transmission pulley, noting the sequence over each idler. Each pulley is visually distinct: the engine pulley is closest to the motor housing, idlers are free-spinning, and the transmission pulley is attached to the axle mechanism.

For identification, reference the belt diagram found in the operator’s manual or stamped on the mower deck. Components often have part numbers or engraved labels. Use these markings to confirm each pulley and ensure the belt is routed correctly. Avoid forcing the belt over pulleys; it should slide into place along the intended path smoothly. This step-by-step visual check prevents misalignment and premature wear on the belt system.

Step-by-Step Drive Belt Routing and Alignment Instructions

Begin by positioning the Craftsman GT6000 on a level surface and engaging the parking brake. Disconnect the spark plug wire to prevent accidental engine start. Remove any debris or obstructions around the pulleys to ensure clear access.

Identify the key components: engine pulley, mower deck pulley, tensioner pulley, and idler pulleys. Consult the belt diagram to verify the correct sequence for routing. Ensure the belt orientation matches the ribbed side against the pulleys.

Loop the belt around the engine pulley first, making sure it sits squarely in the groove. Next, route it over the tensioner pulley, keeping gentle tension in your hand to maintain alignment. Follow with the idler pulleys, confirming each groove engagement before proceeding.

Carefully guide the belt onto the mower deck pulleys, ensuring the blades and pulleys remain stationary. Rotate the pulleys manually to check that the belt tracks properly without twisting or overlapping. Adjust the position if the belt shifts from the groove.

Release the tensioner slowly to allow it to apply pressure on the belt. Observe the belt alignment along all pulleys, making minor adjustments as needed. Verify that the belt sits evenly, the tensioner moves freely, and the belt maintains consistent contact across each pulley surface.

After completing the routing, perform a final check by rotating the mower deck manually. Confirm the belt runs smoothly, without rubbing or slipping. Reconnect the spark plug wire, and test the drive system at low throttle to ensure proper function before normal operation.

Troubleshooting Common Drive Belt Issues and Adjustments

Inspect the drive belt for visible wear, cracks, or fraying. Replace the belt if any damage is detected, as weakened belts reduce power transmission and risk slipping.

Check belt tension by pressing down at the midpoint between pulleys. A properly tensioned belt should deflect about ½ inch. Adjust the tensioner by loosening the mounting bolts and sliding the engine or tensioner bracket until correct tension is achieved, then retighten bolts.

Ensure pulleys align perfectly. Misaligned pulleys cause premature belt wear and noisy operation. Use a straightedge across pulley faces to confirm alignment and adjust the idler or engine mounts if necessary.

Listen for squealing or chirping sounds while the mower operates. These noises indicate slippage or misalignment. Retighten or realign the belt, and check that pulleys spin freely without obstruction.

Clean pulleys of debris, grease, and rust. Contaminated pulleys reduce friction and accelerate belt degradation. Wipe pulleys with a clean cloth and mild detergent, then dry thoroughly before reinstalling the belt.

Replace worn idler pulleys or tensioners. A failing tensioner can cause inconsistent belt tension, leading to slipping or jumping. Check for smooth rotation and minimal wobble, and install new components if irregular movement is observed.

Inspect the belt path against the GT6000 diagram to ensure proper routing. Incorrect routing increases strain and can prevent blades or drive wheels from engaging. Follow the diagram closely during reinstallation to maintain correct operation.
