2011 Craftsman LT2000 Drive Belt Diagram and Installation Guide

If you’re looking to replace or repair the drive belt on your 2011 Craftsman LT2000, understanding the correct routing is key. The drive belt transfers power from the engine to the wheels, and an accurate diagram ensures you can install it properly without unnecessary complications.

The belt routing diagram for the 2011 Craftsman LT2000 is straightforward but must be followed precisely. The belt loops through multiple pulleys, so knowing the exact path will save time during installation. Check for any worn spots or fraying on the old belt before removing it, as this will give you a clue about the issue you’re dealing with.

To make sure your new belt fits correctly, align it properly around the drive and idler pulleys. Refer to the model-specific diagram, ensuring the belt is installed with the proper tension. A well-fitted belt can improve the mower’s efficiency and extend its lifespan.

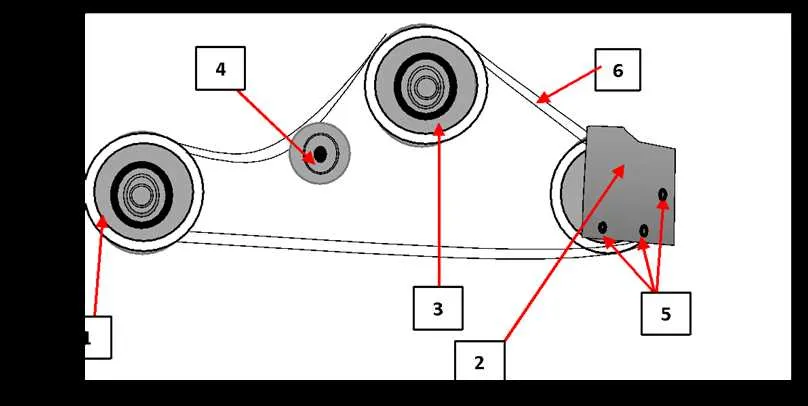

2011 Craftsman LT2000 Drive Belt Diagram

For accurate installation of the drive belt on a 2011 Craftsman LT2000, refer to the detailed diagram to ensure proper routing and function. The belt runs from the engine pulley to the transmission pulley, with the idler pulleys guiding the belt along its path. Make sure the belt aligns with the marked positions shown in the diagram for optimal performance.

Start by placing the belt around the engine pulley, then loop it over the idler pulleys. Ensure the belt travels smoothly along the path without twisting. The belt should be seated firmly on the pulleys, with the teeth of the belt matching the grooves. After installation, manually rotate the belt to check for any slack or misalignment. If there are signs of wear or damage, replace the belt to prevent further issues.

Keep the diagram on hand as a reference while you work, paying close attention to the orientation of the belt on each pulley. This will help avoid potential complications and ensure that the lawnmower operates efficiently.

How to Identify the Correct Drive Belt for Craftsman LT2000

Check the model number and serial number of your Craftsman LT2000 mower. This information can be found on the frame or under the seat. With these details, you’ll be able to cross-reference the correct drive belt for your model using the manufacturer’s manual or online resources.

Verify the belt length and width. The drive belt for the LT2000 usually comes in different sizes, depending on the specific variant. Measure the old belt or check the manual for accurate measurements.

Inspect the drive belt’s shape. Some belts are flat, while others may have grooves or ribs. Be sure the new belt matches the profile of the original one.

Check the belt’s material type. Common materials for mower belts are rubber with steel reinforcement. Choosing the correct material ensures the belt handles the mower’s stress levels without premature wear.

Consider the routing diagram. Many parts suppliers and online forums provide detailed diagrams. Comparing this with your mower’s setup helps avoid mismatched belts.

If you’re unsure, visiting a local store with your mower’s details or an old belt in hand will make it easier for experts to recommend the right fit.

Step-by-Step Guide to Replacing the Drive Belt on the LT2000

First, disengage the PTO clutch to prevent any movement. Raise the front of the mower using a jack or lift, making sure it’s secure.

Next, remove the mower deck. Start by loosening the belt from the idler pulleys and removing any bolts holding the deck in place. Once free, slide the deck out from beneath the mower.

Now, focus on the drive belt. Check the routing of the belt around the pulleys to understand the correct path. Take a photo or note the belt’s layout for reference.

Loosen the tension on the belt by adjusting the idler pulley. This will relieve the pressure and make it easier to remove the old belt.

Remove the old drive belt by sliding it off the pulleys. Take care not to damage any surrounding components.

Install the new drive belt by following the path shown in your reference. Ensure the belt sits properly in each pulley groove, with the correct tension applied. Adjust the idler pulley as needed to maintain proper belt tension.

Reassemble the mower deck, securing it with the bolts you removed earlier. Reattach the belt to the idler pulleys, ensuring it’s correctly aligned.

Lower the mower and test the new drive belt by running the mower briefly to check for any issues with movement or noise.

If everything runs smoothly, you’ve successfully replaced the drive belt on your LT2000.

Troubleshooting Common Drive Belt Issues on the Craftsman LT2000

If your Craftsman LT2000’s drive belt shows signs of wear or malfunction, a few checks can help you pinpoint the issue quickly. Start by inspecting the belt for visible damage like cracks or fraying. If found, replacing the belt is a must. Ensure the new belt matches the specifications for your model.

If the belt appears intact but you experience slipping or poor performance, examine the tension. A loose belt might not grip the pulleys effectively. Tighten the belt by adjusting the tensioner. A properly adjusted tension ensures smooth operation and prevents unnecessary wear.

Misalignment between the pulleys is another common cause of drive belt problems. Check that all pulleys are aligned and not worn down. Misalignment causes the belt to run off track, leading to uneven wear or even detachment. If you notice any misalignment, reposition or replace the affected pulleys.

Dirty or clogged pulleys can also cause the belt to slip or malfunction. Clean all pulleys to remove any debris or buildup. Dirt and grass clippings can prevent the belt from moving freely, increasing the risk of damage or wear. Keeping pulleys clean helps maintain proper belt function.

If the drive belt seems stretched, it may be time for a replacement. Over time, belts naturally elongate, which reduces their effectiveness in transmitting power from the engine to the wheels. A stretched belt may cause your mower to lose power or operate inefficiently.

Check the idler pulley for damage or wear. A faulty idler pulley can lead to improper belt tension and poor performance. Replace the idler pulley if it’s worn out or damaged, as this will improve the overall functionality of the drive system.

• Inspect belt for visible damage like cracks or fraying.
• Adjust the belt tension if it’s too loose.
• Ensure pulleys are aligned and free of wear.
• Clean pulleys to remove debris or dirt buildup.
• Replace the belt if it has stretched beyond its serviceable length.
• Check and replace a damaged or worn idler pulley.
