Chrysler 300 5.7 Hemi Serpentine Belt Routing Diagram and Installation Guide

If you’re replacing the serpentine belt on your Chrysler 300 5.7 Hemi, understanding the routing diagram is key to ensuring proper installation. The serpentine belt is responsible for driving essential components such as the alternator, power steering pump, water pump, and air conditioning compressor. Incorrect installation can lead to poor performance or even damage to these parts.

The serpentine belt for the Chrysler 300 5.7 Hemi follows a specific path around pulleys and tensioners. It’s important to pay close attention to the belt’s alignment, as improper routing can lead to slipping, wear, or breakdown of the belt. Consult the diagram before starting the job to get a clear view of the correct belt path.

Make sure to also check the tensioner, which plays a significant role in keeping the belt taut. A faulty tensioner can result in the belt slipping, which may cause the engine to overheat or lose power. Before replacing the belt, inspect the condition of the pulleys and tensioner for any signs of wear or damage.

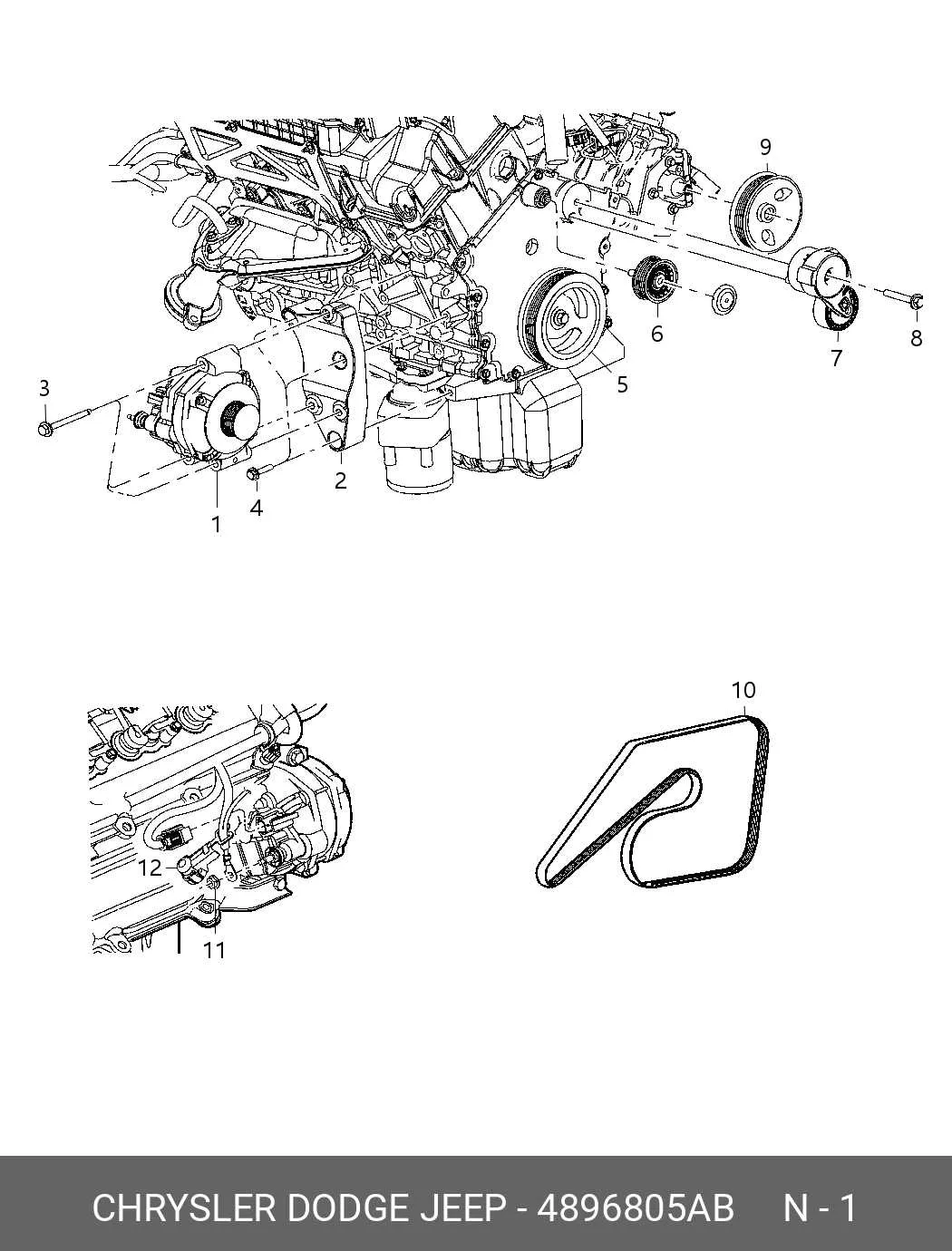

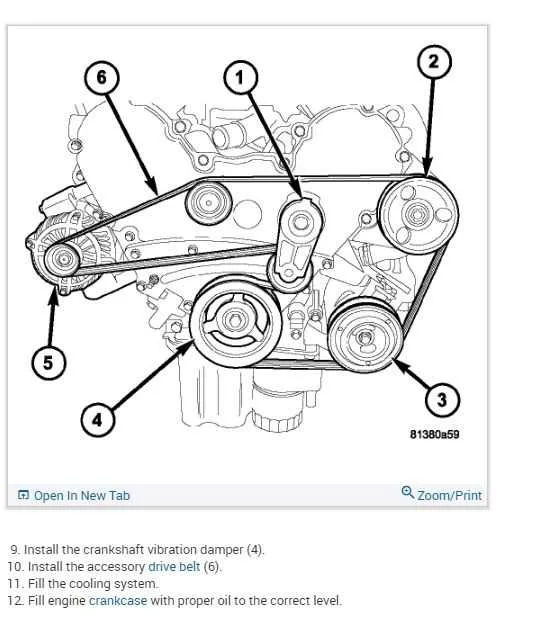

Chrysler 300 5.7 Hemi Serpentine Belt Diagram

The serpentine belt diagram for the Chrysler 300 5.7 Hemi provides a clear route for proper installation, ensuring all accessories are powered effectively. Follow these steps to install the serpentine belt correctly and prevent potential engine issues.

• Locate the belt tensioner. It is usually on the driver’s side of the engine, near the top. Use a socket wrench to relieve tension on the belt.
• Start from the crankshaft pulley, which is located at the bottom of the engine. The belt loops around it first.
• Pass the belt over the alternator pulley, which sits slightly above the crankshaft pulley.
• Move the belt over the power steering pump pulley and the A/C compressor pulley. These components are located on the passenger side of the engine bay.
• Ensure the belt runs over the water pump pulley, which is typically in the center of the engine.

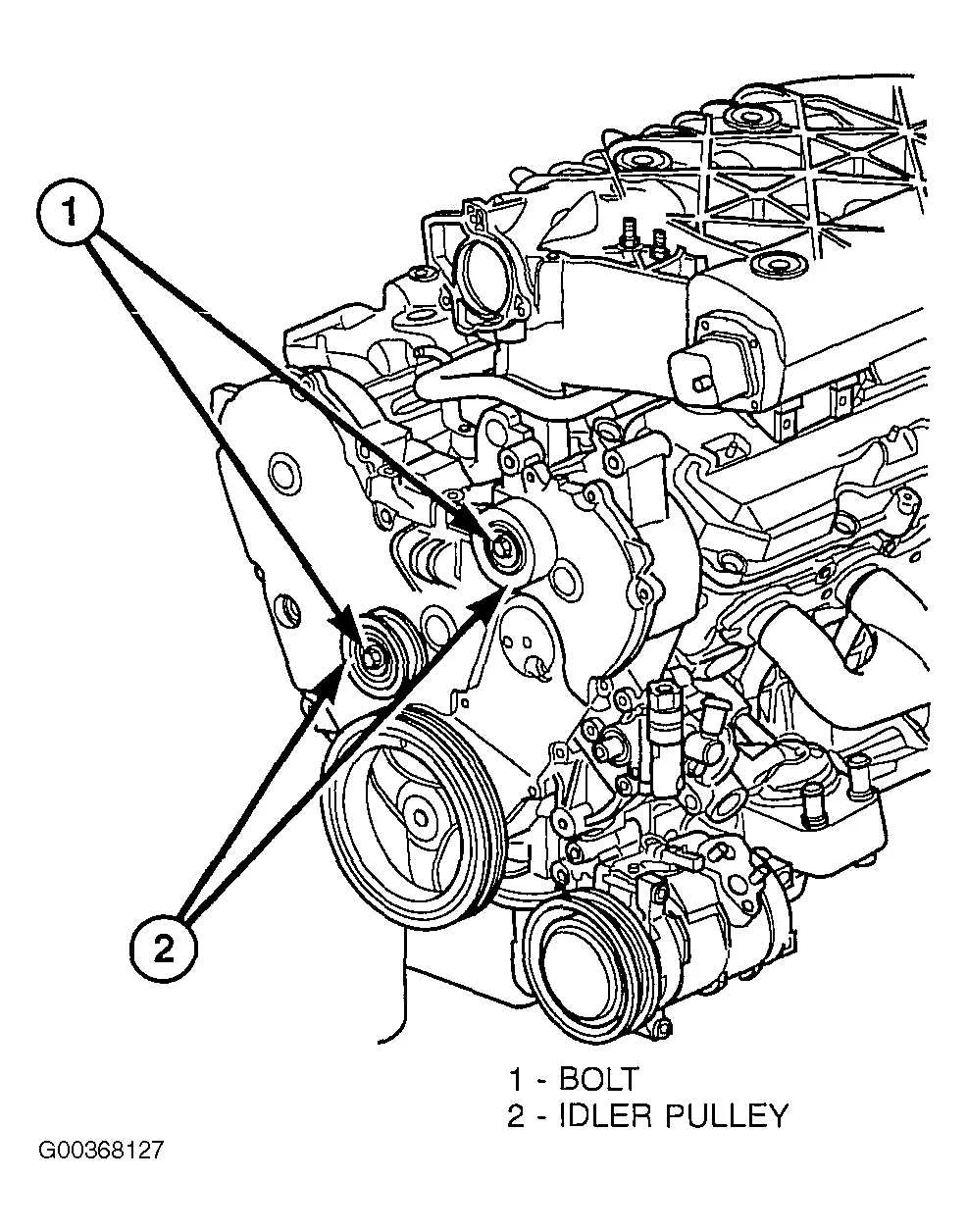

• Check that the belt goes around the idler pulley, which helps maintain proper tension on the system.
• Finally, loop the belt over the tensioner pulley last. Make sure the tensioner holds the belt tightly in place.

After installation, check for any slack or misalignment. It’s critical to verify that the belt runs straight across each pulley and that it is properly tensioned to avoid slipping or wear. If the belt shows any signs of damage, replace it immediately to avoid further issues.

How to Read the Serpentine Belt Diagram for Chrysler 300 5.7 Hemi

Locate the serpentine belt diagram on the engine bay, usually on a sticker or metal plate. This diagram shows the belt routing, identifying the components it drives like the alternator, power steering pump, and air conditioning compressor. The key is to follow the arrows that indicate the direction of the belt’s movement.

Start by identifying the tensioner pulley. This pulley is often spring-loaded and allows the belt to be installed or removed with ease. It’s essential to note its position because it plays a significant role in maintaining the proper belt tension. From the tensioner, trace the belt’s path around each pulley, paying attention to the pulleys that should be tight and those that should rotate freely.

Next, observe the rotation directions of each pulley. Some pulleys, like the alternator or power steering, rotate clockwise, while others, such as the air conditioning compressor, may rotate counterclockwise. These direction indicators are crucial for understanding the full function of the serpentine belt system.

If any components are missing or replaced, verify their placement and ensure the routing matches the diagram. Incorrect routing can lead to slippage or premature wear of the belt and pulleys.

Before replacing the serpentine belt, confirm that the new belt matches the length and width indicated for the Chrysler 300 5.7 Hemi. A belt that is too tight or too loose can cause system failure.

Step-by-Step Guide to Replacing the Serpentine Belt on a Chrysler 300 5.7 Hemi

1. Gather Required Tools and Materials: Before beginning, make sure you have the right tools: a socket wrench set, serpentine belt tool, tensioner tool, and a new serpentine belt designed for the Chrysler 300 5.7 Hemi.

2. Disconnect the Battery: Disconnect the negative terminal of the battery to avoid any electrical hazards while working on the engine.

3. Locate the Serpentine Belt and Tensioner: The serpentine belt runs across the front of the engine, and the tensioner is typically located near the top or side of the engine block. Familiarize yourself with the layout of the belt before removing it.

4. Release Tension from the Belt: Using a serpentine belt tool or a socket wrench, rotate the tensioner pulley clockwise to release tension from the belt. This will allow you to remove the belt from the pulleys.

5. Remove the Old Serpentine Belt: With the tension off, carefully slide the belt off the pulleys. Take note of the routing pattern, as this will be necessary when installing the new belt.

6. Inspect Pulleys: Check the pulleys for wear and damage. If any of the pulleys are damaged, replace them before installing the new serpentine belt.

7. Install the New Serpentine Belt: Begin by threading the new belt through the pulleys, following the correct routing pattern. Make sure the belt sits properly in each groove.

8. Reapply Tension: Use the tensioner tool to rotate the tensioner pulley and apply tension to the new belt. Ensure the belt is tight but not over-stretched.

9. Double-Check Alignment: Inspect the belt to make sure it’s properly aligned on all pulleys. It should sit evenly in the grooves without being twisted.

10. Reconnect the Battery: Once the belt is in place, reconnect the battery’s negative terminal and start the engine to check for any unusual sounds or issues with the new serpentine belt.

11. Final Inspection: Run the engine for a few minutes and check the belt again. Ensure everything is running smoothly without any squeaks or slippage.

Common Issues with the Serpentine Belt on Chrysler 300 5.7 Hemi and How to Troubleshoot

If the serpentine belt on your Chrysler 300 5.7 Hemi starts to slip, squeal, or show signs of wear, it’s time to check for common issues. A worn or damaged serpentine belt can lead to poor engine performance and even total system failure. Below are typical problems and ways to address them.

1. Belt Slipping

If the serpentine belt slips, it usually means the tension is too low. Check the belt tensioner to see if it’s malfunctioning or worn out. Replace the tensioner if needed and ensure the belt is correctly tightened to the manufacturer’s specifications. Regular belt inspection can prevent slipping and premature wear.

2. Squealing Noise

A squealing noise from the serpentine belt typically indicates that the belt is too loose or the pulleys are misaligned. Inspect the pulleys for damage or corrosion and ensure they’re moving freely. Tighten or replace the belt if needed. Lubricating the pulleys may also help reduce noise in some cases.

3. Cracking or Fraying

Cracking or fraying along the belt is a clear sign of wear and tear. It’s usually caused by age or excessive friction. Replace the serpentine belt as soon as you notice any visible damage. Inspect the belt regularly for signs of degradation and replace it every 60,000 to 100,000 miles to avoid failure.

4. Misalignment or Worn Pulleys

If the belt is not running smoothly or seems off-center, the pulleys might be misaligned. Check the alignment of all pulleys, including the alternator, power steering pump, and AC compressor. If a pulley is worn out or damaged, replace it immediately to prevent further damage to the belt.

5. Power Steering Loss

A failure in the serpentine belt can also lead to a loss of power steering, making it hard to steer. If you lose steering power suddenly, it may indicate the belt has broken or slipped off. In such cases, replace the belt and inspect the power steering pump and other components for issues.

6. Alternator Charging Problems

The alternator relies on the serpentine belt to charge the battery. If the belt is slipping or damaged, you may notice dimming headlights or electrical system failures. Check the belt and tensioner to ensure the alternator is functioning properly.

7. Overheating

The serpentine belt also drives the water pump, which is essential for cooling the engine. If the belt fails, the engine can overheat. If you notice rising temperature levels or warning lights on your dashboard, inspect the serpentine belt for damage or wear.

Regular inspections and prompt repairs can keep your Chrysler 300 5.7 Hemi running smoothly and prevent costly repairs in the future. Always use OEM parts for replacements and follow the recommended maintenance schedule for best results.
