2015 Chrysler 200 3.6 Serpentine Belt Diagram and Component Layout
If you’re replacing or inspecting the serpentine belt on the 2015 Chrysler 200 3.6L engine, understanding the belt routing is crucial to ensure everything works as it should. The serpentine belt plays a key role in powering critical engine accessories, so getting the diagram right is a must. Below is the recommended routing and details to help guide you through the process.
The 2015 Chrysler 200 3.6 uses a single serpentine belt that runs through the crankshaft pulley, alternator, air conditioning compressor, power steering pump, and water pump. It’s important to check the condition of the belt regularly for any signs of wear, cracking, or fraying. If you’re tackling this repair, make sure you have the right tools and take care when removing or installing the belt to avoid damage to components.
Key Components to Check:
Crankshaft Pulley: Drives the entire serpentine system and is critical for the belt’s movement. Ensure there are no issues with the crankshaft pulley before installing the new belt.
Idler Pulley: Helps maintain the proper tension and alignment. If this part is worn, it can lead to belt misalignment and cause the system to fail.
Water Pump Pulley: Often overlooked, but crucial for the cooling system’s functionality. A faulty water pump pulley can cause engine overheating.
Ensure that you’ve located the tensioner pulley, which keeps the belt tight. To relieve tension, use a wrench to rotate the tensioner and remove the belt. After placing the new belt, ensure it’s properly seated and aligned with all pulleys. Once done, check the belt for any signs of improper tension or misalignment. A well-installed belt ensures the smooth operation of your engine accessories.

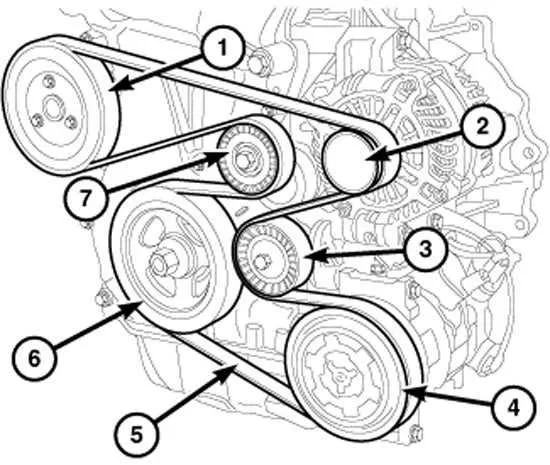

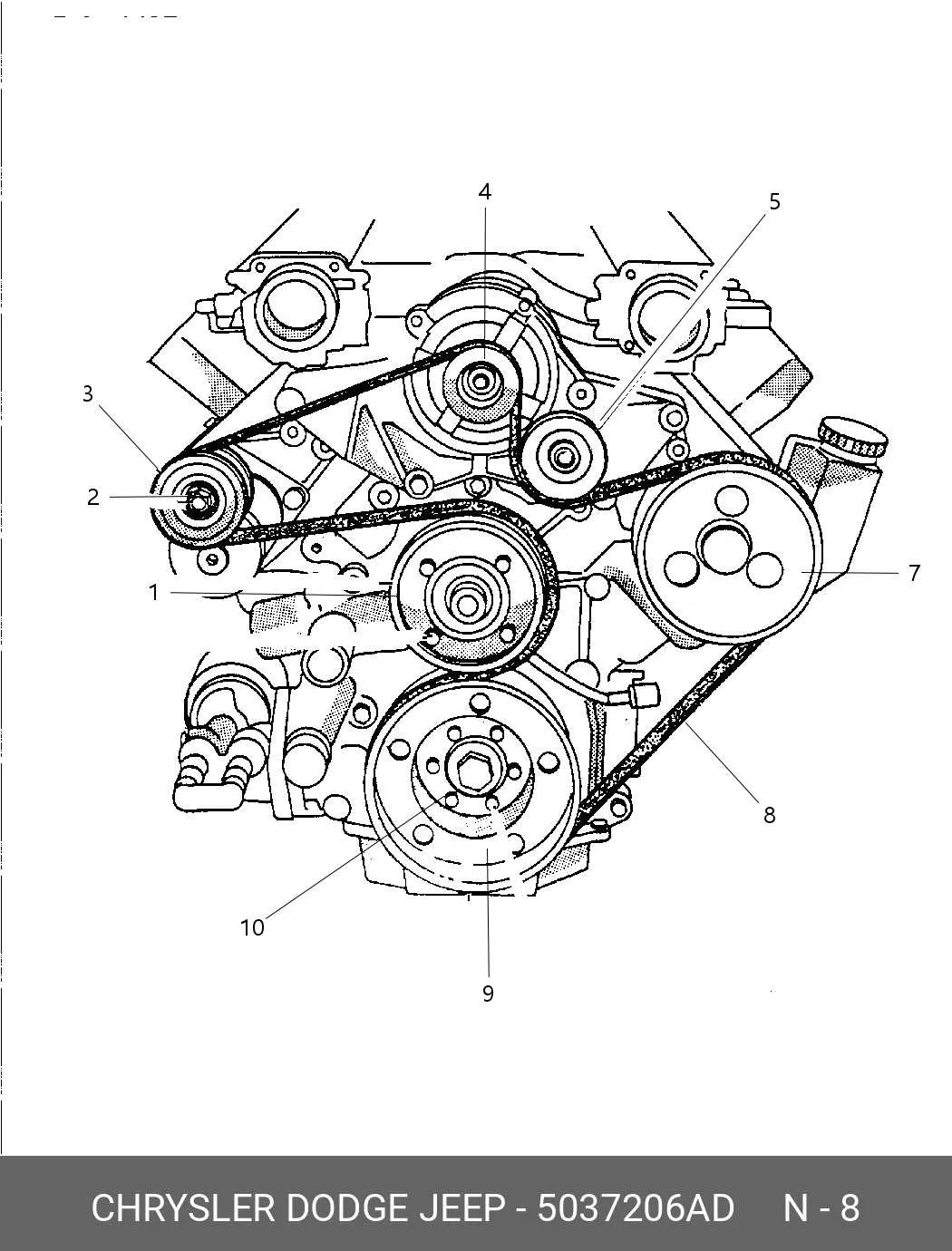

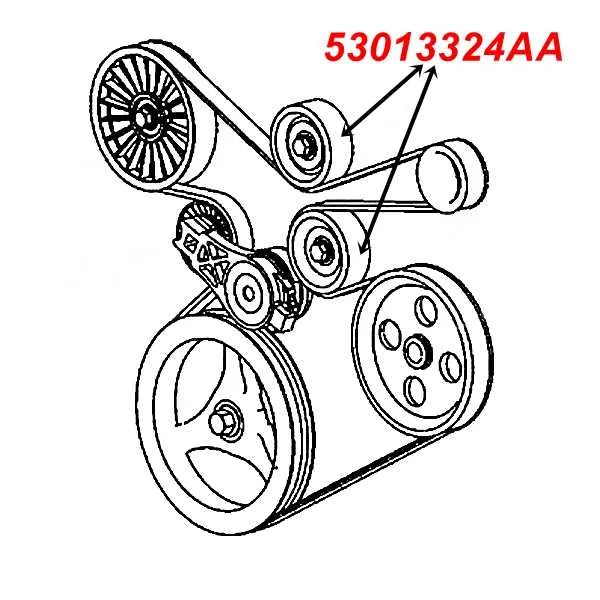

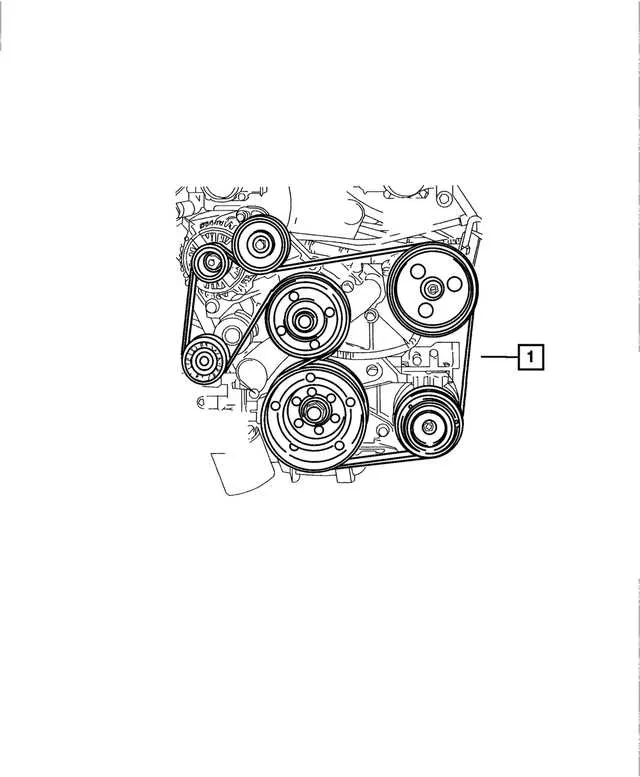

2015 Chrysler 200 3.6 Belt Diagram
For the 2015 Chrysler 200 with a 3.6L engine, the serpentine belt system is essential for driving components such as the alternator, power steering pump, air conditioning compressor, and water pump. Ensuring the belt is routed correctly will prevent unnecessary wear and tear on your vehicle’s engine and components.
The correct belt routing starts at the top of the engine, where the belt loops around the tensioner and idler pulleys. The belt should be routed over the alternator and under the power steering pump pulley. It then passes over the water pump pulley and under the air conditioning compressor pulley. The last section of the belt routes over the crankshaft pulley, completing the loop.
If you’re replacing the belt, it’s crucial to check the tensioner for wear. A worn-out tensioner might not maintain the proper tension, leading to slippage or premature belt damage. Always double-check the belt routing diagram before installation to ensure accuracy.
For better longevity, inspect the belt regularly for cracks or fraying. A damaged belt can cause engine performance issues or even result in a complete failure of critical systems. If you hear squealing noises, it could be a sign of a loose or damaged belt, which should be addressed immediately.
Refer to the vehicle’s manual for specific belt size and part number details to ensure compatibility. If you’re unsure, consulting a professional mechanic can save you time and prevent further damage to your engine.
Identifying Key Components of the 2015 Chrysler 200 3.6 Serpentine Belt System
The serpentine belt system in the 2015 Chrysler 200 3.6 is designed to drive several essential engine components. Key parts include the belt itself, tensioner, idler pulleys, alternator, power steering pump, and the air conditioning compressor. Each of these components plays a role in ensuring smooth operation and optimal performance of your vehicle’s engine.
The serpentine belt is the primary component of the system, responsible for transferring power from the engine’s crankshaft pulley to other pulleys. It’s typically a single, long belt that wraps around multiple pulleys, saving space and reducing weight compared to older systems with multiple belts.
The tensioner ensures the belt remains at the correct tension, preventing it from slipping or becoming too tight. Over time, the tensioner may wear out, which can lead to improper belt tension, causing noise or even belt failure.
Idler pulleys guide and support the serpentine belt, ensuring it stays in place and operates smoothly. These pulleys should be checked periodically for wear, as damaged idlers can lead to misalignment or belt slippage.
The alternator is one of the critical components driven by the serpentine belt. It generates electricity to charge the battery and power electrical systems in the vehicle. A worn or loose serpentine belt can cause the alternator to underperform, leading to battery drain or electrical malfunctions.
The power steering pump relies on the serpentine belt to operate. If the belt fails, steering can become stiff, making it harder to maneuver the vehicle, especially at low speeds.
The air conditioning compressor is another key component driven by the serpentine belt. If the belt breaks or slips, the air conditioning system will stop working, impacting comfort inside the vehicle.
For proper maintenance, always inspect the belt for signs of wear such as cracks, fraying, or glazing. A damaged belt can affect all the connected components, leading to more severe engine issues if not addressed.
Step-by-Step Guide to Replacing the Serpentine Belt on the 2015 Chrysler 200 3.6
To replace the serpentine belt on the 2015 Chrysler 200 3.6, follow these steps for a smooth process:
- Gather Tools and Parts
- New serpentine belt
- Socket set
- Torque wrench
- Breaker bar
- Serpentine belt tool (optional but helpful)
- Locate the Belt Tensioner
The belt tensioner is on the passenger side of the engine. It’s usually accessible without removing other components. Identify the spring-loaded mechanism and the bolt for loosening the tension.
- Release Tension from the Belt
Use a breaker bar or serpentine belt tool to rotate the tensioner clockwise. This will release the pressure on the belt, allowing you to remove it from the pulleys.
- Remove the Old Belt
Once the tension is released, slide the belt off the pulleys carefully. Take note of how the belt is routed around the pulleys to ensure proper installation of the new one.
- Inspect Pulleys and Tensioner
Before installing the new belt, check the condition of the pulleys and the tensioner. If any of the pulleys feel rough or wobble, replace them as needed. A faulty tensioner can cause premature wear on the new belt.
- Install the New Belt
Route the new serpentine belt around the pulleys, following the same pattern as the original. Make sure the belt sits properly in the grooves of each pulley.
- Apply Tension
Use the serpentine belt tool or breaker bar to rotate the tensioner and allow the new belt to slip into place. Ensure the belt is tight and properly aligned on all pulleys.
- Double Check the Routing
Before closing the hood, double-check that the belt is routed correctly. A misrouted belt can cause serious engine damage or failure.
- Test the Installation
Start the engine and observe the belt as it runs. Look for any signs of slipping, unusual noises, or misalignment. If everything looks good, the replacement is complete.
Troubleshooting Common Issues with the Serpentine Belt in the 2015 Chrysler 200 3.6
If the serpentine belt on your 2015 Chrysler 200 3.6 begins to show signs of wear, such as squealing, slipping, or breaking, addressing it quickly will prevent further damage. One common issue is belt slippage. If you notice a loss of power to accessories like the air conditioning or alternator, this could indicate the belt is slipping off the pulleys due to improper tension. Check the tensioner for wear or malfunction and adjust it accordingly.
Another issue is belt cracking or fraying. Inspect the belt for visible signs of damage, such as small cracks or frayed edges. This can happen over time due to exposure to heat, dirt, or excessive wear. If you notice significant damage, replace the belt to avoid a complete failure that could leave your vehicle stranded.
Misalignment of the pulleys is also a frequent cause of serpentine belt issues. If the pulleys aren’t aligned properly, it can cause the belt to wear unevenly, leading to premature failure. Use a straightedge or laser alignment tool to check the pulley alignment and adjust or replace them as necessary.
Another cause for concern is a damaged or worn-out belt tensioner. If the tensioner is not keeping the correct amount of tension on the serpentine belt, it will slip or fail to engage fully. A malfunctioning tensioner will need to be replaced to ensure the belt stays tight and properly engaged.
Lastly, inspect the belt for signs of contamination. Oil or coolant leaks can cause the belt to slip or degrade faster. Check for any fluid leaks near the belt and address them before replacing the serpentine belt to prevent future issues.
