Chrysler 300 5.7 Belt Diagram for 2013 Model Detailed Overview

To locate the correct belt diagram for the 2013 Chrysler 300 with a 5.7L engine, refer directly to the manufacturer’s specifications. This diagram is key for ensuring your serpentine belt installation is done properly. A well-installed belt guarantees smooth operation of your vehicle’s accessories such as the alternator, power steering pump, and air conditioning compressor.

The diagram can be found under the hood on a label attached to the radiator support or on the front of the engine. If this label is worn or missing, it’s crucial to consult the vehicle’s service manual for the accurate configuration. Make sure to identify the orientation of the belt before proceeding with installation, as incorrect routing can cause undue wear on the components.

For those who prefer a visual reference, a quick search online will yield several detailed images of the correct serpentine belt path for this specific model. Be sure to double-check your engine model and year to avoid discrepancies in the belt configuration. When replacing the belt, inspect pulleys and tensioners for any signs of damage or wear, as these parts directly affect belt performance.

2013 Chrysler 300 5.7 Belt Diagram Guide

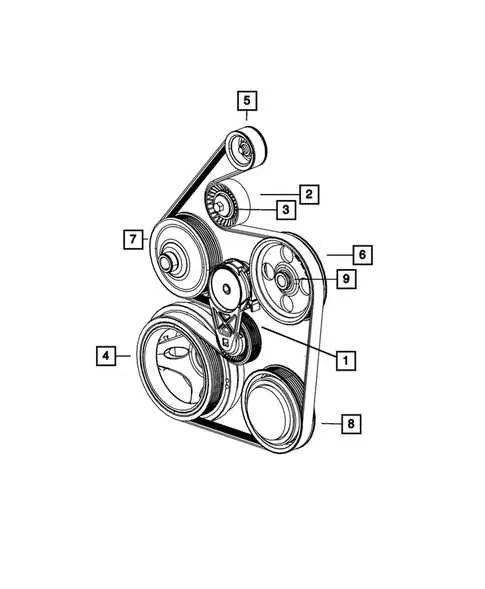

To replace or inspect the serpentine belt on your 2013 Chrysler 300 5.7, refer to the following belt routing diagram to ensure proper installation. This diagram shows the exact path of the belt, starting from the crankshaft pulley, moving through various components like the alternator, power steering pump, and AC compressor.

The belt path is critical for maintaining engine performance, so it’s important to follow the diagram precisely. Make sure the belt is positioned correctly around each pulley to prevent slipping or premature wear. A misaligned belt can cause overheating, poor power steering performance, or charging issues due to alternator failure.

The 2013 Chrysler 300 5.7 engine uses a single serpentine belt that drives multiple accessories. The routing is designed to ensure the belt remains taut and operates smoothly through all components. Check for proper tension before starting the engine to avoid excessive wear or a snapped belt.

Here’s a step-by-step overview:

• Start at the crankshaft pulley: Position the belt on the crankshaft pulley, the largest one at the bottom of the engine.
• Move to the AC compressor: Guide the belt around the AC compressor pulley, located near the front passenger side.
• Route over the alternator: Ensure the belt goes over the alternator pulley, which is next in the routing sequence.
• Go around the power steering pump: The belt then routes around the power steering pump pulley, located near the engine’s front side.

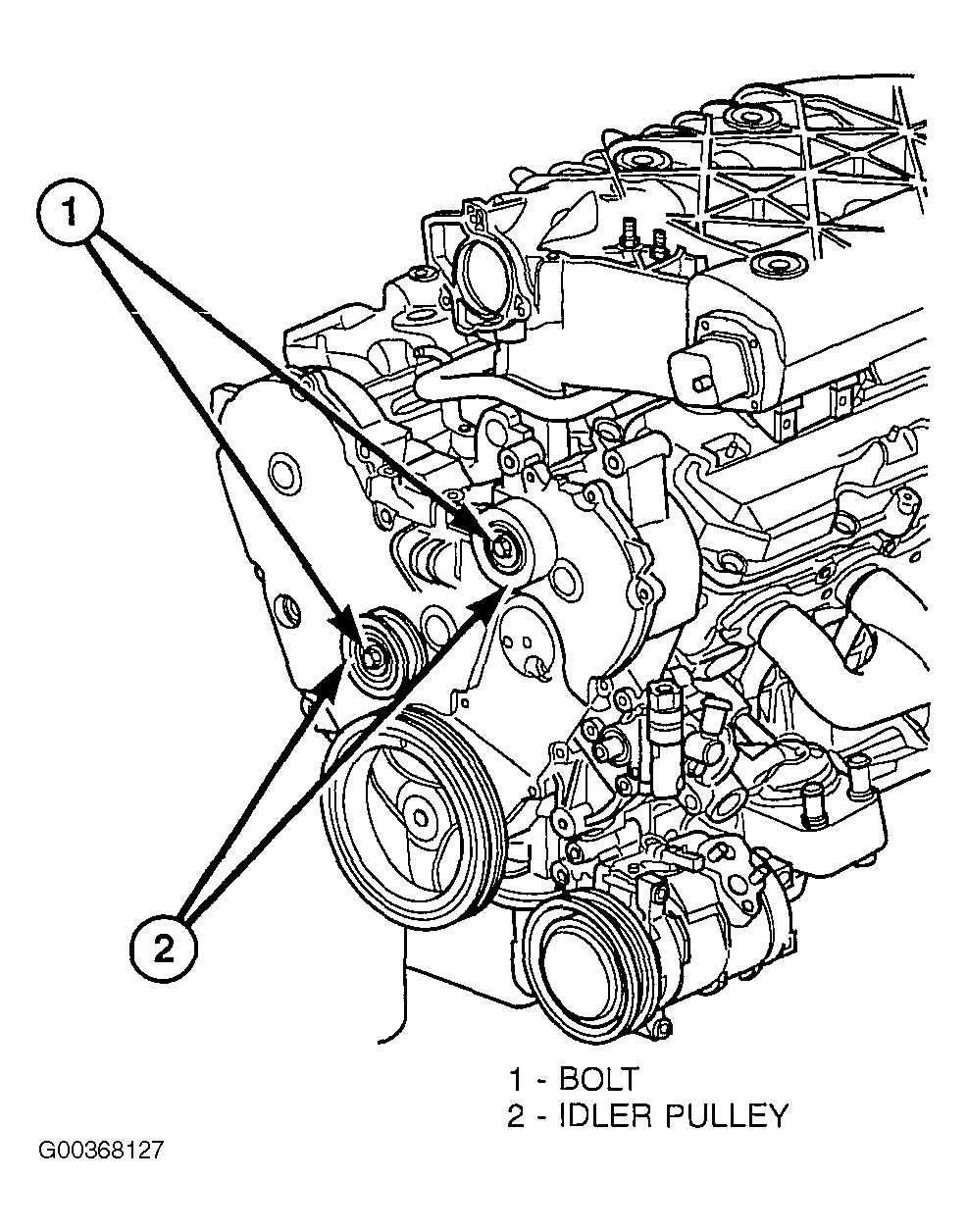

• Check tensioner and idler pulleys: The belt should pass around the tensioner pulley and the idler pulley to maintain correct tension and stability.

After installation, check for any visible wear or signs of damage, like cracks or fraying. Inspect the tensioner and pulleys for proper alignment and smooth operation. A quick visual check can save you time and money by preventing bigger issues later.

For reference, consult the owner’s manual for additional maintenance tips specific to your model. Regular inspections are recommended to ensure your serpentine belt continues to perform optimally.

Understanding the Belt Layout for the 2013 Chrysler 300 5.7

For the 2013 Chrysler 300 5.7, the serpentine belt system is designed to power multiple components like the alternator, power steering pump, air conditioning compressor, and water pump. To ensure smooth operation, the belt must follow a specific path through various pulleys.

The layout consists of a primary serpentine belt that loops around the crankshaft pulley, the water pump, the alternator, and the air conditioning compressor. Additionally, it engages the power steering pump and other accessories. The tensioner pulley is responsible for maintaining proper belt tension, preventing slipping or misalignment.

It’s crucial to replace the serpentine belt at regular intervals, as wear and tear can cause it to break or slip. Always inspect the belt for any signs of fraying, cracks, or glazing. If any of these issues are present, replacing the belt immediately is recommended to avoid damage to engine components.

Refer to the vehicle’s owner manual or a detailed belt diagram to understand the exact routing. Accurate belt routing is critical for optimal engine performance and the longevity of the components it drives.

Step-by-Step Process to Replace the Serpentine Belt

First, disconnect the negative battery terminal to ensure safety while working. Use a wrench to loosen the tensioner pulley, which will release pressure on the serpentine belt. Carefully remove the old belt from all pulleys, taking note of its routing.

Inspect the pulleys and other components for wear or damage. If any parts are faulty, replace them before installing the new belt. Compare the new serpentine belt with the old one to ensure it matches in size and shape.

Position the new serpentine belt according to the diagram on the engine compartment or service manual. Make sure the belt fits properly over each pulley and runs in the correct direction.

Once the belt is in place, use the wrench to tension the pulley back into position. Double-check the belt alignment and ensure it sits correctly in the grooves of all pulleys.

Reconnect the battery and start the engine to test the belt. Listen for any unusual noises and observe if the belt is operating smoothly. If everything looks good, you’ve successfully replaced the serpentine belt.

Troubleshooting Common Issues with the Belt System

If you notice squealing, slipping, or overheating, the first step is to inspect the serpentine belt. A worn or loose belt can cause many problems. Check for visible signs of damage, such as cracks, fraying, or glazing on the surface.

Loose tension is another common issue. If the belt seems too slack, it may not have enough tension to grip the pulleys effectively. Check the belt tensioner and replace it if it fails to keep proper tension. An automatic tensioner can sometimes lose its ability to maintain pressure, leading to a loose belt.

• Inspect for pulley misalignment – a misaligned pulley can cause premature belt wear and reduce performance.
• Look for oil or coolant leaks, as these can weaken the belt material and cause it to deteriorate faster.
• Pay attention to any unusual noises, especially squealing. This could indicate that the belt is slipping on a pulley, often due to lack of tension or debris buildup.

It’s also important to check the pulley bearings. If a bearing is failing, it will cause additional strain on the belt and may result in system failure. Feel for any roughness or noise when manually spinning the pulleys.

When replacing a worn-out belt, always ensure that the new one matches the original specifications for your vehicle. Installing the wrong size or type of belt can lead to further issues.
