2013 Chrysler 200 2.4L Serpentine Belt Diagram and Installation Guide

The serpentine belt in your 2013 Chrysler 200 2.4L engine plays a key role in driving multiple components, such as the alternator, power steering pump, and air conditioning compressor. To replace or inspect this belt, it’s critical to understand its routing and the correct diagram for your specific engine model.

Begin by identifying the components the serpentine belt interacts with. The diagram clearly shows how the belt routes around the tensioner, idler pulleys, and accessories. This helps you visualize the belt’s path and avoid mistakes during installation or removal.

Before proceeding, ensure the engine is off, the battery is disconnected, and the vehicle is secure. Once you have access to the belt, carefully follow the diagram’s guidance for tensioner adjustment and belt removal. If replacing the serpentine belt, choose a high-quality part that matches the diagram’s specifications.

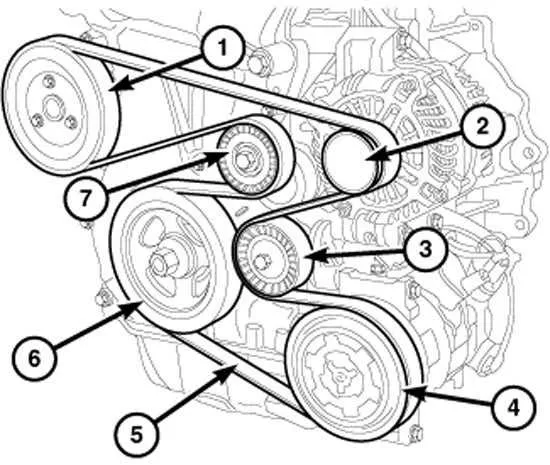

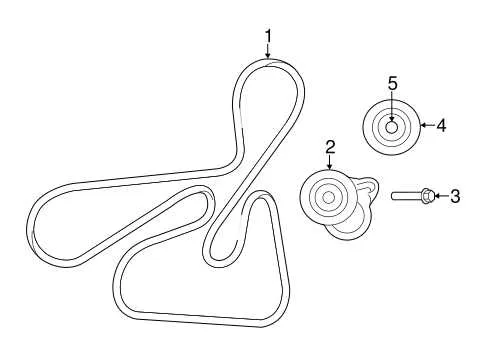

2013 Chrysler 200 2.4L Serpentine Belt Diagram

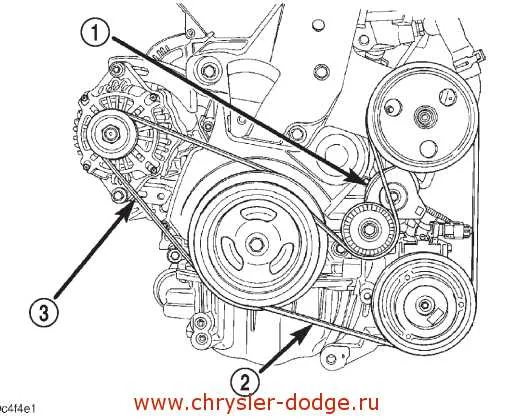

The serpentine belt on the 2013 Chrysler 200 2.4L engine plays a crucial role in powering various engine accessories. This diagram shows the path the belt takes as it drives components like the alternator, power steering pump, and air conditioning compressor.

Start by inspecting the belt routing to ensure it follows the correct path as shown in the diagram. The tensioner should be in good condition to maintain proper tension. The belt should wrap around the crankshaft pulley, water pump, and other pulleys in the engine bay, keeping them powered while preventing slippage.

Pay attention to the specific direction of the belt and ensure all pulleys are aligned. If the serpentine belt shows signs of wear, such as cracks or fraying, replace it immediately to prevent damage to the engine components it drives.

For proper installation, make sure the belt is tight enough to avoid slipping but not overly tight, which could put stress on the components. After installation, verify that the belt is properly aligned by rotating the engine by hand and ensuring the belt stays on all pulleys.

Step-by-Step Guide to Replacing the Serpentine Belt on a 2013 Chrysler 200 2.4L

First, gather all necessary tools: a socket wrench, serpentine belt tool or tensioner tool, and the new serpentine belt. Make sure the car is turned off and the keys are removed from the ignition.

Start by lifting the front of the vehicle with a jack and securing it with jack stands. Ensure the car is stable before continuing. You’ll need access to the engine bay, so open the hood and locate the serpentine belt system. The belt routing diagram is often found on the engine cover or near the radiator area.

Use the serpentine belt tool to release tension from the tensioner pulley. Insert the tool into the slot on the tensioner pulley and rotate it clockwise (or counterclockwise depending on your model) to relieve tension on the belt. Once the tension is released, slide the old belt off the pulleys.

Before installing the new belt, compare it with the old one to ensure the correct size. Starting with the crankshaft pulley, loop the new serpentine belt around the pulleys following the diagram you located earlier. Make sure the belt sits properly in the grooves of each pulley.

Once the belt is in place, slowly release the tensioner pulley to apply tension to the new belt. Double-check that the belt is properly aligned on all pulleys. There should be no slack or misalignment.

Lower the car from the jack stands and start the engine to ensure the belt runs smoothly. Listen for any unusual sounds, and observe the belt’s movement to ensure it is properly tensioned and aligned.

If everything looks good, close the hood, and the job is complete. Your serpentine belt is now successfully replaced!

Identifying the Tensioner and Pulley System in the 2013 Chrysler 200 2.4L Serpentine Belt Setup

The serpentine belt system in the 2013 Chrysler 200 2.4L relies on a tensioner and pulleys to ensure proper operation and belt movement. The tensioner, positioned near the alternator, is responsible for maintaining correct tension on the belt. It is spring-loaded and automatically adjusts tension as the belt wears or stretches over time.

The primary pulley system consists of several pulleys, including the crankshaft pulley, idler pulley, and alternator pulley. The crankshaft pulley drives the serpentine belt, while the idler pulley keeps the belt aligned along the other components. The alternator pulley helps drive the alternator, ensuring it generates power for the vehicle’s electrical system.

To identify these components, visually inspect the belt path starting from the crankshaft pulley. Follow the belt around to locate the tensioner, which can be identified by its spring-loaded arm. The idler pulley sits between the tensioner and the alternator, maintaining the belt’s position on the system. Each pulley is secured by a bolt, and the tensioner typically has a pulley wheel attached for smooth movement.

When replacing or maintaining the system, ensure the tensioner is functioning properly. If the tensioner seems loose or does not hold adequate tension, it may need replacement. The pulleys should also be checked for wear, as damaged pulleys can lead to misalignment or premature wear of the serpentine belt.

Common Issues with the 2013 Chrysler 200 2.4L Serpentine Belt and How to Fix Them

The serpentine belt in the 2013 Chrysler 200 2.4L can face several common issues, ranging from wear and tear to misalignment. Understanding how to identify and address these problems can save time and prevent costly repairs.

• Cracking or Fraying: Over time, the serpentine belt may develop cracks or fray due to prolonged exposure to heat and friction. To fix this, inspect the belt regularly for visible damage and replace it if necessary. The replacement process involves loosening the tensioner, removing the old belt, and installing a new one.
• Slipping: Slipping occurs when the belt loses grip on the pulleys, often due to wear on the belt or the tensioner. If you hear a squealing noise or notice that accessories (such as the alternator or power steering) are malfunctioning, the belt may be slipping. To resolve this, check the tensioner for any issues and replace it if needed. If the belt is still in good condition, simply tightening it may solve the issue.
• Misalignment: Misalignment of the serpentine belt can cause uneven wear and lead to further damage. If the belt is not tracking properly on the pulleys, inspect the pulleys for wear or misalignment. If any pulleys are damaged, they must be replaced to ensure proper belt function.
• Worn Tensioner: A faulty tensioner will cause the belt to be too loose or too tight, both of which can lead to problems. If the belt keeps slipping or seems too tight, replace the tensioner. This will restore the correct tension and prevent further damage to the belt or engine components.

Regular inspection and prompt replacement of worn components will extend the life of the serpentine belt and keep your 2013 Chrysler 200 2.4L running smoothly.
