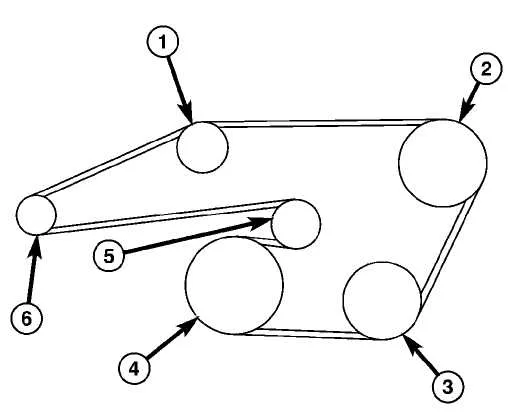

Check the belt routing on the 2006 Chrysler 300C before starting any replacement. The diagram shows the path across the alternator, power steering pump, air conditioning compressor, and crankshaft pulley. Proper alignment prevents squealing and premature wear.

Use a 15mm wrench or serpentine belt tool to release tension on the automatic tensioner. While holding the tensioner back, slide the belt off the closest pulley. Compare the old belt with the new one to confirm correct length and rib count before installation.

Follow the routing diagram carefully during reinstallation. The ribs of the belt must sit fully inside each pulley groove, while the flat side should ride on smooth pulleys. Rotate the crankshaft manually for one full turn to verify that the belt tracks correctly before starting the engine.

:::

Identifying Pulley Locations and Belt Routing

Identify the correct location of each pulley to ensure proper serpentine belt routing on the 2006 Chrysler 300C. Follow this guide to avoid misalignment and ensure smooth operation.

• Crankshaft Pulley: This is the largest pulley located at the engine’s front. It drives the serpentine belt and powers the other components.
• Alternator Pulley: Positioned on the top of the engine, it powers the alternator. Ensure the belt wraps securely around it.
• Power Steering Pulley: Found near the front passenger side, it drives the power steering system. Keep the belt tight on this pulley.
• AC Compressor Pulley: Located near the bottom of the engine, it powers the air conditioning compressor.
• Tensioner Pulley: Found near the center of the engine bay, it maintains tension on the belt. Adjust the tensioner to keep the belt tight.
• Idler Pulley: This pulley helps maintain the belt’s correct alignment. It can be positioned at the top or bottom depending on the engine layout.

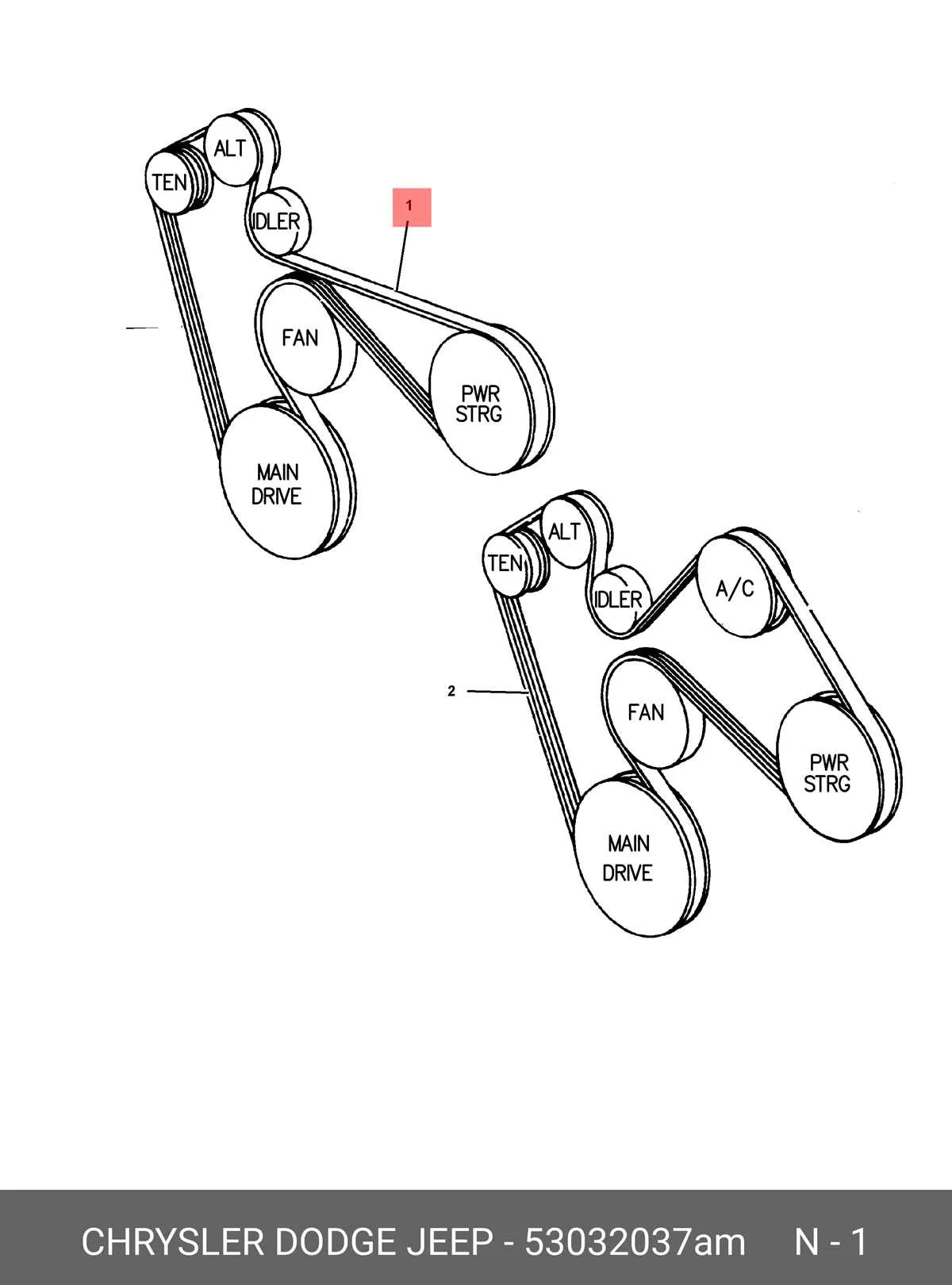

The belt should be routed starting with the crankshaft pulley. From there, it moves to the alternator, power steering, AC compressor, and tensioner pulleys. The idler pulley keeps the belt aligned and under the correct tension.

Double-check the routing by referring to a diagram to prevent mistakes. Incorrect routing can cause slipping, wear, and noise, affecting engine performance.

Steps to Remove the Old Serpentine Belt

Lift the car using a jack and secure it with jack stands. Make sure the engine is off and cool before proceeding.

Locate the serpentine belt tensioner. It’s usually found near the alternator or power steering pump. Use a ratchet wrench to rotate the tensioner clockwise or counterclockwise, depending on the design, to relieve tension from the belt.

Once the tension is released, slide the belt off the pulleys carefully. Pay attention to the routing diagram (often found near the engine bay) to ensure you can install the new belt correctly.

Check for any worn or damaged components, like pulleys or the tensioner, before removing the belt entirely. If these parts show signs of wear, replace them before putting on the new belt.

Remove the serpentine belt completely and set it aside for disposal or recycling.

Installing a New Belt and Verifying Alignment

First, position the new serpentine belt onto the pulleys according to the diagram for the 2006 Chrysler 300C. Ensure the belt runs smoothly over each component, from the crankshaft pulley to the alternator, power steering pump, and other driven accessories. Make sure the belt is properly seated in each groove, avoiding any misalignment that could lead to premature wear or damage.

Once the belt is in place, check its tension. A loose belt can cause slipping, while too tight a belt can lead to excessive wear or strain on the pulleys. Use a belt tension gauge or, if unavailable, manually press down on the belt between the pulleys. There should be a slight amount of give (about half an inch of movement) without excessive slack.

Inspect the belt’s routing again to ensure it matches the diagram, paying particular attention to the direction of the grooves. Make sure the belt does not cross over itself or deviate from the path marked in the diagram. Double-check the placement of each pulley, including the tensioner and idler pulleys, which should move freely without resistance.

Start the engine and observe the belt while running. Watch for any unusual noise or vibrations that might indicate improper installation. If the belt appears to shift or slip, turn off the engine immediately and inspect the tension and alignment again.
