2006 Chrysler 300 Serpentine Belt Routing Diagram with Pulley and Tensioner Locations
Locate the serpentine belt routing by referring directly to the diagram designed for the 2006 Chrysler 300. This diagram clarifies the belt path around the pulleys, including the alternator, power steering pump, and AC compressor, ensuring correct installation and tensioning.
Follow the specific routing to prevent belt slippage or premature wear. Incorrect alignment often causes noise or accessory failure, which the diagram helps to avoid by showing exact pulley positions and belt direction.
Replace the serpentine belt with one matching the length and width indicated in the diagram. Confirm pulley sizes and belt tensioner placement to maintain optimal belt tension and system performance. Accurate routing guarantees smooth engine operation and prolongs component lifespan.

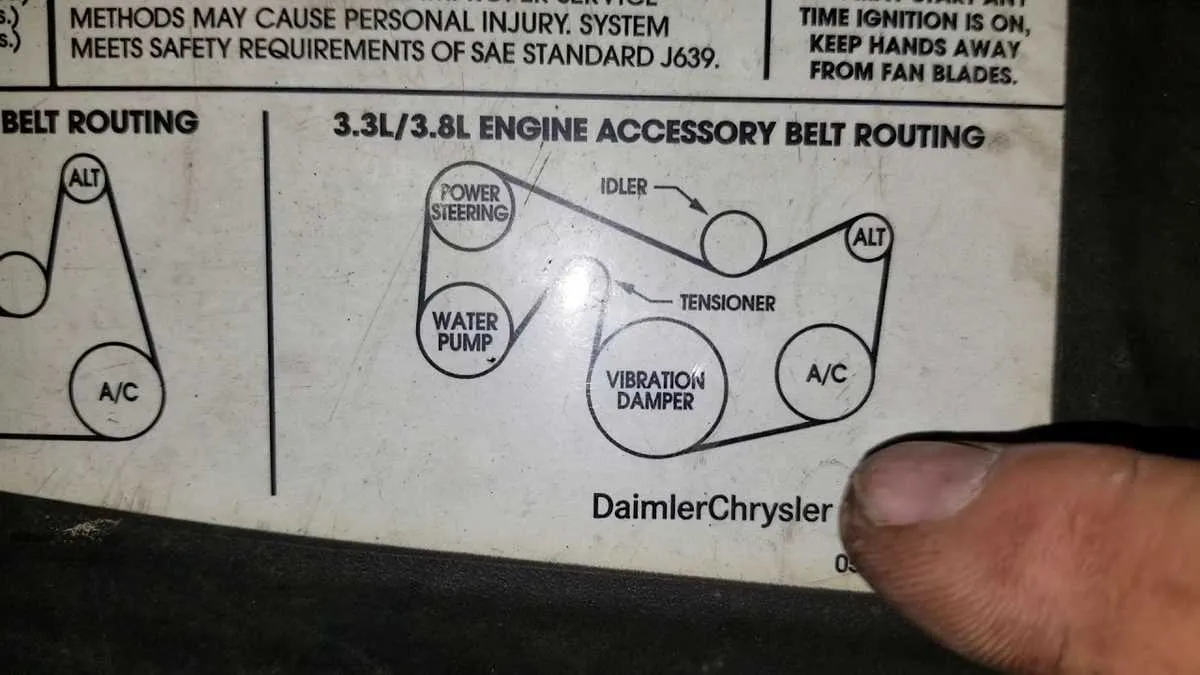

2006 Chrysler 300 Serpentine Belt Diagram
Follow this serpentine belt routing to ensure proper installation on your 2006 Chrysler 300. The belt runs smoothly over the following components:
- Crankshaft Pulley (bottom center)
- Alternator (top right)
- Power Steering Pump (middle left)
- Water Pump (center)
- Air Conditioning Compressor (bottom left)
- Tensioner Pulley (top left)
The belt wraps around the crankshaft pulley first, then moves clockwise over the water pump, then to the power steering pump. It continues upward to the alternator, then down around the A/C compressor before looping around the tensioner pulley to maintain correct tension.
When replacing the serpentine belt, release tension using the tensioner pulley bolt with a wrench or serpentine belt tool. Carefully route the new belt following the diagram above to avoid misalignment, which can cause premature wear or noise.
Check the belt for cracks, fraying, or glazing before installation. Replace it every 60,000 to 100,000 miles or sooner if damage appears. Proper alignment and tension extend belt life and protect engine accessories from damage.
How to Locate and Identify the Serpentine Belt on a 2006 Chrysler 300
Locate the serpentine belt on the front passenger side of the engine bay. It wraps around multiple pulleys, including the crankshaft, alternator, power steering pump, and air conditioning compressor. The belt sits visibly on the outer edge of these components, running in a continuous loop.
To identify the belt, look for a long, ribbed rubber belt with grooves on one side that match the pulley patterns. The belt is tensioned by an automatic tensioner pulley, which keeps it tight without manual adjustment.
Access the area by opening the hood and standing in front of the engine, focusing on the right side. The belt should be easy to spot without removing any parts. For visual reference, locate the large crankshaft pulley near the bottom, as the belt wraps around it and extends upward to other accessories.
Check for a routing diagram sticker under the hood or on the radiator support; this illustrates the exact path of the belt and confirms its location. If missing, refer to the vehicle’s manual or a reliable repair guide for the correct routing.
Inspect the belt for cracks or fraying to ensure it remains in good condition. Correct identification helps during replacements and maintenance, keeping the engine accessories running smoothly.
Step-by-Step Instructions for Removing and Replacing the Serpentine Belt
Locate the serpentine belt tensioner on your 2006 Chrysler 300. Use a wrench or a serpentine belt tool to rotate the tensioner pulley clockwise, releasing tension on the belt.
While holding the tensioner in the released position, carefully slide the serpentine belt off the pulleys. Avoid letting the tensioner snap back suddenly to prevent damage.
Inspect all pulleys and the tensioner for wear or damage before installing the new belt. Replace any worn components to ensure smooth operation.
Refer to the serpentine belt diagram specific to your model to route the new belt correctly around each pulley. Begin by positioning the belt around the crankshaft pulley and then follow the routing path around the alternator, power steering pump, water pump, and A/C compressor as applicable.
Once the belt is properly aligned on all pulleys, rotate the tensioner again to create slack. Slide the belt over the tensioner pulley, then slowly release the tensioner to apply proper tension to the belt.
Double-check the belt’s alignment in all pulley grooves to prevent slipping or premature wear. Turn the engine over by hand to confirm smooth movement before starting the vehicle.
Common Routing Patterns for 2.7L, 3.5L, and 5.7L Engine Variants
The serpentine belt routing on the 2006 Chrysler 300 varies slightly depending on the engine type. The 2.7L engine uses a simpler path, looping around the crankshaft pulley, alternator, water pump, and tensioner with minimal idlers. This layout keeps the belt tight with fewer components, reducing maintenance points.
For the 3.5L engine, the belt adds the power steering pump pulley to the route. Starting at the crankshaft, the belt moves to the water pump, then the power steering pump, alternator, tensioner, and back. This sequence ensures consistent tension across more accessories, improving reliability.
The 5.7L HEMI engine features the most complex routing due to additional accessories like the air conditioning compressor and a larger alternator. The belt travels from the crankshaft to the water pump, then the power steering pump, A/C compressor, alternator, and finally the tensioner. Idler pulleys maintain proper belt alignment and tension throughout this longer path.
| Engine | Key Pulley Sequence | Additional Notes |
|---|---|---|
| 2.7L | Crankshaft → Water Pump → Alternator → Tensioner | Minimal pulleys, simple routing |
| 3.5L | Crankshaft → Water Pump → Power Steering Pump → Alternator → Tensioner | Includes power steering pump pulley |
| 5.7L | Crankshaft → Water Pump → Power Steering Pump → A/C Compressor → Alternator → Tensioner | Complex routing with idler pulleys for tension |
Always consult the specific belt routing diagram under the hood or in the owner’s manual to verify exact pulley positions and belt paths for your engine variant. Proper routing prevents premature belt wear and maintains optimal accessory function.
