5.7 Chevy 350 Serpentine Belt Diagram for Proper Installation and Maintenance
If you’re working on a 5.7 Chevy 350 engine, understanding the correct belt routing is key to ensuring proper function and avoiding costly repairs. This guide will provide you with a clear and straightforward diagram to help you get the serpentine belt in the right place.
First, locate the crankshaft pulley. It’s typically on the lower part of the engine and plays a major role in driving other components. The diagram shows the belt’s path starting from this pulley and then moving to the alternator, power steering pump, and air conditioning compressor, among other components.
The belt’s tightness is another important factor. Too loose or too tight can lead to issues with engine performance. Use a tensioner to maintain the right amount of pressure across the belt, ensuring smooth rotation of all driven parts.
Check for any worn-out or damaged belts during installation. If the belt shows signs of cracking or fraying, replace it immediately to prevent further engine damage. Keep the belt clean from debris and oil for optimal performance.

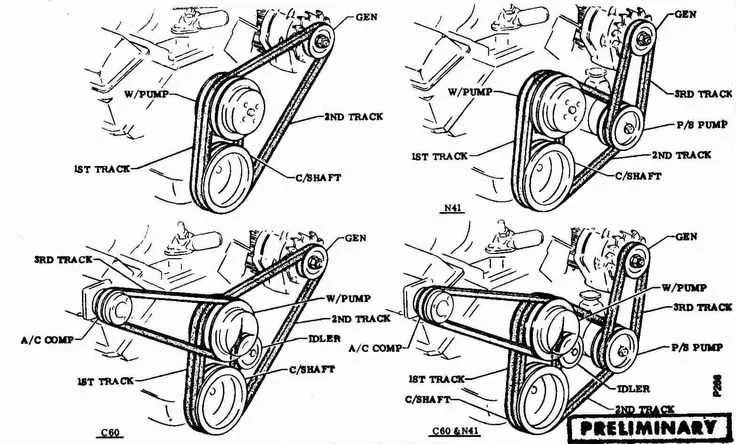

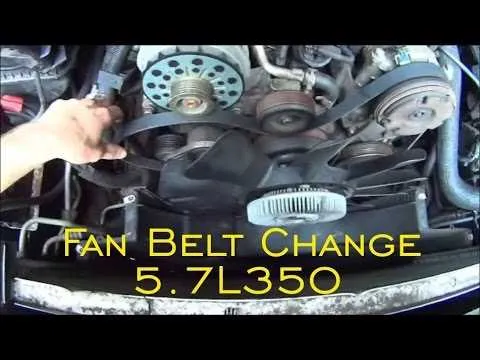

Chevy 350 Belt Diagram
To install or replace the serpentine belt on a Chevy 350 engine, use this step-by-step guide for the correct routing:
- Start with the alternator. The belt wraps around the alternator pulley, then moves to the power steering pump.
- From the power steering pump, move the belt to the water pump pulley.
- Next, the belt goes around the crankshaft pulley. This is a critical step to maintain proper tension.
- Ensure the belt loops over the air conditioning compressor pulley, if equipped, then moves to the tensioner pulley.
- Finish by routing the belt back to the alternator, ensuring it is properly seated in all pulleys.
For the correct tension, use a tensioner tool to adjust the pulley tension. Make sure the belt is snug but not overly tight to prevent wear.
Check the diagram for your specific year and model, as slight variations may exist depending on whether your engine is carbureted or fuel injected.
When replacing the belt, inspect all pulleys and components for wear or damage. Replacing the belt with worn pulleys can reduce the lifespan of the new belt.
If you’re unsure of the exact routing for your Chevy 350 engine, refer to the manufacturer’s service manual for a detailed diagram specific to your model year.
How to Read the 5.7 Chevy 350 Serpentine Belt Diagram

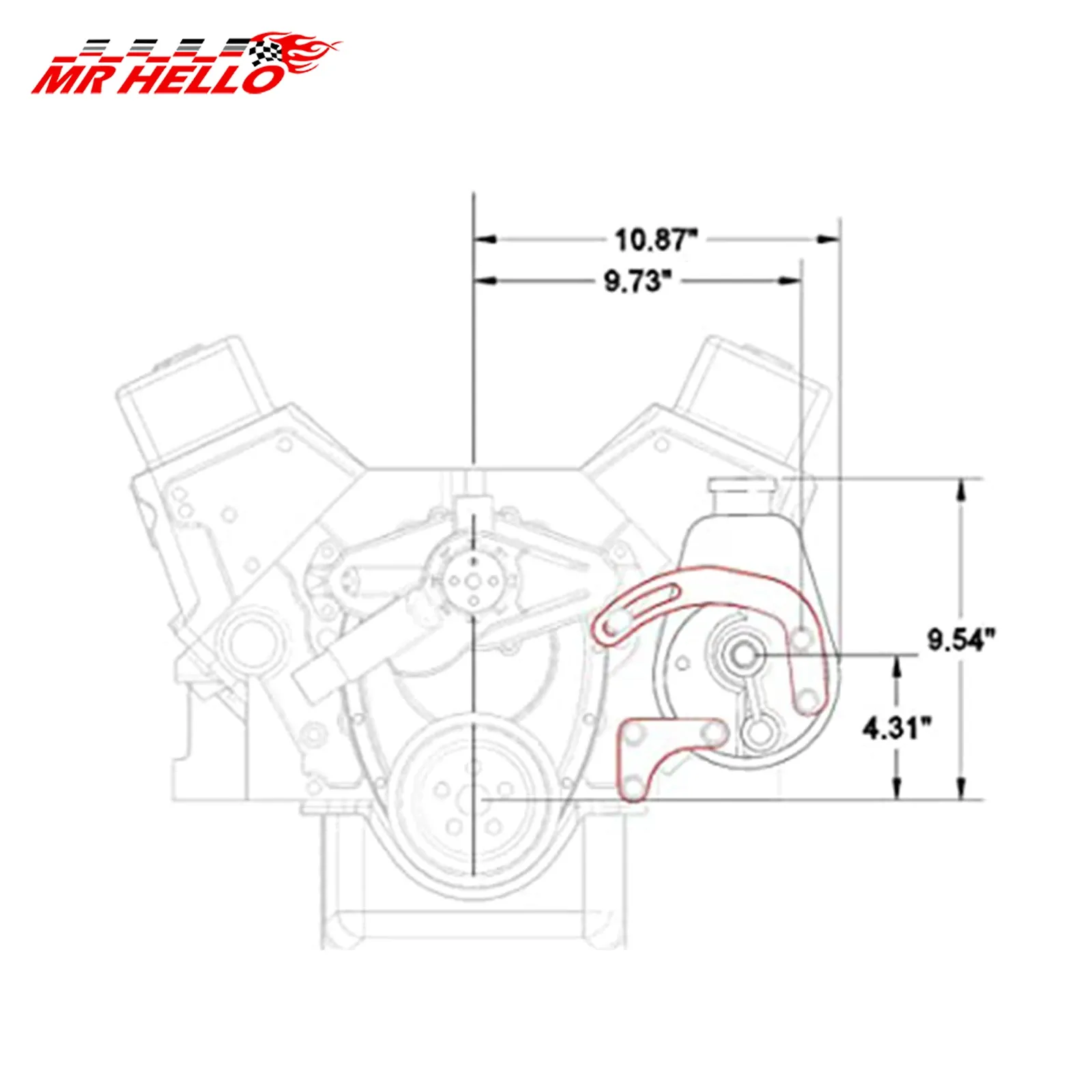

Start by identifying the main components on the diagram. These include the alternator, power steering pump, water pump, and AC compressor. Each component has a corresponding symbol. Look for arrows to track the belt’s direction around these parts.
Next, note the route of the serpentine belt. Follow the path from the crankshaft pulley and ensure it loops correctly around each accessory. Pay attention to the tensioner pulley, which keeps the belt tight. It’s usually shown with a spring-loaded mechanism, and it’s key to belt tension.
Check for the presence of any idler pulleys, which are used to guide the belt. The diagram will show their positions, ensuring the belt stays aligned with all the components. The idler pulleys help manage the overall path and tension of the belt system.
Verify the belt’s routing. A common mistake is misrouting the belt, which can lead to malfunctioning components or even damage. Cross-reference the diagram with your engine setup to make sure everything lines up correctly. If any component seems out of place, it’s crucial to correct it before starting the engine.
When replacing or inspecting the belt, use the diagram as a reference for proper alignment and tension. A visual check can save you time and ensure your serpentine belt operates smoothly without excessive wear.
Common Belt Tension Issues in the 5.7 Chevy 350 Engine
Check the tensioner pulley first. A worn-out pulley can cause insufficient tension, leading to slipping or squealing sounds. If the pulley seems rough or wobbly, replace it immediately.
Inspect the serpentine belt for any visible wear. Cracks or fraying can be signs that the belt isn’t tight enough. In most cases, the belt should be replaced along with the tensioner to ensure proper tension.
Check for misalignment. If the belt isn’t running straight or appears off-center, this could indicate a problem with the pulleys or the tensioner itself. Misalignment can lead to premature belt wear or even failure.
Be aware of over-tightening. Too much tension can put strain on the bearings in the pulleys, potentially causing them to wear out faster. If the belt feels too tight, loosen it slightly until it runs smoothly.
If the belt tensioner isn’t holding the proper tension, it might be time to replace it. These parts wear out over time, and a faulty tensioner won’t maintain consistent pressure, leading to issues like belt slippage or squeaking.
Lastly, inspect the idler pulleys. Any noise or vibration from these pulleys can indicate a failure that’s affecting the overall belt tension. Replacing the idler pulleys before they fail completely can save you from bigger repair costs down the line.
Replacing the Serpentine Belt on the 5.7 Chevy 350
To replace the serpentine belt on your 5.7 Chevy 350, start by disconnecting the negative battery terminal to avoid any electrical issues. Use a serpentine belt tool or a socket wrench to relieve tension on the tensioner pulley. Turn the tensioner clockwise to loosen the belt.
Remove the old serpentine belt from the pulleys. Make sure to take note of the belt routing, as you’ll need to install the new belt in the same pattern. You can refer to the belt diagram for your engine, usually found on a sticker under the hood or in the owner’s manual.
Before installing the new belt, check the condition of the pulleys and tensioner. If there are any signs of wear or damage, replace them. Install the new serpentine belt, ensuring it sits correctly in each pulley groove. Once in place, use the serpentine belt tool to move the tensioner pulley again, allowing you to fit the belt fully into position.
After installation, check the belt’s alignment and ensure it’s secure on all pulleys. Reconnect the battery terminal. Start the engine and observe the belt in motion to make sure it runs smoothly. If you hear any squeaks or notice the belt slipping, double-check the installation.
