2012 Chevy Impala 3.6 Liter Serpentine Belt Diagram and Routing Guide

For smooth operation of your 2012 Chevy Impala, keeping the serpentine belt in check is key. The serpentine belt is responsible for driving critical accessories like the alternator, power steering pump, and air conditioning compressor. Understanding its routing and tension will help you maintain your vehicle’s performance and prevent issues down the road.

The 3.6L engine in the 2012 Chevy Impala has a specific serpentine belt configuration. To avoid any confusion during installation or replacement, you can follow the diagram carefully. The belt should follow a precise route, looping around the crankshaft pulley, water pump, alternator, and more, in a specific order. Misalignment or improper tension could lead to squealing sounds or complete system failure.

Ensure you check the condition of the belt regularly, looking for signs of wear such as cracks or fraying. If any issues arise, the serpentine belt must be replaced immediately to avoid further damage. A clear understanding of the belt diagram ensures a quicker and smoother replacement process, saving you both time and money.

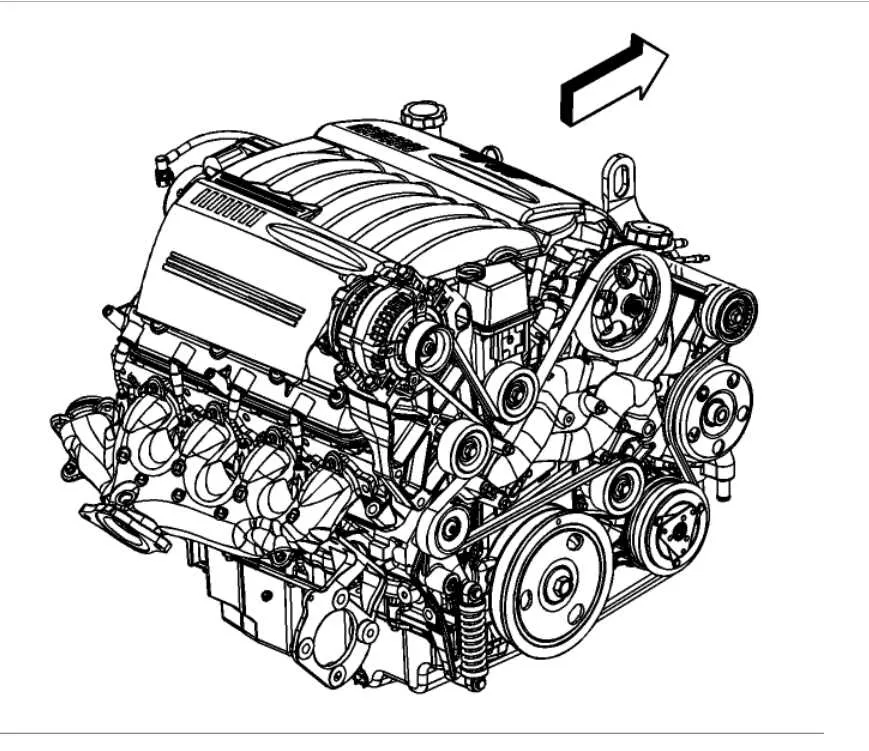

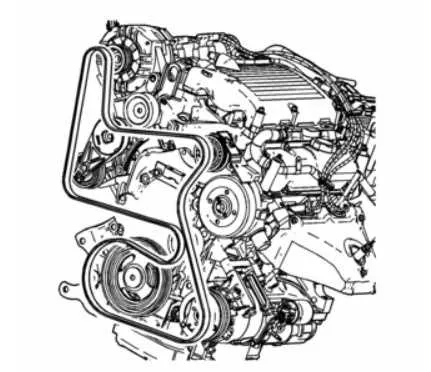

2012 Chevy Impala Serpentine Belt Diagram (3.6L Engine)

To replace or inspect the serpentine belt on a 2012 Chevy Impala with a 3.6L engine, it’s crucial to follow the correct routing path. The serpentine belt drives multiple accessories such as the alternator, power steering pump, and air conditioning compressor. Below is the proper diagram for this engine model.

• The belt should run from the crankshaft pulley at the bottom of the engine, around the tensioner pulley, then over the alternator pulley, and across the air conditioning compressor pulley.
• From the A/C compressor, the belt moves over the power steering pulley, looping back towards the water pump pulley.
• The final path leads the belt back to the crankshaft pulley to complete the circuit.

Ensure that the tensioner pulley is properly positioned and that the belt is snug. If the belt has significant wear, cracks, or other signs of damage, replace it immediately to avoid further engine issues.

For accurate installation, refer to the belt diagram often found on the front of the engine bay or near the radiator. This diagram provides a visual aid, especially when reinstalling the belt after replacement.

Regularly check the belt for signs of wear, as a worn serpentine belt can cause a drop in engine performance and damage vital components. If you’re unsure about installation, consider seeking professional help or consulting a repair manual for your specific vehicle model.

How to Identify the Correct Serpentine Belt Routing for a 2012 Chevy Impala 3.6L

Check the engine bay for the belt routing diagram on the plastic engine cover or near the radiator. This diagram provides the exact path the serpentine belt should take around the pulleys and tensioner. If the diagram is missing or damaged, refer to the factory service manual for the 2012 Chevy Impala 3.6L, which includes a detailed routing diagram. Ensure the belt follows the correct direction around the crankshaft pulley, water pump, alternator, and other components.

Before installing a new serpentine belt, confirm its length and fit with the routing diagram. The belt must be tensioned properly to avoid slipping or wear. A diagram will usually show the location of the tensioner pulley, which adjusts the belt’s tension. Rotate the tensioner arm with a wrench to relieve tension and install the new belt. Double-check that the belt is aligned with each pulley and that it doesn’t twist, ensuring smooth operation when the engine starts.

If you’re unsure about the proper routing, consider consulting a mechanic for confirmation or use an online service like a repair guide for a step-by-step approach. This ensures the belt is routed correctly and avoids potential damage to the engine components.

Step-by-Step Instructions for Replacing the Serpentine Belt on a 2012 Chevy Impala 3.6L

To replace the serpentine belt on your 2012 Chevy Impala 3.6L, gather these tools: a 3/8″ ratchet wrench, a serpentine belt tool or a socket wrench, and a new serpentine belt. You’ll also need a wrench to relieve tension from the tensioner pulley.

1. Locate the Serpentine Belt and Tensioner Pulley: Open the hood and identify the serpentine belt routing diagram, which is typically found on the radiator support or the underside of the hood. The tensioner pulley is usually located near the top of the engine, slightly to the left of the center.

2. Relieve Tension: Use a 3/8″ ratchet or serpentine belt tool to rotate the tensioner pulley clockwise. This will release tension on the belt. While holding the tensioner, slide the belt off one of the pulleys. Slowly release the tensioner back into position once the belt is off.

3. Remove the Old Belt: After relieving tension, remove the old serpentine belt from the engine. Be careful not to damage the pulleys or surrounding components as you take it off.

4. Inspect Pulleys: Before installing the new belt, check all pulleys for damage or wear. Look for cracks, missing teeth, or excessive wear on the pulleys. Replace any damaged parts before proceeding.

5. Install the New Serpentine Belt: Refer to the serpentine belt routing diagram to ensure correct placement. Start by positioning the belt around the pulleys that are easiest to access, making sure it fits snugly in each groove. Make sure the belt is aligned properly with all pulleys.

6. Apply Tension: Use the serpentine belt tool or ratchet wrench to rotate the tensioner pulley again, allowing you to slide the belt into place on the final pulley. Ensure the belt is centered on all pulleys and has the correct tension.

7. Double-Check the Installation: Before closing the hood, rotate the engine by hand using the belt to ensure everything moves freely and the belt runs smoothly on all pulleys. If everything is in order, close the hood.

8. Start the Engine: Start the car to confirm the serpentine belt is running smoothly and without noise. If the belt is making squealing sounds or showing signs of slipping, check the tension and alignment again.

Common Issues and Troubleshooting Tips for Serpentine Belt Problems in the 2012 Chevy Impala 3.6L

If your 2012 Chevy Impala 3.6L’s serpentine belt is slipping, squealing, or has visible damage, it’s time to address the issue before it leads to more significant engine problems. One of the most common signs of a failing serpentine belt is unusual noise, such as squealing or chirping, especially during startup. This is often caused by belt misalignment, wear, or tension issues. Regular inspection for cracks, fraying, or signs of glazing will help prevent these issues.

A common problem with serpentine belts in the 2012 Chevy Impala is belt tension loss, typically due to a failing tensioner. A worn-out tensioner can cause the belt to slip or loosen, leading to poor performance of engine accessories like the alternator, air conditioning, and power steering. If your vehicle experiences dimming headlights or stiff steering, the tensioner might be the culprit.

If the belt is fraying or cracking, it may be time to replace it. It’s essential to install the new belt properly and ensure it fits snugly in the grooves of all pulleys. An improper installation can result in premature wear or belt slippage. Always check for pulley alignment and smooth movement before installing the new belt.

When replacing the serpentine belt, inspect the pulleys for damage. A worn-out pulley bearing can contribute to belt failure, and replacing it along with the belt can prevent future issues. Check the alternator, power steering, and A/C compressor pulleys for any signs of wear or resistance during manual rotation.

If you notice the belt coming off, it could be a sign of an alignment issue or excessive wear in one or more components. Examine the pulleys for corrosion, misalignment, or any unusual wear patterns. Addressing these issues early can save you from more expensive repairs later on.
