2021 Chevy Silverado Serpentine Belt Routing and Diagram for Easy Installation

To locate and replace the serpentine belt on a 2021 Chevy Silverado, start by reviewing the belt routing diagram. This diagram provides a clear visual guide to ensure the belt is properly installed. The serpentine belt drives multiple accessories, such as the alternator, power steering pump, and air conditioning compressor, making correct installation critical for vehicle performance.

On the 2021 Silverado, the serpentine belt routing starts with the crankshaft pulley, traveling through the tensioner, and then routing around components like the water pump, alternator, and power steering pump. The diagram for this model also shows the correct direction for the belt to move, which is essential for ensuring proper function and longevity of the belt and components.

If you’re replacing the belt, make sure to inspect the tensioner. A worn or malfunctioning tensioner can cause the belt to slip, which might lead to further mechanical issues. Be sure to adjust the new belt properly using the tensioner mechanism before securing it into place.

For a step-by-step guide, always refer to the specific diagram in your owner’s manual or online resources. This ensures you’re following the correct path and not missing any details that could affect your truck’s operation.

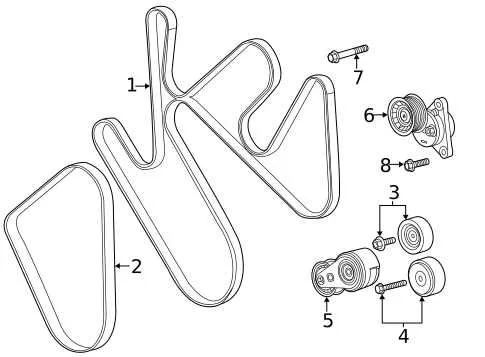

2021 Chevy Silverado Serpentine Belt Diagram

To replace or inspect the serpentine belt on a 2021 Chevy Silverado, refer to the diagram specific to your engine model. Make sure to follow the routing closely to avoid damaging the belt or other components.

The serpentine belt in the 2021 Silverado drives several key components like the alternator, power steering pump, air conditioning compressor, and the water pump. On most configurations, you’ll find that the belt runs over a series of pulleys in a specific order to ensure smooth operation of these parts.

The diagram will show you how the belt should loop around each pulley. On the driver’s side of the engine, look for the tensioner pulley that keeps the belt tight. This pulley can be adjusted using a wrench or a special tool to release tension before removing or installing the belt.

Ensure the belt is routed correctly through the various pulleys, and that it runs without twists. Any misalignment may lead to squeaking, wear, or premature failure. Always double-check the routing against the diagram before reassembling the system.

If you’re unsure about the belt condition, inspect it for cracks, fraying, or any signs of wear. A damaged belt will often cause noticeable issues like overheating or loss of power steering assistance.

For exact pulley and belt routing diagrams, refer to your Silverado’s service manual or consult a certified mechanic to avoid any installation errors.

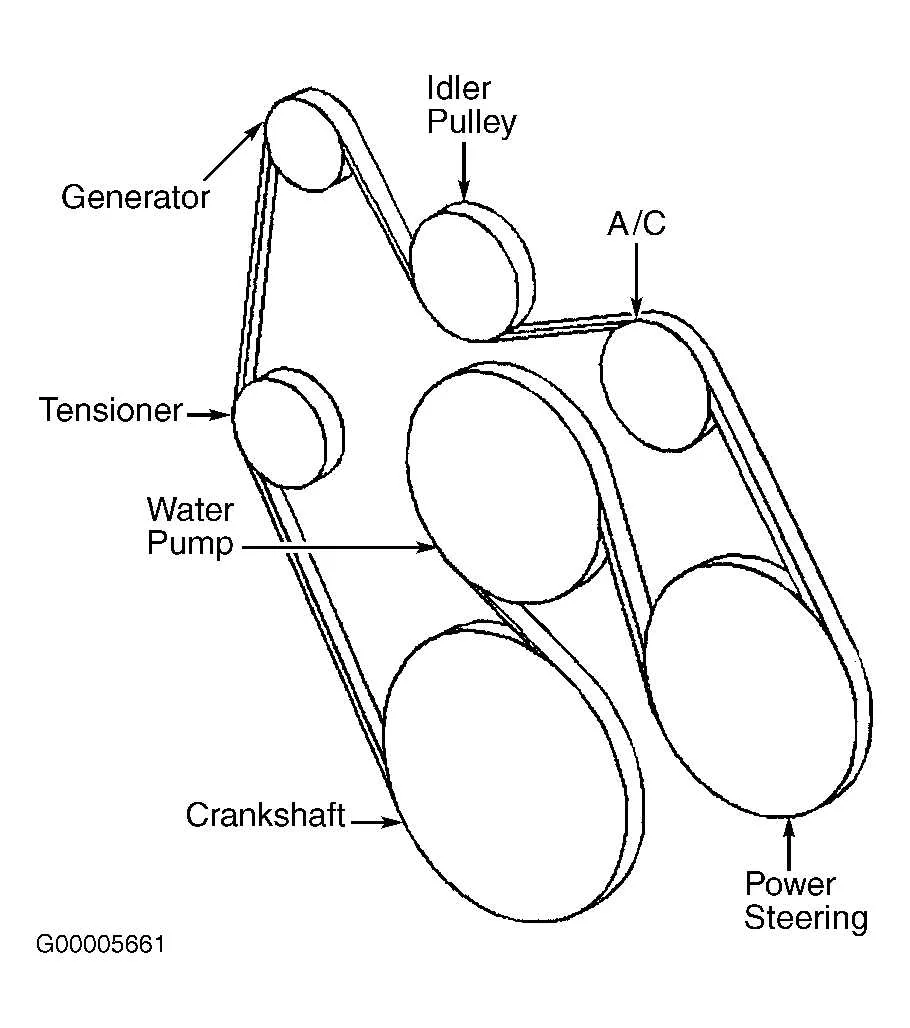

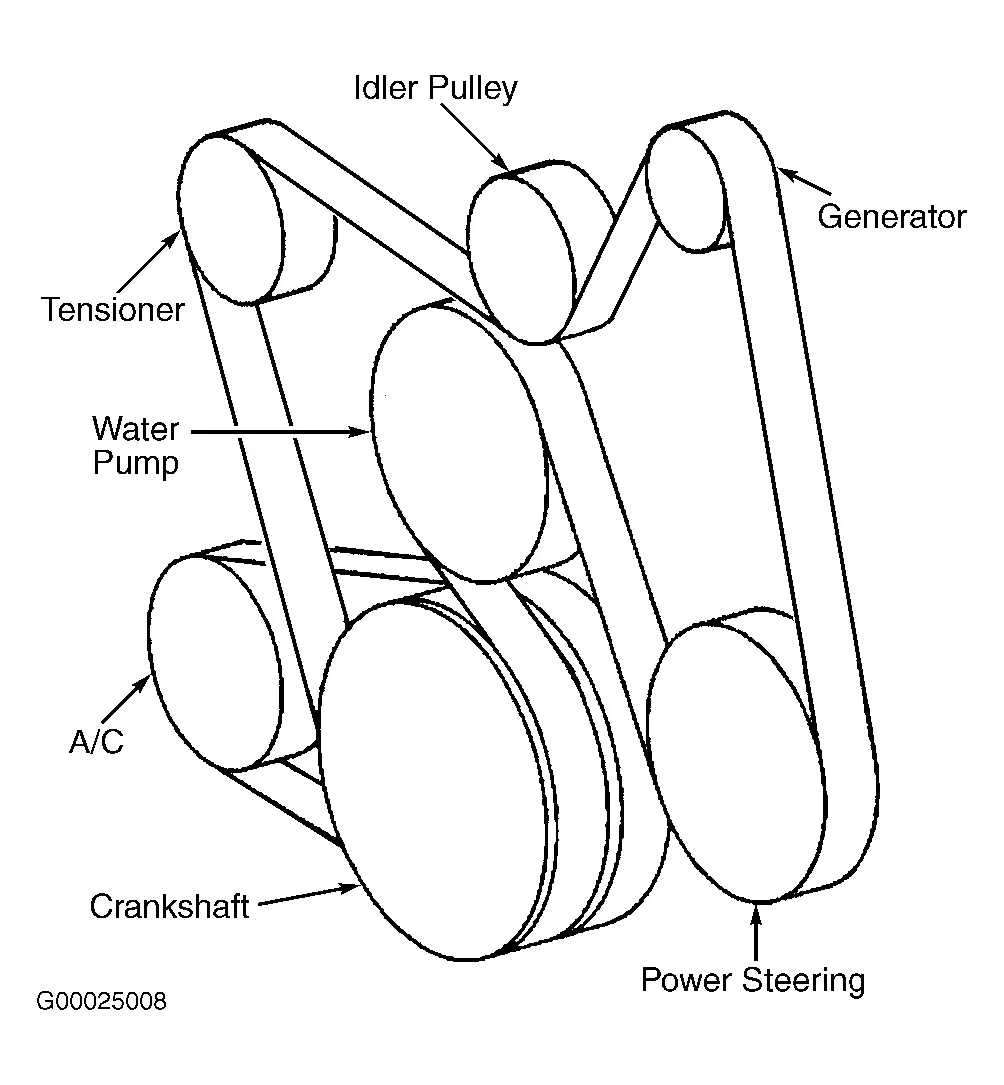

Understanding the Routing of the Serpentine Belt on the 2021 Chevy Silverado

To ensure proper operation of your 2021 Chevy Silverado, follow the correct routing of the serpentine belt. Begin by securing the belt around the crankshaft pulley. From there, route it over the idler pulley and around the power steering pump. Next, pass the belt over the alternator pulley, ensuring it lines up properly. The belt should then loop under the tensioner pulley, making sure there’s no slack. Lastly, finish by routing it around the AC compressor and back to the crankshaft pulley.

Pay attention to the proper alignment of the belt with each pulley. Misalignment can lead to premature wear or damage to both the belt and the components it powers. Regularly inspect the belt for signs of wear or cracking, as this will help you avoid unexpected breakdowns. If the belt appears damaged or if the tensioner is no longer holding the belt in place, consider replacing them to maintain optimal engine performance.

Ensure the tensioner is in good condition and maintains proper tension. A loose belt can cause issues like poor performance of the alternator, power steering, and AC, affecting the overall reliability of your vehicle. If you’re unsure about the routing process, consult your vehicle’s manual or seek professional assistance to avoid incorrect installation.

Common Issues with the Serpentine Belt and How to Spot Them

Inspect the serpentine belt for cracks, wear, or signs of fraying. These are early indicators that the belt may be on its way out. Check for any shiny spots on the belt’s surface–this could suggest it is slipping, often due to poor tension or misalignment. If you notice any visible damage, it’s time for a replacement.

• Cracks or Splits: These appear when the rubber on the belt has aged or been exposed to extreme temperatures. Small cracks can spread quickly, making the belt unreliable.
• Fraying Edges: Fraying or unraveling at the edges of the belt is a sign of excessive wear or a misaligned pulley.
• Shiny Surface: A shiny belt surface often indicates slipping, which can be caused by improper tension or pulley misalignment.

Listen for any squealing noises when starting the engine or while driving. These sounds suggest that the belt might be slipping or not running smoothly. The squeal happens when the belt fails to grip the pulleys correctly.

• High-Pitched Squeals: A high-pitched squeal is typically a sign of slippage. It can happen when the belt is too loose or too worn out to maintain proper friction.
• Rattling or Grinding: These sounds may indicate severe belt damage or a malfunctioning pulley, often resulting from misalignment or a damaged bearing.

Examine the alignment of the belt. If it’s visibly off-center or there’s noticeable wear on one side of the belt, the pulleys might be misaligned. Misalignment can quickly lead to premature belt failure, so it’s important to address this as soon as possible.

• Misaligned Belt: If the belt appears to be running at an angle, it could be misaligned pulleys, which causes uneven wear.
• Uneven Tension: A belt that’s too loose or too tight will wear unevenly and fail sooner. Make sure the tensioner is functioning properly.

Watch for engine performance issues. A failing serpentine belt can affect the operation of the alternator, power steering pump, and other components. If you notice the power steering feels stiff or the battery warning light comes on, the serpentine belt may no longer be providing adequate power.

• Stiff Steering: Difficulty steering or strange noises when turning can signal that the belt isn’t driving the power steering pump properly.
• Battery Warning Light: If your alternator isn’t spinning efficiently due to belt issues, the battery may not charge correctly, triggering the battery warning light.

Perform regular inspections, especially if you’ve driven for extended periods without addressing potential wear. A belt replacement might seem like a small task, but neglecting it can lead to costly repairs down the line.

Step-by-Step Guide to Replacing the Serpentine Belt on a 2021 Chevy Silverado

First, gather the tools you’ll need: a 15mm socket wrench, serpentine belt tool, and possibly a belt tensioner release tool. Then, make sure your Silverado is parked on a flat surface and the engine is cool.

1. Locate the Serpentine Belt: Open the hood and find the serpentine belt. It should be visible at the front of the engine, looping around various components such as the alternator, power steering pump, and air conditioning compressor.

2. Release the Tension: Use the serpentine belt tool or a wrench to rotate the belt tensioner pulley counterclockwise. This will relieve the tension on the belt, allowing you to remove it. Keep the tensioner held in place until the belt is free.

3. Remove the Old Belt: Carefully slide the belt off the pulleys. You might need to maneuver it around some components, but it should come off without much force. Keep the belt nearby for comparison when installing the new one.

4. Inspect the Components: Before installing the new belt, check the pulleys and tensioner for wear or damage. If any components look worn out, replace them before continuing with the installation.

5. Install the New Belt: Refer to the belt routing diagram located under the hood of your Silverado to ensure the belt follows the correct path. Start by looping the new belt around the crankshaft pulley, then work your way around the other pulleys as per the diagram.

6. Apply Tension: Once the belt is in place, release the tensioner pulley, allowing it to apply tension to the belt. Double-check that the belt is aligned properly on all pulleys.

7. Test the Installation: Start the engine and observe the belt as it rotates. Listen for any unusual noises, and ensure the belt runs smoothly over all pulleys.

If the belt is installed correctly and the engine runs without issue, you’ve successfully replaced the serpentine belt on your 2021 Chevy Silverado.
