2016 Chevy Malibu Serpentine Belt Routing Diagram and Replacement Guide
To replace the serpentine belt on a 2016 Chevy Malibu, start by familiarizing yourself with the belt routing diagram. This diagram is crucial for ensuring the belt is installed correctly, preventing potential damage to the engine components. The serpentine belt drives key accessories like the alternator, power steering pump, and air conditioning compressor. Incorrect installation can lead to belt wear, slippage, or failure, causing more costly repairs down the line.
The serpentine belt routing diagram for the 2016 Chevy Malibu shows a clear path for the belt to follow across various pulleys. It’s helpful to note that the diagram is often located on a sticker in the engine bay or available in the vehicle’s repair manual. Be sure to compare the diagram closely with the configuration of the pulleys in your engine compartment before starting the installation process.
When replacing the serpentine belt, check for signs of wear such as cracks, fraying, or glazing. If the belt is damaged or stretched, it may not grip the pulleys properly, which can affect the performance of the engine accessories. Using the diagram to guide the belt installation ensures that the components align as intended for smooth operation and longevity.

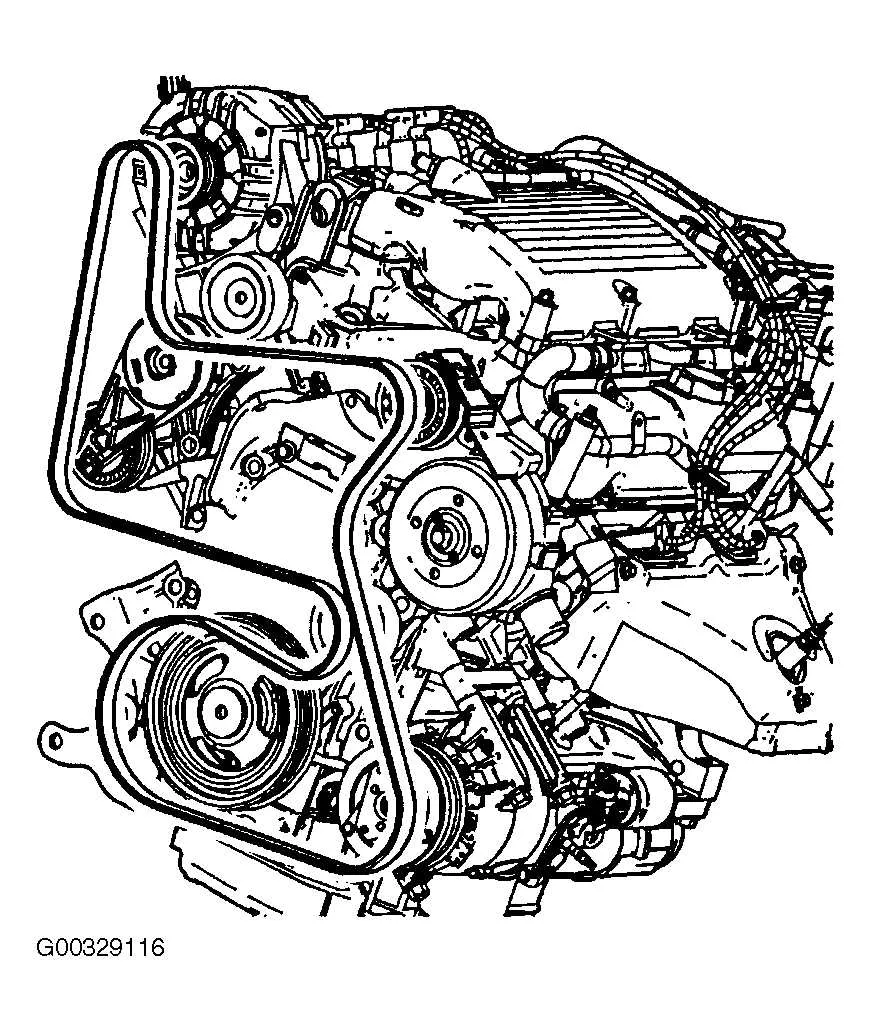

2016 Chevy Malibu Serpentine Belt Diagram
The 2016 Chevy Malibu uses a serpentine belt to power several essential components of the engine, including the alternator, air conditioning compressor, power steering pump, and water pump. Understanding the belt layout and how it runs through the pulleys helps prevent issues like belt wear or slippage.
The serpentine belt on this model follows a specific path. It loops around the crankshaft pulley, alternator, power steering pump, and the AC compressor. The tensioner pulley maintains proper belt tension to ensure it stays in place and operates smoothly. Pay attention to the routing diagram to avoid incorrect installation or belt misalignment, which can cause premature wear or even failure.
For a clear visual representation, always refer to the diagram found in your vehicle’s owner manual or on the radiator support. It shows the precise path and pulley locations, making the replacement process simpler. In case the belt shows signs of cracking or fraying, replace it immediately to avoid larger mechanical issues.
Here’s a step-by-step recommendation for replacing the serpentine belt:
- Locate the belt tensioner pulley and use a ratchet or wrench to relieve tension.
- Carefully remove the old serpentine belt from the pulleys.
- Route the new belt according to the diagram, ensuring it fits properly over all pulleys.
- Restore tension to the belt using the tensioner pulley.
- Check for proper alignment and belt tension.
If unsure, consult a professional for help. Incorrect installation can lead to performance issues or belt damage.
How to Identify the Correct Routing of the Serpentine Belt on a 2016 Chevy Malibu
First, locate the serpentine belt routing diagram, which can typically be found on the front of the engine bay or in the owner’s manual. This diagram shows the exact path the belt should follow around the pulleys, tensioner, and alternator. If the diagram is missing or unreadable, take a photo of the belt routing before removal or consult the service manual for the correct layout.

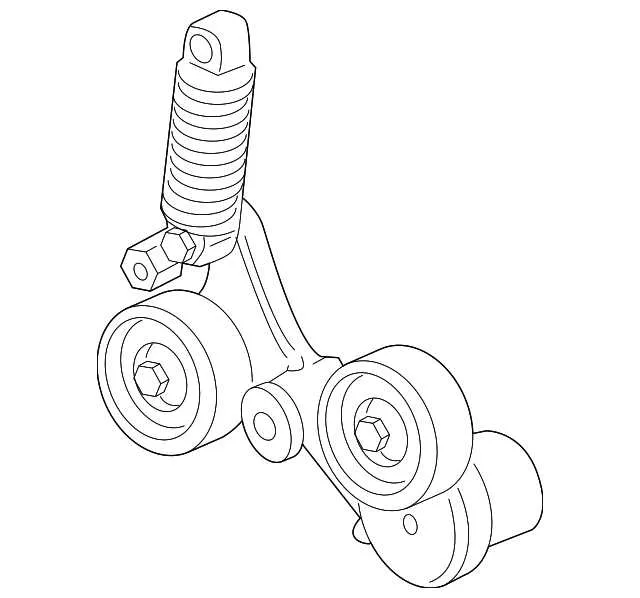

Check the belt’s tensioner pulley. It should be the one that keeps the belt tight. The tensioner pulley often moves, so be sure to observe its position when removing the old belt and replacing it. This step ensures the new belt stays properly routed and doesn’t slip off during operation.
Start at the crankshaft pulley. The belt will run from the crank pulley to the power steering pump, alternator, air conditioning compressor, and finally the idler pulley. Follow this order while positioning the new belt to avoid improper routing.
Double-check that the belt is aligned with the grooves on each pulley. The ribs of the belt should sit securely within each pulley’s groove. If the belt is misaligned, it can cause unnecessary wear or even failure.
After installation, rotate the crankshaft manually to ensure the belt moves freely and is properly aligned. Listen for any unusual sounds like squeaking or slipping, which may indicate improper routing.
If you have trouble, use a serpentine belt tool to release tension from the tensioner pulley. This will make it easier to adjust the belt’s position.
Common Problems with the Serpentine Belt and How to Spot Them
Check for wear and cracks along the serpentine belt. If the belt shows any signs of fraying, splitting, or dry rot, it’s time to replace it. Pay attention to the edges for uneven wear, as this can indicate misalignment or a faulty tensioner.
Listen for squealing or chirping noises when the engine starts or while driving. These sounds often signal that the belt is slipping or not gripping the pulleys properly, which can be caused by dirt or excessive wear.
If the steering feels heavy, particularly at low speeds, it could be a sign that the belt is slipping and not powering the power steering pump efficiently. Check the belt for any loose spots or stretching that might be affecting its grip.
Notice any fluctuations in engine temperature? An overheating engine might point to a malfunctioning serpentine belt that isn’t properly driving the water pump. Check the belt tension and alignment to rule out any issues.
Inspect the belt for any glazing–shiny, smooth spots that indicate friction issues. This is typically a sign that the belt is either too tight or not aligned correctly, which can lead to premature wear or even belt failure.
Lastly, keep an eye on the dashboard for warning lights related to the alternator or battery. A slipping belt could cause the alternator to underperform, draining the battery and triggering a warning light.
Step-by-Step Guide to Replacing the Serpentine Belt on a 2016 Chevy Malibu
To replace the serpentine belt on a 2016 Chevy Malibu, follow these steps:
- Prepare the Necessary Tools: You’ll need a 3/8-inch ratchet, serpentine belt tool or tensioner tool, socket set, and a new serpentine belt for your 2016 Chevy Malibu.
- Locate the Serpentine Belt Routing Diagram: The routing diagram is usually on a sticker near the radiator or on the underside of the hood. It shows how the belt wraps around various components.
- Release Tension from the Serpentine Belt: Use the serpentine belt tool or ratchet to move the belt tensioner pulley. This will relieve the tension, allowing you to remove the belt. Carefully slide the belt off the pulleys.
- Remove the Old Serpentine Belt: With the tension relieved, carefully pull the old serpentine belt from the engine bay. Take note of the belt’s routing as you remove it to ensure proper installation of the new belt.
- Inspect Pulleys: Before installing the new belt, check the pulleys for wear or damage. Make sure the tensioner pulley is functioning smoothly and free of debris.
- Install the New Serpentine Belt: Align the new belt following the routing diagram. Make sure it fits snugly into each pulley, ensuring it’s properly seated on all grooves.
- Reapply Tension: Use the serpentine belt tool to rotate the tensioner pulley back into place. This will apply tension to the new belt.
- Double-Check the Belt Alignment: Before starting the engine, double-check the belt’s alignment. Ensure it’s securely fitted and runs smoothly over all pulleys.
- Start the Engine: Start the car and observe the new belt’s operation. Listen for any unusual noises or squeaks. If everything is running smoothly, the installation is complete.
With these steps, you can easily replace the serpentine belt on your 2016 Chevy Malibu. Be sure to consult the vehicle’s manual for specific instructions and safety precautions related to your model.
