2014 Chevy Traverse Serpentine Belt Routing Diagram and Installation Guide

If you’re experiencing issues with your 2014 Chevy Traverse’s serpentine belt, it’s crucial to have a clear understanding of its routing. The serpentine belt drives multiple components, including the alternator, power steering pump, and air conditioning compressor. A worn or damaged belt can cause serious engine problems, so ensuring it is properly routed is the first step in diagnosing or replacing it.

The diagram for the 2014 Chevy Traverse serpentine belt shows how the belt should loop around each component. This routing diagram is located near the engine bay or in the owner’s manual. Make sure to check that the belt aligns with all the pulleys correctly to avoid unnecessary wear. Incorrect routing can cause the belt to slip or snap prematurely, leading to costly repairs.

To replace the serpentine belt on your Traverse, start by locating the tensioner pulley. This is the part that keeps the belt tight. Use a wrench to rotate the tensioner and relieve tension on the belt. Once it’s loose, remove the old belt and replace it with a new one, following the same routing pattern shown in the diagram. Check for proper tension and ensure all components are working smoothly before finishing the job.

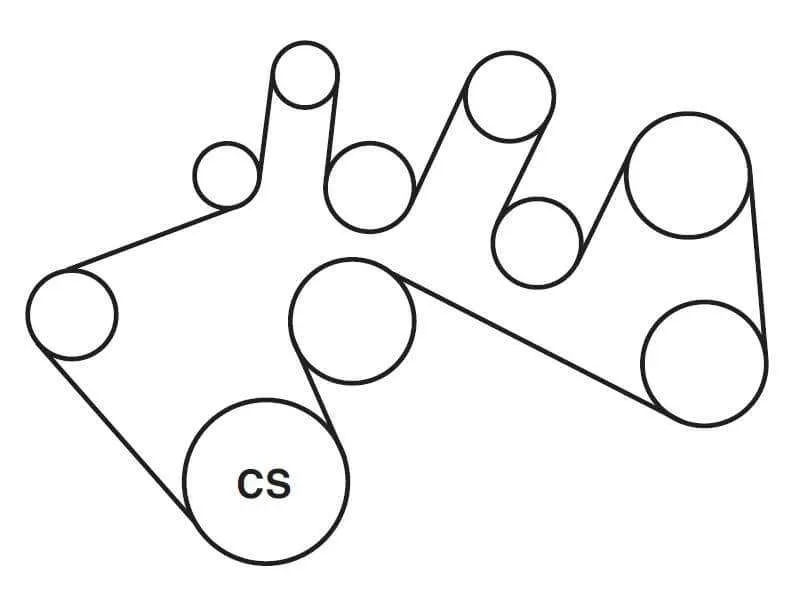

2014 Chevy Traverse Serpentine Belt Diagram

To replace or inspect the serpentine belt on your 2014 Chevy Traverse, it’s important to understand the proper routing. The diagram helps guide you in making sure the belt is installed correctly to avoid damage to the engine components.

Start by identifying the belt tensioner and idler pulleys. These components are critical for the belt’s movement and tension. The serpentine belt should wrap around the crankshaft pulley, the alternator, the power steering pump, and the air conditioning compressor, forming a continuous loop. Make sure the belt runs smoothly across these pulleys without twisting.

Key tips:

• Ensure the belt is routed in the exact same path as shown in the diagram to avoid any misalignment.
• Check for wear or cracks before reinstallation.
• After installation, test the tension of the belt by pressing it in the middle of the longest run; it should deflect about half an inch.

If you’re unsure about any part of the process, refer to the manufacturer’s diagram for a detailed view of the routing pattern. A correct belt installation ensures the engine runs smoothly without unnecessary strain on components.

How to Read the Serpentine Belt Diagram for 2014 Chevy Traverse

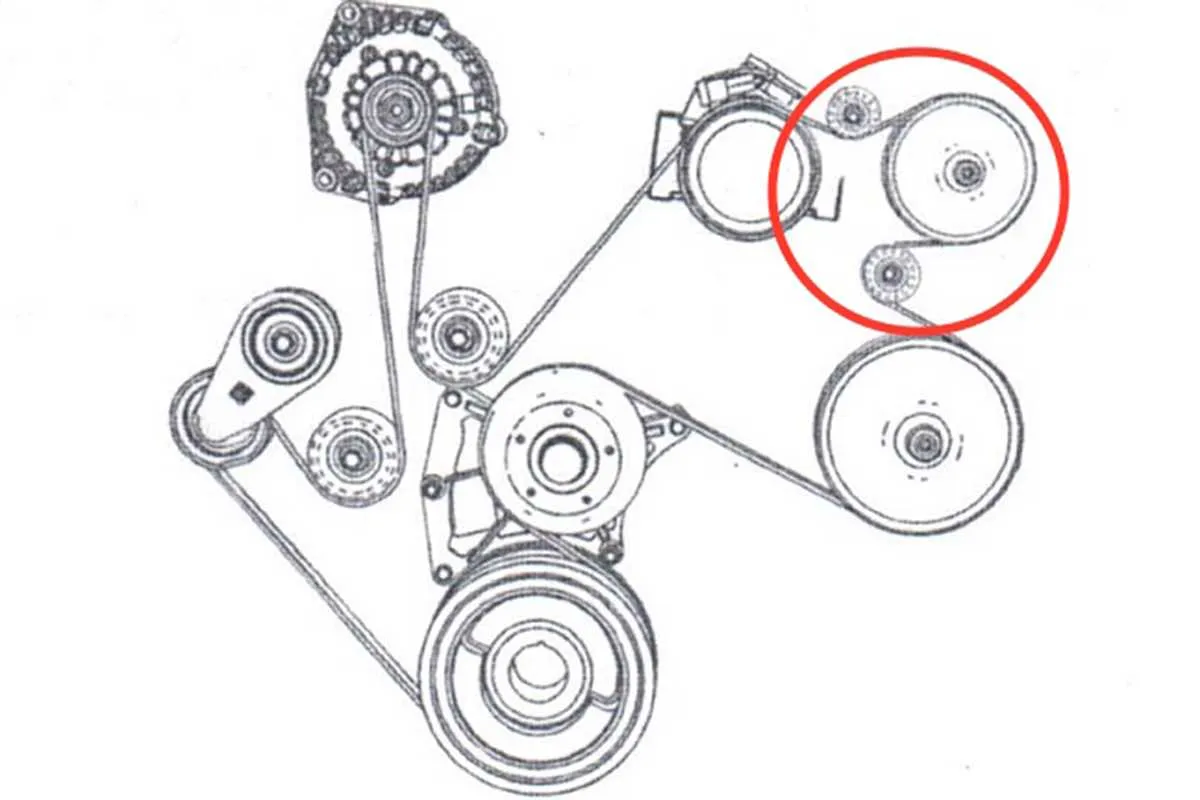

Start by locating the serpentine belt diagram on your 2014 Chevy Traverse. It’s often found on the radiator support, under the hood, or on the engine compartment itself. The diagram clearly shows the path the serpentine belt follows around various components like the alternator, power steering pump, air conditioning compressor, and the idler pulley.

Examine the arrows and the labeled components on the diagram. These will indicate the direction of the belt’s movement and where it loops around each pulley. Pay close attention to the tensioner pulley–this one keeps the belt taut and is often adjustable. The diagram may also show the position of the automatic tensioner and how it affects the belt’s alignment.

When replacing or inspecting the belt, check the diagram to confirm proper routing. Any misalignment could cause excessive wear or even damage to engine components. If you’re unsure of the belt tension, the diagram can also guide you to ensure it’s neither too tight nor too loose.

For troubleshooting, use the diagram to check if the belt follows the correct path. Any deviation could indicate a problem with the pulleys or tensioner, which might need attention. A smooth, properly routed belt will improve engine performance and extend the life of key components.

Step-by-Step Guide to Replacing the Serpentine Belt on a 2014 Chevy Traverse

Start by disconnecting the negative battery cable to prevent any electrical accidents during the process.

Locate the serpentine belt routing diagram. On the 2014 Chevy Traverse, it is usually found near the radiator or under the hood. This diagram will help you understand the proper routing for the new belt.

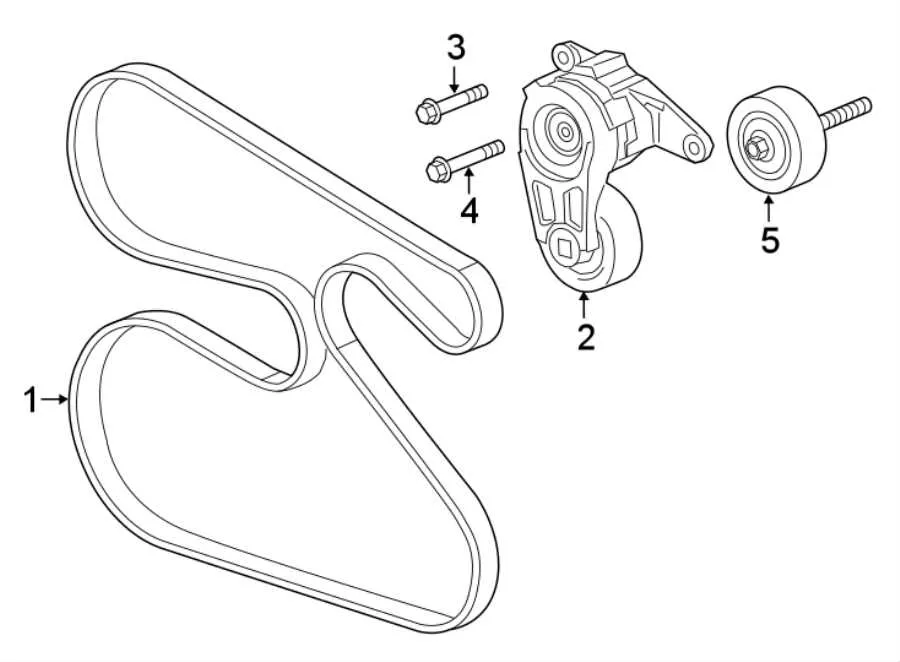

Next, identify the tensioner pulley. Use a wrench or a serpentine belt tool to rotate the tensioner counterclockwise, which will loosen the tension on the old belt. Once the tension is released, slide the belt off the pulleys.

Before removing the old belt, inspect all the pulleys for any wear or damage. If any pulleys are faulty, replace them before installing the new belt.

Place the new serpentine belt onto the pulleys, following the routing diagram carefully. Ensure the belt sits properly in all the grooves of the pulleys.

Once the new belt is in place, rotate the tensioner again and slide the belt over it. The tensioner should hold the belt tightly in place.

Double-check the belt’s alignment and make sure it is centered on each pulley. Turn the engine by hand a few times to ensure the belt runs smoothly without slipping off.

Reconnect the battery and start the engine. Listen for any unusual noises, which could indicate an improper installation or faulty pulley. If everything sounds normal, the job is complete!

Common Issues with the Serpentine Belt in the 2014 Chevy Traverse and How to Fix Them

If your 2014 Chevy Traverse is making unusual noises or the engine warning light comes on, the serpentine belt might be the issue. Inspect the belt for visible damage such as fraying, cracking, or glazing, which are common signs of wear. If you notice any of these issues, replacing the belt is necessary.

Squealing Noises are often caused by a loose or worn-out serpentine belt. Check the belt’s tension using a belt tension gauge. If the tension is too loose, tighten the tensioner or replace the belt if it’s damaged. Always ensure the belt is properly aligned with all pulleys.

Rough Engine Performance can also occur when the serpentine belt slips or doesn’t rotate the components smoothly. This can cause the alternator or power steering pump to malfunction, affecting your vehicle’s performance. Replacing the serpentine belt and ensuring all pulleys are in good condition will restore normal functionality.

Excessive Vibration can stem from misalignment of the serpentine belt or a damaged pulley. Inspect all pulleys for wear and ensure they spin freely without wobbling. If any pulleys are damaged, replace them before installing a new belt.

How to Replace the Serpentine Belt: First, relieve the tension on the belt using the tensioner tool, then remove the old belt. Carefully install the new belt following the serpentine belt diagram for your 2014 Chevy Traverse, ensuring it fits securely on each pulley. Test the system by turning the engine on and checking for smooth operation.

Regularly inspect the serpentine belt for wear and replace it every 60,000 to 100,000 miles to prevent breakdowns and ensure the smooth operation of your Chevy Traverse.
