2012 Chevy Malibu 2.4 Serpentine Belt Diagram and Installation Guide
For proper maintenance of your 2012 Chevy Malibu 2.4, understanding the serpentine belt diagram is crucial. Follow this guide for clear instructions on belt routing and replacement.
The serpentine belt plays a key role in powering various engine components such as the alternator, power steering pump, and air conditioning compressor. It’s vital to ensure the belt is installed correctly to avoid unnecessary wear or damage.
Start by confirming the routing pattern. The diagram on the engine bay or in your owner’s manual provides the exact path the serpentine belt should follow. Make sure the belt runs smoothly over the pulleys without twisting or slipping.
Replace the belt if you notice signs of wear such as cracks, fraying, or squealing noises. Ensure the tensioner is functioning properly, as it maintains the correct tension to avoid slippage.
By following these steps, you can prevent costly repairs and keep your Malibu running smoothly. Always refer to the specific diagram for your model year to ensure accurate installation.

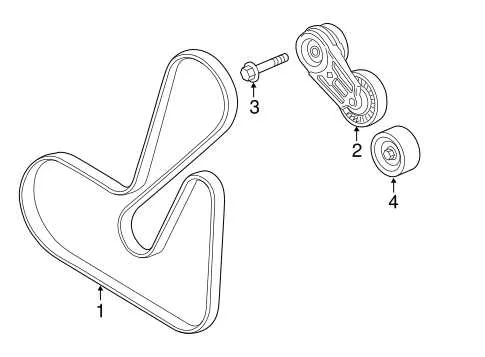

2012 Chevy Malibu 2.4 Serpentine Belt Diagram
The serpentine belt on the 2012 Chevy Malibu 2.4 is responsible for powering several engine components, such as the alternator, air conditioning compressor, and power steering pump. Correct routing and tension are vital for the proper operation of these systems. Below is the detailed diagram for the serpentine belt, showing its route through various pulleys and components. Make sure to inspect the belt regularly for wear and replace it at recommended intervals to avoid potential damage to the engine or accessories.
| Pulley | Function |
|---|---|
| Alternator Pulley | Charges the vehicle’s battery |
| Power Steering Pulley | Assists in steering by pumping fluid |
| AC Compressor Pulley | Powers the air conditioning compressor |
| Crankshaft Pulley | Drives the serpentine belt system |
| Idler Pulley | Maintains belt tension |
| Tensioner Pulley | Applies tension to keep the belt tight |
To replace the serpentine belt, start by relieving the tension on the belt tensioner using a suitable tool. Remove the belt carefully, and check for any damage on the pulleys before installing the new belt according to the diagram. Ensure the belt is properly routed and has the correct amount of tension to avoid slipping or undue wear.
How to Identify the Serpentine Belt Components on 2012 Chevy Malibu 2.4
Start by locating the serpentine belt on the engine, which runs across multiple pulleys. The serpentine belt is designed to power various engine components such as the alternator, power steering pump, air conditioning compressor, and the water pump.
To identify the individual components, examine the following key parts:
1. Idler Pulley – Positioned near the top of the engine, it helps maintain the proper tension on the serpentine belt. Look for a smooth, non-driving pulley that does not connect to any accessories.
2. Tensioner Pulley – This pulley keeps the belt under proper tension. It’s spring-loaded, often positioned near the idler pulley, and usually has a bolt for adjustment.
3. Alternator Pulley – The alternator pulley is part of the electrical system. It is typically located on the passenger side of the engine and is driven by the serpentine belt to generate power for the car’s battery.
4. Power Steering Pump Pulley – Found towards the front of the engine, this pulley connects to the power steering pump. Its function is to provide hydraulic pressure for steering assistance.
5. Air Conditioning Compressor Pulley – This pulley operates the A/C compressor. It’s usually located on the passenger side and engages when the A/C system is active.
6. Water Pump Pulley – The water pump pulley is located near the bottom of the engine and drives the water pump, circulating coolant throughout the engine to maintain the proper temperature.
After locating each component, you can confirm the belt’s routing and ensure that all pulleys are in good condition, with no signs of wear or misalignment.
Step-by-Step Guide to Replacing the Serpentine Belt on 2012 Chevy Malibu 2.4
1. Locate the serpentine belt tensioner. The tensioner is typically found near the front of the engine. Use a socket wrench to relieve the tension by rotating the tensioner pulley counterclockwise.
2. Remove the old belt. Once the tension is released, slide the serpentine belt off the pulleys. Take note of the routing to ensure correct installation of the new belt.
3. Inspect the pulleys and tensioner. Before installing the new belt, check the pulleys for wear and debris. Spin each pulley to ensure it moves freely and doesn’t make any unusual noise.
4. Install the new serpentine belt. Route the new belt according to the factory diagram. Ensure it fits properly over all pulleys and that the tensioner is correctly engaged.
5. Reapply tension to the belt. Use the socket wrench to rotate the tensioner pulley counterclockwise again to apply tension to the new belt. Double-check that the belt is correctly aligned on all pulleys.
6. Test the installation. Start the engine and observe the belt. Ensure it runs smoothly without any squeaks or misalignment.
7. Check for proper belt operation. After a short test drive, inspect the belt again to ensure it is still properly aligned and that the tension is correct.
Troubleshooting Common Serpentine Belt Issues in 2012 Chevy Malibu 2.4
If your serpentine belt is showing signs of wear or malfunction, it’s important to address the issue before it leads to more serious engine problems. Here are common issues and how to troubleshoot them:
- Squealing Noise: This often indicates a loose or worn belt. Inspect the belt for cracks or fraying. If the belt is damaged, replace it. If it’s loose, adjust the tension using the tensioner pulley.
- Belt Slipping: Slipping can be caused by excessive wear, improper belt tension, or a misaligned pulley. Check the belt’s condition, the alignment of pulleys, and the tensioner. Adjust or replace the components as necessary.
- Overheating Engine: A slipping or broken serpentine belt can cause the water pump to stop functioning, leading to engine overheating. Inspect the belt for signs of wear and replace it if necessary.
- Visible Wear: Inspect the belt for cracks, glazing, or fraying. If any of these are present, replace the belt immediately. Worn belts can cause power loss and prevent various components, such as the alternator, from functioning properly.
- Vibration or Shuddering: This may be caused by a misaligned or damaged pulley. Examine the pulleys for wear or damage, and check if the belt is properly routed around them. Replace any faulty pulleys.
Regularly inspect the serpentine belt and associated components to prevent these issues. A well-maintained belt ensures that your engine runs smoothly, and it helps avoid costly repairs in the future.
