2010 Chevy Malibu Serpentine Belt Layout and Routing Guide for Accurate Installation
Locate the serpentine belt routing immediately by following the diagram for the 2010 Chevy Malibu. The belt wraps around the alternator, power steering pump, air conditioning compressor, and crankshaft pulley in a specific sequence that ensures proper engine function. Skipping this step can result in misalignment, premature wear, or failure of engine accessories.

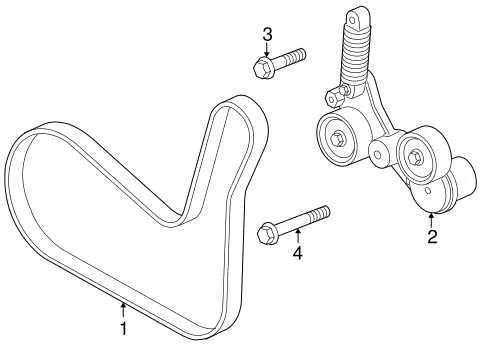

Check the tensioner carefully before removing the belt. The 2010 Malibu uses an automatic tensioner that requires a wrench to relieve pressure. Release the tension slowly to avoid snapping the belt or damaging nearby components. Observing the belt path in the diagram prevents mistakes during reinstallation.
Use the diagram to replace worn or cracked belts accurately. Each pulley must align precisely with the belt grooves. If the belt slips off a pulley, the alternator, power steering, or AC may stop functioning immediately. Following the routing diagram also simplifies inspections, helping identify which accessory may be causing unusual noises or reduced performance.
Keep the diagram accessible during maintenance. Even small adjustments, like swapping the tensioner or cleaning pulleys, benefit from constant reference to the proper routing. This approach minimizes downtime and ensures the belt functions reliably over thousands of miles.
2010 Chevy Malibu Serpentine Belt Diagram
Locate the serpentine belt at the front of the engine, wrapping around the crankshaft pulley, alternator, power steering pump, and air conditioning compressor. The 2010 Chevy Malibu with a 2.4L engine routes the belt clockwise from the crankshaft to the water pump, then to the alternator, tensioner, A/C compressor, and finally the power steering pump. The tensioner sits on the upper right side of the engine and requires a 3/8-inch ratchet to relieve tension for belt removal or installation.
Inspect the belt for cracks, fraying, or glazing along the ribs before installation. Align each pulley with the corresponding ribbed side of the belt, ensuring the belt sits fully in the grooves. For the 3.6L V6 engine, the routing slightly differs: the belt runs from the crankshaft to the alternator, idler pulley, tensioner, water pump, and A/C compressor. Refer to the tensioner’s position to maintain proper tension and avoid belt slippage.
Use the diagram printed on the radiator shroud or inside the engine compartment for visual guidance. Verify the belt path matches all pulleys, double-checking the rib alignment and tensioner placement. Rotate the crankshaft manually after installation to ensure smooth movement and confirm that all components operate without obstruction.
Locating the Serpentine Belt on a 2010 Chevy Malibu Engine
Locate the serpentine belt on the front of the engine, wrapped around multiple pulleys including the crankshaft, alternator, power steering pump, and air conditioning compressor. Access it from the passenger side of the engine bay for better visibility.
Follow these steps to identify and trace the belt:
- Open the hood and secure it with the prop rod.
- Identify the crankshaft pulley at the bottom center of the engine; the belt loops around it.
- Trace the belt upward to the alternator, located on the upper passenger side.
- Follow the belt around the power steering pump pulley, positioned near the front driver side.
- Locate the tensioner pulley, typically a smooth pulley with a spring mechanism near the center of the engine.
- Check the belt path over the air conditioning compressor if your model includes it, located on the lower passenger side.
Use a belt routing diagram, usually found on a sticker inside the hood or in the owner’s manual, to ensure correct alignment over each pulley. Rotate the tensioner with a wrench to release or adjust the belt as needed, moving it in the direction indicated by the spring-loaded arm.
Inspect the belt for cracks, fraying, or glazing along the ribs, focusing on areas in contact with the pulleys. Proper routing prevents slippage and maintains optimal performance of engine accessories.
Step-by-Step Guide to Reading the Serpentine Belt Diagram

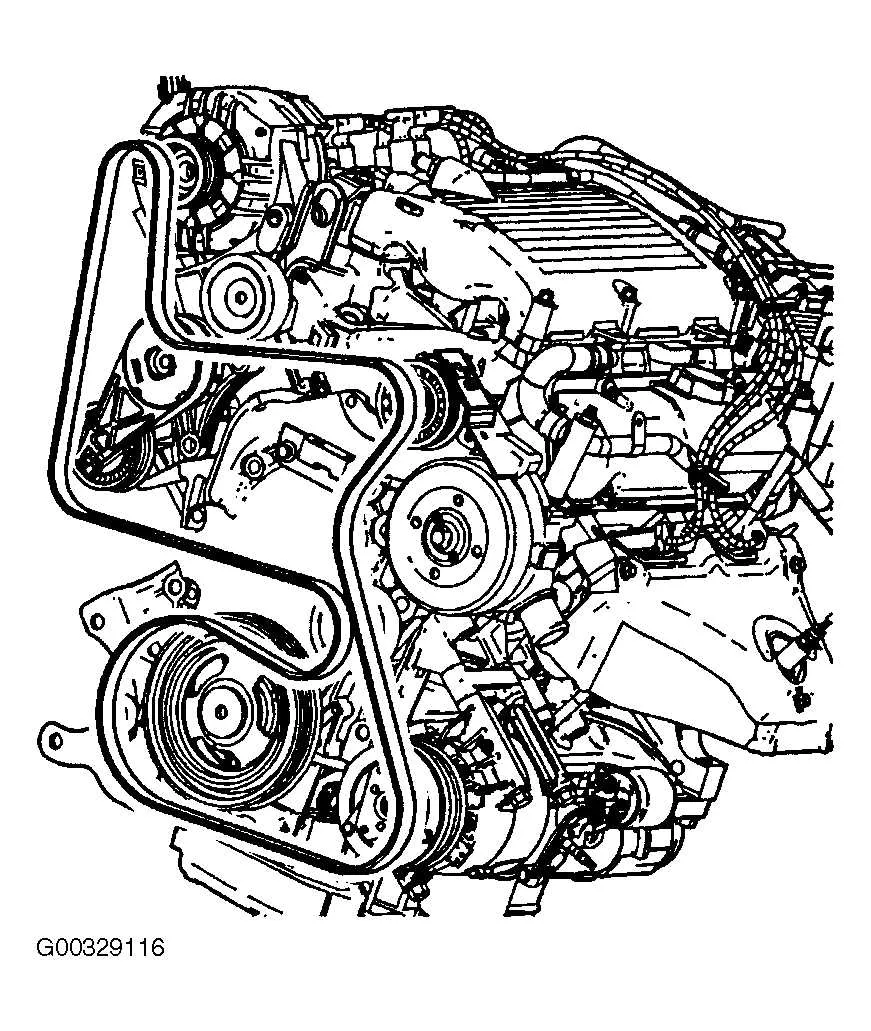

Locate the diagram on the radiator support or inside the engine compartment. This visual shows each pulley’s position and the exact routing of the serpentine belt. Identify the crankshaft pulley first, as it drives all other components.
Trace the belt path from the crankshaft to the alternator pulley. Follow the belt around the water pump, power steering pump, and AC compressor, matching each loop to the diagram. Each pulley must align precisely with the belt’s routing.
Check for tensioner placement. The automatic tensioner applies correct pressure and has a marked direction for adjustment. Use a wrench to rotate it slightly, if needed, to slip the belt into position.
Verify the belt wraps around pulleys correctly: upper sections should sit in the pulley grooves without overlapping edges, and lower sections must follow the diagram’s indicated angles. Misalignment can cause noise or premature wear.
Inspect the diagram for any idler pulleys that guide the belt. Ensure these pulleys spin freely and match the diagram’s orientation. Proper alignment prevents slipping and maintains tension.
After installing, rotate the crankshaft manually two full turns. Confirm that the belt maintains contact with all pulleys and tensioner movement matches the diagram. Double-check routing before starting the engine.

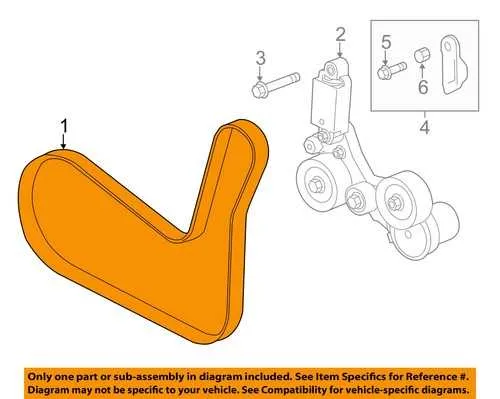

Replacing the Serpentine Belt Using the Diagram as Reference
Loosen the tensioner with a wrench to relieve pressure on the old serpentine belt. Carefully remove the belt from the pulleys, noting any worn or cracked sections. Compare the belt path to the diagram for proper routing before installing the new belt. Ensure the belt sits fully within the grooves on each pulley to prevent slipping or noise.
Align the belt with the crankshaft pulley first, then route it around the alternator, water pump, power steering, and A/C pulleys according to the diagram. Double-check the routing against the diagram, paying attention to any idler pulleys that guide the belt. Slowly release the tensioner to secure the belt in place.
After installation, rotate the crankshaft manually to verify smooth movement and correct alignment on all pulleys. Inspect the belt tension; it should have slight give without being loose. Start the engine and listen for squealing or vibrations, confirming the belt tracks accurately on each pulley as shown in the diagram.
