2008 Chevy Equinox Serpentine Belt Diagram Layout and Routing Guide
Check your serpentine belt for visible cracks, fraying, or glazing before starting any engine work. A worn belt can reduce alternator output, compromise power steering, and strain the AC compressor. Regular visual inspections every 10,000 miles help prevent sudden failures.
Refer to the serpentine belt diagram for the 2008 Chevy Equinox to ensure correct routing. Proper alignment around the tensioner, alternator, and crankshaft pulley prevents belt slippage and uneven wear. Using the diagram while replacing the belt reduces installation errors and saves time during repairs.
Use a torque wrench to adjust the tensioner according to manufacturer specifications. Incorrect tension can cause squealing noises, premature belt wear, or accessory malfunction. Inspect pulleys for smooth rotation and alignment during belt replacement to maintain engine performance and prolong component life.
Keep a replacement belt and a serpentine tool in your vehicle for emergency repairs. Recognizing unusual noises or reduced accessory performance early allows for immediate intervention, avoiding roadside breakdowns and more extensive engine damage.
2008 Chevy Equinox Serpentine Belt Diagram Practical Guide for Owners

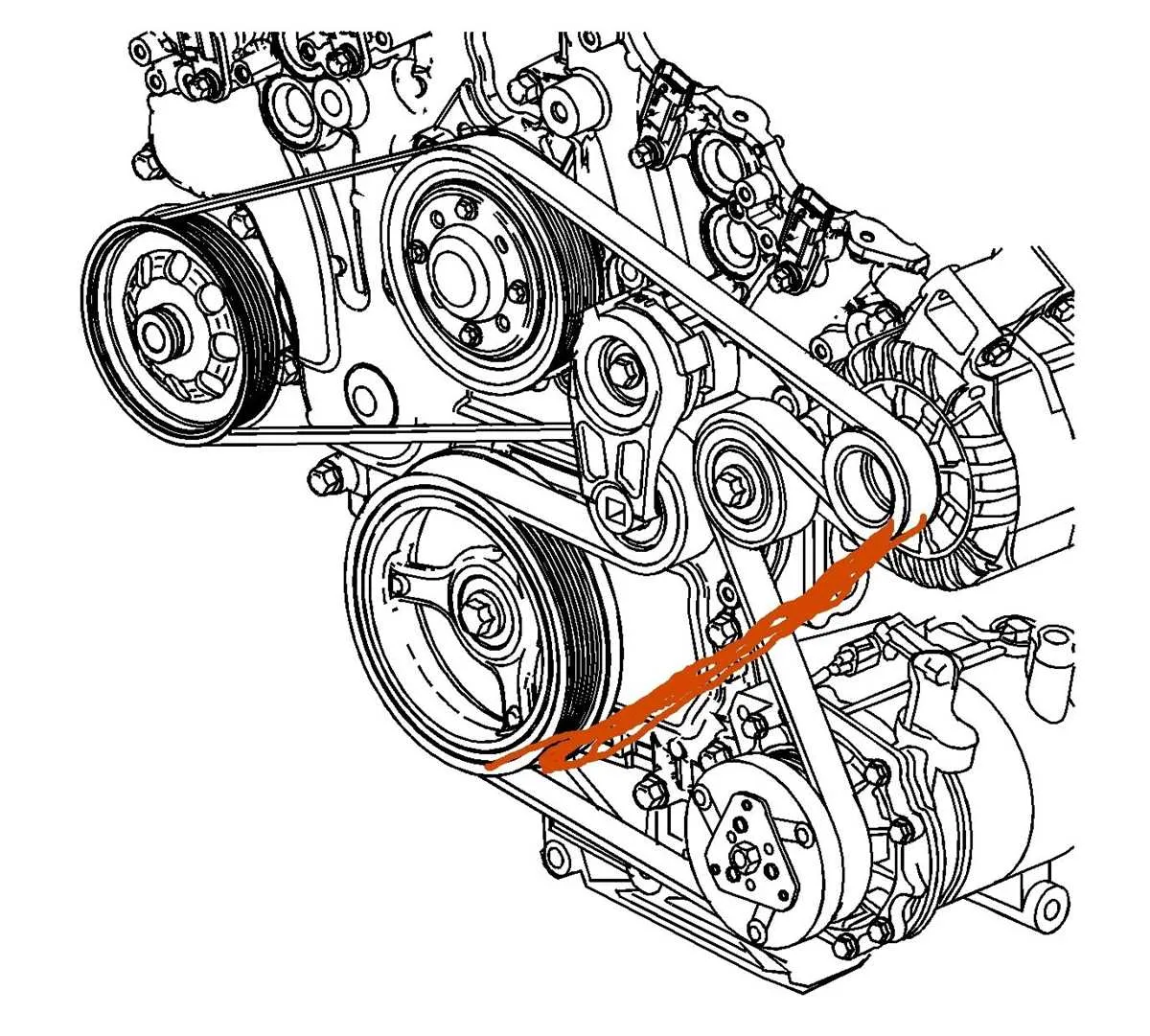

Locate the serpentine belt at the front of the engine, wrapping around key components such as the alternator, power steering pump, water pump, and A/C compressor. Refer to the belt diagram printed on the engine cover or under the hood to confirm correct routing.
Before removing the old belt, release tension using a serpentine belt tool or a suitable wrench on the tensioner pulley. Slowly rotate the tensioner to create slack, then slide the belt off the pulleys.
Inspect each pulley and accessory for signs of wear, misalignment, or damage. Check the tensioner and idler pulleys for smooth rotation and noise. Replace any components that show cracks, wobbling, or rough movement.
- Compare the new belt with the old one to ensure length and rib count match.
- Route the new belt according to the diagram, starting with the lower pulleys and leaving the tensioner pulley for last.
- Use the tensioner tool to rotate the tensioner and slide the belt fully into place.
- Release the tensioner slowly, ensuring the belt seats correctly in all pulley grooves.
- Rotate the engine manually using a socket on the crankshaft pulley to verify smooth movement and proper alignment.
Perform a visual inspection after running the engine for a few minutes. Confirm that the belt runs straight, without slipping or misalignment. Listen for unusual noises such as squealing, which may indicate tension or alignment issues.
- Check belt condition every 30,000 miles or at each oil change.
- Replace the belt if ribs are cracked, frayed, or glazed.
- Keep the belt area clean of oil, coolant, and debris to prevent premature wear.
Following this routing and maintenance guide helps maintain optimal engine performance and prevents unexpected breakdowns related to the serpentine belt system.
Locating and Identifying the Serpentine Belt Components on 2008 Chevy Equinox
Begin by opening the hood and positioning yourself on the passenger side of the engine bay. The serpentine belt wraps around several key components, including the crankshaft pulley, alternator, power steering pump, water pump, and A/C compressor. Identify the crankshaft pulley first at the bottom center of the engine; it drives all other accessories.
Next, locate the alternator on the passenger side near the top. Its pulley is smaller and often has cooling vents visible around it. Trace the belt from the crankshaft pulley upward to the alternator pulley to confirm its routing. The power steering pump sits near the front of the engine, usually accessible from the top or side, and its pulley is generally larger and smooth.
The water pump is mounted behind the belt and connected to the lower engine block; its pulley is often ribbed to match the belt’s grooves. Identify the A/C compressor on the driver side lower section, with a pulley similar in size to the alternator but often with a clutch mechanism in the center. Follow the belt path carefully around each pulley, noting the tensioner, which keeps the belt tight. The tensioner is spring-loaded and positioned near the front of the engine, usually accessible for release with a wrench or ratchet.
Check each component for wear or damage as you trace the belt. Ensure the belt sits properly within each pulley groove and that no cracks or fraying exist along its length. Mark or sketch the routing if needed to maintain accuracy during replacement or maintenance.
Step-by-Step Instructions for Routing and Replacing the Serpentine Belt
Begin by locating the serpentine belt tensioner on the front of the engine. Use a 3/8-inch ratchet or breaker bar to rotate the tensioner pulley clockwise, relieving tension on the belt.
Carefully slide the belt off the pulleys, noting the routing path or using a printed diagram for reference. Avoid forcing the belt, as this may damage the pulleys.
Inspect all pulleys, the tensioner, and the belt for wear, cracks, or glazing. Replace any component showing signs of damage before installing the new belt.
Position the new serpentine belt over the lower pulleys first, typically the crankshaft pulley, ensuring it sits properly in all pulley grooves.
Route the belt over the remaining accessory pulleys, such as the alternator, power steering pump, and A/C compressor, following the correct routing pattern for the 2008 Chevy Equinox.
Rotate the tensioner again to allow the belt to slip over the final pulley. Slowly release the tensioner, ensuring the belt seats evenly on all pulleys without twisting.
Manually rotate the engine two complete turns using the crankshaft pulley to verify smooth belt movement and proper alignment. Double-check that the belt is fully seated in each pulley groove.
Start the engine and observe the belt in motion. Listen for any squealing or unusual noises, and inspect for lateral movement or misalignment. Adjust if necessary before completing the installation.
Troubleshooting Common Belt Problems and Maintaining Proper Tension
Inspect the serpentine belt regularly for cracks, fraying, or glazing on the surface. Any visible damage indicates the belt needs replacement immediately to prevent accessory failure.
Listen for squealing or chirping noises during engine start or acceleration. These sounds often indicate misalignment, excessive wear, or improper tension. Check pulley alignment and adjust the tensioner as needed.
Measure belt tension using a gauge or follow the deflection method: apply moderate pressure at the midpoint between pulleys; the belt should deflect approximately 1/4 inch per foot of span. Adjust the automatic tensioner to maintain consistent pressure.
Examine pulleys for damage, dirt buildup, or bearing wear. A worn or seized pulley can cause uneven wear on the belt and reduce overall system efficiency. Clean or replace pulleys as required.
Replace the belt if it shows shiny spots, deep cracks, or missing chunks. Maintain a replacement schedule of every 60,000–100,000 miles depending on driving conditions and manufacturer recommendations.
Check tensioner springs and mounting bolts. Loose or weakened tensioners reduce proper belt tension, leading to slipping or noise. Tighten bolts and replace weak tensioners to restore correct alignment and tension.
After installation, run the engine and observe belt tracking. Ensure it follows the correct routing without wandering off pulleys. Adjust the tensioner slightly if the belt drifts to maintain smooth operation.
