2002 Chevy Trailblazer 4.2 Engine Serpentine Belt Routing Diagram Guide

Locate the correct routing immediately by consulting the specific 4.2L serpentine belt diagram for the 2002 Chevy Trailblazer. Installing the belt incorrectly can cause alternator failure, power steering loss, or engine overheating.

Follow the diagram carefully to identify each pulley: crankshaft, alternator, power steering, water pump, and tensioner. Position the belt under tensioner pressure and ensure all grooves align perfectly to prevent slippage or premature wear.

Inspect the belt and pulleys for cracks, fraying, or glazing before installation. Replace any worn components to maintain consistent engine performance and reduce the risk of breakdowns on the road.

Maintain proper tension by using a calibrated tensioner tool. A correctly tensioned belt ensures smooth operation of all accessories, improves fuel efficiency, and extends the lifespan of the belt and pulleys.

Double-check alignment after installation. Run the engine briefly to confirm the belt tracks correctly and produces no unusual noise. Correct routing and tension keep the Trailblazer running reliably and prevent costly repairs.

2002 Chevy Trailblazer 4.2 Serpentine Belt Diagram

Install the serpentine belt on a 2002 Chevy Trailblazer 4.2 by following the correct routing to ensure all components operate smoothly. Use a belt routing diagram to avoid misalignment and premature wear.

The serpentine belt drives the alternator, power steering pump, water pump, and air conditioning compressor. Correct tension is critical. Check the tensioner for proper function before installing a new belt.

• Start at the crankshaft pulley, looping the belt around the water pump.
• Route the belt over the alternator pulley, ensuring it sits fully in the grooves.
• Loop the belt around the power steering pump pulley.
• Wrap the belt over the air conditioning compressor pulley if equipped.
• Use the tensioner pulley last, applying pressure to allow the belt to slip into place.

Confirm the belt follows the diagram exactly. Misrouting can cause squealing, reduced accessory performance, or belt damage. Rotate the engine manually after installation to verify smooth operation.

Replace the serpentine belt every 60,000 miles or if cracks, fraying, or glazing appear. Inspect pulleys for wear or misalignment to prevent belt failure.

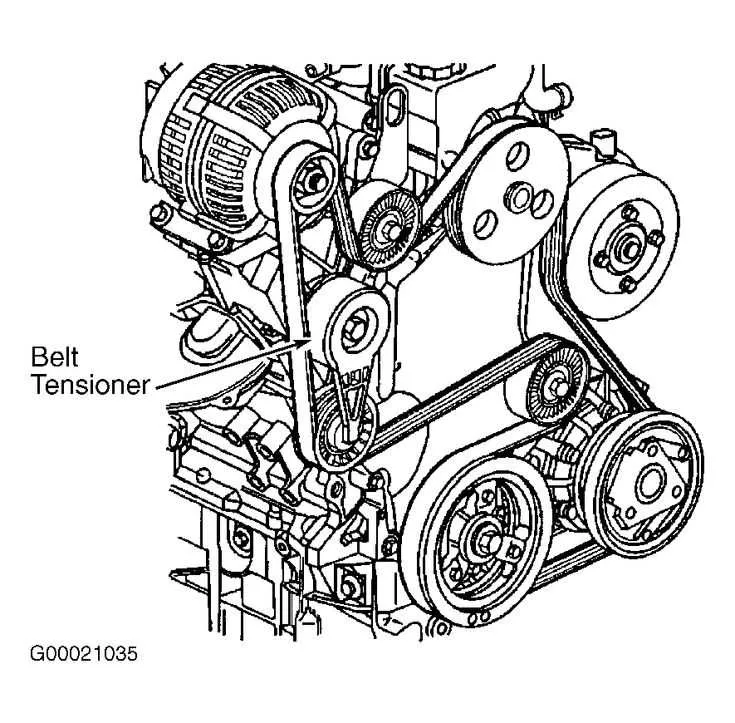

Locating the Serpentine Belt Routing on 2002 Trailblazer 4.2

Open the hood and focus on the front of the 4.2L engine. The serpentine belt wraps around the crankshaft pulley at the bottom, then moves upward to the alternator on the passenger side. Follow the belt from the alternator to the power steering pump, located closer to the center of the engine bay. From there, guide it around the idler pulley before it reaches the air conditioning compressor on the driver’s side. Ensure the belt passes correctly over the tensioner pulley, which maintains proper tension, preventing slippage and wear. Double-check each loop matches the routing diagram printed on the underside of the hood or inside the fuse box cover for accuracy. Adjust the belt on the tensioner using a 3/8-inch ratchet to slide it into place without twisting or overlapping. Confirm alignment on all pulleys before starting the engine to avoid misalignment or damage.

Identifying Each Pulley and Component in the Diagram

Locate the crankshaft pulley at the base of the engine; it drives the serpentine belt and sets the rotation for all connected components.

The alternator pulley sits near the top of the engine and maintains battery charge. Ensure the belt wraps securely around it without slack.

Position the power steering pump pulley on the driver’s side. Check for smooth rotation and alignment to prevent belt wear.

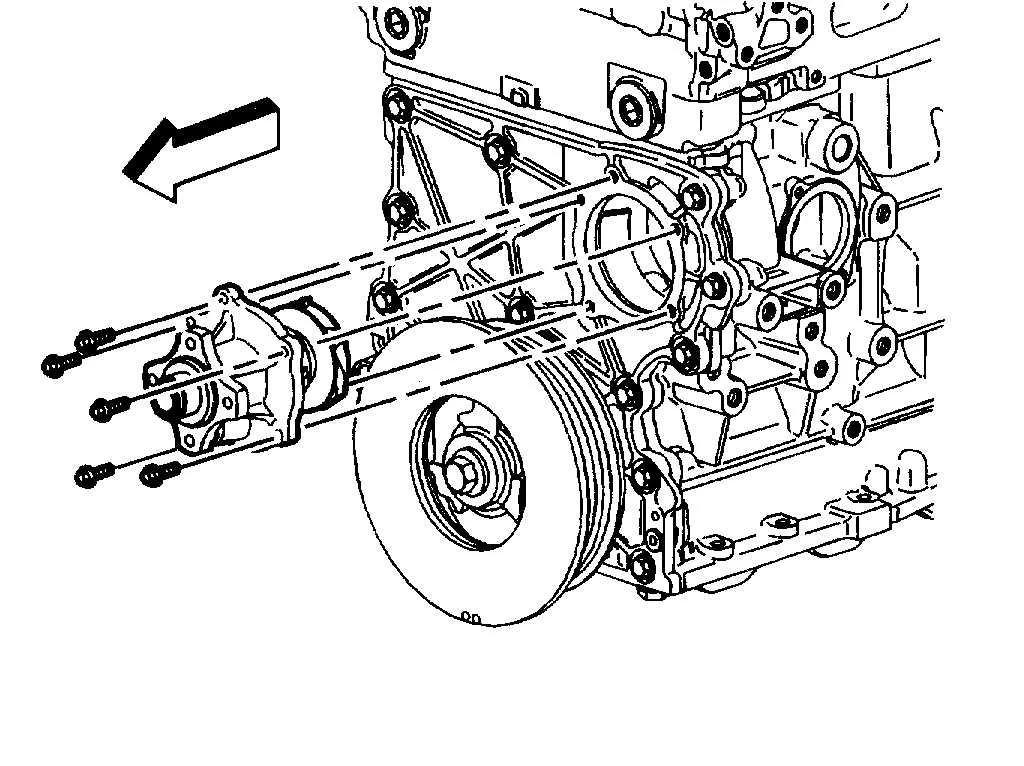

The water pump pulley mounts near the center; it circulates coolant. Confirm the belt path matches the diagram precisely to avoid overheating.

Locate the air conditioning compressor pulley on the passenger side. The belt must engage fully for consistent climate control performance.

The tensioner pulley is spring-loaded and keeps the belt tight. Apply slight pressure to verify proper tension, adjusting if necessary according to the diagram.

Finally, the idler pulley guides the belt around obstacles. Inspect it for smooth rotation and alignment to prevent slipping or noise.

Follow the diagram methodically, tracing the belt from the crankshaft through each pulley, ensuring the path matches exactly. Correct identification prevents premature wear and maintains system performance.

Step-by-Step Guide to Replacing the Serpentine Belt

Locate the serpentine belt routing diagram on the engine cover or inside the hood. Compare it with your new belt to ensure proper alignment.

Use a wrench or serpentine belt tool to rotate the tensioner clockwise, releasing tension. Carefully slide the old belt off the pulleys.

Inspect all pulleys for wear, damage, or wobbling. Replace any faulty idler or tensioner pulleys before installing the new belt.

Position the new belt around the crankshaft pulley and follow the routing diagram, looping it over each accessory pulley. Keep the belt snug but not fully seated on the tensioner yet.

Rotate the tensioner again to allow the belt to slide fully into place. Slowly release the tensioner, ensuring the belt seats evenly in all pulley grooves.

Double-check alignment on every pulley. Start the engine for a few seconds and observe the belt motion. It should run smoothly without slipping, squealing, or misalignment.

Tighten any components that were loosened during the replacement. Recheck the belt after a short drive to confirm proper tension and alignment.
