1985 Chevy 350 Serpentine Belt Diagram and Installation Guide

For smooth operation of the 1985 Chevy 350 engine, proper belt routing is critical. The serpentine belt system controls the alternator, power steering pump, water pump, and air conditioning compressor. Ensure the correct installation to avoid premature wear or engine failure.

Start by identifying the components that the serpentine belt drives. These include the alternator, power steering pump, and air conditioning compressor. Use a high-quality replacement belt that matches the OEM specifications to guarantee optimal performance.

Refer to the diagram to understand the routing of the belt. The diagram clearly shows how the belt wraps around each component, including tensioners and pulleys. Pay close attention to the direction of rotation and pulley alignment to prevent slipping or damage.

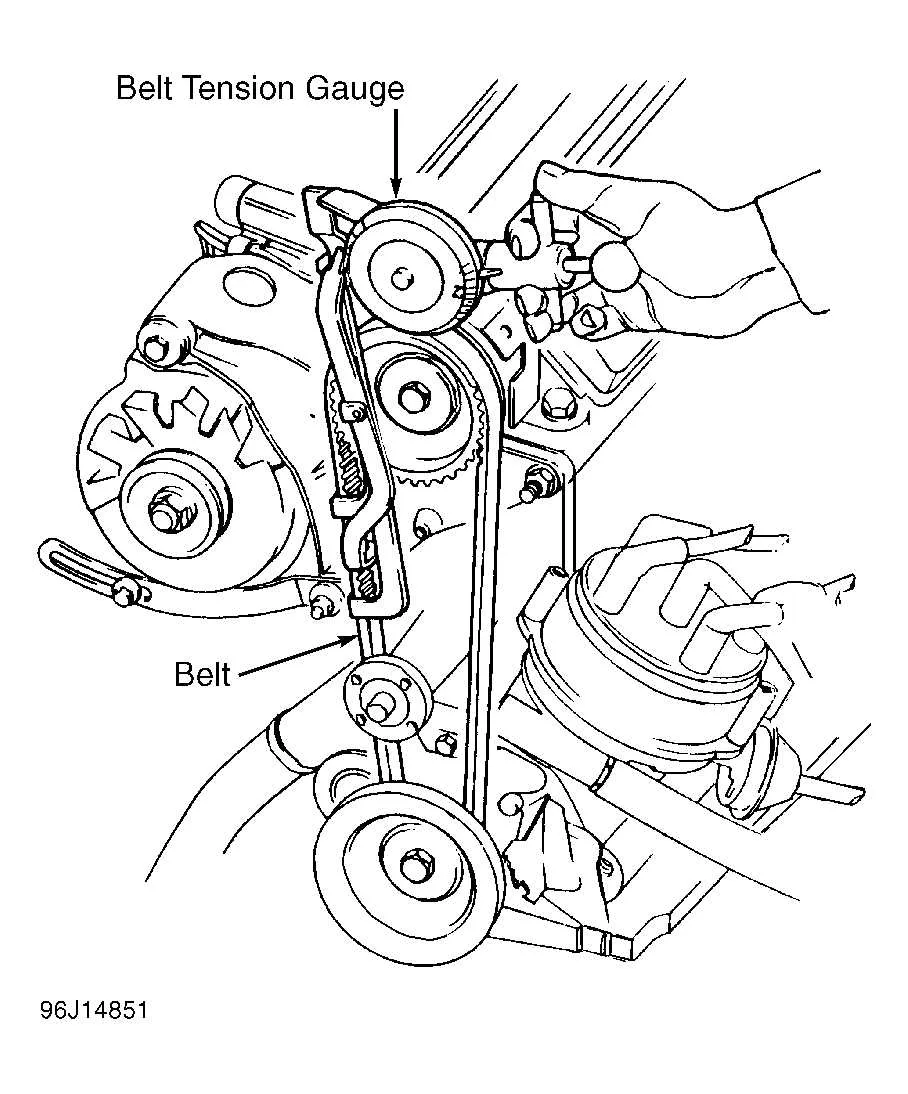

After installation, check the belt tension and adjust it as needed. An overly tight or loose belt can lead to premature wear and system failure. Regular inspection and maintenance are key to extending the life of both the belt and engine components.

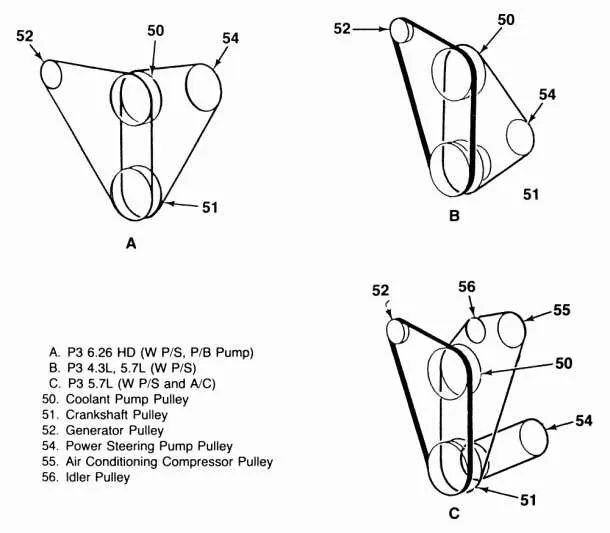

1985 Chevy 350 Belt Diagram

The 1985 Chevy 350 engine utilizes a serpentine belt system, which drives multiple accessories such as the alternator, power steering pump, and air conditioning compressor. The belt path is crucial to ensuring these components operate correctly. Follow the diagram below for accurate installation and maintenance.

To begin, locate the belt tensioner. It is usually positioned near the top of the engine, with a bolt that can be turned using a ratchet wrench to relieve tension on the belt. Once tension is released, remove the belt from the pulleys. Be sure to inspect the belt for signs of wear, cracking, or fraying before replacing it with a new one. Check for any alignment issues, as improper routing can cause premature belt failure.

The belt should follow this path: starting from the crankshaft pulley, it runs across the alternator pulley, the power steering pump pulley, the water pump pulley, and, if equipped, the air conditioning compressor. The tensioner pulley maintains the correct tension to prevent slipping. If the vehicle has air conditioning, ensure the belt loops around the compressor and follows the path dictated by the diagram.

Once the new belt is in place, use a wrench to turn the tensioner pulley back into position, securing the belt with the correct tension. It’s important to ensure the belt sits properly in each pulley groove without skipping or misalignment. After installation, start the engine and observe the belt’s movement for any signs of irregularities. If the belt appears to be misaligned or squeaks, recheck the routing and tension.

Maintaining the proper belt system is key to avoiding issues with power steering, alternator charging, and overall engine performance. Regular checks every 30,000 miles can prevent unexpected failures.

How to Identify the Components of the 1985 Chevy 350 Belt System

To identify the components of the 1985 Chevy 350 belt system, first examine the serpentine belt. This belt powers several engine accessories and is typically located at the front of the engine. It connects the crankshaft to various pulleys. Below are key components to look for:

• Crankshaft Pulley: This is the primary component connected to the engine’s crankshaft. The serpentine belt loops around it, providing power to the rest of the system.
• Alternator Pulley: The alternator pulley is driven by the belt, keeping the battery charged and the electrical system working.
• Power Steering Pulley: Located on the power steering pump, this pulley assists with steering by providing hydraulic pressure, essential for easy vehicle handling.
• Water Pump Pulley: The water pump pulley ensures the continuous circulation of coolant through the engine to prevent overheating.
• Idler Pulley: This pulley maintains tension on the serpentine belt, keeping it tight and functional.
• Tensioner Pulley: Similar to the idler pulley, the tensioner helps keep the correct amount of tension on the belt for proper operation.
• Air Conditioning Compressor Pulley: For vehicles equipped with air conditioning, this pulley is essential for driving the compressor and enabling cooling.

Check each pulley for any signs of wear, such as cracks, rust, or excessive dirt buildup. Ensuring each component is in working order will prevent belt slipping and improve overall performance.

Inspect the serpentine belt itself for any signs of damage, such as fraying or cracks. A worn or damaged belt can affect the function of the components mentioned above.

Step-by-Step Guide to Installing the Serpentine Belt on 1985 Chevy 350

1. Locate the belt routing diagram: Check the engine bay for the belt routing diagram. It is usually on the fan shroud or near the radiator. This will guide you through the correct path for the serpentine belt installation.

2. Release the tension from the old belt: Use a serpentine belt tool or a socket wrench to rotate the tensioner pulley. This will relieve the tension, allowing you to remove the old belt. Carefully take off the belt from all pulleys, starting with the tensioner pulley.

3. Inspect the pulleys: Before installing the new serpentine belt, check all pulleys for damage or wear. Spin them by hand to ensure they rotate freely without any unusual noise. Replace any worn or damaged pulleys before proceeding.

4. Compare the new belt with the old one: Lay the new serpentine belt next to the old one to ensure they are the same length and width. The new belt should match the old one exactly in size to avoid misalignment.

5. Install the new belt: Begin by placing the belt over the pulleys according to the diagram. Start with the crankshaft pulley and work your way up to the tensioner pulley. Make sure the belt is securely seated on each pulley.

6. Tension the belt: Use the serpentine belt tool or socket wrench to rotate the tensioner pulley again. This will tighten the new belt. Double-check the belt’s alignment and tension to ensure it sits properly on all pulleys.

7. Check for proper installation: Turn the engine by hand or briefly start it. Observe the belt running on the pulleys. It should run smoothly without slipping or making noise. If the belt appears loose or misaligned, repeat the tensioning process.

8. Recheck the tension: After running the engine, recheck the belt tension. If necessary, adjust the tensioner again to ensure the belt has the proper tightness. A loose or overly tight belt can cause damage to the components over time.

Common Issues with the Serpentine Belt and How to Fix Them

One of the most common problems with the serpentine belt on the 1985 Chevy 350 is wear and tear. This can lead to slipping, squealing, or even complete failure. To address this, inspect the belt regularly for signs of cracks, fraying, or glazing. If any of these issues are visible, it’s time to replace the belt to prevent further damage to the engine components.

Another issue that often arises is misalignment of the belt. If the belt is not aligned properly, it can cause excessive wear or damage to both the belt and the pulleys. To fix this, check the alignment of the pulleys and tensioner. If misalignment is found, you may need to replace or adjust the tensioner or idler pulleys to ensure correct belt routing.

Slippage is a frequent cause of belt problems. If the serpentine belt slips off the pulleys or doesn’t maintain proper tension, the engine’s accessories may stop working correctly. You can solve this by inspecting the tensioner to ensure it maintains proper belt tension. If the tensioner is worn, replace it to restore optimal function.

Sometimes, the serpentine belt may make noise during operation. A squealing or chirping sound usually indicates a problem with the tension or a misaligned pulley. Start by checking the belt tension and the condition of the pulleys. If the tensioner is loose or the pulley is damaged, it may be necessary to replace them to eliminate the noise.

Lastly, remember that a contaminated belt can cause slipping and decrease its lifespan. Fluids such as coolant or oil that leak onto the belt can create friction and damage. If you notice fluid leaks, fix the source and clean the belt to prevent further degradation. Regular maintenance and prompt repairs will keep the serpentine belt functioning properly, ensuring the longevity of your engine’s components.
