PTO Belt Diagram for Cub Cadet Lawn Mowers and Maintenance Tips

Refer to the PTO belt diagram for your Cub Cadet to ensure proper installation and maintenance. A clear, well-maintained diagram helps you visualize the belt’s path, reducing confusion during repairs or replacement. Identifying the correct routing for the belt not only saves time but also prevents premature wear or damage to engine components.

First, examine the diagram carefully before starting any work. The PTO belt typically runs from the engine’s power take-off to the mower deck, providing the necessary power to the blades. Proper routing ensures smooth operation and avoids unnecessary strain on the engine. Always check the tension and condition of the belt to prevent slippage or fraying.

If you need to replace the belt, consult the specific model’s diagram. For Cub Cadet models, minor differences in layout may exist, so it’s essential to have the correct diagram for your particular mower. This ensures accurate belt size and placement, leading to optimal performance. If the diagram is not easily accessible, a quick search online or checking the manufacturer’s manual should help you find the right one.

Lastly, keep an eye on the condition of both the PTO belt and other related components, such as pulleys and tensioners. Over time, these parts may wear out, affecting performance. Regular inspection based on the diagram can help you spot issues early and extend the lifespan of your mower.

Pto Belt Diagram for Cub Cadet

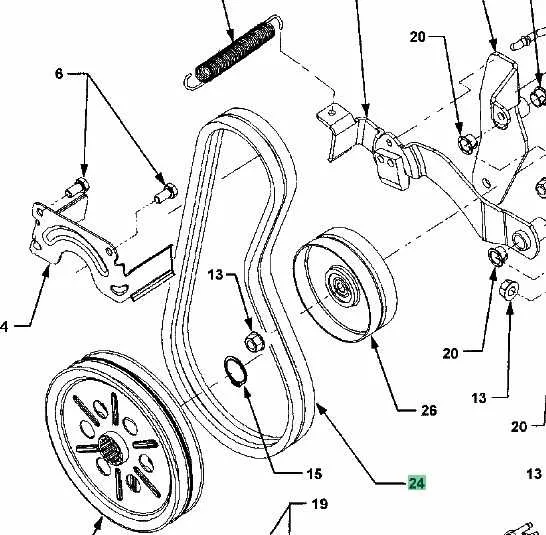

The PTO belt diagram for Cub Cadet models helps you identify the correct routing for your mower’s power take-off system. Ensuring that the belt is routed correctly is critical for smooth operation and avoiding unnecessary wear on components.

Follow these steps to correctly install or replace the PTO belt:

• Locate the PTO clutch and the drive pulley. These components play a central role in transferring power to the blades.
• Check the tension on the belt before removal. A loose or worn-out belt can cause slippage, affecting mower performance.
• Remove the old belt by loosening the tension spring or guide. Make sure to keep track of the belt’s position for reference.

To reinstall or install a new belt:

• Start by routing the belt over the engine pulley. Make sure the belt follows the manufacturer’s diagram precisely.
• Feed the belt over the PTO clutch and under the drive pulley. Ensure the belt sits properly in all grooves to avoid slipping.
• Ensure the tensioning mechanism is adjusted to apply the right amount of pressure on the belt.

Use a diagram for your specific Cub Cadet model, as the routing can vary slightly between different models. Most Cub Cadet mowers provide a decal with the PTO belt diagram, or you can find it in the user manual. If you need help, contacting customer support can provide further guidance.

How to Interpret the PTO Belt Diagram for Cub Cadet Models

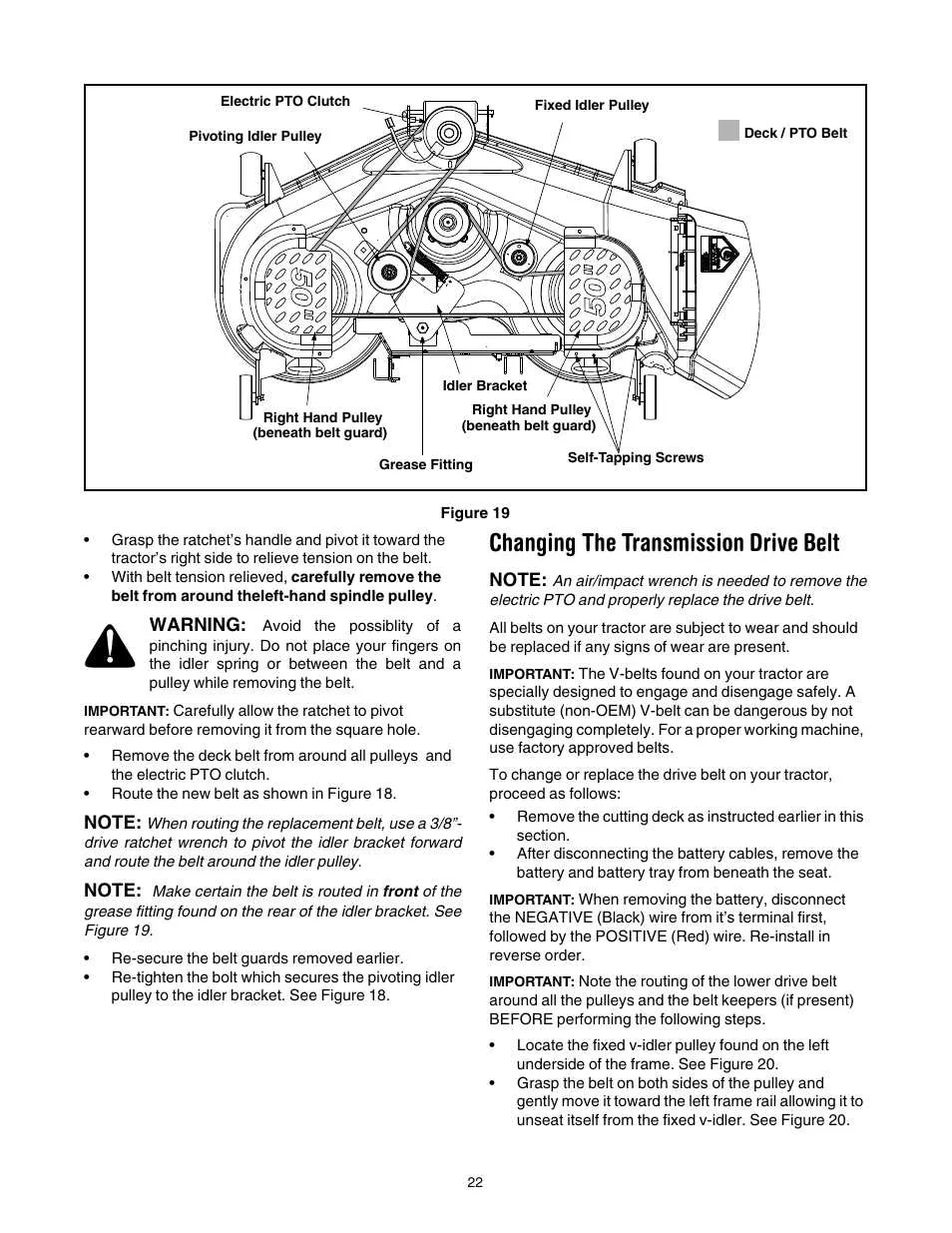

To interpret the PTO belt diagram for Cub Cadet models, first locate the diagram on the deck or inside the operator’s manual. This diagram shows how the belt should be routed around pulleys, spindles, and idlers. Follow it step by step for proper installation.

The key to understanding the diagram lies in identifying the components: the PTO pulley, the deck pulleys, and the idler pulleys. The PTO pulley is usually located near the engine and connects to the drive belt. The deck pulleys distribute power to the mower blades. The idler pulleys help maintain belt tension.

Pay close attention to the direction of the belt routing. The diagram will indicate if the belt should loop around pulleys in a clockwise or counterclockwise direction. It’s important to follow these directions precisely to avoid belt slippage or damage.

When you follow the diagram, start from the PTO pulley and work your way through the sequence. Ensure that the belt fits snugly around each pulley and that the idler pulleys maintain proper tension. If the belt appears loose, check the tensioning system and make adjustments as needed.

If the diagram includes a specific reference to the idler tensioner, ensure it is correctly aligned with the belt’s path. Misalignment could lead to uneven wear or a malfunctioning system.

Lastly, inspect the belt for wear or damage before installation. A worn or damaged belt can interfere with smooth operation, regardless of whether it is correctly routed according to the diagram.

Common Issues with PTO Belts in Cub Cadet and Their Fixes

PTO belt slipping is a frequent issue. This usually happens due to wear or incorrect tension. Check the tension and adjust it if necessary. If the belt is too loose, it may slip off during operation. Replacing worn-out belts will prevent this from happening.

PTO belt misalignment causes uneven wear and can lead to snapping. Inspect the pulleys to make sure they are aligned correctly. If pulleys are damaged, replace them. Proper alignment ensures that the belt runs smoothly and lasts longer.

Fraying or cracking is another common problem. This happens when the belt is exposed to extreme temperatures or when it is too old. Inspect the belt regularly for signs of damage. If you notice any cracks or fraying, replace the belt immediately to prevent a breakdown.

Loss of tension due to pulley wear can also cause the PTO belt to fail. Pulley surfaces wear out over time, leading to poor belt engagement. If you notice signs of wear on the pulley, such as grooves or rough surfaces, it’s time to replace them to maintain proper belt function.

Overheating of the PTO system can strain the belt and lead to premature failure. Ensure the PTO system is properly lubricated and not overloaded. Overloading puts unnecessary pressure on the belt, causing it to wear out faster.

Regular maintenance and inspection are key to avoiding these issues. Replace worn parts before they cause further damage, and always use high-quality replacement parts to keep your Cub Cadet in optimal working condition.

Step-by-Step Guide to Replacing a PTO Belt on Cub Cadet

Before you begin, make sure the mower is powered off and the key is removed. You’ll need a few tools: a socket wrench, a new PTO belt, and gloves for safety.

1. First, raise the mower deck. This will give you easy access to the PTO belt area. Use the height adjustment lever to lift the deck to its highest position.

2. Locate the PTO belt on the mower. This belt runs from the engine to the mower deck and drives the blades. It’s usually positioned in front or beneath the engine.

3. Next, remove the old PTO belt. Use a socket wrench to loosen the bolts holding the belt guard in place. Once removed, slide the guard out of the way. Carefully take the belt off the pulleys, making sure to note how the belt is routed, as you’ll need to install the new one in the same way.

4. With the old belt removed, inspect the pulleys for wear. If you notice any damage, it’s a good idea to replace them before installing the new belt. Make sure all pulleys move freely and there’s no debris or build-up obstructing their movement.

5. Install the new PTO belt. Start by placing it on the engine pulley, then route it over the other pulleys, following the same path as the old belt. Make sure the belt is properly aligned and sits in the pulley grooves without any slack.

6. Once the belt is in place, replace the belt guard. Tighten the bolts you removed earlier to secure it back into position.

7. Finally, lower the mower deck and check the tension of the new belt. It should be tight, but not overly so. Start the engine and engage the PTO to test if everything is working properly. Listen for any unusual sounds that might indicate improper installation.

If everything runs smoothly, you’re good to go! A new PTO belt ensures your mower operates at peak performance, keeping your lawn in top shape.
