Diagram of Cub Cadet Drive Belt Assembly and Maintenance Guide
Understanding the drive belt system in your Cub Cadet mower can significantly improve maintenance and troubleshooting. A clear diagram of the drive belt layout helps identify the exact path, tension points, and interaction between components, making repairs or replacements straightforward.
The Cub Cadet drive belt plays a critical role in transferring power from the engine to the wheels and mower deck. Whether you’re replacing a worn-out belt or just performing routine maintenance, it’s crucial to know its configuration. Check for proper alignment and ensure the belt moves freely without any obstructions.
Refer to a detailed diagram of the drive belt for your specific model, as belt routing may vary between different Cub Cadet mowers. If you’re unsure, take the time to compare the diagram with your mower’s current setup. This ensures you reinstall the belt correctly, avoiding potential damage or inefficiency.

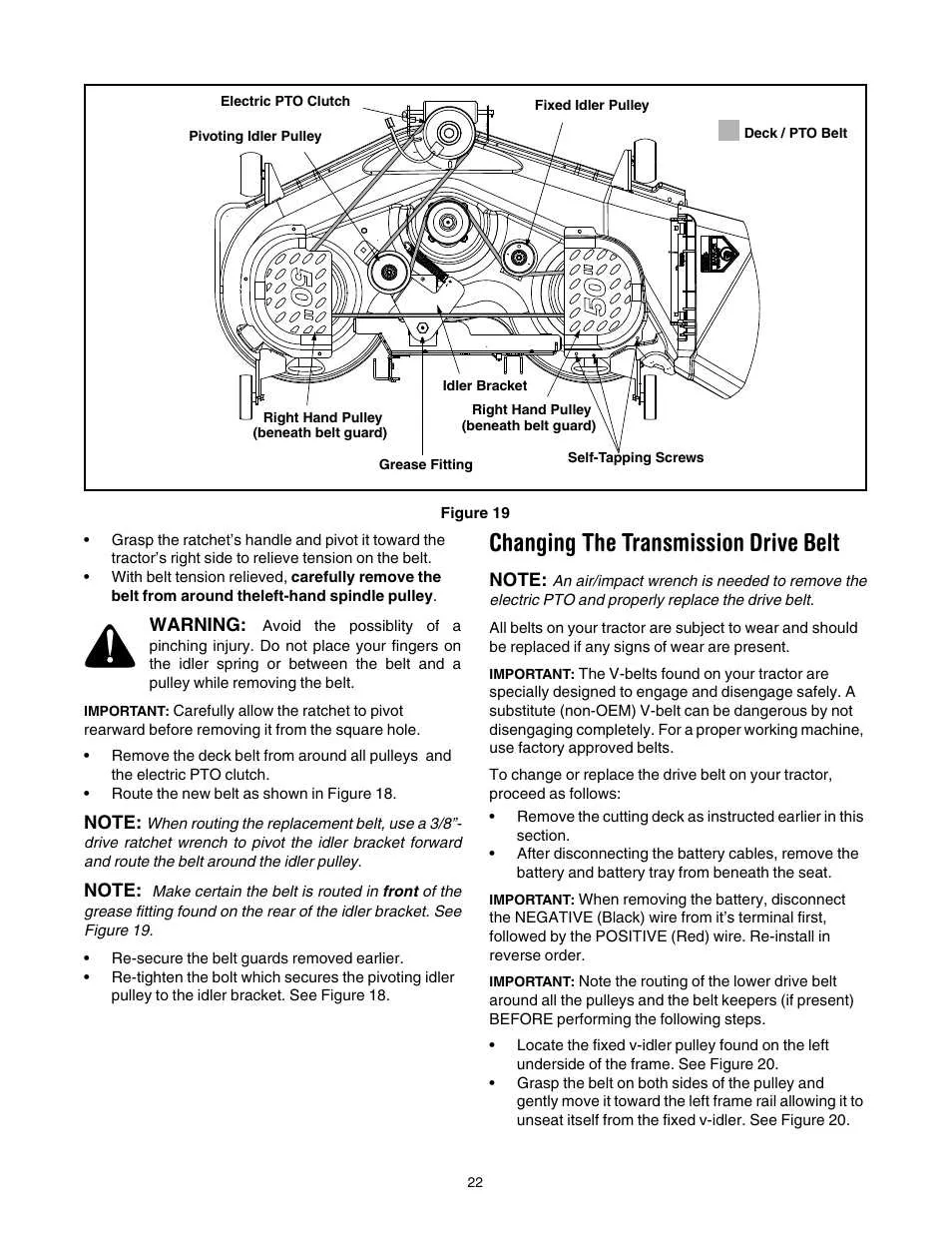

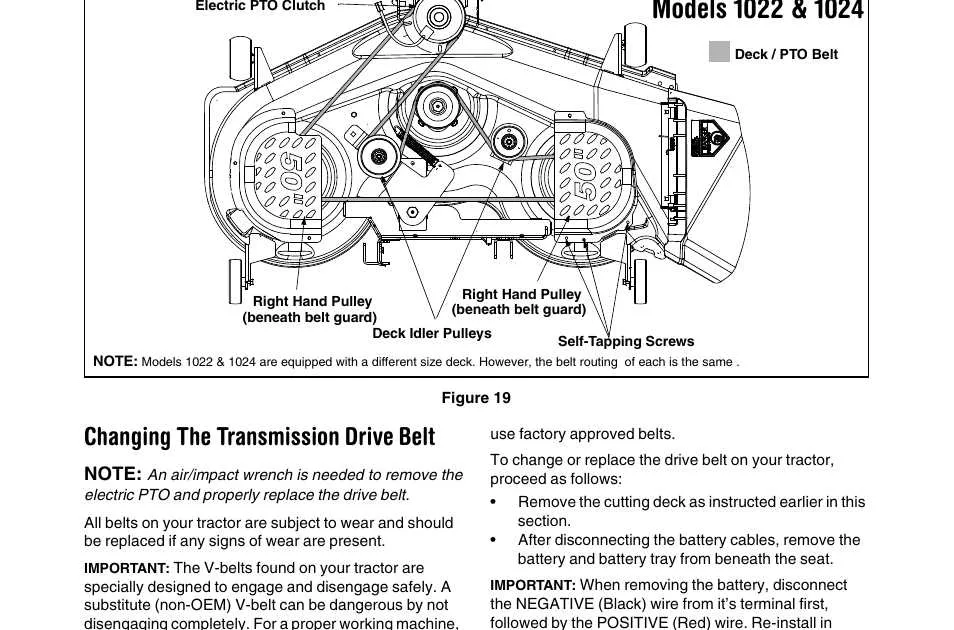

Diagram of Cub Cadet Drive Belt
The drive belt diagram for Cub Cadet models is critical for maintaining smooth operation. Make sure to check the alignment and condition of the belt regularly. Incorrect routing or a worn belt can lead to poor performance or even damage to the machine.
To begin, locate the drive belt on your Cub Cadet mower. It typically runs from the engine’s crankshaft to the transmission, passing through various pulleys. Understanding the belt’s path will help you troubleshoot issues like slippage or wear.
Key components in the diagram include the main drive pulley, idler pulleys, and the belt tensioner. Pay close attention to the position of each part when following the diagram. Each component plays a role in keeping the belt under the correct tension and routing it properly for efficient power transmission.
Tip: When replacing or inspecting the belt, always refer to the model-specific diagram. Cub Cadet offers diagrams tailored to individual mower models, so using the right one ensures accuracy. If you notice any cracks, fraying, or missing sections of the belt, it’s time for a replacement.
The diagram also highlights the direction of the belt’s movement. Ensure it is installed in the correct orientation to avoid damage. A backwards installation can lead to slipping or even cause the belt to come off completely under load.
If you’re uncertain about the exact configuration, use the diagram to check your work after installation. Compare the physical setup with the visual guide to ensure each component is in its proper place.
Lastly, always keep the drive system clean. Dirt and debris can cause the belt to slip or wear prematurely. Regular maintenance, including belt inspection, will extend the lifespan of your Cub Cadet mower and improve overall performance.
Identifying Key Components in the Cub Cadet Drive Belt System
Start by examining the drive belt itself, which transfers power from the engine to the wheels. It’s a critical part of the system, and a worn or broken belt can cause performance issues. Check for signs of fraying, cracks, or stretching, as these can indicate it’s time for replacement.
The engine pulley plays a key role in moving the belt. Make sure it is properly aligned and free of damage or debris. If the pulley shows wear, it can cause the belt to slip or wear unevenly.
Next, inspect the idler pulleys, which help guide the belt. If these pulleys are worn out, they can cause the belt to misalign, leading to further damage. Spin each idler pulley by hand to check for smooth rotation. Any resistance or noise could signal a problem.
The tensioner spring is another crucial component. It maintains the necessary tension on the drive belt to ensure it runs smoothly. If the spring is weak or broken, the belt will not be held tight enough, resulting in slippage or even a belt failure.
Lastly, check the rear pulley and the transmission. The rear pulley connects the belt to the transmission system. If this component is worn or improperly positioned, it can cause the belt to move erratically, affecting the mower’s functionality.
Step-by-Step Guide to Replacing the Cub Cadet Drive Belt
To replace the drive belt on your Cub Cadet mower, follow these steps:
- Gather Tools and Materials
Ensure you have a new drive belt, a socket wrench, a screwdriver, and safety gloves. - Lift the Mower
Place the mower on a flat surface. Use a jack or mower lift to raise the front end for easy access to the underside. - Remove the Belt Guard
Use a screwdriver or socket wrench to remove the screws holding the belt guard. Take it off to expose the drive belt. - Loosen the Tension
Use the socket wrench to loosen the tension pulley. This will relieve pressure on the belt and make it easier to remove. - Remove the Old Drive Belt
Carefully remove the old belt from the pulleys. Take note of the belt routing to ensure you install the new one correctly. - Install the New Belt
Place the new belt on the pulleys following the routing you observed. Make sure it sits securely in the grooves. - Reattach the Tension Pulley
Tighten the tension pulley back into place, ensuring the belt is tight but not overly stretched. - Replace the Belt Guard
Reinstall the belt guard by aligning it with the mounting holes and securing it with the screws. - Lower the Mower
Carefully lower the mower back to the ground, and check the belt for proper tension. - Test the Mower
Start the mower and engage the drive system. Check for smooth operation and ensure the new belt is functioning correctly.
With these steps, your Cub Cadet mower should be good to go with a new drive belt!
Troubleshooting Common Issues with the Drive Belt Diagram
Check the drive belt for any visible damage. Cracks, fraying, or excessive wear on the belt can cause it to slip or fail. Replace the belt if these issues are present.
If the belt seems too loose or too tight, adjust its tension. A loose belt may cause poor performance or slipping, while a tight belt can lead to premature wear on both the belt and pulleys.
Inspect the pulleys and other components for misalignment. Misaligned pulleys can cause uneven wear on the belt, making it prone to slipping. Ensure the pulleys are properly aligned and in good condition.
Look for debris or dirt buildup around the drive system. Dirt can affect the belt’s performance, leading to slipping or uneven tension. Clean the area and check for any objects that may be obstructing the movement of the belt.
If the diagram indicates a specific routing for the belt, verify that it has been installed correctly. Incorrect routing can lead to unnecessary stress on the components, resulting in potential failure.
Monitor for any unusual noises during operation. A squealing or grinding sound often points to a worn belt, faulty pulley, or misalignment. Address the source of the noise promptly to prevent further damage.
If you continue to experience issues after addressing these areas, consult the drive belt diagram for a more detailed troubleshooting guide or seek assistance from a professional. Regular maintenance and periodic checks can extend the life of the drive belt and improve overall performance.
