Cub Cadet ZT1 Drive Belt Tension Spring Diagram PDF Guide for Maintenance
Consult the PDF diagram to quickly identify the exact routing and attachment points of the drive belt tension spring on your Cub Cadet ZT1. The spring connects the idler pulley to the main frame, maintaining proper tension and preventing belt slippage under load. Incorrect installation can reduce mower performance and increase wear.
Check the spring’s orientation and hook positions against the diagram before attempting removal or replacement. Pay attention to the tension direction indicated in the PDF, as reversing it may lead to premature belt wear or engine strain. The diagram also highlights pulley positions, allowing precise alignment of the drive belt during reassembly.
Use the diagram to plan safe handling: secure the mower on a flat surface, release the tension carefully, and follow the indicated path for both removal and installation. Consistently referencing the PDF prevents common errors such as misrouting or overstretching the belt and ensures smooth engagement of the transmission system.
Maintain a copy of the PDF for regular maintenance checks. Comparing the physical spring and belt setup against the diagram helps detect early signs of deformation or misalignment, reducing the risk of unexpected breakdowns. Regular verification against the diagram improves belt longevity and maintains consistent drive performance.
Cub Cadet ZT1 Drive Belt Tension Spring Diagram PDF Guide for Accurate Maintenance
Access the official PDF diagram to verify the correct placement and routing of the drive belt tension spring on the Cub Cadet ZT1. Follow the labeled components carefully to ensure proper tension and avoid misalignment.
Identify the spring anchor points and measure the recommended tension using a spring gauge. The PDF specifies exact attachment locations and tension ranges for both standard and heavy-duty operation.
Before removing the old belt, mark the pulley positions and the spring orientation. This prevents incorrect installation and reduces wear on the belt and pulleys.
When installing the new belt, attach the tension spring to the designated hooks first, then loop the belt over the pulleys as indicated in the diagram. Confirm the belt sits in the pulley grooves without twisting.
After installation, rotate the mower manually to check for smooth movement and consistent spring tension. Adjust the spring slightly if the belt shows slack or excessive tightness.
Store the PDF reference in an accessible location for future maintenance, as it includes torque specifications for mounting bolts and recommended inspection intervals for the tension spring assembly.
Identifying Drive Belt Components and Spring Placement

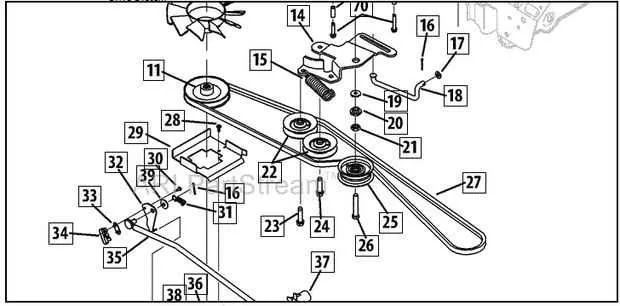

Locate the main drive belt connecting the engine pulley to the transmission pulley. Identify the idler pulleys along the belt path, which maintain proper routing and tension. Check the belt for part numbers or directional arrows, ensuring correct installation orientation.

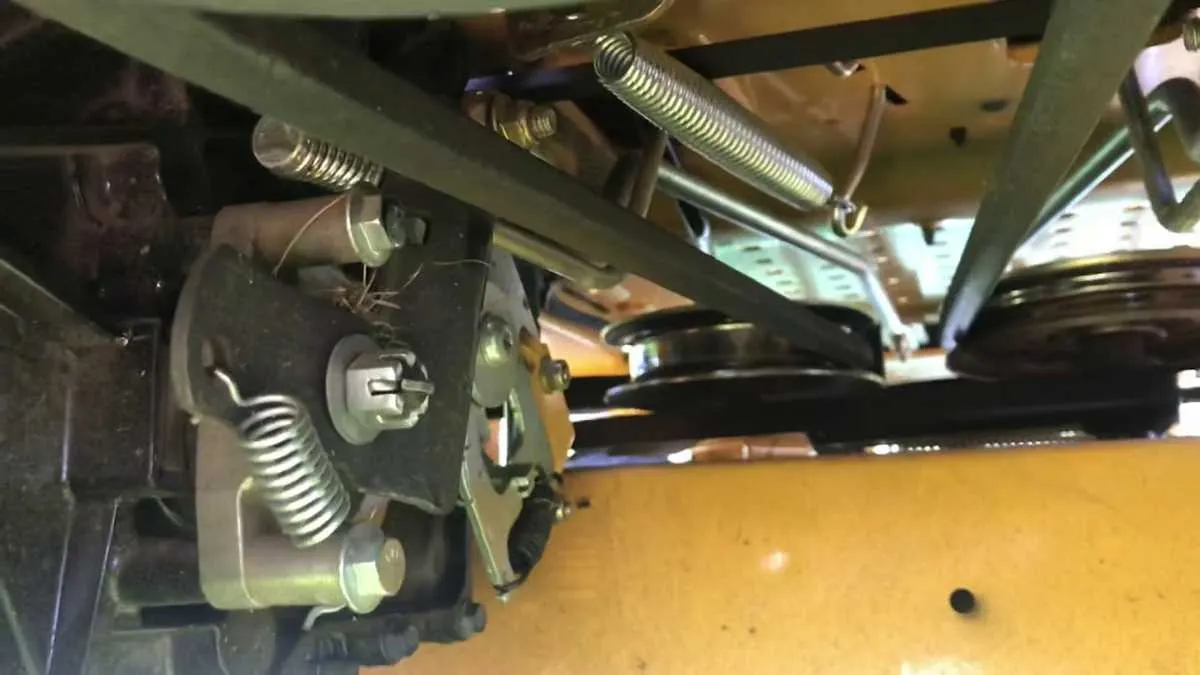

Inspect the tension spring positioned near the idler pulley assembly. This spring applies constant pressure to maintain proper belt tension. Note the spring’s attachment points: one end hooks onto the idler bracket, while the other connects to the frame or a designated anchor point on the mower deck.
Verify the spring’s angle and extension. It should pull the idler pulley smoothly without slack or excessive force. Misaligned or improperly seated springs can lead to belt slippage or premature wear.
Mark each component’s location before disassembly. Use the diagram in the PDF to match the pulley layout and spring routing. Confirm that the belt sits evenly across all pulleys, and the spring maintains consistent tension throughout the belt cycle.
Recheck connections after adjustments. Rotate the pulleys manually to ensure the belt tracks correctly and the spring maintains tension without binding. Correct placement prevents operational issues and extends component life.
Step-by-Step Instructions to Adjust Belt Tension Using the Spring
Locate the drive belt and identify the tension spring connected to the idler arm. Ensure the engine is off and the mower is on a flat surface for safety.
Loosen the mounting bolt on the idler arm slightly to allow movement. Do not remove the bolt completely, as the spring tension holds the arm in place.
Using a wrench or socket, rotate the idler arm away from the belt to release tension. Observe the spring as it stretches; this controls the force applied to the belt.
Check the belt for proper alignment along all pulleys. The belt should sit squarely without twisting or slipping off any pulley.
Gradually allow the idler arm to move back under spring tension. Measure belt deflection by pressing on the midpoint of the longest span. Aim for a deflection of approximately 1/2 inch (12 mm) under moderate finger pressure.
If the deflection is too loose or tight, adjust by repositioning the idler arm slightly while maintaining spring engagement. Tighten the mounting bolt once the desired tension is achieved.
Rotate the mower blades by hand to confirm smooth belt movement. Ensure the belt maintains contact with all pulleys and the tension remains consistent through a full rotation.
Perform a final visual inspection to verify the spring is seated correctly and the idler arm moves freely without binding. This guarantees reliable belt operation during mower use.
Common Issues and How to Verify Proper Belt Alignment
Check the drive belt regularly for signs of misalignment, which often cause uneven wear, slipping, or unusual noises. Start by inspecting the belt path for correct positioning over all pulleys and tensioners.
Common issues include:
- Fraying edges or cracks on the belt surface.
- Excessive belt movement or bouncing during operation.
- Noise such as squealing, indicating tension or alignment problems.
- Visible wear on pulley grooves or uneven pulley surfaces.
To verify alignment, follow these steps:
- Turn off the engine and remove the ignition key.
- Examine the belt from front to back, ensuring it sits evenly in each pulley groove without twisting.
- Check tension using a ruler or belt tension gauge; the belt should deflect 1/2 to 3/4 inch under moderate thumb pressure.
- Rotate the pulleys by hand to confirm the belt tracks smoothly and does not jump out of grooves.
- If a misalignment is detected, adjust the spring tensioner or reposition the belt on the pulleys according to the manufacturer’s diagram.
Regular inspection and correcting minor misalignments prevent premature belt failure and maintain smooth mower operation.
