Cub Cadet ZT1 50 Drive Belt Spring Diagram and Installation Guide
Understanding the drive belt spring mechanism on your Cub Cadet ZT1 50 is key to ensuring smooth operation and proper maintenance. The spring plays a vital role in tensioning the drive belt, which ultimately powers the mower’s wheels. If you’re dealing with slippage or uneven movement, this diagram will help clarify how the spring interacts with other components.
Start by identifying the drive belt assembly and spring placement. The spring attaches to the frame and a lever that adjusts the tension on the drive belt. If the belt feels loose or tight, it might be an issue with the spring’s tension, which can be adjusted or replaced depending on its condition. Follow the diagram carefully to avoid incorrect reassembly.
Make sure to check the condition of both the spring and the belt. A worn-out spring could lead to an improperly tensioned belt, affecting the performance of the mower. Additionally, check for any wear or damage to the belt itself as part of your regular maintenance routine.

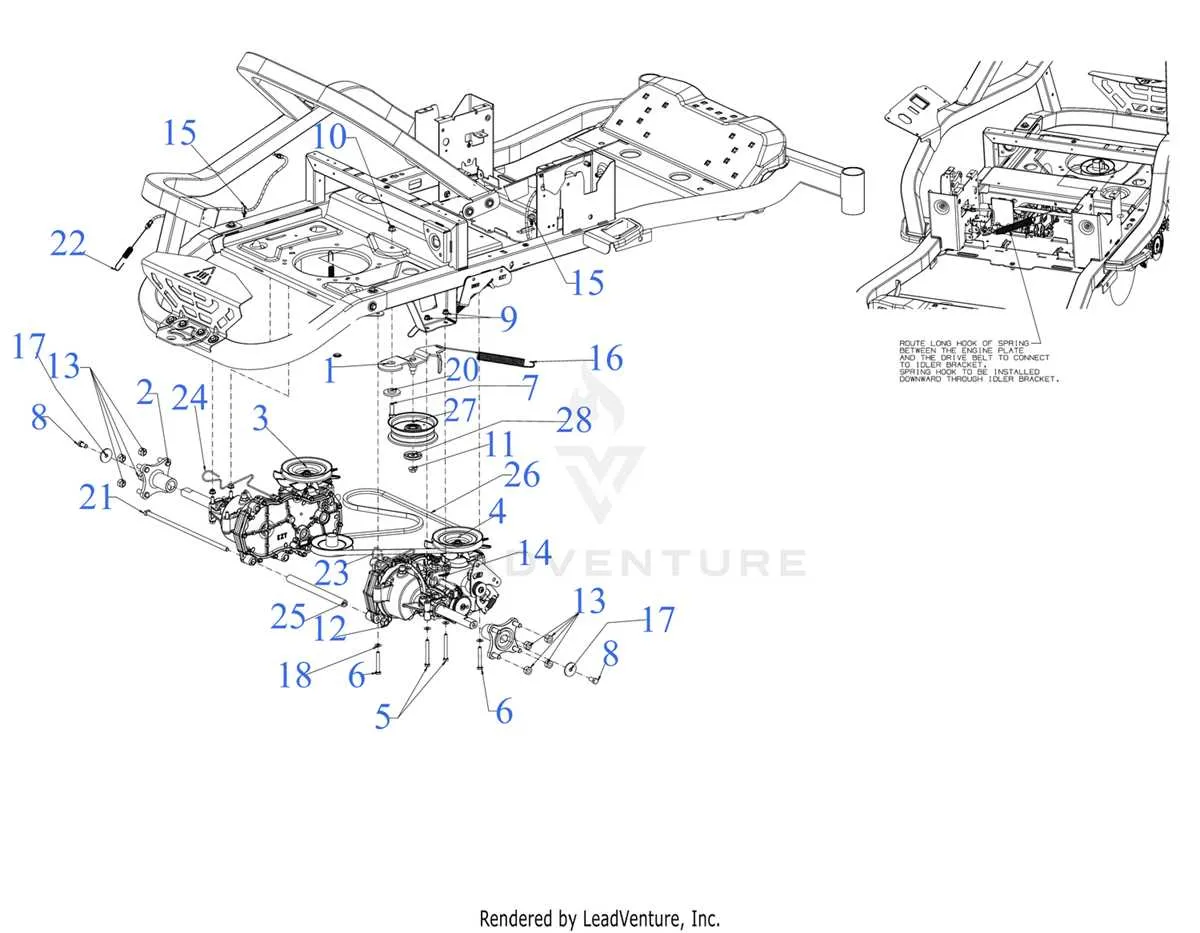

Cub Cadet ZT1 50 Drive Belt Spring Diagram
For accurate installation and proper maintenance, refer to the Cub Cadet ZT1 50 drive belt spring diagram. This diagram is key for identifying the exact placement of components, ensuring the drive belt operates smoothly and efficiently. Pay special attention to the spring’s tension settings, as improper adjustment can lead to belt slippage or premature wear.
When working with the diagram, always ensure the spring is correctly aligned with the tension arm. This prevents misalignment, which can result in the drive belt becoming loose or too tight, causing strain on the mower’s drive system. The spring should be installed so it can maintain consistent tension on the belt, allowing for proper belt engagement during operation.
If the spring appears worn or damaged, replace it immediately. A weak spring can cause the drive belt to lose tension, leading to a decrease in performance. The diagram will also help you verify the routing of the drive belt, ensuring that it moves smoothly around pulleys without obstruction.
Check the tension frequently during use. If the spring becomes too loose, the belt could slip off or fail to grip the pulleys properly. Adjusting the spring tension should be done according to the manufacturer’s recommendations, which can typically be found in the mower’s manual.
Understanding the Function of the Drive Belt Spring in Cub Cadet ZT1 50
The drive belt spring on the Cub Cadet ZT1 50 ensures smooth operation of the drive system by maintaining proper tension on the drive belt. This spring plays a key role in preventing belt slippage and ensuring efficient power transmission from the engine to the wheels. Without it, the belt could become loose, leading to reduced performance or even failure of the mower to move properly.
The spring’s tension is critical–it should be strong enough to keep the drive belt taut under various operating conditions but not so tight that it causes excessive wear on either the belt or the pulleys. When adjusting or replacing the drive belt spring, make sure the spring is correctly positioned and does not overstretch, as this can affect belt alignment and overall drive functionality.
If the spring loses its tension over time, it may need to be replaced. A worn or damaged drive belt spring can result in inconsistent belt operation, which may lead to a decrease in driving efficiency or even belt damage. Regular inspection of the drive belt spring is recommended to ensure it is functioning properly and to avoid unexpected breakdowns during operation.
Step-by-Step Guide to Locating and Inspecting the Drive Belt Spring
Begin by turning off the engine and ensuring the mower is on a stable surface. Use a jack or lift to elevate the mower for better access.
Locate the drive belt assembly. The drive belt spring is usually attached to the frame near the belt pulleys. Check both the front and rear sections of the mower, as some models may have multiple springs depending on the drive system configuration.
Use a wrench or socket set to remove any bolts or covers obstructing the belt and spring. Be careful when removing the cover to avoid damaging the plastic or metal parts.
Once exposed, visually inspect the spring for any signs of wear, rust, or stretching. A worn spring can cause belt slippage, impacting the mower’s performance.
Measure the spring’s tension by gently pulling on it. It should resist movement and not feel overly stretched or loose. If the spring feels weak, replace it with a new one of the same specifications.
Check for any misalignment in the drive belt system. If the belt is off-center or misrouted, it can lead to improper spring function. Adjust the belt routing if necessary.
After inspecting and possibly replacing the spring, reassemble the drive belt components, ensuring everything is secure and properly aligned before operating the mower again.
Troubleshooting Common Issues with the Drive Belt Spring and Replacement Tips
If your Cub Cadet ZT1 50 lawn mower isn’t performing as expected, the drive belt spring may be the culprit. Common issues like slippage, reduced tension, or even breakage can impact the mower’s performance. Here are some troubleshooting tips to help you identify and resolve these problems effectively.
1. Belt Slipping or Poor Tension
When the drive belt slips, it usually points to insufficient tension. If the spring has lost its elasticity or is damaged, it won’t apply enough force to keep the belt taut. Check the spring’s condition and replace it if it’s stretched out or deformed. Use a spring with the correct specifications for your model to avoid further issues.
2. Excessive Wear on the Belt
A worn-out drive belt can be a sign of an improper spring tension. If the belt is too tight or too loose, it will wear unevenly. Inspect the belt for signs of fraying or cracks. If damage is present, replace the belt and adjust the spring tension to ensure even wear moving forward.
3. Noisy Operation
If your mower is making excessive noise while running, it may be due to a loose or worn-out drive belt spring. A spring that has lost its tension won’t keep the belt in place correctly, causing it to rub against other parts. Check for abnormal wear and replace the spring if necessary. Tightening the spring may also help reduce noise, but avoid overtightening, as it could lead to other mechanical issues.
4. Spring Replacement Process
- Turn off the mower and disconnect the spark plug to ensure safety.
- Locate the drive belt spring in the mower’s chassis.
- Use pliers or a wrench to remove the old spring. Take care not to damage any surrounding parts.
- Install the new spring according to the manufacturer’s specifications.
- Reassemble any parts you may have removed and test the mower to ensure the belt functions properly.
5. Preventing Future Issues
Regular maintenance is key to avoiding future issues. Check the spring tension every few months and inspect the belt for wear. Keep the drive system clean to prevent debris from interfering with operation, and replace components as needed before they cause more damage.
