Cub Cadet Z Force 50 Belt Routing Diagram for Accurate Maintenance and Replacement

Locate the correct belt path before attempting any adjustments on your Cub Cadet Z Force 50. Using the official belt diagram ensures the deck engages smoothly and avoids unnecessary wear on pulleys and spindles. Place the mower on a flat surface and secure the wheels to prevent movement during installation.

Identify each pulley and belt segment according to the diagram. The Z Force 50 uses a dual-belt system: one belt drives the deck spindle, while the other connects the engine to the deck. Pay attention to the orientation of the belt teeth, as reversing them can reduce traction and increase slippage.

Follow tension guidelines shown in the diagram to maintain proper belt alignment. A belt that is too tight can stress the engine and spindle bearings, while a loose belt may skip teeth and hinder blade rotation. Adjust the idler pulleys gradually, testing the movement after each adjustment.

Use visual markers from the diagram to check routing against the actual setup. Confirm that the belt passes over every pulley in the correct order and that tension springs are connected securely. This step prevents premature belt damage and ensures the deck operates at full power.

Maintain consistency with periodic inspections. Even a properly routed belt can degrade over time due to debris, moisture, or engine heat. Refer back to the diagram whenever replacing the belt to replicate the correct path precisely and extend the lifespan of both the belt and mower components.

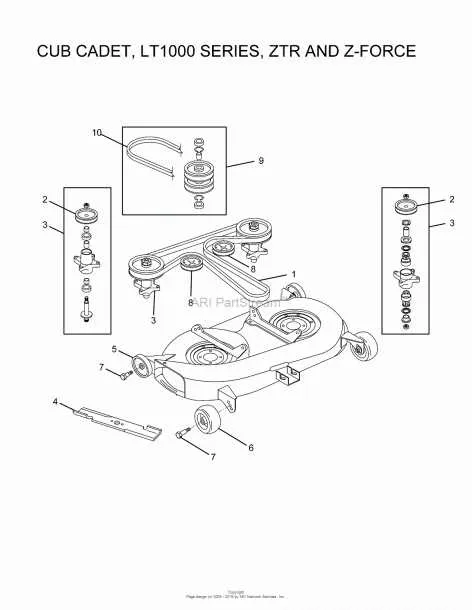

Cub Cadet Z Force 50 Belt Diagram

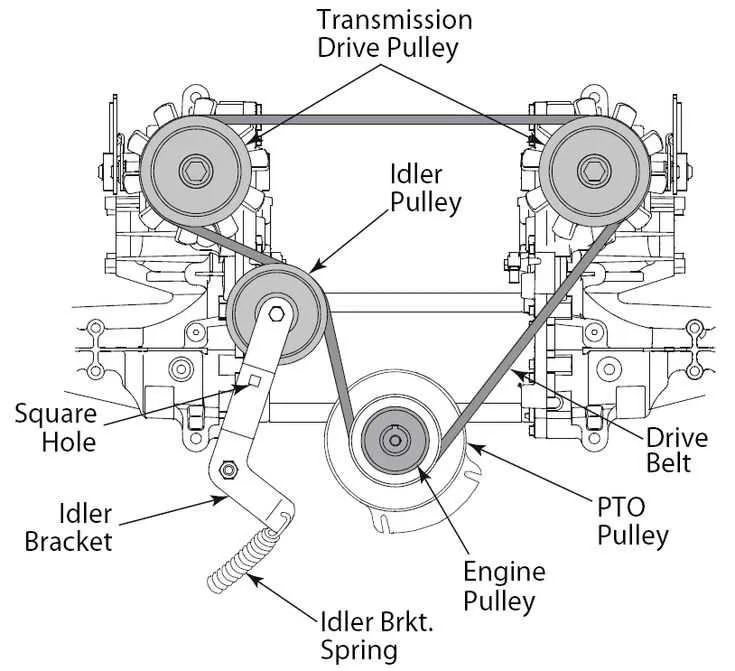

Locate the primary drive belt on the Z Force 50 by positioning yourself behind the mower and removing the deck. Ensure the engine is off and the key is removed before handling any components. The belt wraps around the engine pulley, idler pulleys, and mower deck spindles in a specific pattern that maintains tension and delivers power to the blades.

Identify the engine pulley at the front, then follow the belt path to the tensioner idler, which keeps consistent pressure. From the tensioner, the belt routes to each deck spindle pulley, making a precise loop for even blade rotation. Check alignment marks on pulleys to match the belt routing exactly, preventing slipping or uneven wear.

Inspect the belt for cracks or fraying during installation. If worn, replace it with the Cub Cadet part number 954-04208 or a compatible equivalent. Apply light pressure to ensure it sits securely in all pulley grooves and rotates smoothly when manually turning the engine pulley. Avoid forcing the belt, which can damage the pulleys or stretch the belt incorrectly.

After installation, lower the deck and engage the PTO lever to test blade movement. Listen for smooth operation without skipping or squealing. Adjust the idler tension if necessary to maintain optimal belt performance and extend lifespan.

Maintain a diagram for reference during future maintenance. Photograph the belt routing before removal or mark the pulleys to ensure accurate reinstallation, reducing downtime and preserving the mower’s cutting efficiency.

Identifying the Correct Belt Path for Z Force 50

Route the deck belt around the mower pulleys following the diagram exactly: start at the engine pulley, pass it under the idler, then loop around the deck drive pulley. Maintain proper tension by adjusting the spring-loaded idler to prevent slipping or premature wear.

Ensure the belt sits fully in each pulley groove without twisting. For the Z Force 50, the deck belt crosses over the center idler in a figure-eight pattern; missing this crossover will reduce cutting performance and strain the belt. Use a marker or photo to track each path during removal and reinstallation.

Inspect all pulleys before installation. Worn or misaligned pulleys cause the belt to derail. Rotate each pulley by hand to confirm smooth operation and correct alignment. Replace any damaged pulleys before routing the new belt.

After the belt is installed, engage the deck and run it briefly at low throttle. Watch for smooth movement and listen for unusual noises. Adjust the idler tension as needed to maintain a consistent path. Check the belt periodically for fraying or slippage, especially after the first few hours of operation.

Keep a clean work area around the deck. Grass clippings, debris, or oil buildup can interfere with proper belt seating. Wipe pulleys and belt surfaces before installation to extend belt life and maintain optimal performance.

Troubleshooting Common Belt Misalignment Issues

Check the belt tension immediately if you notice uneven wear or slippage on your Cub Cadet Z Force 50. A belt that rides off pulleys or frays along the edges signals misalignment.

Follow these steps to correct misalignment:

• Inspect pulleys for damage or debris. Bent or worn pulleys can push the belt off track.
• Measure belt tension using a spring scale. For the Z Force 50, the correct tension ranges between 12–15 pounds at the midpoint between pulleys.
• Adjust idler arms carefully. Loosen mounting bolts and slide the idler to center the belt, ensuring it sits evenly across all pulley grooves.
• Check the engine pulley alignment with a straight edge. The pulley face should be parallel with the mower deck pulley to prevent lateral belt movement.
• Replace belts showing cracks, glazing, or stretched sections. Misalignment often accelerates belt deterioration, making replacement the safest option.

After adjustments, run the mower briefly and watch the belt track. It should remain centered on all pulleys without drifting. If the belt continues to slip, re-examine tension and idler positioning.

Regularly lubricate idler bearings and remove grass buildup behind pulleys. Consistent maintenance reduces friction points that contribute to misalignment and extends belt life.

Step-by-Step Guide to Replacing the Z Force 50 Belt

Park the Cub Cadet Z Force 50 on a level surface and engage the parking brake. Disconnect the spark plug wire to prevent accidental starting.

Raise the mower deck to its highest position and remove any debris around the pulleys and belt area. Use a wrench to loosen the idler pulley tension, then slide the old belt off the pulleys carefully.

Compare the new belt with the old one to ensure correct size and routing. Position the belt around the engine pulley first, then guide it through the idler pulleys and around the deck spindles following the belt diagram for Z Force 50.

Release the idler pulley slowly to apply tension to the new belt. Rotate the pulleys by hand to verify the belt moves smoothly and aligns properly on all grooves.

Lower the mower deck and reconnect the spark plug wire. Test the mower at low throttle to confirm the belt operates quietly and transfers power efficiently without slipping or misalignment.
