Cub Cadet Z Force 44 Deck Belt Diagram and Maintenance Guide

To replace or troubleshoot the deck belt on your Cub Cadet Z Force 44, refer to the diagram for the correct routing. The belt should be installed in the exact pattern shown to ensure smooth operation and avoid unnecessary wear. Pay attention to the orientation of each component, especially when working with the pulleys, as incorrect installation can cause misalignment or damage.

Start by removing the deck from the mower. This will give you the space to properly access the pulleys and belt. Once the deck is free, you can proceed to remove the old belt. Take note of its routing on the pulleys and idlers before detaching it completely. Compare the new belt with the diagram to make sure you have the correct replacement.

Reinstall the new belt by following the diagram step-by-step. Begin with the larger pulleys and work your way to the smaller ones. Be mindful of tension adjustments as you go, as the belt needs to be taut but not overly stretched. After the installation, check for any misalignments or slack and make the necessary adjustments before putting the deck back on the mower.

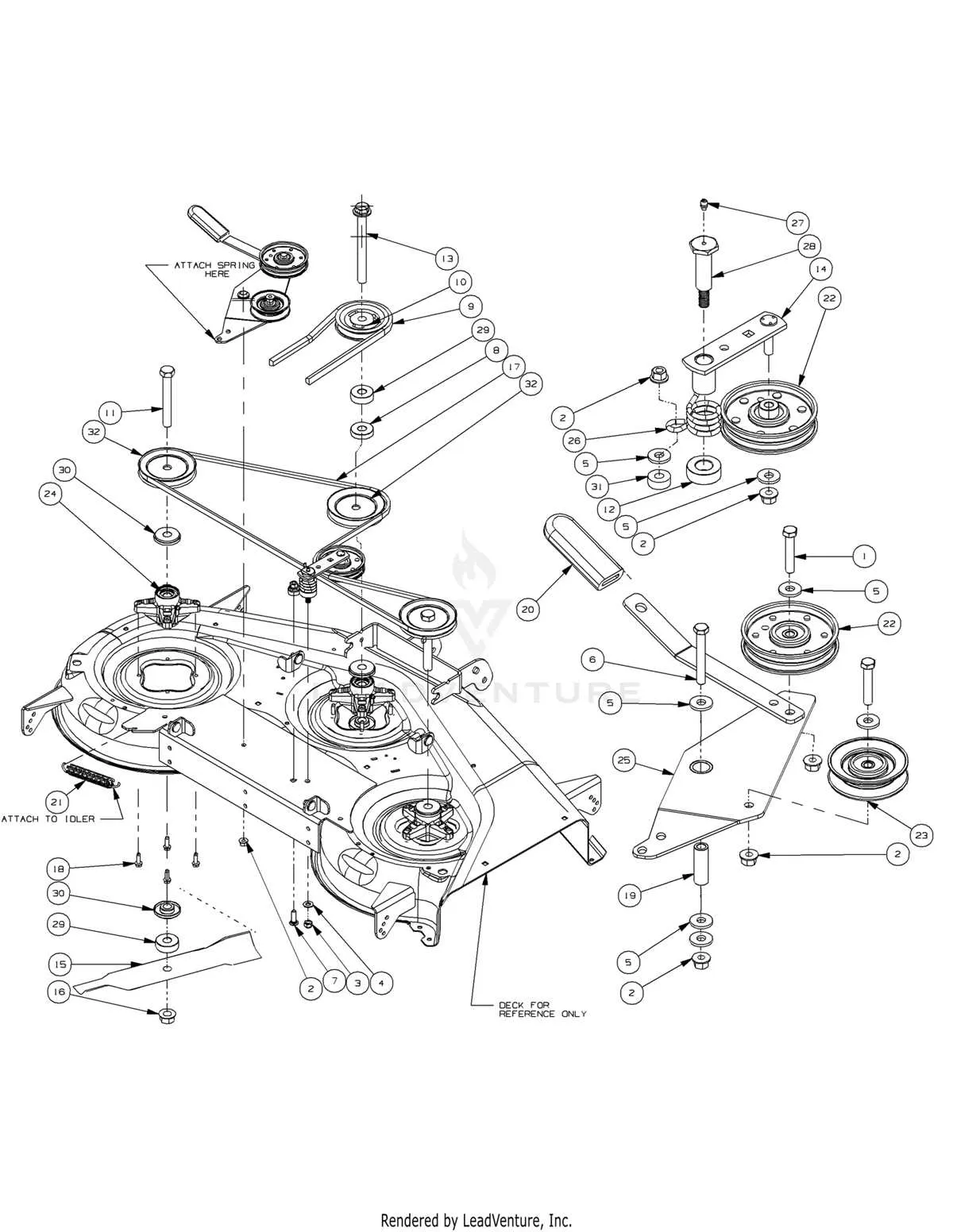

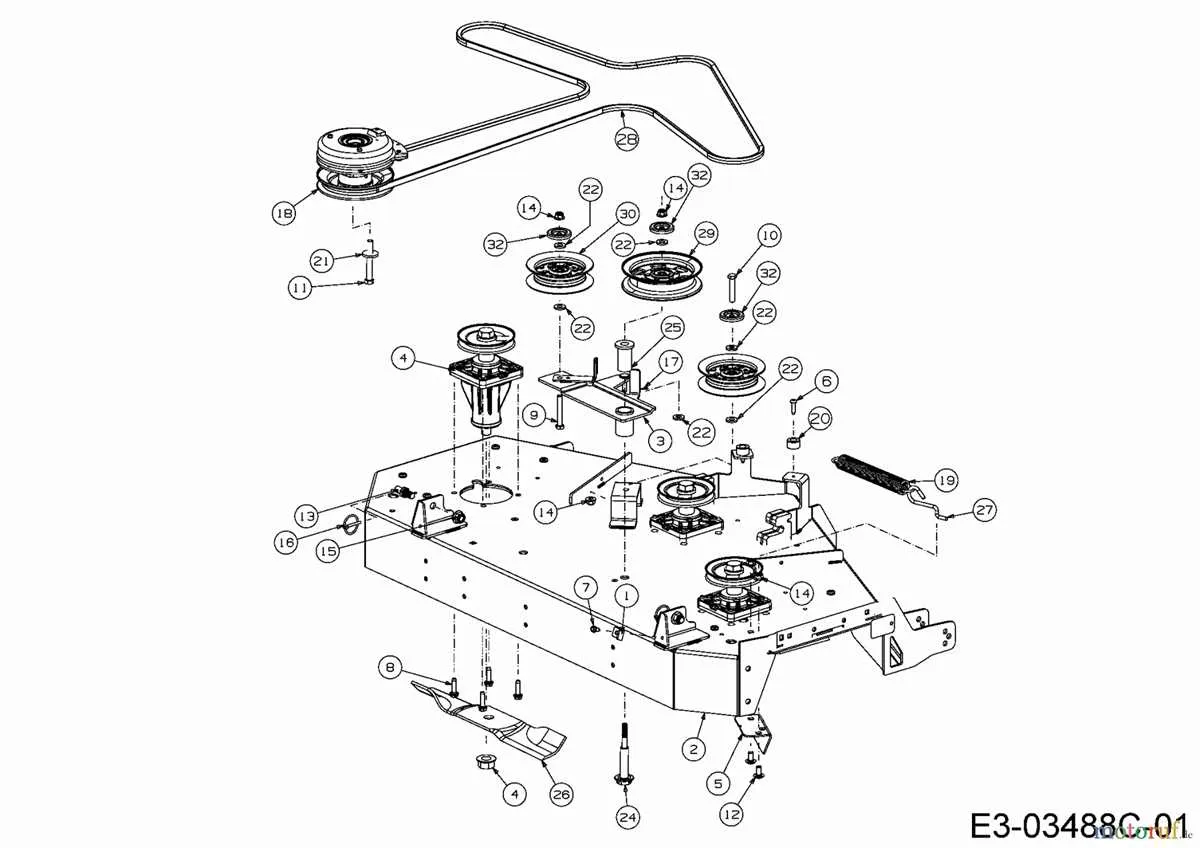

Cub Cadet Z Force 44 Deck Belt Diagram

To replace the deck belt on your Cub Cadet Z Force 44, refer to this diagram for proper routing. Start by positioning the belt through the pulleys in the correct sequence: first, place the belt over the engine pulley, ensuring it’s secured. Then, loop it around the spindle pulleys, making sure it fits snugly. Lastly, route it through the idler pulleys and tensioner, checking that the belt has the right tension and is not twisted.

Be sure the belt rests smoothly in each pulley groove without any slack. Verify that the belt path matches the diagram closely to avoid any wear or damage. Pay attention to the idler pulley springs; they should be tight enough to maintain proper tension but not so tight that they cause the belt to stretch prematurely.

If you encounter issues with the belt not fitting properly, double-check the pulley alignment and confirm that the replacement belt is the correct size. Using an incorrect belt length can cause misalignment and premature wear. Always use OEM parts for best results.

Once the belt is routed correctly, manually rotate the deck to ensure the belt moves freely and is properly aligned before tightening everything down. This step ensures the mower deck operates smoothly during use.

Step-by-Step Guide for Installing the Deck Belt on Cub Cadet Z Force 44

First, lift the mower deck by raising the mower lift lever to the highest position. This provides ample space for belt installation.

Next, remove the old belt if necessary. Carefully note the belt routing by observing the current configuration or referring to the deck belt diagram. Take a photo for reference if needed.

Now, remove any obstructions such as the deck shield or guard to gain full access to the pulleys and belt path.

Position the new belt around the pulleys starting with the engine pulley. Make sure the belt sits properly in the grooves of each pulley, without twisting or misalignment. Follow the exact routing seen in your reference image or diagram.

Once the belt is in place, check for any slack by manually rotating the pulleys. The belt should have slight tension, but not too tight. Adjust accordingly.

Reattach any parts you removed earlier, like the deck shield, and ensure that all fasteners are securely tightened.

Lower the deck back to its original position and test the belt by running the mower briefly. Check for smooth operation, listening for any unusual sounds, and confirm that the belt is functioning correctly. If everything looks good, you’ve completed the installation!

Common Issues with Cub Cadet Z Force 44 Deck Belt and How to Fix Them

1. Belt Slipping or Coming Off

If the deck belt frequently slips or comes off, check for worn-out or damaged pulleys. Inspect the pulley bearings to ensure smooth operation. A misaligned pulley can cause excessive tension on the belt, leading to slippage. Adjust the belt tension and replace any faulty pulleys. Make sure the belt is correctly routed, as incorrect installation can also cause it to dislodge.

2. Belt Squealing or Excessive Noise

Squealing noises typically point to a misaligned belt or insufficient tension. Inspect the belt for wear or debris buildup, which can cause friction and noise. Clean the pulleys and check for any twisted or frayed sections on the belt. Tighten the belt if necessary, but avoid overtightening, as this can lead to premature wear on both the belt and pulleys.

3. Belt Wearing Out Quickly

A belt that wears out too fast could be a sign of improper tension. Either a belt that’s too tight or too loose will wear down quicker. Check the tensioner to ensure it’s operating correctly. If the belt continues to wear quickly despite proper tension, inspect the pulleys for damage or misalignment, which could be causing uneven wear.

4. Deck Vibration

If the deck vibrates unusually, check the belt for any visible damage, such as cracks or splits. Vibration could also be a result of uneven pulleys, bent spindle shafts, or worn bearings. Replacing any damaged components and ensuring everything is properly aligned will eliminate most of the vibration issues.

5. Difficulty in Engaging or Disengaging the Mower Deck

If the mower deck doesn’t engage or disengage smoothly, the deck belt could be too tight or too loose. Inspect the engagement system for any issues with the tension spring or mechanism. Sometimes, a belt that is too tight can prevent proper engagement. Adjust the tension and ensure the belt isn’t interfering with the engagement mechanism.

Understanding the Routing and Tensioning of the Deck Belt on the Z Force 44

The deck belt routing on the Cub Cadet Z Force 44 ensures proper operation of the mower’s blades. It’s important to understand how to route and tension the belt to maintain efficiency and prevent premature wear.

Start by following the correct routing path for the belt. It loops over the engine pulley, down to the idler pulleys, and then to the blade pulleys. Make sure the belt is seated properly in all grooves, especially around the tensioner pulleys. A misaligned belt can cause skipping or improper blade engagement.

The next step is adjusting the tension. A belt that’s too loose may slip, while a belt that’s too tight can lead to excessive wear. Use the idler pulley’s spring-loaded mechanism to adjust the tension. When correctly adjusted, there should be a small amount of deflection when pressing on the belt between pulleys, around 1–2 inches. This ensures the belt has enough tension to grip without overstretching.

After routing and tensioning, inspect the belt for any twists or kinks. Twists can cause uneven wear, making the belt wear out faster. Check the belt regularly for signs of wear such as cracking or fraying, and replace it as needed to avoid damage to other parts of the mower.

Finally, always use the recommended replacement belt from the manufacturer to ensure the correct fit and performance. Using the wrong belt can affect the entire mower system, leading to inefficient cutting or damage to the pulleys and spindles.
