Cub Cadet XT2 Drive Belt Diagram and Maintenance Tips for Optimal Performance
Having the right diagram for the Cub Cadet XT2 drive belt can save you time and effort during maintenance. Knowing the correct routing of the belt ensures smooth operation and reduces unnecessary wear on parts. A detailed diagram is a must-have for anyone handling belt replacements or repairs.
To begin, the Cub Cadet XT2 drive belt is a key component in the mower’s transmission system, transferring power from the engine to the wheels. Incorrect installation can cause slipping, premature belt wear, or even engine damage. For optimal performance, make sure to follow the diagram exactly, especially when replacing or adjusting the drive belt.
The diagram itself clearly illustrates the path the belt follows around pulleys and guides. It’s designed to make the process as straightforward as possible. Pay attention to pulley alignment and tension specifications to avoid misinstallation. Once you have the right belt routing, you’ll ensure your Cub Cadet XT2 runs like new for longer.

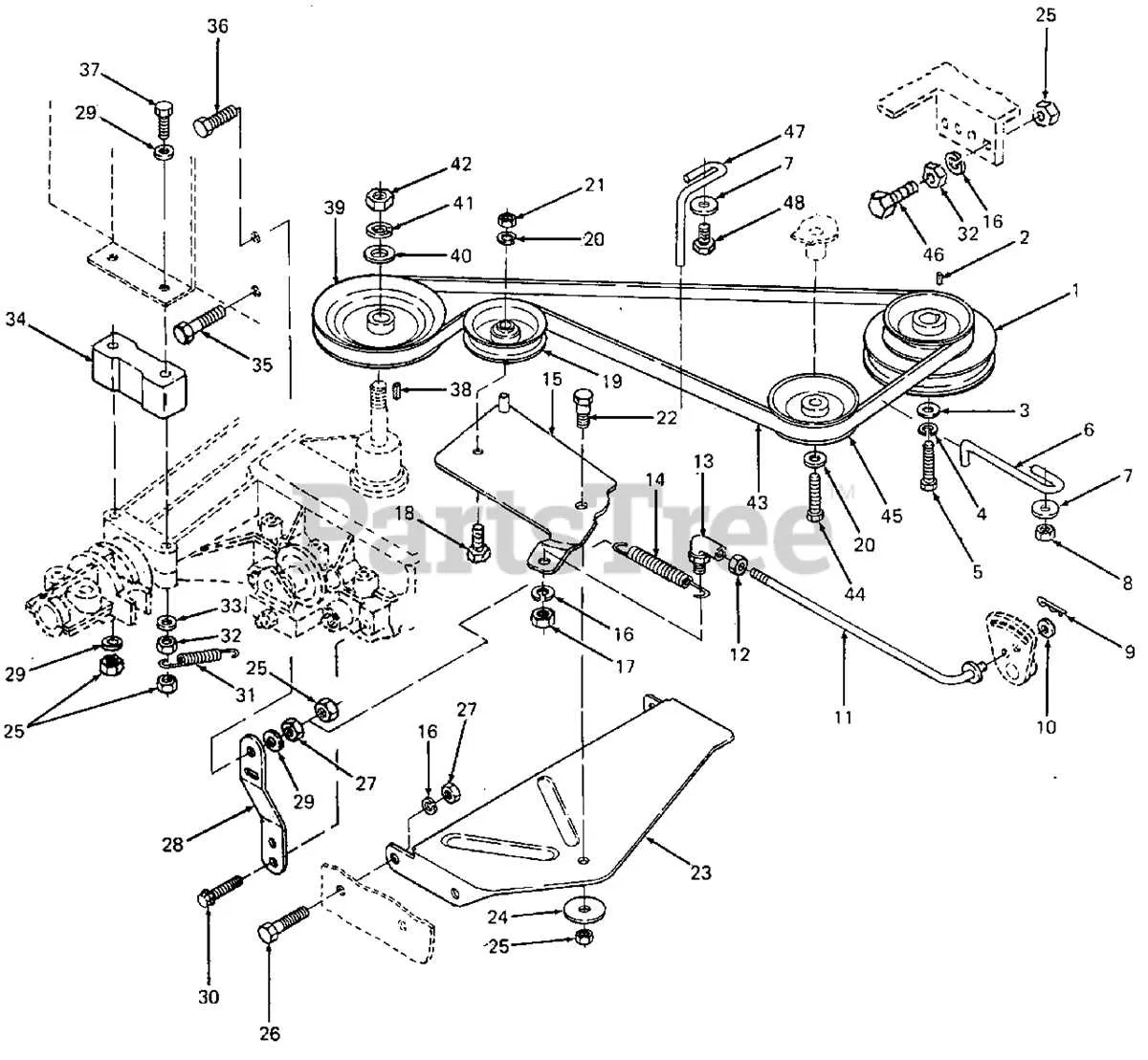

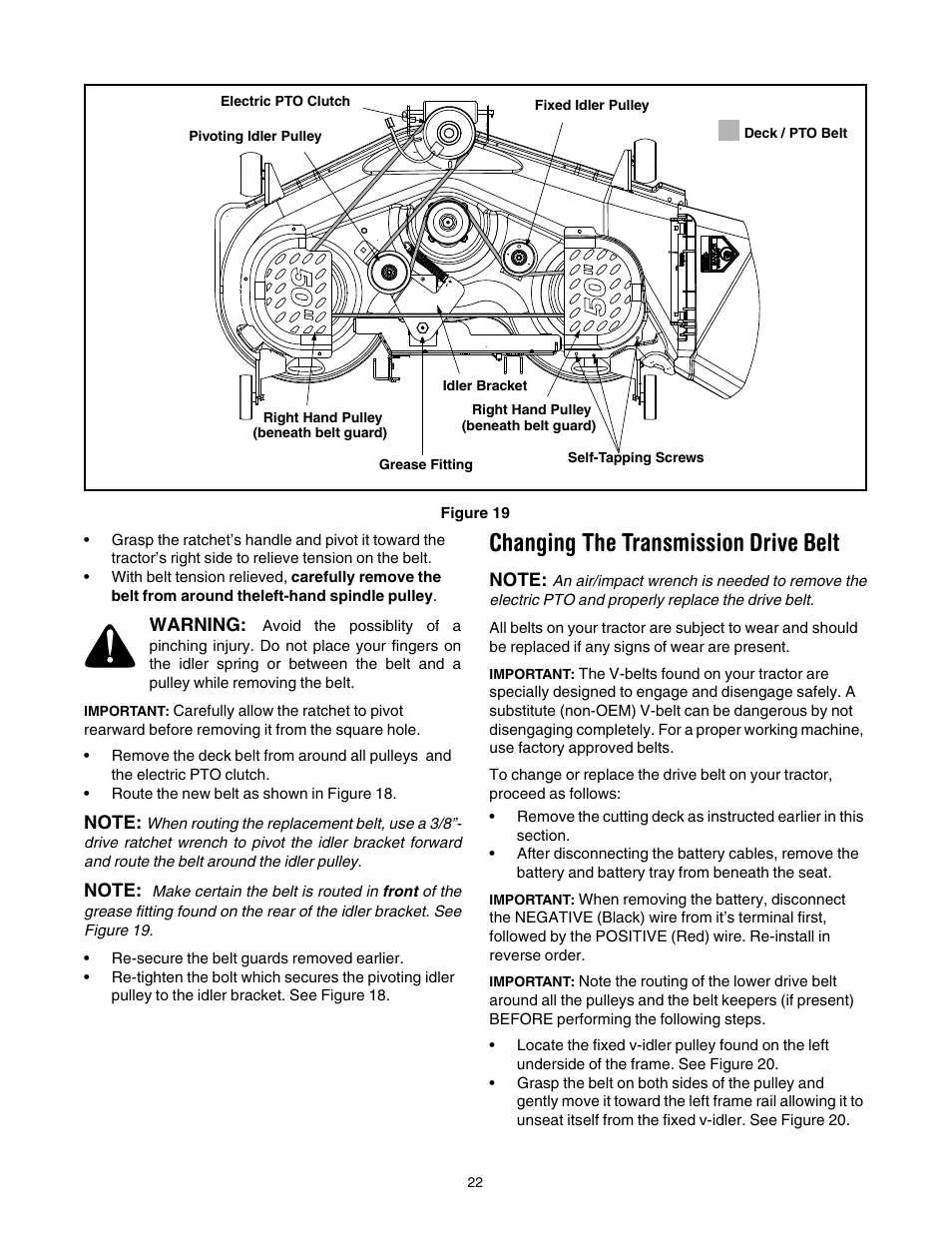

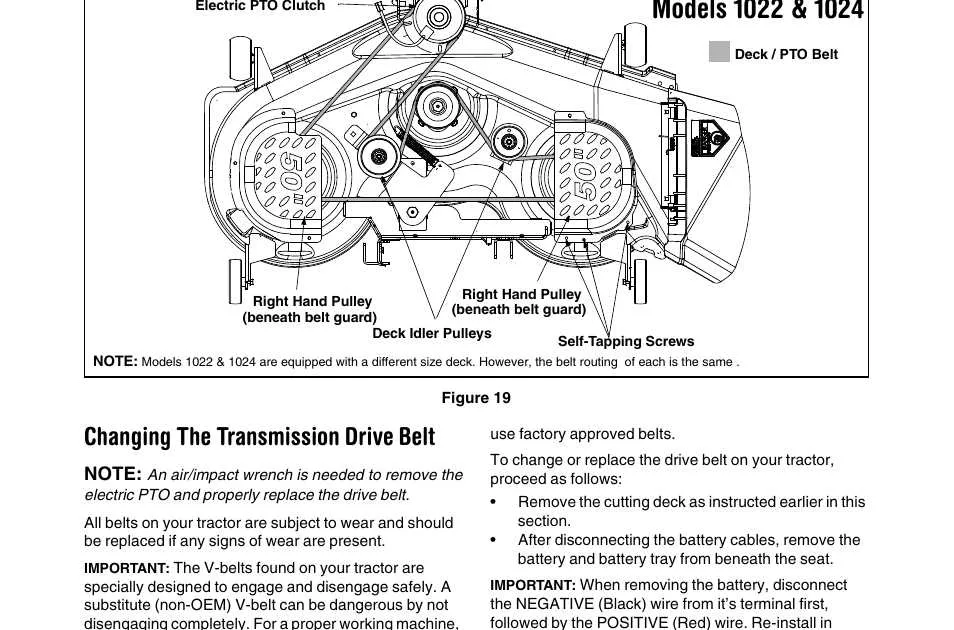

Cub Cadet XT2 Drive Belt Diagram
To replace or maintain the drive belt on your Cub Cadet XT2, understanding its path is key. The drive belt connects the engine pulley to the transmission, transferring power to the wheels. Here’s how you can visualize its layout:
- The belt loops around the engine pulley, located at the front of the engine.
- It moves over the idler pulleys to guide it along the right path.
- The belt then passes over the transmission pulley, engaging the transmission and powering the drive wheels.
- Lastly, the belt returns to the engine pulley to complete the loop.
When replacing the belt, follow this simple order to avoid damaging the components:
- Disconnect the battery and raise the mower deck.
- Loosen the tension on the idler pulleys.
- Remove the old drive belt from the engine pulley, transmission pulley, and idlers.
- Install the new belt following the exact path shown in the diagram.
- Ensure the belt is properly tensioned by adjusting the idler pulleys.
Make sure the belt runs smoothly along its entire length. A misaligned belt can cause wear and potential damage to your machine.
Understanding the Cub Cadet XT2 Drive Belt Routing
The Cub Cadet XT2 drive belt routing is straightforward once you identify the key components in the system. Start by ensuring the engine is off and the mower is on a stable surface. The drive belt connects the engine pulley, transaxle pulley, and several idler pulleys, enabling power transfer to the wheels.
Begin by locating the drive belt in the center of the mower deck. The belt should run from the engine pulley, moving towards the idler pulleys, and then toward the transaxle. Make sure the belt fits securely around each pulley, avoiding any slack that could cause it to slip during operation. The routing path typically follows a pattern of tight curves around the pulleys.
One critical tip is to check the orientation of the belt’s ribs. The ribs must align with the grooves on the pulleys. If misaligned, the belt can wear out prematurely or cause inefficient power transmission.
During reassembly, ensure the belt tension is correct. Too much tension can strain the engine and transaxle, while too little can cause the belt to slip. Use the tensioner to adjust the belt’s tightness, ensuring a smooth, efficient operation once everything is back in place.
Refer to the Cub Cadet XT2 manual for the exact routing diagram to avoid confusion. It’s a simple visual guide that matches the components on your machine. Following it precisely will help prevent damage to the belt and surrounding parts.
How to Replace the Drive Belt on Your Cub Cadet XT2
To replace the drive belt on your Cub Cadet XT2, begin by securing the mower on a level surface. Disconnect the battery to avoid any accidents during the process. Next, remove the mower deck to access the drive belt assembly. Most XT2 models have a simple method of detaching the deck by lifting it and sliding it out. Keep track of any bolts or pins that hold the deck in place.
Once the deck is removed, locate the drive belt tensioner. This is typically on the side of the engine or near the transmission. You’ll need to release the tension on the belt by either moving the tensioner arm or loosening a bolt, depending on your model. Carefully slide the old belt off the pulleys. It might take a bit of maneuvering to remove it from the guides, but avoid forcing it to prevent damaging any parts.
Now, take your new drive belt and start by routing it around the pulleys in the same configuration as the old belt. Be sure to follow the belt diagram for the exact routing. The diagram is usually found in the user manual or on the mower itself, near the engine compartment or on the frame. Ensure the belt sits securely in the grooves of all pulleys before tightening the tensioner back into place.
Once the new belt is installed, reassemble the mower deck by reversing the removal steps. Reconnect the battery, check for any loose bolts or parts, and perform a test run to ensure everything is functioning smoothly. If the belt appears to slip or make noise, double-check the alignment and tension before using the mower for a longer period.
Common Issues with the Cub Cadet XT2 Drive Belt and Their Solutions
When the drive belt on your Cub Cadet XT2 starts to wear or malfunction, it can affect the overall performance of the mower. Here are common issues and how to solve them:
1. Slipping Belt
If the drive belt slips during use, it usually indicates either excessive wear or improper tension. Check the belt for any visible signs of damage or fraying. If the belt looks worn out, replace it. Adjust the belt tensioner to ensure the correct tension is applied to prevent further slippage.
2. Broken Belt
A snapped belt often happens due to wear or the belt becoming too tight. Inspect the belt regularly for signs of cracking or fraying. Replace a broken belt immediately and check for any debris or obstacles that could have caused it to snap.
3. Belt Off the Pulley
If the drive belt comes off the pulley, it may be misaligned or too loose. Examine the pulleys and ensure they are all intact and aligned properly. If necessary, adjust the belt or replace any worn-out pulleys to keep the belt in place.
4. Noisy Belt
Squealing or grinding sounds from the belt can indicate poor alignment, a misadjusted tensioner, or debris buildup around the pulleys. Clean the pulleys thoroughly and check for any signs of wear on the belt. If the belt is in good condition, adjust the tensioner to restore proper function.
5. Poor Performance or Loss of Power
If the mower struggles to drive, it could be due to a slipping or damaged belt. Inspect the entire drive system, including the belt, pulleys, and tensioners. Replace the belt if it’s damaged, and make sure all components are functioning as they should.
