Cub Cadet XT1 LT50 Belt Routing Diagram and Parts Layout for Maintenance
Check the belt routing before attempting any adjustments on your Cub Cadet XT1 LT50. The correct path prevents slipping, reduces wear, and ensures smooth operation of both the mower deck and the transmission system. A precise diagram helps identify idlers, pulleys, and tensioners without guesswork.
Use the diagram to trace the belt from the engine pulley to the mower deck. Notice the sequence of pulleys and idler positions; any deviation can cause uneven cutting or damage the belt. Keep the belt tension moderate–tight enough to avoid slipping but loose enough to allow smooth rotation of all components.
Label each pulley and idler according to the diagram before removing the old belt. This visual reference simplifies reinstallation and prevents incorrect routing that could jam the deck or strain the transmission. Check for wear or cracks on the belt and replace if necessary, matching the exact part number specified in the XT1 LT50 manual.
Follow the diagram to guide the belt over the deck spindles, transmission pulley, and idlers, ensuring alignment with the engine pulley. Confirm that all pulleys spin freely and that the belt sits correctly in the grooves. A well-routed belt maintains cutting performance, reduces vibration, and extends the life of your mower components.

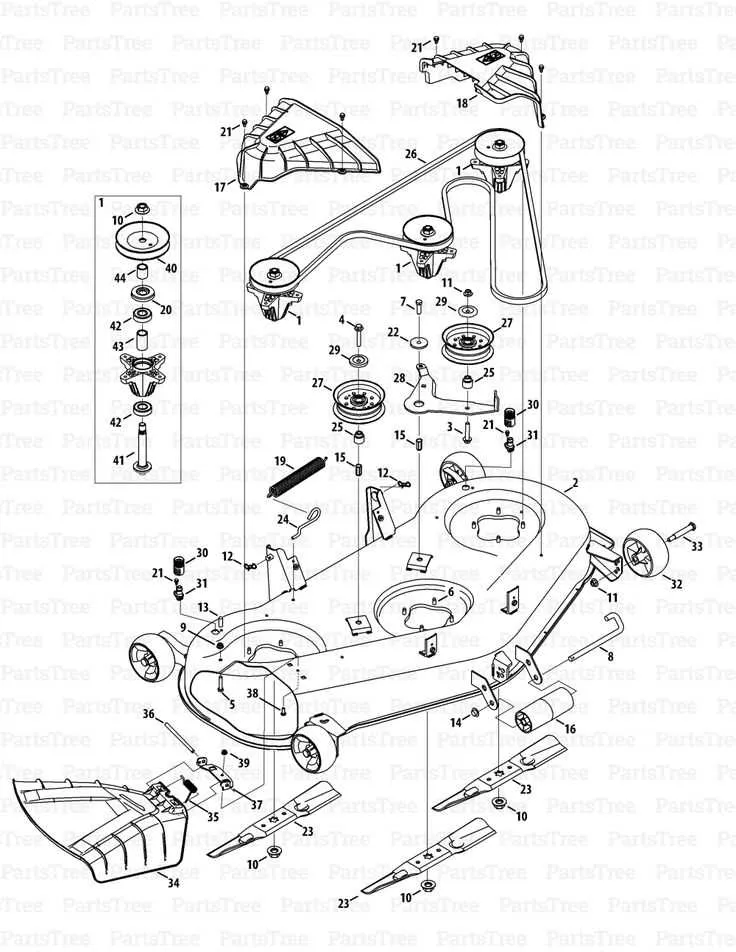

Cub Cadet XT1 LT50 Belt Diagram
Locate the idler pulleys first to route the belt correctly around the mower deck. Start by threading the belt around the engine pulley, ensuring it sits fully in the groove. Next, guide the belt through the tensioner arm, maintaining proper tension without forcing the belt over sharp angles.
Wrap the belt around the deck spindles, following the path indicated in the XT1 LT50 manual. Each spindle pulley should engage the belt securely, preventing slipping during operation. Confirm the belt aligns evenly with all pulleys before securing it under the idler spring tension.
Check the belt path against the diagram in the operator’s guide for the exact sequence. The belt should loop smoothly around the tensioner, engine, and spindle pulleys. Avoid crossing the belt or placing it inside grooves intended for another section.
Inspect pulleys for wear or debris before installation. Clean any dirt from the grooves to maintain consistent traction. Replace worn or cracked belts to prevent premature failure, ensuring the mower runs quietly and cuts evenly.
Test the deck movement after installation. Engage the PTO briefly and observe the belt rotation. Proper routing keeps the belt straight and allows spindles to spin freely without dragging or slipping.
Locating and Identifying XT1 LT50 Belts
Check under the mower deck to locate the drive and deck belts on the XT1 LT50. The drive belt runs from the engine pulley to the transaxle, while the deck belt loops around the spindles and idlers.
Follow these steps to identify each belt correctly:
- Remove the mower deck: Lower the deck, disconnect the deck engagement lever, and slide the deck out from under the tractor.
- Inspect belt markings: Most belts have a stamped part number and size on the inner surface. Look for codes like K57-305 or similar for the drive belt.
- Compare belt widths: Drive belts are typically wider and thicker than deck belts. Deck belts are narrower and more flexible for looping around multiple pulleys.
- Identify pulley positions: Trace the belt path over each pulley. Drive belts connect engine to transaxle; deck belts connect engine to spindles and idlers only.
Keep the belt diagram handy. XT1 LT50 diagrams show exact routing for both drive and deck belts, making identification faster and reducing installation errors.
Store removed belts flat or hang them to avoid twisting. Twisted or stretched belts can wear prematurely and reduce cutting efficiency.
- Check for cracks or fraying along edges.
- Match part numbers against Cub Cadet replacement guides.
- Replace both deck and drive belts at the first sign of wear for consistent performance.
Step-by-Step Guide to Replacing the Drive Belt
Disconnect the battery to prevent accidental starts and position the mower on a flat surface. Remove the mower deck by lowering it and sliding the pins out of the lift arms. Slide the deck out from under the tractor carefully.
Locate the idler pulleys and note the current belt routing using a diagram or a photo. Release tension on the belt by moving the idler pulley arm with a wrench or by hand, then slip the old belt off the pulleys starting from the largest pulley.
Compare the new belt with the old one to ensure it matches in length and width. Begin installation by placing the belt around the engine pulley first, then route it around the transmission and deck pulleys according to the diagram. Ensure the belt sits correctly in all pulley grooves.
Apply tension to the idler pulleys and double-check that the belt is seated properly on every pulley. Slide the deck back under the tractor and reconnect the lift pins, confirming the deck moves freely up and down. Reconnect the battery and engage the PTO to test the belt operation before mowing.
Troubleshooting Common Belt Routing Issues
Check the belt tension immediately if your Cub Cadet XT1 LT50 fails to engage properly. A loose or over-tightened belt can slip off the pulleys or create uneven wear. Adjust the idler pulley so the belt sits snugly without forcing the deck to bind.
Inspect each pulley for debris, rust, or misalignment. Even small twigs or hardened grass can change the belt’s path and cause premature fraying. Clean the pulleys and ensure all bolts are tightened to prevent lateral movement.
Follow the exact routing pattern printed in the operator’s manual or stamped on the deck. Pay attention to crossover points where the belt wraps around multiple pulleys. Swapping the belt’s orientation can reduce lifespan and create noise during operation.
Check the tension spring connected to the idler arm. Weak or broken springs allow the belt to slip under load, reducing cutting efficiency. Replace worn springs immediately to maintain proper routing and consistent engagement.
Rotate the deck manually after installation. Observe the belt tracking on each pulley and adjust the tensioner or guide brackets as needed. Misalignment often manifests as the belt walking off one side of the pulley, which can damage the edges.
Replace the belt if visible cracks, fraying, or glazing appear. Attempting to realign a damaged belt often results in repeated slippage or breakage. Always use a model-specific replacement to match pulley diameters and deck layout.
