Cub Cadet XT1 LT46 Belt Diagram and Maintenance Guide
When replacing or repairing the belt on your Cub Cadet XT1 LT46, following the correct belt routing is essential for smooth operation. Refer to the belt diagram to ensure the proper installation, which will help prevent issues like slipping or excessive wear. Understanding the correct path for the drive and mower belts will save you time and effort in maintaining your machine.
Begin by locating the drive belt on the Cub Cadet XT1 LT46. The belt connects various components, including the engine pulley, transmission, and mower deck. The routing of this belt is vital for the efficient transfer of power to the cutting deck and drivetrain.
It’s crucial to ensure the belt is seated properly in the pulleys. A loose or misrouted belt can cause performance issues, such as reduced cutting power or the mower not moving as expected. Refer to the detailed diagram provided in the user manual to verify your setup is correct.
If the belt has become damaged or worn, replacing it with the correct model is important. Be sure to select a replacement belt that matches the specifications for your Cub Cadet XT1 LT46 to maintain optimal performance and durability.

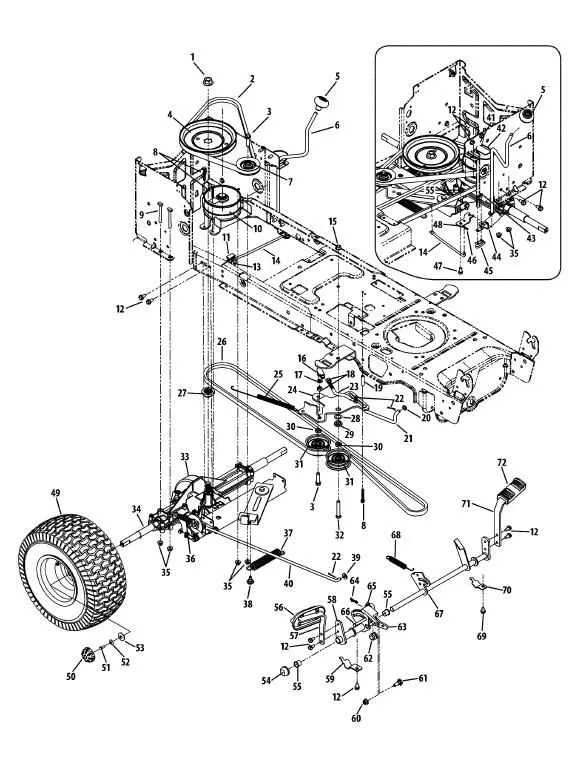

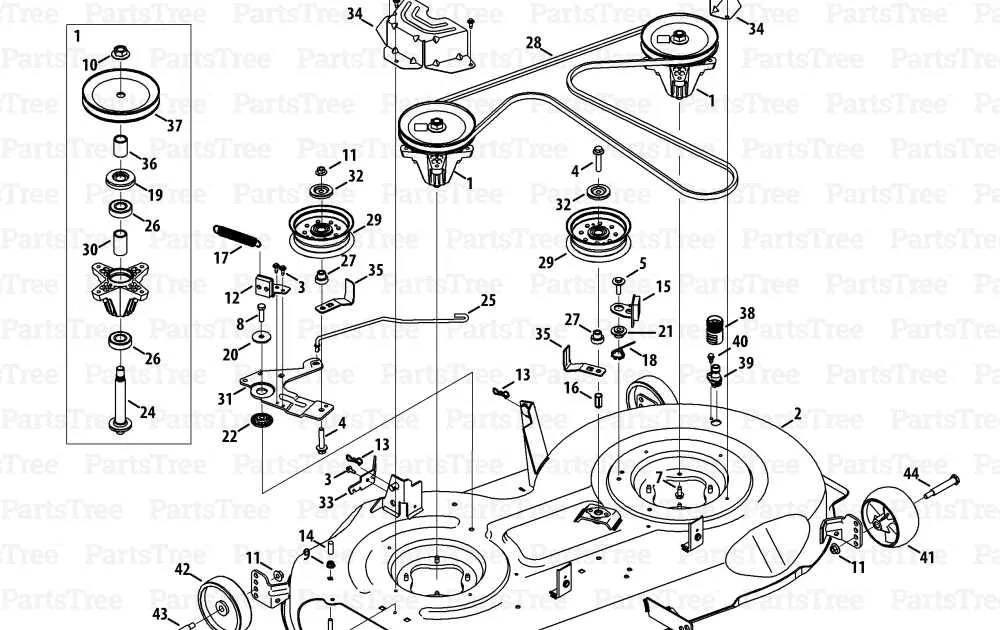

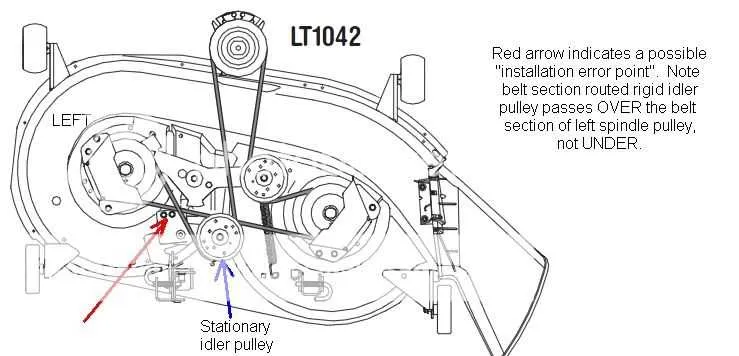

Cub Cadet XT1 LT46 Belt Diagram
For smooth operation, ensure the belt routing follows the correct diagram. The Cub Cadet XT1 LT46 requires precise alignment to maintain optimal functionality of the drive system and mower deck. Follow these steps:
1. Begin with the drive belt on the engine pulley. Ensure the belt wraps around the pulley in a clockwise direction for proper tension.
2. From the engine pulley, route the belt to the idler pulleys. These pulleys help maintain belt tension, ensuring it doesn’t slip or stretch. Pay attention to the specific angle they create in the diagram.
3. Next, route the belt to the main mower deck. This section connects to the deck’s spindle pulleys. Verify that the belt sits in the correct grooves to avoid unnecessary wear or misalignment.
4. Finally, check the belt’s routing through the tensioner pulleys. Adjust as needed to ensure proper tension. The belt should remain taut but not overly tight, as this can cause premature wear.
By following the diagram and checking each component, you’ll maintain the Cub Cadet XT1 LT46’s performance. Make sure the belt is securely positioned across all pulleys before starting the mower to avoid potential damage or slipping during operation.
How to Read the Belt Diagram for Cub Cadet XT1 LT46
Check the diagram carefully for a clear understanding of the Cub Cadet XT1 LT46’s belt routing. Start by locating the drive pulley at the engine. Follow the path from the engine to the deck, identifying each pulley and its connection. Pay attention to the direction the belt runs around the pulleys. Look for any notations or arrows on the diagram indicating the belt’s path.
The key to reading the diagram is matching the belt’s layout to the actual components. The diagram shows the correct alignment and tension for the belt, ensuring it runs smoothly. Start with the engine pulley and follow the belt as it moves towards the deck. Make sure the belt is routed through the proper idlers and pulleys to avoid wear or damage.
Take note of the idler pulleys and springs. These components control belt tension and should be in the correct position as shown in the diagram. Misalignment of these parts may cause belt slippage or excessive wear. Check that the belt fits snugly in its grooves, but not too tight, as this can cause strain on the system.
If the belt appears loose or worn out, the diagram can guide you on how to replace it. Ensure that the replacement belt matches the specifications listed in the manual, and follow the diagram to properly install it. Confirm that the tensioning mechanism is functioning correctly after the installation.
In case of any confusion, refer to the manual for detailed instructions or consult a technician. Proper belt alignment and tension are critical for maintaining the performance of your Cub Cadet XT1 LT46 mower.
Steps for Replacing the Drive Belt on Cub Cadet XT1 LT46
Follow these steps to replace the drive belt on your Cub Cadet XT1 LT46 mower. This will restore its performance and ensure a smooth operation.
- Lift the Mower: Position the mower on a flat surface. Use a jack or mower lift to raise the front end, ensuring you have enough space to work underneath.
- Disconnect the Battery: Always disconnect the battery before working on the mower to avoid electrical issues or accidental starts.
- Remove the Deck: To access the drive belt, first remove the cutting deck. Release the belt tension by removing the belt guard and unscrewing the deck from the mower frame.
- Loosen the Old Belt: Identify the belt routing. Use a wrench to release tension from the belt and remove it from the pulleys. Take note of the belt’s path for proper installation of the new one.
- Install the New Belt: Carefully place the new belt onto the pulleys, ensuring the routing matches the original setup. Pay close attention to the idler pulleys and the tensioner.
- Reassemble the Deck: Once the belt is in place, reattach the deck to the mower. Secure the belt guard and check that everything is tight.
- Reconnect the Battery: Reconnect the battery terminals and check that the mower starts properly. Test the drive system by engaging the transmission to ensure the new belt operates smoothly.
Check the belt tension after a short test run and adjust if needed. Regular maintenance will help keep your Cub Cadet XT1 LT46 running smoothly.
Common Belt Installation Mistakes and How to Avoid Them
Incorrect belt tension is a common mistake. Make sure the belt is neither too tight nor too loose. A tight belt can cause premature wear, while a loose belt can slip, leading to poor performance. Check the belt tension against the specifications provided in the manual.
Another mistake is improper alignment. Ensure the belt is routed exactly as shown in the diagram. Misalignment causes friction, which can damage both the belt and pulleys. Follow the diagram carefully and double-check the routing before tightening the belt.
Neglecting to inspect pulleys and idlers is another error. Worn-out or damaged pulleys can prevent the belt from operating smoothly, even with the correct installation. Inspect these parts for wear or debris before installing the belt to avoid future issues.
Failing to replace damaged parts is an easy oversight. If any part, including the belt, pulleys, or tensioner, shows signs of damage or wear, replace it immediately. Continuing to use worn-out components can cause further damage to the system.
Lastly, skipping lubrication or maintenance of moving parts leads to accelerated wear. Clean and lubricate pulleys and idlers regularly to ensure smooth operation. This simple maintenance step can extend the life of both the belt and related components.
