Cub Cadet Series 2000 Deck Belt Diagram and Maintenance Guide

If you’re replacing or adjusting the deck belt on a Cub Cadet Series 2000 mower, following the correct diagram ensures smooth operation. The belt’s alignment and tension are key to maintaining the performance of your lawnmower and preventing future damage.

Refer to the specific diagram for your Series 2000 model, as belt configurations can vary slightly depending on the mower’s year and specific features. The deck belt generally connects the engine pulley to the deck pulleys, driving the cutting blades. Keeping the diagram on hand helps simplify the installation process and avoid common mistakes like misrouting or incorrect tension.

Start by positioning the deck and removing any existing belt before referencing the diagram. The pulley setup, belt direction, and tensioning points are outlined clearly in the diagram. Pay close attention to how the belt loops around the pulleys, as proper routing prevents excessive wear and tear. Tighten the belt to the appropriate tension, ensuring it’s neither too loose nor too tight, to avoid strain on the mower’s components.

Once the belt is properly installed, spin the blades manually to ensure they move freely and that there’s no abnormal resistance. Regular inspection and replacement of worn belts can extend the lifespan of your mower and maintain its cutting efficiency.

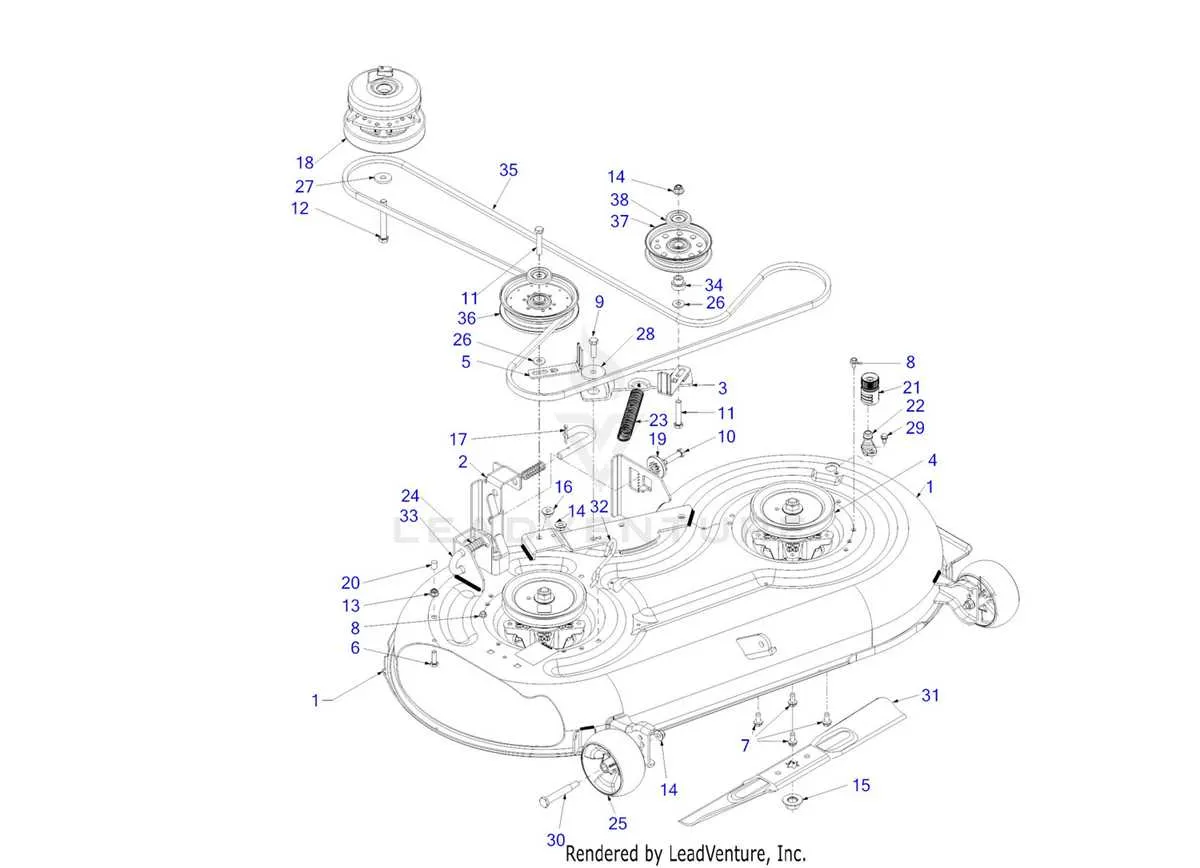

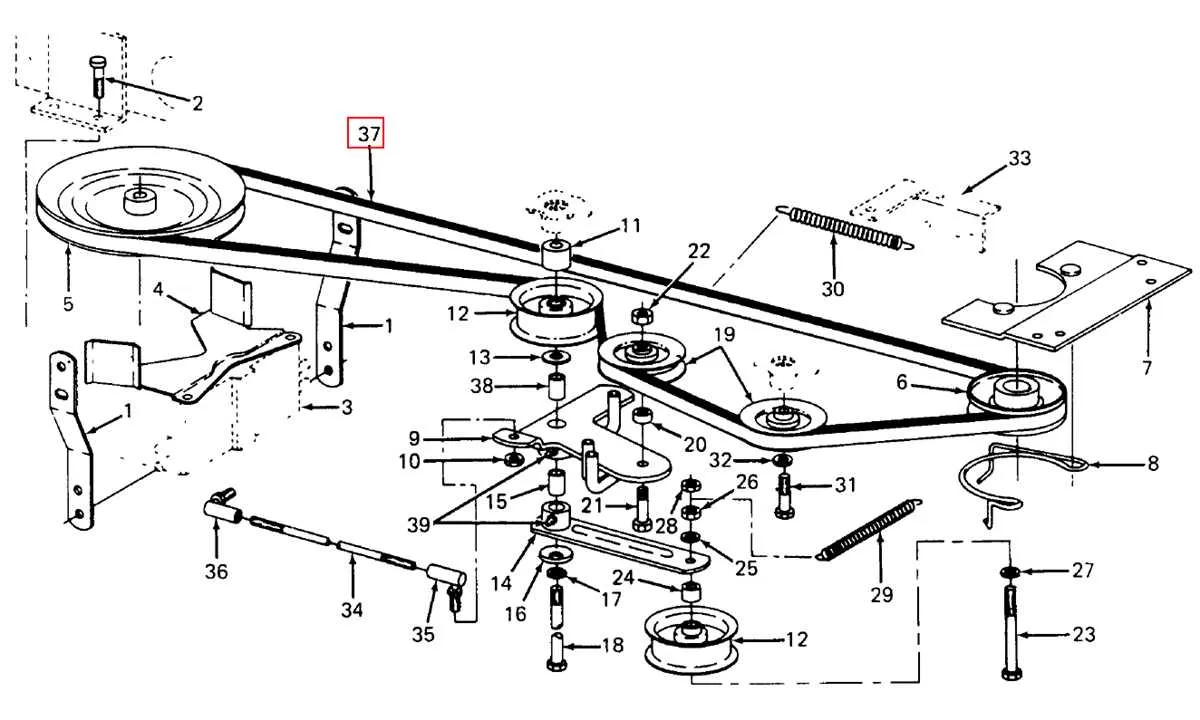

Cub Cadet Series 2000 Deck Belt Diagram

To replace or maintain the deck belt on a Cub Cadet Series 2000, following the correct belt routing is key to ensuring smooth operation. Below is a detailed diagram description for a quick and accurate installation of the belt:

• 1. Start at the engine pulley: The deck belt begins at the engine’s PTO (Power Take Off) pulley. Slide the belt over this pulley, making sure it’s properly aligned.
• 2. Route the belt over the idler pulley: The next step is routing the belt around the idler pulley. This component keeps the belt tensioned, so ensure the belt runs smoothly without any slack.
• 3. Follow the deck pulleys: From the idler pulley, the belt should be routed to the main deck pulleys. These pulleys are responsible for driving the mower blades, and the belt must fit neatly around them to avoid slipping.
• 4. Double-check the routing: Before you finish, ensure the belt is not twisted or pinched in any way. Misalignment or twists can cause the belt to wear out prematurely or damage other components.
• 5. Tension the belt: Once the belt is correctly routed, use the idler spring or adjustment mechanism to apply proper tension. The belt should be tight enough to avoid slippage but not overly tight, which could damage the pulleys.

For reference, always refer to the specific model’s manual for precise diagrams as slight variations may exist between different units within the Series 2000. Proper belt maintenance, including periodic inspection for wear, will keep your Cub Cadet running efficiently for years.

How to Locate the Deck Belt Diagram for Cub Cadet Series 2000

To find the deck belt diagram for your Cub Cadet Series 2000, start by checking the owner’s manual that came with your mower. Manufacturers often include a detailed diagram specific to the model, which will provide step-by-step instructions for belt installation.

If you don’t have the manual, you can visit the official Cub Cadet website and navigate to the support section. There, you’ll find downloadable PDFs for various models, including the Series 2000. Search using your model number for the correct diagram.

Another option is to look at the mower itself. Some models have the belt diagram located on the deck or near the engine area on a label or sticker. This visual reference is often printed on the mower, making it easy to refer to while working.

If you’re still having trouble, forums or YouTube can be a great resource. Many Cub Cadet owners and repair experts post detailed repair guides or belt replacement videos specific to the Series 2000, which include clear shots of the belt diagram in action.

Step-by-Step Guide to Replacing the Deck Belt on Cub Cadet Series 2000

Start by disconnecting the battery to ensure safety during the replacement process. Use a wrench to remove the negative terminal from the battery.

Lift the mower deck using the deck lift lever to gain access to the deck components. This will give you the space needed to remove the old belt and install the new one.

Locate the deck belt. You may need to remove the deck guard or other covers to expose the belt. Take note of the belt’s routing, as this will be crucial when installing the new one. You can refer to the owner’s manual for the exact diagram or use a camera to capture the current setup for reference.

Loosen the tension on the deck belt by releasing the tension spring. This will allow you to remove the belt from the pulleys and the spindle. Keep track of any washers or small parts that might come off as you do this.

Once the old belt is free, compare it to the new one to make sure they match in size and type. Place the new deck belt over the pulleys, following the exact routing as noted earlier.

Reattach the tension spring to secure the belt in place. Ensure the belt is properly aligned on all pulleys and spindles. You should not see any slack or twisting in the belt. If the belt looks misaligned, adjust it before proceeding.

Reconnect the battery and test the deck by running the mower for a few minutes. Check for any abnormal noises or issues with the belt. If everything operates smoothly, the replacement is complete.

Common Issues with Deck Belt Installation on Cub Cadet Series 2000 and How to Fix Them

One of the most common issues when installing a deck belt on a Cub Cadet Series 2000 is improper routing. Ensure the belt follows the exact path shown in the diagram. A misrouted belt can cause slipping, premature wear, and inefficient mower performance. Double-check each pulley and guide to make sure the belt sits correctly in all grooves.

If the belt is too loose or too tight, it will lead to poor functioning. Check the tension on the belt. If it’s too tight, it can strain the engine and other components. If it’s too loose, it may slip off during use. Adjust the tension according to the manufacturer’s specifications to maintain optimal performance and prevent premature damage.

Another issue can be a worn-out or damaged belt. Inspect the belt for any cracks, frays, or signs of wear. A damaged belt will not perform efficiently and should be replaced immediately. Use only a replacement belt that matches the original specifications to avoid further problems.

Make sure that all pulleys are in good condition. A damaged or misaligned pulley can cause the belt to wear unevenly. If you notice any wobbling or unusual noise, inspect the pulleys for damage. Replacing worn-out pulleys can help extend the life of the new belt.

If the belt keeps coming off, check the alignment of the pulleys. Misaligned pulleys can cause the belt to slip or come off entirely. Realign or replace the pulleys if necessary, and make sure the belt is aligned with the grooves of the pulleys to prevent slipping.

Lastly, be aware of the deck height. If the deck is set too low, it can put extra strain on the belt and cause it to wear out quickly. Adjust the deck to the recommended height for better belt longevity and smoother operation.
