Cub Cadet Series 1000 Drive Belt Diagram and Maintenance Guide

If you’re working on a Cub Cadet Series 1000 lawn tractor and need to replace or inspect the drive belt, a detailed diagram can make the process much easier. Understanding the correct routing and components will save time and avoid potential errors. The drive belt plays a key role in transferring power from the engine to the wheels, so getting it right is critical for smooth operation.

First, locate the belt diagram in your user manual or online. This diagram shows the precise path the belt takes around the pulleys, which is vital for ensuring that the mower functions properly. Pay attention to how the belt interacts with the tensioner and idler pulleys, as any misalignment can cause the belt to wear out prematurely or slip off during operation.

Before you begin, make sure the tractor is turned off, and all safety precautions are in place. Next, carefully remove any covers or parts obstructing access to the belt. With the diagram as your guide, you’ll be able to route the new belt exactly as needed, ensuring the correct tension for optimal performance. Don’t forget to check for any signs of wear on the pulleys as well, as a damaged pulley can quickly damage the new belt.

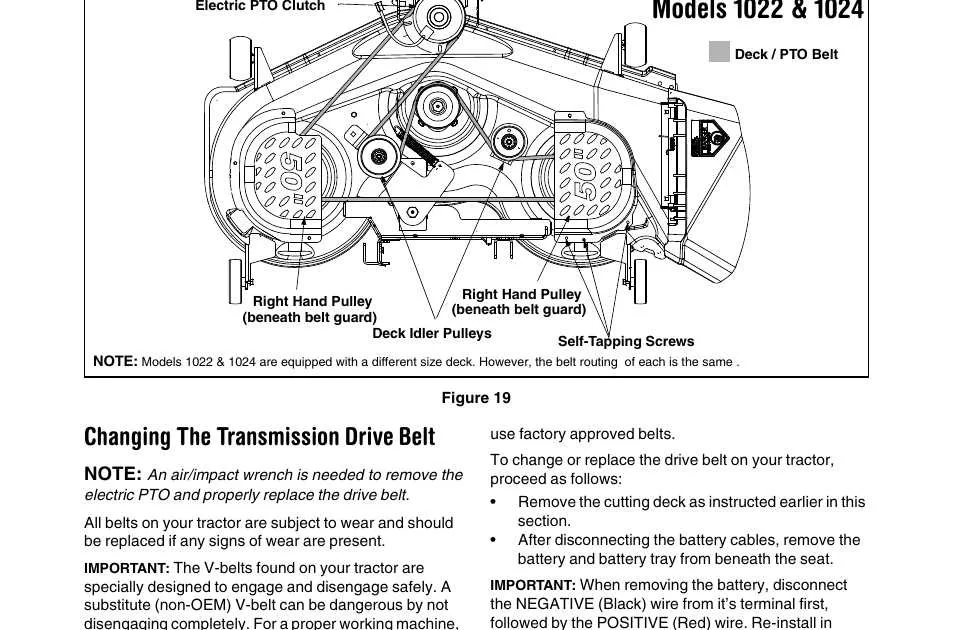

Cub Cadet Series 1000 Drive Belt Diagram

To replace the drive belt on your Cub Cadet Series 1000, follow the diagram carefully. This will ensure proper installation and smooth operation. Start by locating the drive belt’s path; the diagram typically shows the exact routing over the engine pulleys, around the idlers, and to the transmission.

First, loosen the tension on the belt using the spring-loaded idler pulley. Once the tension is released, remove the old belt. Compare the new belt to the old one for correct length and width. The diagram should highlight the key pulleys, including the engine and transmission pulleys, ensuring proper alignment.

As you install the new belt, follow the diagram’s guidance to route it correctly. Make sure the belt sits properly in the grooves of all pulleys. Recheck the tensioner to ensure the belt is tight enough, but not over-stretched. The tension must be correct to prevent slipping or premature wear.

After replacing the belt, test the drive system to confirm everything is functioning smoothly. Adjust the belt tension if necessary, following the guidelines in the diagram.

Understanding the Drive Belt Layout in Cub Cadet Series 1000

The drive belt layout in the Cub Cadet Series 1000 is designed to ensure smooth power transmission from the engine to the wheels. Understanding this setup helps with efficient maintenance and troubleshooting. Below are key points to consider when working with the drive belt system.

• Position of the Drive Belt: The belt runs between the engine pulley and the transmission pulley, transferring power to the rear wheels. Ensure the belt is properly aligned to avoid wear.
• Types of Belts: The Cub Cadet Series 1000 uses a heavy-duty V-belt. This type of belt offers excellent grip and durability under heavy load, reducing slippage.
• Adjustment Points: The belt tension should be checked regularly. If the belt is too loose or too tight, it can cause damage or inefficiency. Check for correct tension by testing the deflection of the belt midway between pulleys.
• Pulley Configuration: The Series 1000 uses a series of pulleys that are responsible for distributing the belt’s load. Ensure these pulleys are in good condition and free from any obstructions.
• Maintenance Tips: Regularly inspect the belt for signs of wear, such as fraying or cracking. Replace the belt if any damage is found. Also, clean the pulleys and belt path to prevent buildup of debris or dirt.
• Routing Diagram: Refer to the specific drive belt diagram for your Cub Cadet model. It shows the exact routing of the belt, ensuring you can reassemble it correctly after maintenance.

Understanding the drive belt layout is key to keeping the Cub Cadet Series 1000 running smoothly. Regular checks and proper adjustments will extend the life of the belt and keep your mower functioning at peak performance.

Step-by-Step Guide to Replacing the Drive Belt on Cub Cadet Series 1000

Begin by ensuring the engine is off and the mower is on a flat surface. Engage the parking brake and remove the key from the ignition to avoid accidental start-up.

Next, lift the mower deck using the deck lift lever. This will provide better access to the drive belt. Position the mower on jack stands or blocks for extra stability if needed.

Locate the drive belt cover on the Cub Cadet Series 1000. Use a wrench or screwdriver to remove the bolts securing the cover. Set the cover aside carefully.

Inspect the belt routing diagram, usually located on the underside of the cover or in the operator’s manual. Take note of the belt’s path for reinstallation.

Release the tension on the drive belt by either moving the tensioner pulley or using a ratchet to relieve tension. The tensioner will usually have a spring-loaded mechanism or an adjustment bolt.

Once the tension is released, carefully remove the worn drive belt from the pulleys, starting from the engine pulley and working your way down to the transmission pulley. Take note of the pulleys’ arrangement for easier reassembly.

Install the new drive belt by following the routing pattern noted earlier. Ensure the belt fits snugly around each pulley without twisting. Double-check the positioning before proceeding.

Reapply tension by adjusting the tensioner pulley. Make sure the belt is tight but not overly stretched. Test the movement of the pulleys to confirm smooth operation.

Replace the drive belt cover and secure it with the screws or bolts removed earlier. Lower the mower deck back into position.

Finally, turn the mower on and run it for a short period to verify that the new belt is operating correctly. Check for any unusual noise or slipping during the test run. If all is good, the replacement is complete.

Troubleshooting Common Drive Belt Issues in Cub Cadet Series 1000

If the drive belt on your Cub Cadet Series 1000 isn’t functioning properly, start by checking for visible damage such as cracks or wear. A cracked or frayed belt is a clear sign it needs replacement. Inspect the belt tension as well; a loose belt can slip, causing performance issues. If it’s too tight, it could wear out faster and strain other components.

Another common issue is the belt jumping off the pulleys. This can happen if the pulleys are misaligned or if the belt is too old and stretched out. Align the pulleys and ensure the belt is routed correctly according to the diagram. If the belt seems worn out or too loose, replace it with a new one that matches the original specifications.

Excessive vibration during operation is another indicator of a problem with the drive belt. Check the tensioner spring to ensure it’s working properly. A worn-out tensioner can cause improper belt tension, leading to uneven power distribution. Tighten or replace the tensioner if needed.

Finally, a common issue is squealing or slipping noises. This usually happens when the belt is too tight, too loose, or coated with dirt and debris. Clean the pulleys and belt thoroughly, and adjust the tension if necessary. If the noise persists, check for pulley wear or misalignment that could cause the belt to slip.
