Cub Cadet RZT Drive Belt Diagram and Troubleshooting Guide

If you’re experiencing issues with your Cub Cadet RZT mower’s drive belt, consulting a detailed drive belt diagram is the first step in troubleshooting. The diagram will show you the exact route the belt takes, ensuring correct installation and helping identify any wear or misalignment. By following the diagram, you can easily replace or adjust the belt with minimal hassle.

The drive belt in your Cub Cadet RZT plays a critical role in transferring power from the engine to the wheels, allowing the mower to operate smoothly. Understanding how it fits within the system can save time and reduce errors during maintenance. The diagram typically includes information on the belt size, routing path, and the components it connects, such as pulleys and idlers.

When looking at the diagram, pay attention to any tensioners or guides that may affect the belt’s operation. Over time, belts can stretch, wear down, or break, causing the mower to lose power or fail to move. A clear understanding of how the belt should be positioned can prevent incorrect installation and costly repairs down the road.

Cub Cadet RZT Drive Belt Diagram

To replace the drive belt on your Cub Cadet RZT, follow this diagram closely. Ensure that the new belt is the correct size and type for your model. The drive belt connects the engine’s pulley to the transmission, making it essential for movement.

Start by lifting the mower deck and securing it in place. Remove the belt guard and any other components obstructing access to the belt. The drive belt typically runs over several pulleys: the engine pulley, the transmission pulley, and the deck pulleys. Carefully follow the routing in the diagram to avoid twists or kinks in the new belt.

Check each pulley for wear and debris, as these can cause premature belt failure. Replace any pulleys showing signs of damage. After installing the new belt, ensure it is tensioned correctly. A loose or overly tight belt can affect mower performance. Test the mower to confirm proper operation before finishing the reassembly.

Having the right diagram will help you avoid unnecessary steps, saving both time and effort. Consult the Cub Cadet manual for specific guidance based on your model number.

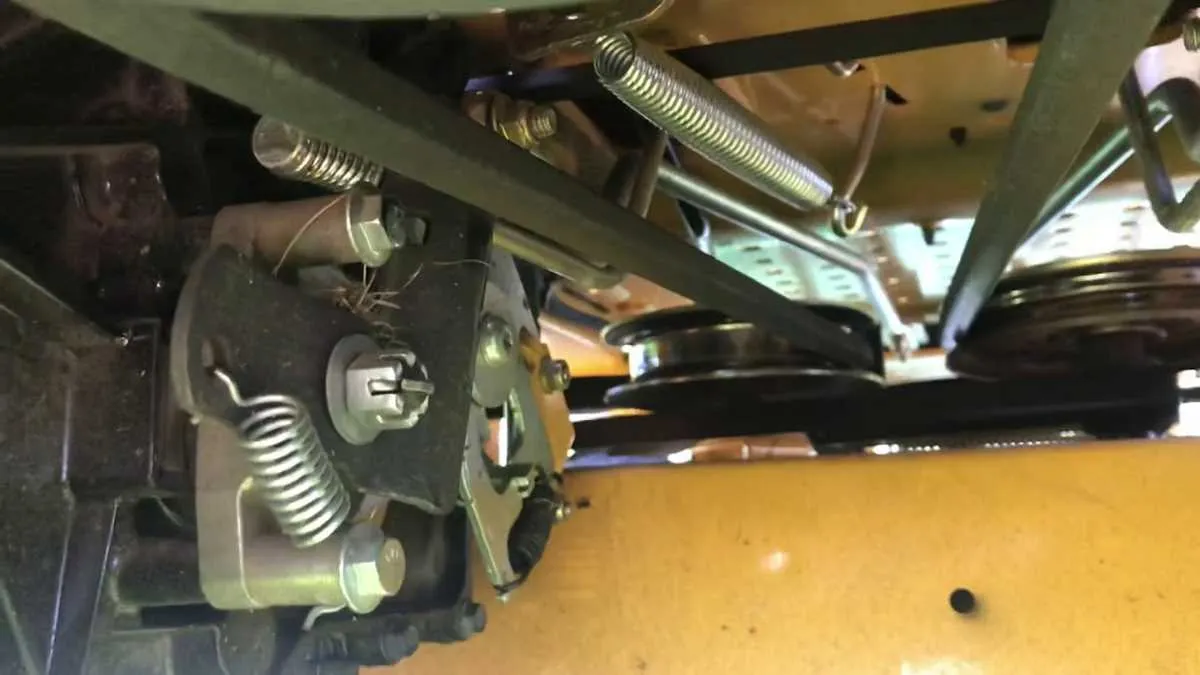

How to Identify the Drive Belt on Cub Cadet RZT Mowers

Check the drive belt by first locating the mower’s deck, which is positioned beneath the frame. The belt runs along pulleys that connect the engine to the wheels, enabling movement. Begin by lifting the deck using the deck lift lever. This gives you easier access to the drive components.

Next, follow the belt path. It starts from the engine’s output shaft and wraps around the transmission pulley. You’ll see it runs through multiple smaller pulleys and guides, providing the necessary tension for smooth operation. Look for any signs of wear or damage, such as cracks, frays, or discoloration, which indicate that the belt needs replacement.

Use a flashlight for a better view of tight spots, especially around the transmission area. If the belt is loose or misaligned, it might slip off during operation, causing loss of power or inconsistent movement. Ensure the belt is properly routed according to the mower’s service manual diagram for accurate reassembly if you need to replace it.

If you find the belt excessively worn or damaged, it’s time to order a replacement. Always check the belt size and part number before purchasing to ensure it fits your Cub Cadet RZT model.

Step-by-Step Guide to Replacing the Drive Belt on Cub Cadet RZT

To replace the drive belt on your Cub Cadet RZT, begin by raising the mower deck. Use a jack or lift to ensure it is stable and secure. This makes it easier to access the components underneath.

Next, disconnect the battery. This step prevents any accidental starts while you work on the mower. Remove the negative terminal to avoid any electrical issues.

Locate the drive belt. On most models, it’s connected to the pulley system, running from the engine to the drive system. Take a moment to inspect the belt’s condition before removal–any signs of wear or damage should be addressed immediately with a replacement.

To remove the belt, release the tension from the tensioner pulley. This can usually be done by using a wrench to rotate the tensioner in the opposite direction. Once the tension is released, slide the belt off the pulleys.

Before installing the new belt, verify the part number to ensure compatibility with your Cub Cadet RZT model. Double-check the orientation of the pulleys and belt routing by referring to the owner’s manual or a reliable diagram.

Install the new belt by carefully threading it through the pulley system. Make sure the belt sits properly on each pulley, aligning it correctly for smooth operation. After the belt is in place, rotate the tensioner pulley back into position to apply the correct tension.

Reconnect the battery and test the mower. Ensure the drive belt is functioning smoothly without any unusual noise or resistance. If everything works as expected, lower the mower deck, and you’re done.

Common Problems with Cub Cadet RZT Drive Belt and How to Fix Them

One of the most common issues with the Cub Cadet RZT drive belt is premature wear. This usually happens due to misalignment or tension problems. To fix this, inspect the belt’s routing and ensure it is properly aligned with the pulleys. If the belt is too tight or too loose, adjust the tension according to the manufacturer’s specifications to prevent excessive friction.

Another frequent issue is the belt slipping. If you notice a loss of power or strange noises during operation, the belt may have become stretched or worn out. Replacing the belt is the most straightforward solution in this case. When installing the new belt, make sure to follow the drive belt diagram carefully for proper routing and tension.

Clogs in the pulleys are also a problem. Grass and debris can get stuck, preventing the belt from functioning smoothly. Clean all pulleys thoroughly and ensure they rotate freely. If any of the pulleys are damaged or cracked, replace them immediately to avoid further damage to the belt.

Sometimes, a faulty idler pulley can cause uneven wear on the drive belt. Check for any signs of wear or misalignment on the idler pulley and replace it if necessary. A damaged pulley can put unnecessary strain on the belt, causing it to break prematurely.

Lastly, a worn or damaged belt can cause the mower to stop moving altogether. If this happens, inspect the entire drive system and replace the belt if it shows signs of severe damage. A good rule of thumb is to replace the drive belt every season to avoid unexpected breakdowns.
