Cub Cadet LTX1040 Drive Belt Diagram and Installation Guide
If you’re working on the Cub Cadet LTX1040 and need to replace or inspect the drive belt, having a clear diagram can save a lot of time. The drive belt connects the engine to the transmission, allowing power to transfer to the wheels. Without a proper diagram, it can be tricky to figure out how the belt fits around the pulleys. This guide will help you understand the proper placement and routing for your drive belt.
Start by ensuring you have the correct belt for the LTX1040. The length and width must match the specifications provided in the owner’s manual. If you don’t have a manual, searching online for the correct model number or checking with your local dealer can provide the details. Once you’ve got the right belt, you can begin the replacement process, following the diagram to ensure the belt fits properly around each pulley.
For clarity, the diagram should show the path the belt takes, along with any tensioners or guides that keep it in place. Make sure to adjust the tension correctly after installing the belt to prevent premature wear or slippage. A loose belt can cause poor performance, while a belt that’s too tight can damage the system. Keep an eye on the belt’s condition over time and replace it as needed to maintain optimal performance.

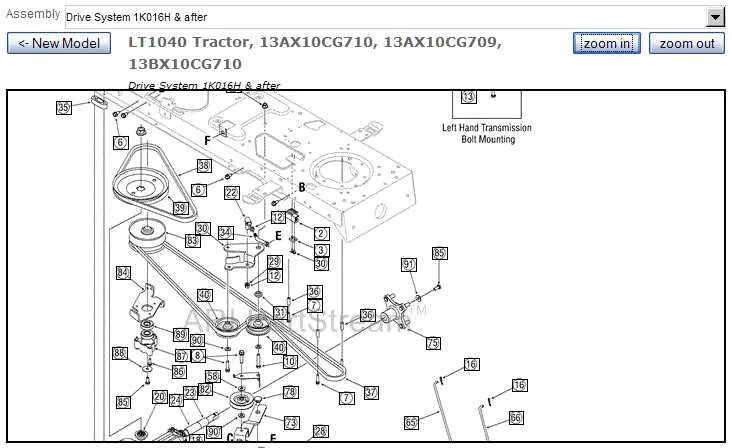

Cub Cadet LTX1040 Drive Belt Diagram
To replace the drive belt on a Cub Cadet LTX1040, follow this diagram for proper routing. First, lift the mower deck and disconnect the battery. Remove the deck belt guard and the belt tensioner. Pay attention to the direction of the grooves on the belt and ensure they align correctly with the pulleys.
The diagram shows how the belt should loop around the engine pulley, the idler pulley, and the transmission pulley. Make sure the belt is properly tensioned once installed. If it’s too loose, the mower won’t function properly. After the belt is in place, reattach the belt guard and deck, and reconnect the battery.
Be mindful of the belt size and part number to ensure compatibility. Double-check each pulley’s condition before installing the new belt. Any wear or damage on pulleys can cause belt failure. Once the installation is complete, test the mower by engaging and disengaging the drive to verify smooth operation.
How to Identify the Correct Drive Belt for Cub Cadet LTX1040
Check the model number of your Cub Cadet LTX1040 first. The drive belt for this model is specifically designed to match its size and specifications. If you don’t have the original belt, find the serial number of your mower. It will help you locate the correct belt in the manufacturer’s catalog or online store.
Use the manufacturer’s manual to get the exact dimensions of the drive belt. The length and width are crucial. You can also look for belt numbers (e.g., 754-04060), which are usually stamped on the side of the belt. These numbers indicate the precise specifications needed for replacement.
If you’re purchasing from a dealer, confirm compatibility with your Cub Cadet LTX1040 by providing the make and model details. If buying from an online store, ensure the product description lists the Cub Cadet LTX1040 as a compatible model.
It’s best to choose a genuine OEM (Original Equipment Manufacturer) belt. OEM belts are designed to offer the best performance and longevity for your mower. Non-OEM belts may not meet the exact specifications and can result in less efficiency or premature wear.
Lastly, examine the belt condition if you’re replacing it. If it’s cracked, frayed, or stretched, it’s time for a replacement. Make sure the new belt fits snugly without being too tight or loose on the pulleys.
Step-by-Step Guide to Installing the Drive Belt on Cub Cadet LTX1040
To replace the drive belt on your Cub Cadet LTX1040, follow these steps carefully for a smooth installation.
- Lift the Deck: Start by lifting the mower deck to gain access to the belt. Use the deck lift lever to raise it to the highest position.
- Remove the Deck Belt: Disconnect the old belt by loosening the tensioner pulley. Slide the belt off the pulleys and remove it from the mower deck.
- Detach the Drive Belt: Next, locate the drive belt near the engine. Use a wrench to remove the retaining bolts securing the drive belt’s path. Take note of the belt routing for easier installation of the new one.
- Install the New Belt: Position the new drive belt over the pulleys, following the same routing path. Ensure the belt is properly aligned on each pulley and that it sits securely in place.
- Reattach the Deck Belt: Loop the deck belt back onto the mower deck pulleys, ensuring it is properly threaded through all the guides and tensioners. Double-check the alignment.
- Reinstall the Tensioner: Secure the tensioner pulley in place and ensure the belt is tight. Check for any slack and adjust accordingly.
- Test the Installation: Lower the mower deck back to its working position. Start the mower and engage the drive system. Verify that the new belt is functioning properly without any slipping or noise.
Once these steps are completed, your Cub Cadet LTX1040 should be ready to go with a new drive belt in place.
Troubleshooting Common Drive Belt Issues on Cub Cadet LTX1040
If your Cub Cadet LTX1040 is struggling to move smoothly, start by inspecting the drive belt for wear or damage. The most common issue is belt slippage, which can occur if the belt is too loose. To fix this, check the tension and adjust if necessary, ensuring the belt is taut enough to transfer power effectively.
Another frequent problem is belt misalignment. When the belt doesn’t run straight across the pulleys, it can cause uneven wear and reduce efficiency. Examine the pulleys for any signs of misalignment or damage. If you find any, realign or replace the components as needed.
Worn or frayed belts also contribute to poor performance. If the belt shows signs of wear, such as cracks, fraying, or glazing, it should be replaced. Make sure to use the correct replacement belt specified for the LTX1040 model for optimal performance.
Lastly, debris buildup can obstruct the belt path. Regularly clean around the belt and pulleys to prevent dirt and grass from getting in the way, which could cause the belt to slip or wear out prematurely.
