Cub Cadet LTX 1040 Drive Belt Diagram and Installation Guide
Replacing or servicing the drive belt on your Cub Cadet LTX 1040 mower? Use this detailed diagram as a guide to ensure proper installation. This clear and straightforward layout will help you avoid any confusion and save time during maintenance.
The drive belt system connects various components, including the engine, transmission, and wheels, to power your mower’s movement. An incorrectly installed or worn-out belt can affect performance or even damage critical parts. Follow the diagram carefully to ensure that every part is in its correct position, and always check for wear on the belt itself before proceeding.
To replace the drive belt, you’ll need to disconnect the battery, raise the mower, and remove the deck to access the belt system. Pay close attention to the routing details in the diagram to make sure the new belt follows the correct path. Double-check the tension settings to prevent premature wear.
After installation, manually rotate the belt and check for smooth motion. If there’s resistance or uneven tension, adjust the belt accordingly. With the correct setup, your Cub Cadet LTX 1040 will perform at its best, ensuring a smooth mowing experience every time.

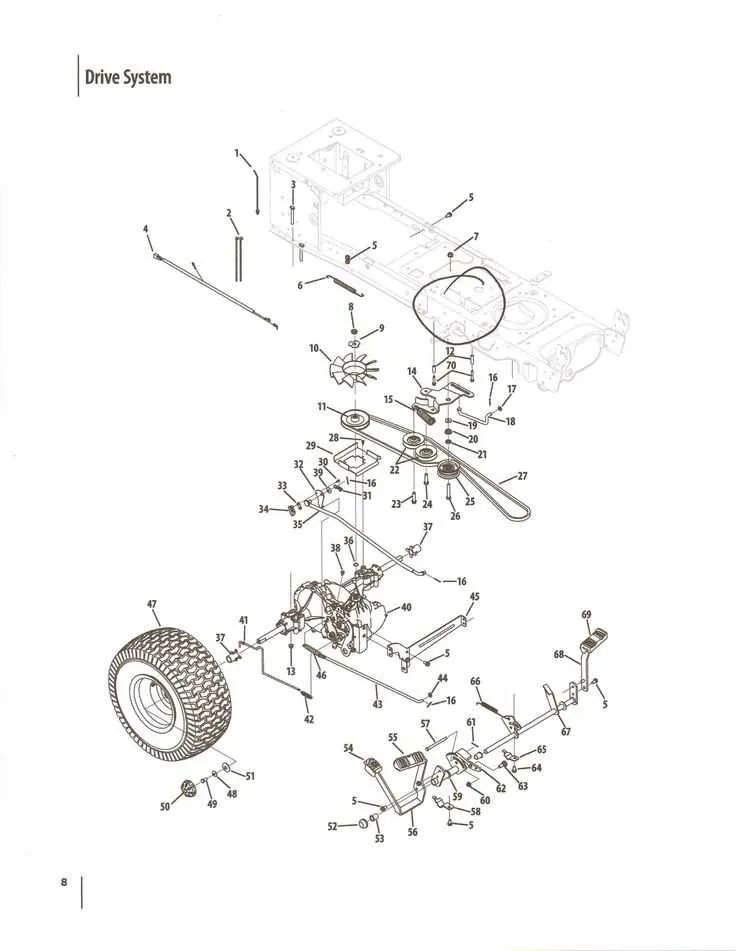

Cub Cadet LTX 1040 Drive Belt Diagram
To replace or adjust the drive belt on your Cub Cadet LTX 1040, it’s crucial to follow the correct routing. Refer to the drive belt diagram to ensure proper installation and functioning. The diagram outlines the exact path the belt takes over the pulleys and the deck, which is key for smooth operation.
The drive belt on the LTX 1040 connects the engine pulley to the transaxle pulley. From there, it passes over several deck pulleys before it loops back to the engine. Pay close attention to the tensioner pulley, as it plays a major role in maintaining the belt’s correct tension. Make sure the belt is routed exactly as shown in the diagram, with no slack or twists that could affect performance.
After removing the old belt, check all pulleys for damage or wear. It’s a good idea to lubricate the pulleys lightly to avoid any friction issues. When installing the new belt, ensure that it is seated correctly in all grooves, especially on the tensioner and idler pulleys.
If you’re having trouble with the belt slipping or wearing prematurely, check for alignment issues in the pulleys, or if the belt is too loose. Tightening the belt slightly can prevent slippage, but avoid over-tightening as this can cause premature wear or damage to the belt and pulleys.
Understanding the Drive Belt Layout on Cub Cadet LTX 1040
Inspecting the drive belt layout on a Cub Cadet LTX 1040 is straightforward when you understand the key components and their positioning. The layout consists of a primary drive belt, pulleys, and tensioners, all working together to transfer power from the engine to the transmission system.
The drive belt runs from the engine’s crankshaft pulley to the transmission pulley, powering the mower’s movement. Here’s a step-by-step breakdown:
- The engine pulley connects to the main drive belt, which wraps around the transmission pulley.
- The tensioner pulley maintains the correct tension on the belt, preventing slippage and ensuring efficient power transmission.
- Other small pulleys guide the belt to keep it aligned and functioning correctly, helping to prevent premature wear.
For easier maintenance, follow this checklist:
- Ensure the belt is properly routed through the pulleys as per the diagram.
- Check for wear and tear–look for fraying, cracks, or signs of excessive stretching.
- If you’re replacing the belt, use a genuine Cub Cadet part to ensure proper fitment and function.
- Verify that the tensioner pulley is correctly adjusted to avoid any slack in the belt.
Referring to the official drive belt diagram can save you time during installation and troubleshooting. Always double-check the belt’s routing and tension before operating the mower to ensure safe, reliable performance.
Step-by-Step Instructions for Replacing the Drive Belt
1. Lift the Front of the Mower: Secure the mower with a jack or ramps to lift the front end. This will provide easier access to the underside, where the drive belt is located.
2. Disconnect the Battery: For safety, disconnect the negative terminal of the battery to prevent any accidental starting while working.
3. Remove the Deck: Use a wrench to detach the deck from the mower. This will involve removing the deck support pins and possibly the belt guard, depending on your model.
4. Locate the Drive Belt: Once the deck is removed, locate the drive belt routing. Familiarize yourself with the path the belt takes over pulleys and spindles. Refer to the diagram to ensure accurate reassembly.
5. Loosen Tension on the Belt: To remove the old belt, you’ll need to loosen the tension on the tensioner pulley. Use a wrench to pivot the tensioner arm and release the belt from the pulleys.
6. Remove the Old Belt: Slide the belt off the pulleys carefully. If it’s stuck, gently wiggle it free, making sure not to damage the pulleys or surrounding components.
7. Install the New Belt: Align the new belt with the pulleys, following the diagram for the correct routing. Ensure it’s seated properly on each pulley to avoid slipping or wear.
8. Adjust Tension: Reinstall the tensioner pulley and adjust the tension to ensure the belt is snug but not too tight. Verify the movement by manually rotating the pulleys.
9. Reassemble the Deck: Once the new belt is in place and adjusted, reattach the deck to the mower. Make sure all pins, guards, and bolts are tightened securely.
10. Reconnect the Battery: Finally, reconnect the negative terminal of the battery and test the mower to ensure everything is functioning smoothly.
Common Issues with Drive Belts and How to Troubleshoot
If your Cub Cadet LTX 1040’s drive belt isn’t functioning properly, check these common problems and their fixes:
1. Belt Slipping
Belt slipping occurs when the drive belt doesn’t stay in place on the pulleys. It usually happens if the belt is loose, worn out, or misaligned. To troubleshoot, inspect the belt for signs of wear, such as cracks or fraying. Tighten the belt tensioner or replace the belt if necessary.
2. Belt Off Pulleys
If the belt comes off the pulleys, it’s likely due to improper routing, worn-out pulleys, or a broken idler spring. Examine the belt path to ensure it’s correctly installed as per the diagram. Inspect the pulleys and idlers for wear and replace any damaged parts.
3. Belt Squealing
A squealing sound often indicates a loose belt or a pulley that isn’t spinning smoothly. Tighten the belt to the correct tension, and check the pulleys for dirt or debris. Cleaning the pulleys or replacing any defective components should resolve this issue.
4. Broken Belt
A broken drive belt is usually a result of wear and tear over time. If your belt breaks, inspect the surrounding components for any signs of damage that might have contributed to the issue. Always replace the belt with the correct part specified for your Cub Cadet LTX 1040 model.
5. Belt Not Engaging
If the belt isn’t engaging the pulleys properly, it could be due to a malfunctioning clutch or a worn idler pulley. Test the clutch and inspect the idler for any damage or wear. Replace or repair the faulty parts as necessary to restore full functionality.
6. Misaligned Pulleys
Misaligned pulleys can cause the drive belt to slip off or wear unevenly. Use a straightedge to check the alignment of the pulleys. If the pulleys are misaligned, adjust them or replace any components that may have shifted out of place.
7. Inconsistent Speed
If your mower is experiencing fluctuating speed, it may be due to a loose or damaged belt. Check the belt tension and inspect the pulleys for wear. Replacing a worn-out belt can help restore consistent speed.
| Issue | Cause | Solution |
|---|---|---|
| Belt Slipping | Loose or worn belt | Tighten or replace the belt |
| Belt Off Pulleys | Improper routing or worn pulleys | Correct belt path and replace damaged parts |
| Belt Squealing | Loose belt or dirty pulleys | Tighten the belt and clean the pulleys |
| Broken Belt | Wear and tear | Replace the belt with the correct part |
| Belt Not Engaging | Faulty clutch or idler pulley | Repair or replace the clutch and idler |
| Misaligned Pulleys | Shifted components | Realign or replace pulleys |
| Inconsistent Speed | Loose or damaged belt | Check belt tension and replace if needed |
