Cub Cadet LTX 1040 Belt Diagram Guide for Correct Installation and Maintenance

Check the belt routing before removing the old belt to ensure correct placement on the engine and mower deck. The LTX 1040 uses a single deck drive belt with a specific path that connects the engine pulley, deck pulley, and idler pulleys in a precise sequence.

Use the diagram to identify each pulley by size and position. The engine crankshaft pulley drives the main belt, which then loops over the idler pulleys that control tension and direction. Misrouting can lead to slipping, uneven mowing, or premature wear of the belt.

Inspect the belt for cracks, fraying, or missing ribs. Replace worn belts immediately and use the diagram to verify proper tension and alignment. Adjust the deck height and ensure all pulleys rotate freely before powering the mower to maintain smooth operation.

Keep a printed or digital copy of the belt diagram near your mower. Refer to it during routine maintenance, seasonal belt changes, or after removing the deck for repairs. Following the diagram step by step prevents errors and ensures consistent performance throughout the mowing season.

Cub Cadet LTX 1040 Belt Diagram Practical Maintenance and Installation Guide

Inspect the mower’s belts before any service. Look for cracks, fraying, or glazing on the surface. Replace any belt showing visible wear to prevent slippage and pulley damage.

Release tension on the idler pulleys to remove the old belt. Carefully note the routing around each pulley and attachment point. Taking a photo can help ensure correct reinstallation.

Position the new belt according to the Cub Cadet LTX 1040 diagram. Start with the drive pulley, then loop around the deck and tension pulleys as illustrated. Ensure the belt sits fully in each pulley groove without twisting.

Adjust the idler tensioner to apply proper tension. The belt should move slightly under light pressure but not sag. Check alignment of all pulleys to prevent uneven wear.

Run the mower at low speed with the blades disengaged to confirm the belt tracks correctly. Listen for unusual noises, and visually inspect that the belt remains seated in all grooves.

During seasonal maintenance, clean the pulleys and remove debris. Lubricate the idler pivot points if accessible, but avoid applying oil or grease directly on the belt, which can cause slipping.

Regularly inspect belt condition, especially after heavy use or mowing in wet conditions. Following this routine ensures consistent performance and prolongs the life of the Cub Cadet LTX 1040 belt system.

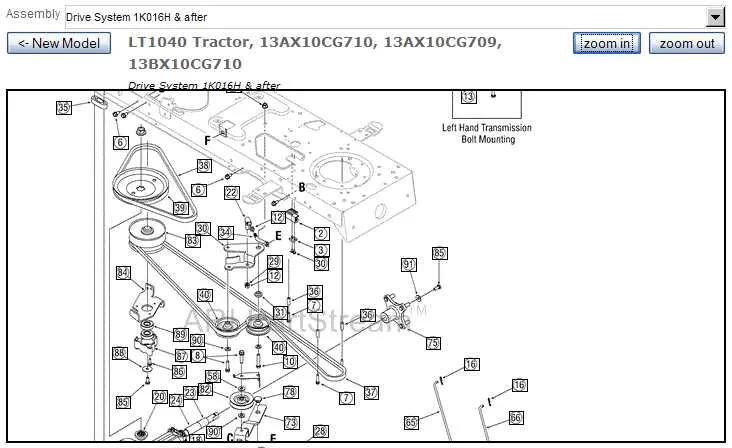

Identify All Belts and Pulleys on Cub Cadet LTX 1040

Locate the primary drive belt that connects the engine pulley to the transmission pulley. Inspect the deck drive belt running from the engine to the mower deck spindles. Identify the idler pulleys along each belt path; these maintain proper tension and alignment. Note the tensioner pulley on the deck system, which adjusts to prevent slipping. Trace the routing of each belt carefully, confirming that all pulleys are seated correctly and rotate freely. Check the PTO pulley linked to the mower engagement system, ensuring it spins smoothly without wobble. Verify that smaller accessory pulleys, if present, are aligned with the corresponding belts. Mark each pulley position relative to the belt path for reference during maintenance or replacement. Regular inspection of all belts and pulleys prevents misalignment and premature wear.

Step-by-Step Belt Replacement and Routing Instructions

Begin by raising the Cub Cadet LTX 1040 on a flat surface and removing the ignition key to prevent accidental start. Engage the parking brake and remove the mower deck to access the engine belts.

Locate the engine and deck belts, noting their current routing around the pulleys. Take a clear photo or draw a diagram for reference. Identify the drive belt tensioner and any idler pulleys that guide the belt.

Release tension on the drive belt by moving the tensioner arm away from the belt using a socket wrench. Slide the belt off the engine pulleys first, then remove it from the mower deck pulleys.

Compare the new belt with the old one to confirm correct length and rib alignment. Route the new belt around the deck pulleys according to your reference diagram, ensuring it sits properly in each pulley groove.

Position the belt around the engine pulleys, keeping it aligned with the crankshaft and idler pulleys. Pull the tensioner back and carefully slide the belt into place, making sure it is snug but not forced.

Spin each pulley by hand to verify the belt moves smoothly and remains fully seated. Reinstall the mower deck and lower the tractor to the ground.

Start the engine briefly at low throttle to confirm proper belt tracking and tension. Stop the engine and inspect the belt for any signs of misalignment or rubbing. Adjust tension or routing if necessary.

Complete the process by securing all components and performing a final inspection to ensure the belts maintain proper contact with all pulleys and tensioners.

Inspect Belt Condition and Adjust Tension During Service

Check the Cub Cadet LTX 1040 drive belt for visible cracks, fraying, or glazing. Replace any belt that shows significant wear or damage to prevent slippage and maintain smooth operation.

Clean the pulleys from debris and residue before reinstalling the belt. Dirt or buildup can cause uneven wear and reduce belt life.

Verify belt alignment across all pulleys. Misaligned belts can generate noise and accelerate wear.

• Locate the tension adjustment bracket near the engine or deck.
• Loosen the mounting bolts slightly to allow movement.
• Use a tension gauge or apply moderate finger pressure to check deflection. A properly tensioned belt typically deflects about ½ inch in the center span.
• Adjust the bracket to achieve correct tension, ensuring the belt sits snugly on all pulleys without excessive tightness.
• Tighten all bolts securely and recheck alignment and tension after the engine has run briefly.

Inspect idler and deck pulleys for smooth rotation and any wobble. Replace bearings or pulleys that show resistance or noise during rotation.

Perform belt inspection and tension checks at each scheduled service interval or if unusual noises, slipping, or vibration occur during operation.
