Cub Cadet LT42 Belt Diagram and Maintenance Guide

The Cub Cadet LT42 lawn tractor requires accurate belt routing to maintain proper functionality. If you experience issues with your mower’s performance, checking the belt diagram is a great place to start. This guide provides a clear, step-by-step breakdown of the belt layout for the LT42, ensuring your mower runs smoothly.

First, identify the specific belt that needs replacement or inspection. The LT42 typically uses a primary drive belt and a mower deck belt. These belts are crucial for powering the tractor’s movement and cutting system. Ensure you use the correct replacement parts as indicated in your manual to avoid compatibility issues.

Next, refer to the belt routing diagram that corresponds to your model. The routing paths are carefully designed to provide the best performance, so any misalignment or improper installation can lead to premature wear or malfunction. Follow the diagram precisely to reassemble or replace the belts without unnecessary strain on the mower’s engine.

Lastly, check for any visible wear, cracks, or fraying along the belts. If the belts appear damaged, replace them before further use to avoid costly repairs or more extensive damage. Regular belt maintenance is a key factor in the longevity and reliability of your Cub Cadet LT42 mower.

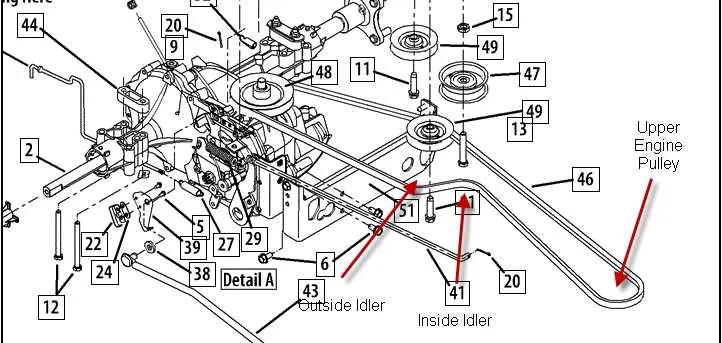

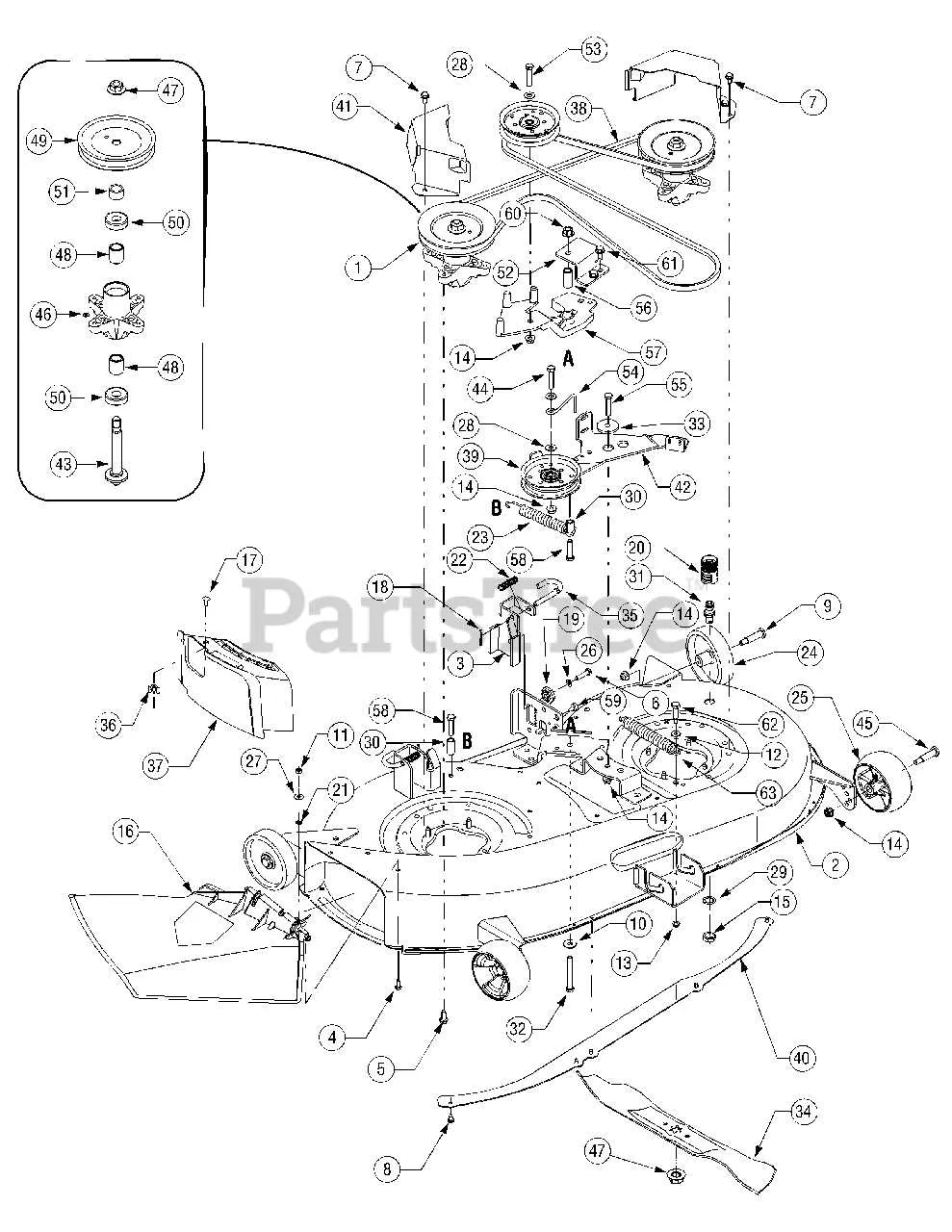

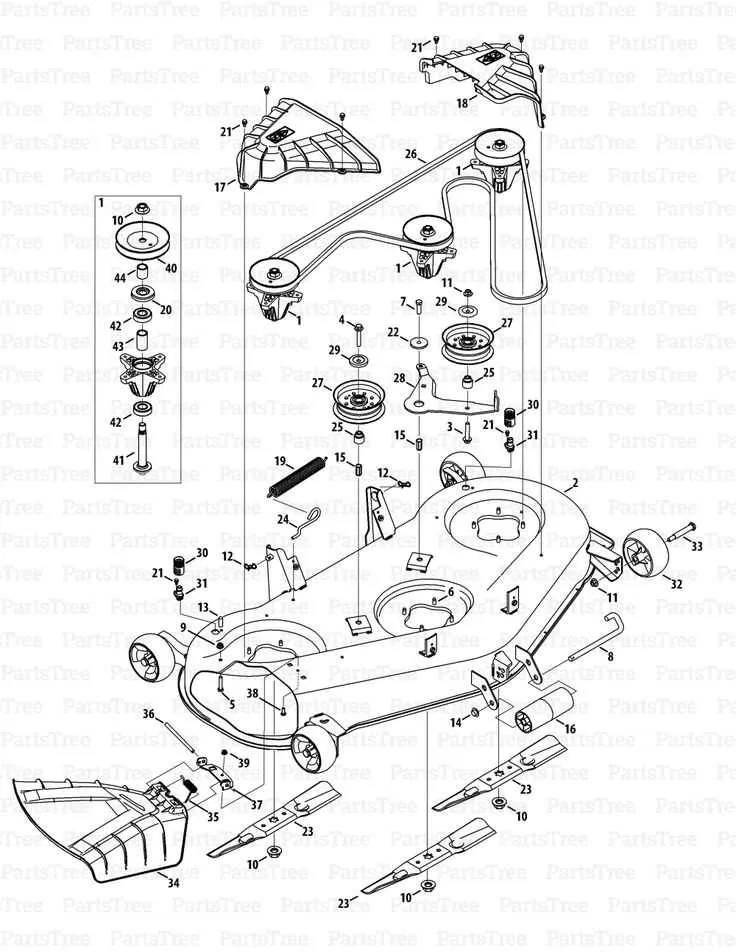

Cub Cadet LT42 Belt Diagram

The Cub Cadet LT42 mower uses a specific belt configuration for smooth operation. First, ensure you have the correct replacement belt size to prevent slipping or premature wear. The drive belt loops around various pulleys and components, including the engine pulley, deck pulleys, and the idler pulley. Pay close attention to the routing of the belt to ensure it’s installed correctly, as an incorrect routing can lead to tension issues and ineffective mower operation.

The belt should be positioned over the engine pulley first, then routed around the deck pulleys in a specific sequence. Make sure the belt is not twisted and follows the diagram accurately. An improperly installed belt may cause the mower blades to malfunction or even damage the engine. If the belt is worn out, replacing it with the correct part number is crucial for optimal performance.

Before starting the installation, it’s best to disengage the mower deck and relieve any tension from the existing belt. Carefully remove the old belt by loosening the idler pulley and sliding it off. Once the new belt is installed, check the tension again. It should be tight but not overly stretched to avoid slipping during operation. Run a test cycle to confirm the mower functions correctly after the replacement.

How to Identify the Correct Belt Routing on Cub Cadet LT42

To identify the correct belt routing on a Cub Cadet LT42, start by consulting the diagram in the user manual or a service guide. This diagram typically illustrates the correct path for the mower’s drive belt, showing how it loops around pulleys and spindles. Ensure the mower is turned off and safely positioned before starting any work.

Check the location of the deck pulleys, idler pulleys, and the tension spring. The belt needs to pass around these components in a precise sequence to maintain proper tension and function. Pay close attention to the direction in which each pulley should rotate, ensuring the belt moves smoothly without binding.

Next, compare the actual setup on your mower with the diagram. If the belt is off track or damaged, remove it carefully by loosening the tension spring. Install a new belt following the route shown in the diagram, ensuring that it is seated properly on each pulley and that there is adequate tension. Double-check for any slack or misalignment.

If you do not have access to the original diagram, search online for a Cub Cadet LT42 belt routing diagram or consult your local dealer for assistance. Many online resources and forums provide detailed guides with step-by-step instructions to help you match the belt routing correctly.

Steps to Replace the Drive Belt on Cub Cadet LT42

Lift the front of the mower using a jack or lift to access the underside. Ensure the mower is off and the spark plug is disconnected for safety.

Remove the cutting deck. Start by loosening the tensioner pulley and sliding the deck out from under the mower. Keep track of the pins and fasteners.

Locate the old drive belt and note the routing. Take a picture for reference before removing the belt. Release the tension on the belt by loosening the tensioner pulley bolt.

Carefully remove the worn drive belt from all pulleys and components. Take note of the path and any obstacles that might need to be cleared for easy installation of the new belt.

Install the new drive belt by following the same route as the old one. Make sure the belt is seated properly in all grooves and pulleys.

Reinstall the cutting deck, ensuring all fasteners are tightened securely. Adjust the tensioner pulley to apply proper tension to the belt.

Reconnect the spark plug and test the mower. Run it briefly to check for proper operation and belt alignment. Make adjustments if necessary.

Troubleshooting Common Issues with the Belt on Cub Cadet LT42

If your Cub Cadet LT42 is showing signs of belt issues, follow these steps to identify and resolve the problem.

1. Slipping Belt

• Check if the belt is too loose. Tighten it according to the manufacturer’s specifications.
• Inspect the pulleys for wear or damage. A worn pulley can cause the belt to slip. Replace any damaged pulleys.
• Ensure the belt is routed properly. A misrouted belt can lead to slipping.

2. Broken or Frayed Belt

• Examine the belt for visible signs of damage, such as cracks, frays, or missing pieces.
• If the belt is broken, replace it immediately with a new one that matches the original specifications for your model.
• Look for any sharp edges or debris in the area that might have caused the belt damage.

3. Unusual Noise from the Belt Area

• Check for debris caught in the belt or pulleys. Clear any obstructions carefully.
• Listen for any squealing or grinding noises, which might indicate a misaligned pulley or tensioner. Realign or replace the pulley if necessary.
• Ensure the belt is properly tensioned. A loose belt can produce noise as it moves through the system.

4. Belt Won’t Move Properly

• If the belt doesn’t move smoothly, inspect the tensioner spring for any wear or malfunction. A faulty spring may prevent the belt from moving freely.
• Verify that the belt is not obstructed by anything that could block its path.
• Check that the deck is aligned correctly and that there is no friction between the belt and other components.

5. Belt Keeps Coming Off

• Confirm that the belt is routed according to the Cub Cadet LT42 diagram.
• Inspect all pulleys for wear or misalignment. If a pulley is out of place, the belt will likely slip off.
• Make sure the belt is the correct size and type for your model.
