Cub Cadet LT1046 Drive Belt Diagram and Maintenance Guide
If you’re dealing with a Cub Cadet LT1046 and need to replace the drive belt, a clear diagram is crucial. It ensures you install the belt properly and avoid costly repairs or replacements later. The LT1046, with its unique system, requires precise belt routing, and understanding the diagram can save you time and frustration. The key is to follow each step carefully to get the machine running smoothly again.
The drive belt diagram for the LT1046 is typically found in the user manual, but having a visual reference makes the process easier. Start by identifying the specific model of your mower, as belt configurations can vary slightly depending on the version. Once you have the correct diagram, pay attention to the direction of the belt and the placement of each pulley. Ensuring proper tension on the belt is also critical for efficient operation.
Consulting the diagram when reassembling your Cub Cadet LT1046 will prevent common mistakes like misrouting the belt, which could lead to malfunctioning or damage. Follow the diagram step-by-step to ensure everything aligns with the manufacturer’s specifications. This guide is designed to help you replace the belt with minimal hassle and maximum accuracy.

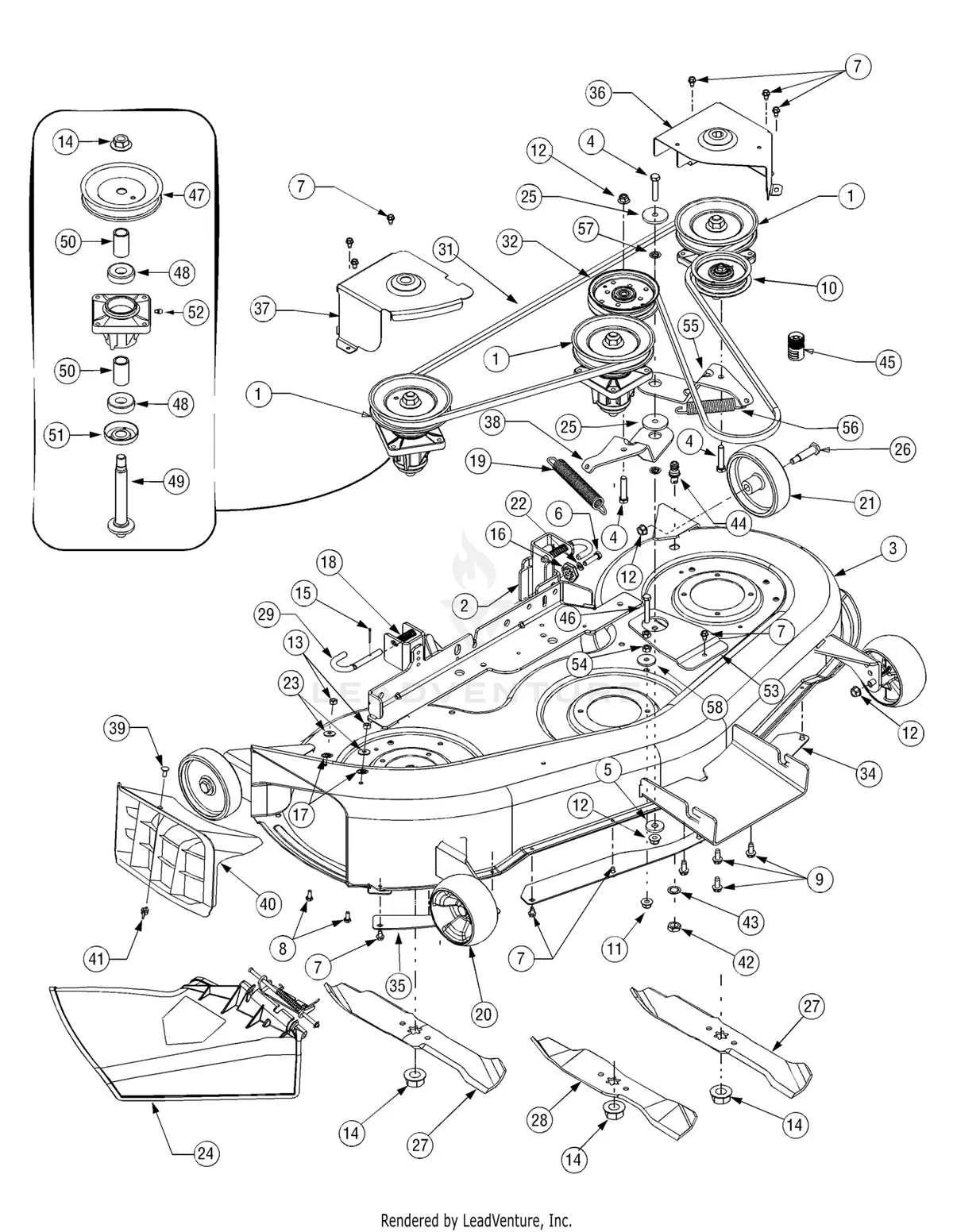

Cub Cadet LT1046 Drive Belt Diagram
How to Identify the Correct Drive Belt for Cub Cadet LT1046
To find the right drive belt for your Cub Cadet LT1046, check the model number and year of manufacture first. This information can be found on the manufacturer’s plate located under the seat or on the frame. Once you have that, use it to look up the specific part number for the drive belt in the owner’s manual or on the Cub Cadet website.
Another way to identify the correct belt is to measure the existing one if it’s still in place. Use a tape measure to determine its length and width. Compare these measurements with the specifications listed in the manual or online for the LT1046. The typical drive belt for this model is around 1/2 inch wide, but length can vary depending on your mower’s configuration.

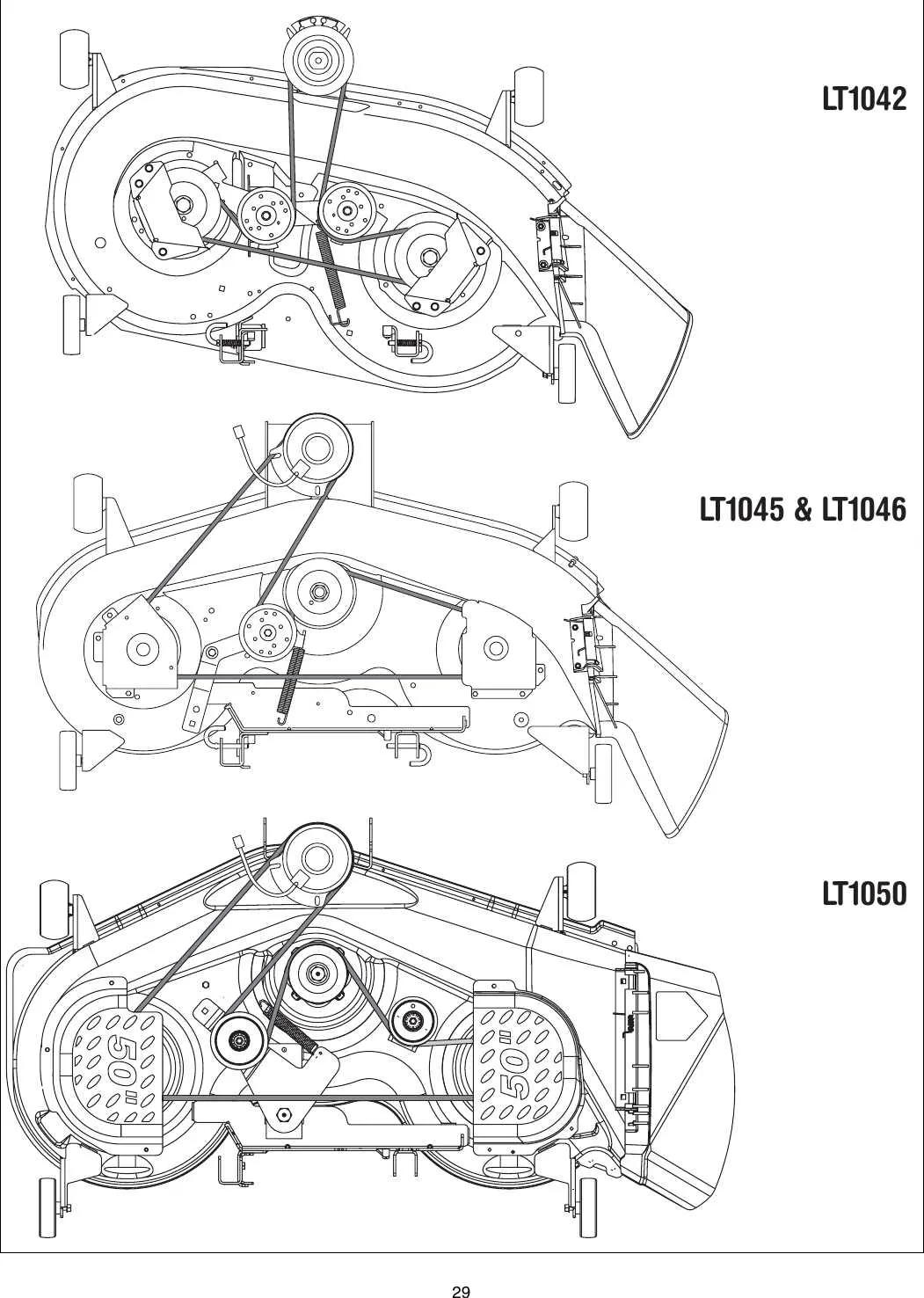

Make sure to check the routing diagram on the mower itself or in the manual. The belt should align correctly with pulleys, and it should fit snugly without being too tight or too loose. If in doubt, visit a local Cub Cadet dealer with your mower model and serial number to confirm compatibility.
If the belt is worn, cracked, or damaged, replace it immediately to avoid further damage to the mower. Always choose a genuine Cub Cadet replacement part for optimal performance.
Step-by-Step Guide to Installing the Drive Belt on Cub Cadet LT1046
First, raise the front of the mower using a jack or lift, securing it in place with blocks for safety.
Next, disconnect the negative terminal of the battery to avoid any electrical issues during the process.
Remove the mower deck by loosening the bolts and carefully sliding it out. This provides better access to the belt and pulley system.

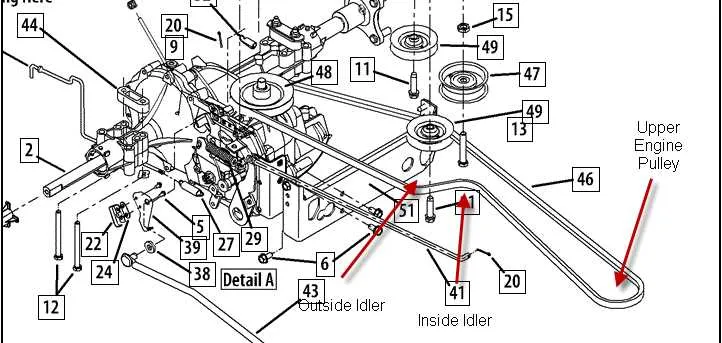

Locate the drive belt. You’ll find it running through several pulleys on the left side of the engine. Take note of the current belt routing, as you’ll need to follow the same path for the new belt.
Release the tension on the old belt by moving the spring-loaded idler pulley away from the belt. Carefully remove the belt from the pulleys, making sure not to damage any components in the process.
Place the new belt around the pulleys, following the exact routing of the old belt. Ensure the belt sits properly in the grooves of each pulley to avoid future wear.
Once the new belt is in place, return the idler pulley to its original position to apply tension. Check that the belt is tight but not overly strained.
Reinstall the mower deck, ensuring it’s securely mounted and aligned with the drive shaft.
Finally, reconnect the negative battery terminal. Test the mower to make sure the belt operates smoothly without any slipping or unusual sounds.
Common Issues with the Cub Cadet LT1046 Drive Belt and How to Fix Them
If your Cub Cadet LT1046 is experiencing issues with the drive belt, check for the following common problems and solutions:
1. Slipping Belt: A slipping drive belt may cause poor performance or difficulty in engaging the mower blades. This can happen due to wear or improper tension. To fix it, inspect the belt for signs of stretching or cracking. If damaged, replace the belt. Ensure the tension is correct by adjusting the idler pulleys according to the manufacturer’s specifications.
2. Broken or Frayed Belt: Over time, the drive belt may break or become frayed from extended use. Replace the belt immediately if you notice any significant damage. Refer to the owner’s manual for the correct replacement part number and installation instructions. Make sure the pulleys are free of debris that could cause further damage to the new belt.
3. Misaligned Pulley: A misaligned pulley can cause the drive belt to rub against other components, leading to excessive wear. Check all pulleys for proper alignment. If one appears out of place, realign it or replace any damaged pulleys. Make sure the pulleys spin freely without obstruction.
4. Belt Off the Pulley: If the drive belt comes off the pulley system, inspect the routing of the belt. Verify that the belt is properly routed around all pulleys as shown in the owner’s manual diagram. If the belt is repeatedly coming off, check the pulleys for damage or misalignment and replace any faulty parts.
5. Worn-out Idler Pulley: The idler pulley helps maintain proper belt tension. A worn-out pulley can cause the belt to lose tension, leading to slippage or failure. Check the idler pulley for wear or rough spinning. If it feels loose or damaged, replace the pulley to restore proper tension on the drive belt.
6. Incorrect Belt Size: Using the wrong size belt can lead to improper operation or belt failure. Double-check the part number and ensure you’re using the correct replacement belt as specified for your Cub Cadet LT1046. A belt that’s too long or too short will cause unnecessary strain on the pulley system.
