Cub Cadet LT1018 PTO Belt Diagram and Maintenance Guide

For quick troubleshooting or maintenance on your Cub Cadet LT1018, understanding the PTO belt diagram is crucial. This diagram provides a detailed layout of how the belt should run, ensuring everything from the clutch to the mower blades operates smoothly. If you’ve noticed that your mower isn’t engaging properly or is losing power, it might be time to check the PTO belt setup.

The PTO (Power Take-Off) belt connects the engine to the mower’s cutting deck, enabling it to power the blades. If the belt is worn, misaligned, or broken, it can cause the blades to stop turning or malfunction. To ensure optimal performance, always refer to the manufacturer’s diagram for the correct routing of the PTO belt. This diagram will guide you in placing the belt over pulleys, ensuring it’s tight and positioned correctly.

Begin by lifting the mower deck to access the PTO system. Carefully inspect the belt for any signs of wear or damage. If the belt needs replacing, use the diagram to ensure the new belt follows the exact path of the old one. Pay special attention to the tension and alignment as improper installation can lead to further issues down the line.

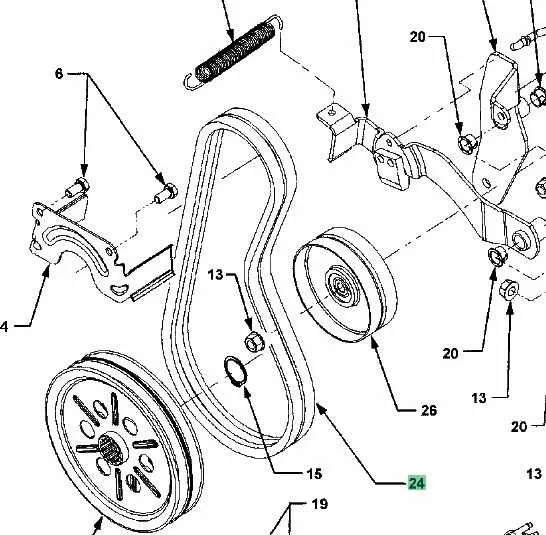

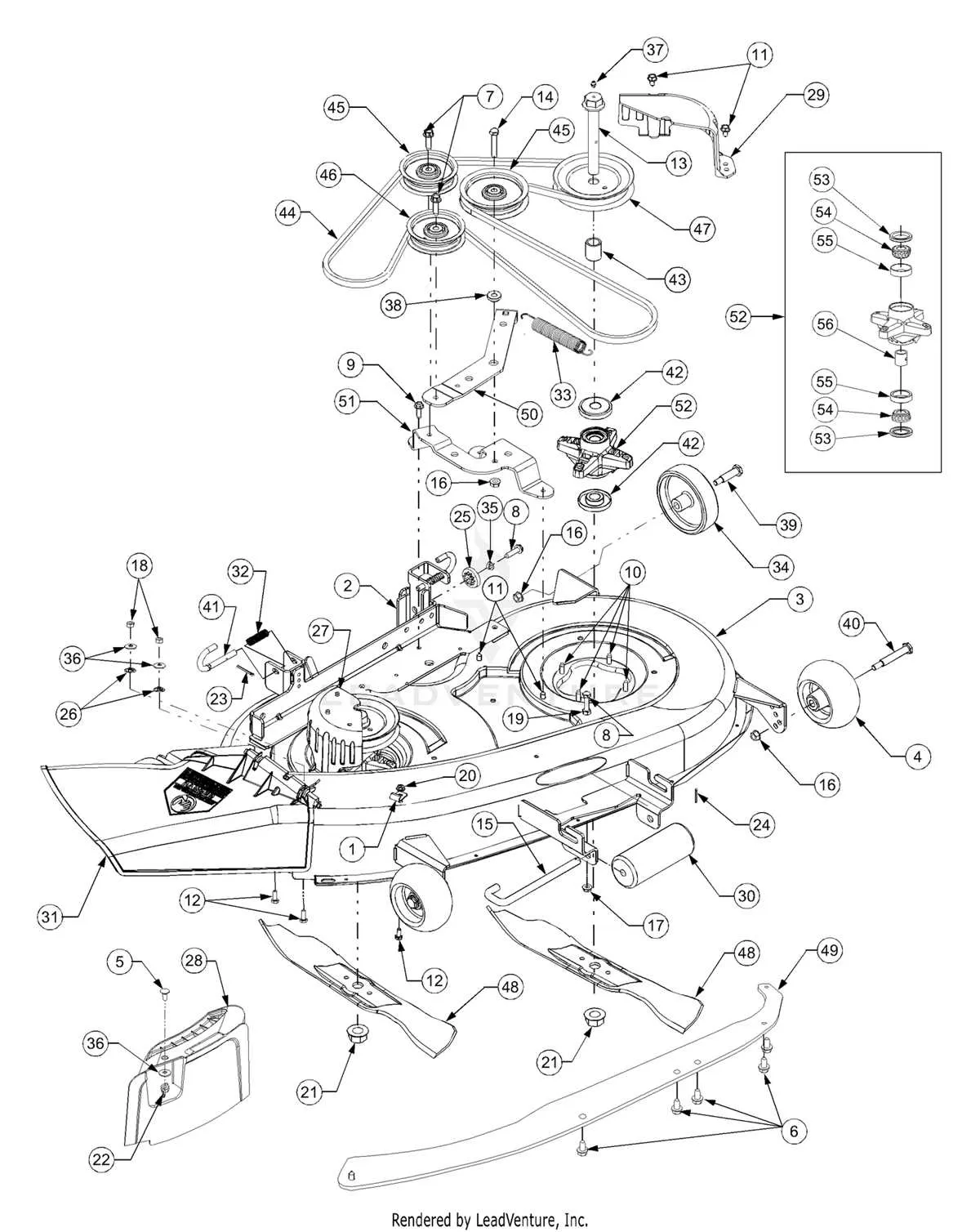

Cub Cadet LT1018 PTO Belt Diagram

The PTO belt on the Cub Cadet LT1018 is vital for connecting the engine’s power to various attachments, such as the mower deck. If the belt becomes worn or slips, it can cause performance issues. Below is a clear guide to the belt layout for the PTO system.

The PTO belt routing begins at the engine’s PTO pulley. From there, it loops around the spindle pulleys and extends to the mower deck’s main drive pulley. The belt’s tension is controlled by the spring-loaded tensioner, ensuring proper tightness during operation.

Refer to the diagram to ensure the belt is routed correctly. Make sure the belt is aligned with the pulleys without any twists or kinks, as this can lead to premature wear. If replacing the belt, use the exact size recommended by the manufacturer for optimal performance.

Key Tips for Maintenance:

• Inspect the belt regularly for signs of wear, fraying, or cracks.
• Check the tensioner to ensure it maintains proper tension.
• Always replace the belt with the specified part number to avoid issues with fitment and operation.

With the correct routing and regular maintenance, your PTO system will run smoothly, improving the longevity and performance of your Cub Cadet LT1018 mower.

How to Read the PTO Belt Diagram for Cub Cadet LT1018

Start by identifying the key components of the PTO system in the diagram. The PTO (Power Take Off) belt is connected to several pulleys, each serving a specific function. Ensure that you can recognize the main drive pulley, which powers the belt, and the idler pulley that helps maintain tension.

Next, locate the direction of the belt path. The diagram shows the route the belt takes from the PTO clutch to the engine pulley, and then to the cutting deck or other attachments. The arrows indicate how the belt wraps around the pulleys and how it moves through the system. Follow the belt’s route carefully to understand its sequence of travel.

Look for any additional components such as the tensioner or guide pulleys. These parts keep the belt in place and ensure it runs smoothly. The tensioner pulley, for example, automatically adjusts to maintain proper belt tension as the system operates.

If the diagram includes specific measurements or part numbers for pulleys, make sure to take note of them. These details are helpful when replacing any worn-out components or when troubleshooting a malfunction.

Finally, keep an eye out for any notes on the diagram that indicate maintenance procedures or possible issues, like belt wear or misalignment. These details provide quick insights into maintaining the system’s efficiency.

Step-by-Step Instructions for Replacing the PTO Belt on Cub Cadet LT1018

Before starting, make sure your Cub Cadet LT1018 is parked on a flat surface with the engine off and the ignition key removed.

1. Lift the Mower Deck

Use a lift mechanism or jack to raise the mower deck to a position where you can easily access the PTO belt. Make sure it’s securely lifted to prevent it from falling while working.

2. Remove the Deck Spindle Assembly

Locate the deck spindle, which holds the PTO belt in place. You will need to unbolt and remove the spindle assembly to release the belt. Use a socket wrench to remove the bolts and carefully take the spindle out.

3. Disconnect the Old PTO Belt

With the spindle removed, you will have access to the PTO belt. Carefully disconnect it from the pulley system, taking note of how it’s routed. This will help you when installing the new belt.

4. Install the New PTO Belt

Place the new PTO belt around the pulleys, following the same routing pattern as the old belt. Ensure the belt is seated properly in each pulley groove to avoid slipping during use.

5. Reassemble the Spindle Assembly

Once the belt is in place, reinstall the deck spindle assembly. Tighten the bolts securely to ensure the assembly is locked in position. Double-check the placement of the belt and the spindle before moving on.

6. Lower the Mower Deck

Carefully lower the mower deck back into its operating position. Make sure the deck is at the right height and the belt isn’t strained or twisted.

7. Test the PTO Operation

Start the engine and engage the PTO to check for proper operation. Listen for any abnormal sounds and verify that the belt runs smoothly without slipping or wobbling.

By following these steps, you should be able to replace the PTO belt on your Cub Cadet LT1018 efficiently. Make sure to double-check all components before starting the mower again to ensure everything is securely in place.

Common Issues with the PTO Belt on Cub Cadet LT1018 and How to Troubleshoot Them

If your PTO belt on the Cub Cadet LT1018 isn’t functioning properly, it’s likely due to one of several common issues. Here’s how to troubleshoot them:

1. Belt Slipping or Coming Off

A loose PTO belt is a frequent issue. Check the tension by inspecting the belt for slack. A loose belt can be tightened by adjusting the idler pulley or the tension spring. If the belt is still loose after adjustment, the spring might need replacement.

2. Cracked or Worn Belt

Look for visible signs of wear, such as cracks, fraying, or damage to the belt. A worn belt won’t grip the pulleys properly, causing slippage or loss of power. Replace the belt if you find any of these signs.

3. Misaligned Pulley

Misalignment can cause the belt to wear unevenly and even fall off. Check all pulleys for proper alignment. If one is skewed, it may be bent or loose, requiring adjustment or replacement.

4. Debris Buildup

Leaves, grass, or dirt can clog the PTO belt area, preventing smooth operation. Clean the area thoroughly and check for debris buildup around the pulleys. Remove any blockages to restore normal function.

5. Worn Out PTO Clutch

If the PTO clutch isn’t engaging or disengaging properly, it may be preventing the belt from working. Inspect the clutch for wear and ensure it’s functioning correctly. Replace the clutch if it’s damaged or failing.

6. Pulley Wear and Tear

Over time, pulleys can become worn, causing the belt to wear unevenly. Check each pulley for damage and smoothness. If they feel rough or show signs of wear, replace them to avoid further damage to the belt.

Regular maintenance and inspection of the PTO belt and related components will ensure smooth operation of your Cub Cadet LT1018 and extend the life of the parts.
