Cub Cadet LT1018 Drive Belt Diagram and Maintenance Guide

To replace or repair the drive belt on your Cub Cadet LT1018, start by understanding the belt routing. Accurate diagram references are key for a smooth process. First, check if the belt is broken or loose, then carefully note the path it follows across the pulleys.

Before proceeding, make sure the mower is turned off and cooled down. Ensure you have the right tools, including a socket wrench and a belt removal tool, to complete the task efficiently. You’ll need to locate the belt tensioner and release the tension before you can remove the old belt.

The diagram for the LT1018 typically shows the belt running from the engine pulley to the transaxle. Follow this exact routing to avoid misalignment. It’s also a good idea to inspect the pulleys for any wear or debris before installing the new belt.

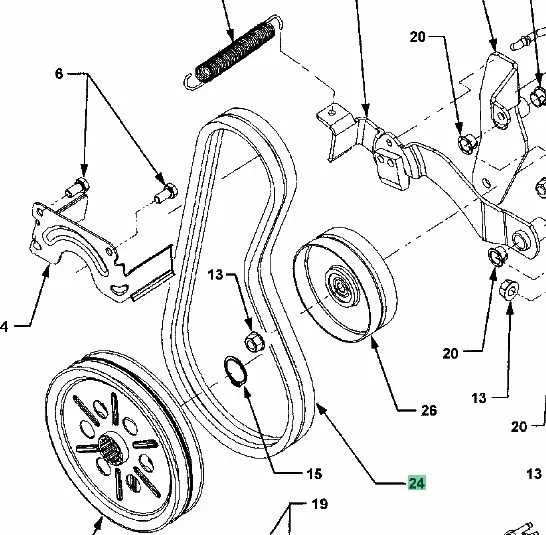

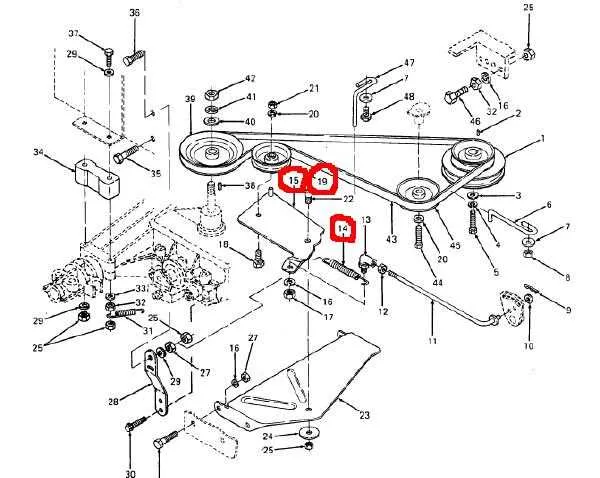

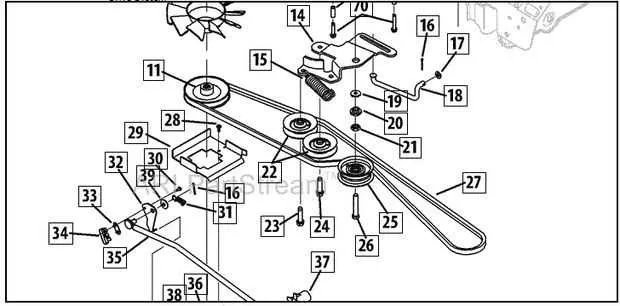

Cub Cadet LT1018 Drive Belt Diagram

The Cub Cadet LT1018 drive belt system consists of several key components working together to transfer power from the engine to the mower deck and other drive elements. Understanding how these components interact will help you maintain or repair your lawn tractor efficiently. Follow this diagram to identify each part and its role in the belt system.

The drive belt on the LT1018 connects the engine’s crankshaft to the transmission and mower deck pulleys. This belt must be routed around various pulleys, including the engine pulley, idler pulley, and drive pulley, ensuring the smooth operation of the mower. It’s crucial to follow the exact path specified in the diagram to prevent premature wear and ensure the system operates at optimal performance.

When replacing the belt, ensure the new one matches the exact specifications in the diagram. Refer to the tensioning springs and pulleys for proper installation. The belt should be snug but not too tight, as excessive tension can damage components. Be mindful of the orientation of each pulley and belt guide to ensure proper alignment. Misrouting can lead to belt slippage or damage.

If you’re experiencing issues such as slippage, poor engagement, or unusual noises, check the belt for signs of wear or misalignment. Worn-out belts should be replaced immediately to prevent further damage to the system. Regularly inspect the belt for cracks, fraying, or stretching, which can indicate it’s time for a replacement.

Following the LT1018 drive belt diagram will ensure you’re setting up the system correctly, leading to smoother operation and fewer maintenance issues over time. Always consult your owner’s manual for additional details specific to your model, as slight variations may exist.

How to Identify the Correct Drive Belt for Cub Cadet LT1018

To identify the correct drive belt for your Cub Cadet LT1018, follow these steps:

• Check the model and serial number of your Cub Cadet LT1018. You can find this information on the identification plate located on the frame, near the engine or rear axle.
• Consult the owner’s manual. The manual provides specific details on the belt size and type required for your model.
• Measure the old drive belt (if available). Use a measuring tape to determine the length, width, and thickness of the belt. Compare these measurements with the replacement options listed for your model.
• Look for part numbers on the current drive belt. Manufacturers often stamp part numbers on the belt itself, which can be matched with the correct replacement belt.
• Visit a reputable dealer or parts store. Provide them with the model number, serial number, and any measurements or part numbers to ensure you receive the correct belt for your machine.

If the belt is worn or damaged, it’s important to replace it with one that matches the original specifications for smooth operation.

Ensure the new belt matches the manufacturer’s recommendations for proper fit and functionality. Incorrect belt size can cause performance issues or damage to the lawnmower.

Step-by-Step Guide to Replacing the Drive Belt on Cub Cadet LT1018

1. Disconnect the Battery

Before starting the replacement, disconnect the battery to avoid any electrical issues during the process. Remove the negative terminal first, followed by the positive terminal.

2. Raise the Mower Deck

Lift the mower deck to gain access to the drive belt. Use a jack or any suitable lifting tool to elevate the deck. Secure it in place to prevent movement while working.

3. Locate the Drive Belt

The drive belt is located near the engine and the mower deck. It connects the engine pulley to the deck pulleys. Take note of the belt routing for reference when installing the new belt.

4. Remove the Old Drive Belt

Loosen the tensioner pulley to relieve the tension on the belt. Carefully slide the belt off the pulleys. If necessary, remove any obstacles or components blocking access to the belt.

5. Install the New Drive Belt

Route the new belt according to the belt diagram. Ensure it fits correctly over the pulleys and around the tensioner pulley. Double-check the alignment and ensure the belt is securely positioned.

6. Adjust the Tensioner Pulley

Re-tighten the tensioner pulley to apply the necessary tension to the belt. Check that the belt is not too tight or too loose. It should have a slight slack but remain firmly in place on the pulleys.

7. Reassemble Components

Once the new belt is in place, reattach any components or covers that were removed. Lower the mower deck and reconnect the battery terminals, starting with the positive terminal.

8. Test the Mower

Start the mower and check the operation of the new drive belt. Listen for any unusual noises and ensure the belt runs smoothly across the pulleys. If necessary, make adjustments to the tension.

Common Issues with Cub Cadet LT1018 Drive Belt and How to Fix Them

If your Cub Cadet LT1018 isn’t functioning properly, the drive belt could be the culprit. One of the most common issues is the belt slipping off. This often happens when the belt is worn out or not aligned correctly. Check the belt’s alignment and ensure it sits properly in the pulleys. If the belt is damaged or worn, replace it with a new one.

Another common problem is a loose or stretched belt. Over time, the belt can lose its tension, which can cause it to slip or make noise. To fix this, inspect the belt tensioner and adjust it to the manufacturer’s recommended setting. If the tensioner is damaged, replace it to restore proper belt tension.

A noisy drive belt often indicates that it’s either too loose or misaligned. Inspect the belt for any signs of wear, such as cracks or fraying. If these are present, the belt needs replacement. Make sure the belt is routed correctly and sits securely on the pulleys to avoid any further noise.

Finally, if the belt is frequently breaking, it may be due to misalignment or incorrect routing. Double-check the belt diagram and ensure the belt is installed in the correct configuration. Replace any damaged pulleys or parts that could cause excessive wear on the belt.
