Cub Cadet LT 42 Belt Diagram for Easy Maintenance and Repair Guide

For quick and accurate repair of your Cub Cadet LT 42 lawn mower, a clear belt diagram is essential. Understanding the belt layout simplifies maintenance tasks like replacing or adjusting the mower’s drive belts, ensuring smooth performance.

Start by locating the belt routing diagram on the mower itself–it’s typically found on the frame near the engine. If the diagram is faded or missing, using a detailed schematic from the manufacturer can help. The Cub Cadet LT 42 uses a series of belts, each responsible for different parts of the mower’s functions. A typical setup includes belts for the transmission, deck drive, and the PTO (power take-off) system.

Make sure to follow the exact routing path as specified in the diagram to avoid issues with belt wear or malfunction. Incorrect belt routing can cause slippage, inefficient operation, or even damage to the system. A quick visual check after replacement ensures everything is in place, preventing unnecessary repairs.

Cub Cadet LT 42 Belt Diagram: A Detailed Guide

To replace or repair the belt on your Cub Cadet LT 42, understanding the belt routing is key. Follow this simple guide to ensure smooth operation and a hassle-free process.

The belt system on the Cub Cadet LT 42 is critical for driving the mower blades and providing proper tension. A worn-out or misaligned belt can cause reduced performance or complete malfunction. Here’s how you can manage it.

• Start by lifting the mower deck to access the belt system. The deck should be lowered to its lowest position for better access.
• Locate the drive belt tensioner. It’s typically found near the engine or under the mower deck. This component keeps the belt tight during operation.
• Remove the old belt by disconnecting it from the pulley system. Pay attention to the way the belt is routed around the pulleys, as this is essential for proper reassembly.
• When installing the new belt, ensure that it follows the exact routing as indicated by the diagram. The belt should pass over each pulley and tensioner with proper alignment.
• Double-check the belt tension before operation. The belt should be tight enough to drive the pulleys but not so tight that it causes unnecessary strain.

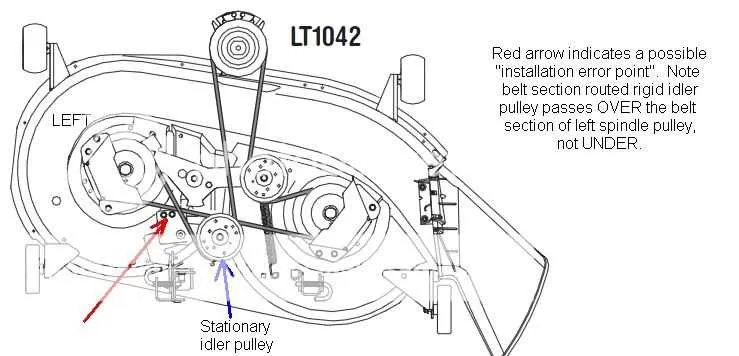

Here’s a brief overview of the key points on the belt diagram:

• The belt routes from the engine pulley to the mower blade spindles.
• The tensioner pulley maintains proper belt tension during operation.
• Some models have an idler pulley that helps maintain alignment and reduce slippage.

Following this guide and referring to your Cub Cadet LT 42 belt diagram will help you keep the mower in optimal condition and avoid breakdowns caused by incorrect belt installation.

Understanding the Belt Routing for Cub Cadet LT 42 Mower

The belt routing on the Cub Cadet LT 42 mower is straightforward but must be followed precisely for optimal performance. Begin by ensuring the mower deck is properly raised. The main drive belt connects the engine’s pulley to the mower’s spindle pulleys, which control the blades. It’s essential that the belt runs through the tensioner pulley, which keeps the belt taut and prevents slippage.

First, locate the idler pulleys that guide the belt to the right positions. These pulleys are key to maintaining belt tension. The belt must pass under the tensioner arm, which adjusts the belt’s tightness. Check that the belt isn’t twisted as it passes around the pulleys; this can cause uneven wear and poor performance.

When routing the belt, ensure the larger pulleys are connected to the engine and the smaller ones to the deck spindles. This creates the right mechanical advantage for cutting power. For proper tension, the belt should have some slack but not too much, as excessive slack will cause poor engagement of the blades.

Once the belt is routed correctly, test the mower by manually rotating the blades to make sure they spin freely. If there’s resistance or if the belt is loose, recheck the routing and adjust the tensioner pulley accordingly. Proper belt routing ensures smooth operation and prolongs the life of your Cub Cadet LT 42 mower.

Steps to Correctly Replace the Drive Belt on Cub Cadet LT 42

First, ensure the engine is off, and the ignition key is removed to avoid accidental starts. Raise the front of the lawnmower to provide better access to the underside. You can use a jack or secure it with blocks. Disconnect the negative terminal of the battery to prevent electrical issues during the replacement.

Next, locate the drive belt tensioner. Release the tension by either loosening the spring or disengaging the tensioner arm, depending on your model. This will allow you to remove the old belt easily.

Once the tension is released, remove the old belt from the pulleys. Take note of its routing to ensure the new belt is installed correctly. If needed, refer to the owner’s manual for a belt diagram specific to your model.

Install the new belt by following the same path as the old one. Start with the largest pulley and work your way through, ensuring the belt fits securely around each pulley. Make sure the belt sits properly in the grooves to avoid future issues.

Once the belt is in place, reattach the tensioner to apply pressure to the new belt. Double-check that the belt is tensioned correctly and that there is no slack. Finally, reconnect the negative terminal of the battery, lower the mower, and test the belt by engaging the drive system to confirm proper installation.

Common Issues with Cub Cadet LT 42 Belt and How to Fix Them

1. Belt Slipping

Belt slippage often occurs due to incorrect tension or wear on the belt. To fix this, check the belt tensioner and adjust it if necessary. If the belt is too loose, it may not grip the pulleys properly, leading to slippage. Replace the belt if it appears stretched or damaged. Ensure that the tensioner is working smoothly and there are no obstructions preventing proper movement.

2. Broken or Frayed Belt

If the belt appears cracked or frayed, it’s time to replace it. A worn belt can easily snap, causing a sudden loss of power to the cutting deck. Before installing a new belt, inspect all pulleys for damage, misalignment, or excessive wear. Replace any faulty components to prevent the new belt from breaking prematurely.

3. Misaligned Pulleys

Misalignment of pulleys can cause the belt to wear unevenly and lead to premature failure. Check the alignment of all pulleys connected to the belt. If a pulley appears out of line, adjust or replace it. Ensure that pulleys spin freely and aren’t obstructed by debris or rust.

4. Incorrect Belt Installation

If the belt isn’t routed according to the manufacturer’s diagram, it can lead to improper tension or excessive wear. Always refer to the Cub Cadet LT 42 belt diagram when installing or replacing the belt. Double-check the routing to ensure it matches the correct path and that the belt fits snugly around all pulleys.

5. Worn-out Idler Pulley

A worn-out idler pulley can cause the belt to move unevenly or even jump off the pulleys. If you hear a grinding or squealing noise, inspect the idler pulley for wear. Replace it if you notice any wobble or rough movement. Keep the area clean and lubricated to ensure smooth pulley operation.

6. Incorrect Belt Size

Using the wrong belt size can cause slipping, excessive wear, or improper operation. Verify that the belt you’re using matches the specifications for the Cub Cadet LT 42. Always check the belt part number and refer to the owner’s manual for the correct replacement size.
