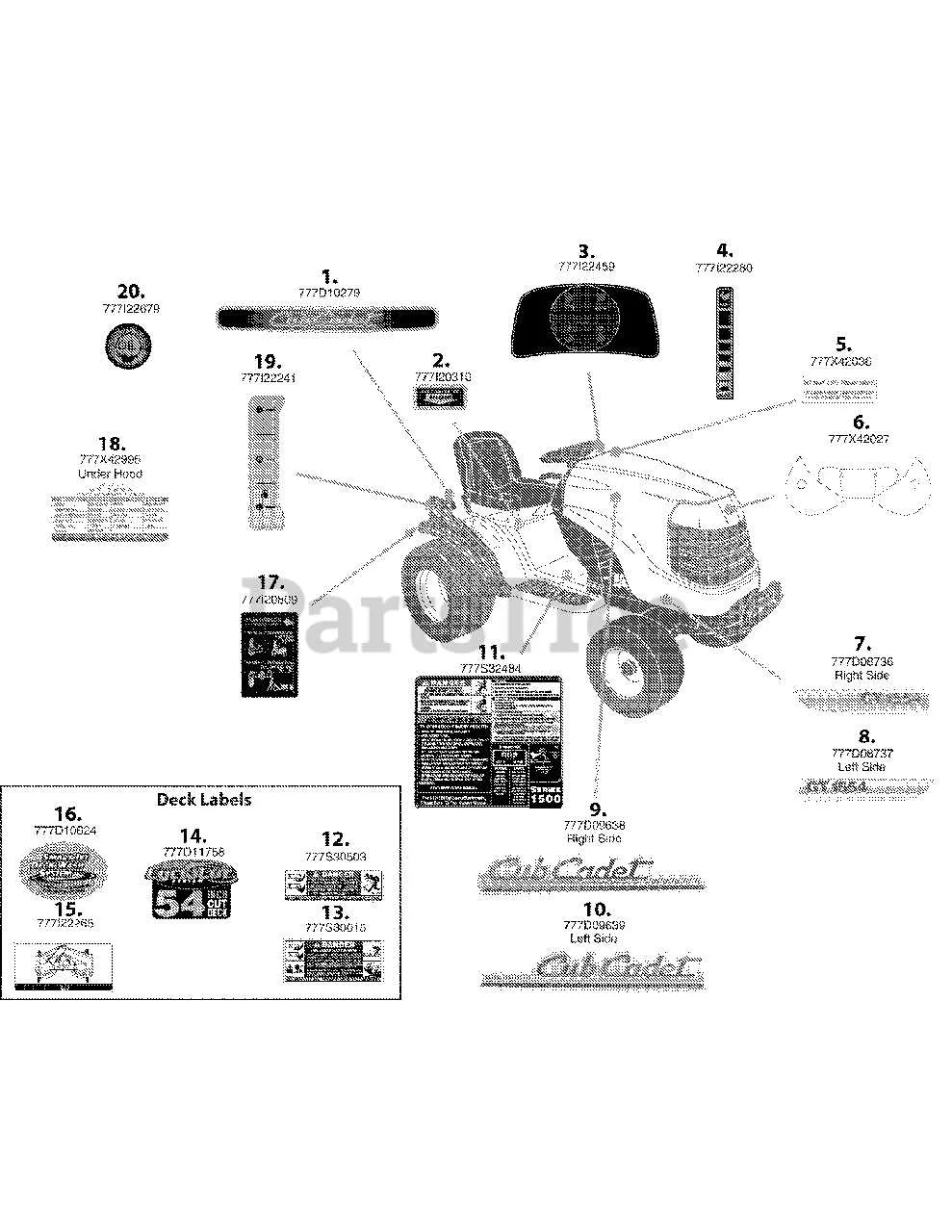

Cub Cadet GT1554 Belt Diagram and Installation Guide
To ensure smooth operation of your Cub Cadet GT1554, proper belt installation is critical. Start by identifying the correct belt path, which is outlined in the diagram. This ensures that the power is transmitted effectively from the engine to the various components like the transmission, cutting deck, and pulleys.
The belt diagram provides a visual map of how the belts should be routed. Make sure to follow the diagram closely, as a wrong installation can lead to damage or improper function of the mower. If the belt is not routed as shown, it can cause the system to slip or overheat, affecting overall performance.
If you’re replacing the belt, it’s important to use the correct part number for your specific model. Check your Cub Cadet manual for this information to avoid compatibility issues. Once the correct belt is in hand, refer to the diagram to verify proper routing and tension.

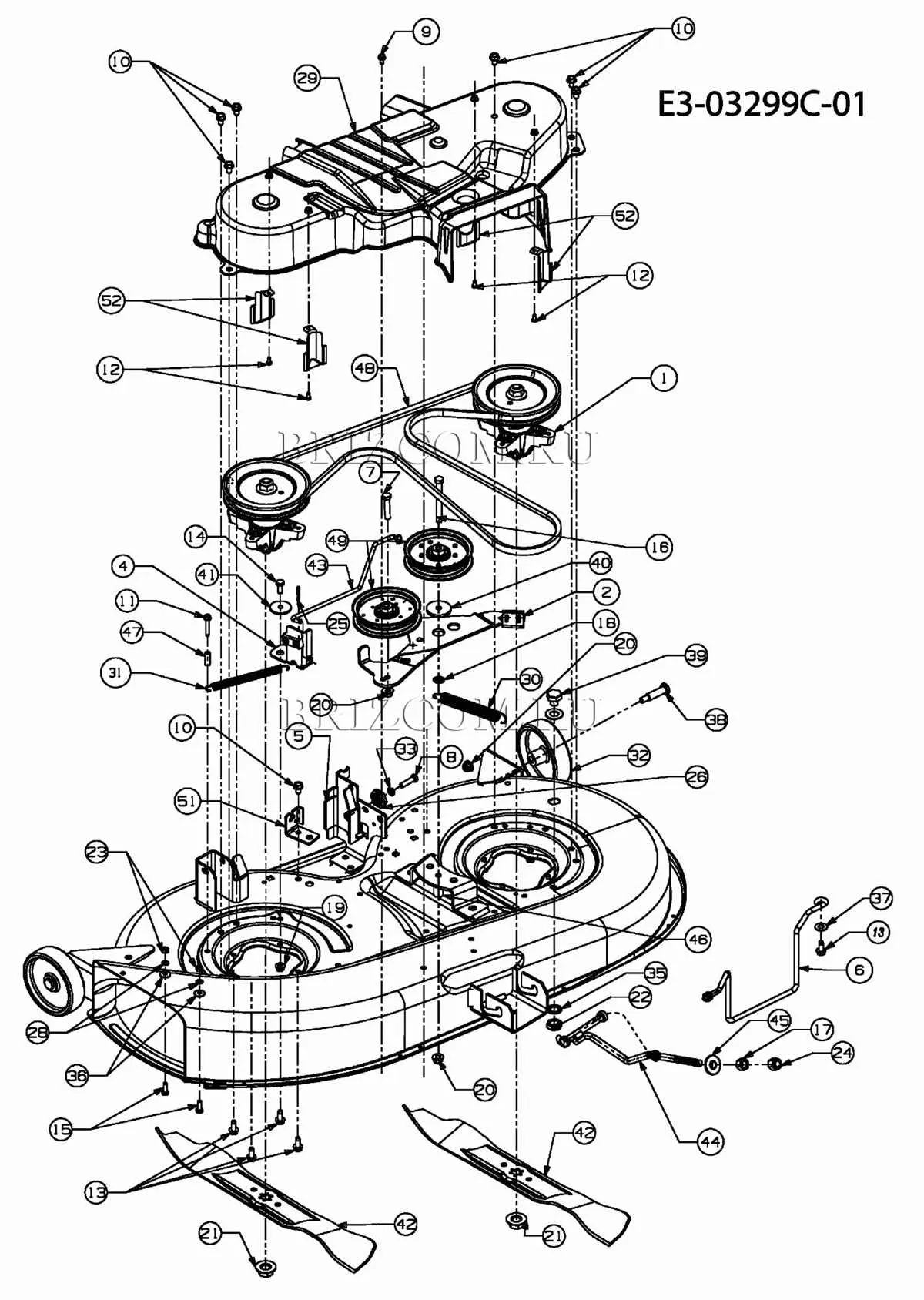

Cub Cadet GT1554 Belt Diagram
To replace or inspect the belt on the Cub Cadet GT1554, follow the belt routing diagram closely to ensure proper alignment and tension. The diagram provides a clear visual of the path the belt follows around various pulleys and components of the mower’s engine system.
First, check the belt’s condition before any replacements. If the belt is worn, cracked, or damaged, replace it with a new one of the same size and specification. The Cub Cadet GT1554 uses a V-belt system that is responsible for powering various mower components, including the blades and the transmission system.
The routing starts from the engine’s pulley, travels through the idler pulley, and wraps around the mower’s blade pulleys. Make sure that the belt is correctly aligned to avoid slipping or excessive wear. A misaligned belt can lead to uneven blade rotation and reduced performance. Additionally, ensure the idler pulley maintains the proper tension on the belt to keep it from loosening during operation.
After routing the new belt, manually rotate the engine pulley to confirm that the belt moves smoothly through the system without binding. Tighten any slack and check the tension once the mower is back in operation. Too much slack may cause the belt to slip, while excessive tension can lead to premature wear.
For reference, the Cub Cadet GT1554 belt diagram can usually be found in the mower’s user manual, or it can be obtained from the Cub Cadet website. Always refer to the manufacturer’s guidelines for exact specifications on belt dimensions and tension adjustments.
How to Replace the Belt on a Cub Cadet GT1554
To replace the belt on a Cub Cadet GT1554, follow these steps carefully:
-
Turn off the engine and disconnect the battery to avoid accidental starts.
-
Lift the hood and remove the engine cover for better access.
-
Locate the drive belt, which runs around the engine pulley, transmission pulley, and other components.
-
Loosen the tension on the belt by either removing the tensioner bolt or adjusting the tensioner arm.
-
Carefully remove the old belt from the pulleys, noting the routing for the new belt.
-
Place the new belt onto the pulleys following the same path as the original belt.
-
Ensure the belt is seated properly in the grooves of all pulleys.
-
Reapply tension by adjusting the tensioner, ensuring the belt has the proper tightness.
-
Double-check the routing and belt tension before closing the hood and reconnecting the battery.
-
Start the engine to verify that the new belt operates smoothly.
Performing this procedure correctly ensures the belt functions as expected, avoiding damage to the engine or other parts.
Understanding the Belt Routing on a Cub Cadet GT1554
The belt routing on the Cub Cadet GT1554 is a key factor in ensuring proper functionality of the mower. The belt follows a specific path through various pulleys and components, which must be maintained to avoid slipping or premature wear.
To correctly route the belt, start by identifying the primary components: the engine pulley, the deck pulleys, and the tensioner. The belt runs from the engine pulley over the idler pulley and then to the deck pulleys. This setup ensures that the mower blades are powered while maintaining proper tension for smooth operation.
Ensure the belt is seated properly in all grooves of the pulleys. If the belt has come off or is not properly routed, check the tensioner for proper alignment and function. A misaligned tensioner can cause excessive slack or tightness, affecting the performance of the mower.
Before starting the engine, rotate the belt by hand to check its movement through the system. If it seems stiff or does not rotate smoothly, realign or replace the belt as necessary. Always use the correct replacement belt designed for the Cub Cadet GT1554 to ensure compatibility and prevent further issues.
Troubleshooting Common Belt Issues on Cub Cadet GT1554
If your Cub Cadet GT1554 mower experiences belt-related issues, start by checking for common problems. First, inspect the belt for wear and tear. A cracked, frayed, or stretched belt may slip or fail to engage properly, leading to poor performance.
Next, ensure the belt is routed correctly according to the manufacturer’s diagram. Incorrect routing can cause the belt to slip off or even break. Refer to the belt diagram in the user manual for the proper alignment.
Check the tension of the belt. If the belt is too loose, it will fail to transfer power efficiently. Tighten the belt by adjusting the tensioner according to the instructions in the service manual. A loose belt can also cause unusual noises or decreased cutting power.
Look for obstructions in the path of the belt. Foreign objects or debris can interfere with smooth movement. Clear any debris from the pulleys and around the belt to prevent further damage.
Finally, inspect the pulleys. Worn or misaligned pulleys can cause the belt to slip or wear out prematurely. If the pulleys are damaged or out of alignment, replace or realign them before installing a new belt.
