Cub Cadet 50 Inch Deck Belt Diagram and Installation Guide

To replace or repair the belt on your Cub Cadet 50-inch deck, refer to this precise diagram for proper guidance. Follow these steps to ensure the belt is routed correctly and your mower operates smoothly.

Step 1: Start by locating the mower deck and ensuring the engine is turned off. Disconnect the spark plug to avoid any accidental starts. Raise the deck to its highest setting to gain better access to the components.

Step 2: With the diagram at hand, carefully identify the belt path. Note that the belt should run around the pulleys in a specific pattern. Check for any wear or damage to the belt as you remove it from the pulleys.

Step 3: Install the new belt by following the exact routing shown in the diagram. Start by positioning the belt around the pulleys and ensuring it fits snugly. Make sure it is correctly seated in the grooves of each pulley to prevent slipping during operation.

Step 4: Once the belt is in place, manually rotate the blades to confirm that the belt moves freely without any restrictions. Reconnect the spark plug and test the mower for proper operation. If the belt slips or makes unusual sounds, double-check the routing for any mistakes.

Following this diagram will help you maintain your Cub Cadet mower in top working condition, ensuring efficiency and longevity with every cut.

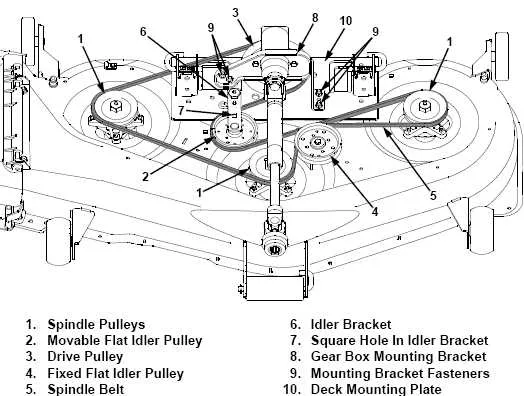

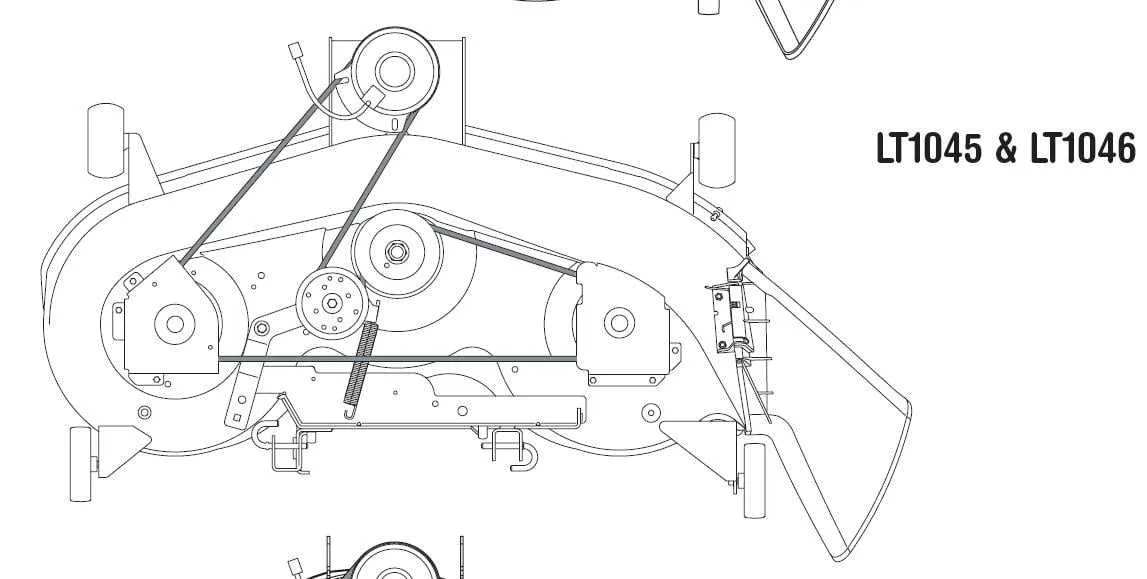

Cub Cadet 50 Inch Deck Belt Diagram

To replace the belt on a Cub Cadet 50-inch deck, start by understanding the routing diagram for the deck belt. This diagram outlines the exact path the belt takes, ensuring smooth operation and preventing potential damage to the mower’s system. It is crucial to match the belt’s path with the diagram to maintain correct tension and alignment.

First, locate the tension springs and pulleys. Ensure the tensioner pulley is set correctly to apply enough force to the belt. The diagram will show the belt looping around the blade pulleys, which need to be aligned precisely with the belt to avoid slippage. Pay attention to the directional arrows on the pulleys if present; they indicate the proper rotation direction for optimal performance.

When installing the new belt, ensure that it fits snugly in all pulleys. A loose belt can cause slipping, resulting in uneven cutting or belt wear. Always double-check that the belt is positioned correctly, especially in tight spots where the deck and chassis meet.

After installation, manually rotate the blades and check the belt’s movement. If the belt is loose or misaligned, adjust the tensioner pulley or reposition the belt according to the diagram.

Regular inspection of the deck belt and its alignment can extend the mower’s life, ensuring it works efficiently for years to come. Use the diagram as a reference point whenever performing maintenance or repairs on your Cub Cadet 50-inch deck.

How to Read the Cub Cadet 50 Inch Deck Belt Diagram

Understanding the Cub Cadet 50-inch deck belt diagram is simple once you know where to look. The diagram provides a clear visual representation of how the belt should be routed across various pulleys and components on your lawn mower deck. Here’s a step-by-step guide to help you read it accurately:

• Locate the Starting Point: The diagram usually starts with the main engine pulley. Follow the path from this point, as it shows how the belt moves across different pulleys.
• Understand the Pulleys: Look for labels next to each pulley. These labels typically describe the pulley’s function or location, such as the deck drive pulley or the idler pulley. This helps you identify where each part fits into the belt routing.
• Identify Belt Loops: Pay attention to the loops in the diagram. A continuous loop indicates that the belt wraps around that pulley, while a line that crosses the belt may indicate a tensioner or idler pulley guiding the belt’s path.
• Check Belt Direction: The arrows in the diagram point in the direction of the belt movement. This shows how the belt should be installed, ensuring proper tension and functionality.
• Review Additional Notes: Some diagrams include extra information about belt lengths or part numbers. These details can help you when replacing the belt or troubleshooting any issues.

Once you’ve mapped out the route, compare it with the actual components on your lawn mower to ensure everything lines up correctly. Double-checking the belt routing with the diagram will save you time and prevent unnecessary mistakes during installation.

Steps to Replace the Deck Belt on Cub Cadet 50 Inch Mower

1. Disconnect the Battery – Before starting, ensure your mower is off. Disconnect the battery to avoid any accidental starts while working.

2. Lift the Mower – Use a mower lift or a jack to raise the front of the mower. This will provide better access to the deck area. Ensure the mower is stable before proceeding.

3. Remove the Deck Belt Cover – Locate and remove the screws or bolts holding the deck belt cover in place. Set them aside for reinstallation. Take off the cover to access the belt.

4. Release the Tension – Use a wrench or socket set to loosen the tensioner pulley. This will release the tension on the old belt, making it easier to remove.

5. Remove the Old Belt – Slide the belt off the pulleys. Take note of the belt’s routing pattern, as you will need to install the new belt in the same configuration.

6. Install the New Deck Belt – Place the new belt on the pulleys, following the same routing as the old belt. Ensure the belt is positioned correctly on each pulley to avoid future issues.

7. Reapply Tension – Tighten the tensioner pulley to secure the new belt in place. The belt should have some slack but not be too loose.

8. Reassemble the Deck Cover – Replace the belt cover and secure it with the screws or bolts you removed earlier.

9. Test the Mower – Before use, manually rotate the blades to ensure the belt is properly aligned and moves smoothly. Reconnect the battery and test the mower on a low setting to confirm everything is functioning correctly.

Common Issues with the Cub Cadet 50 Inch Deck Belt and Troubleshooting Tips

1. Belt Slipping or Squealing: If the deck belt slips or squeals, check for proper tension. A loose belt can cause poor performance and noise. Ensure the tensioner is properly adjusted and that the belt is in good condition. Replace the belt if it shows signs of wear, cracking, or fraying.

2. Belt Wearing Out Prematurely: A belt that wears out quickly could indicate misalignment in the pulleys. Inspect all pulleys and make sure they rotate freely without wobbling. Misalignment can cause the belt to wear unevenly, leading to premature failure. Correct any pulley alignment issues before installing a new belt.

3. Belt Breakage: A snapped belt is often caused by excessive tension, incorrect routing, or a damaged pulley. Double-check the routing diagram to ensure the belt is installed correctly. Look for sharp edges or debris on the pulleys that could cut into the belt. Replacing a broken belt is simple, but addressing the root cause is key to preventing future breaks.

4. Pulley Issues: A worn or damaged pulley can cause the belt to slip or become misaligned. Inspect each pulley for wear, rust, or damage. If the pulleys are not functioning smoothly, they may need to be replaced. Pay attention to the spindle bearings as they can also affect pulley movement.

5. Incorrect Belt Size: Using the wrong belt size can lead to frequent issues like slipping or breaking. Always refer to the Cub Cadet manual for the exact belt size for your model. Using the correct belt will ensure proper operation and reduce unnecessary wear.

6. Obstructions or Debris: Objects stuck in the deck or around the belt can cause strain and damage. Before installing a new belt, clean the area thoroughly to remove grass clippings, twigs, or dirt. Regular cleaning helps extend the life of the belt and pulleys.
