Cub Cadet 1050 Belt Diagram Guide for Proper Installation and Maintenance

Check the tension and alignment of your Cub Cadet 1050 belt before installation to prevent premature wear. Identify the main drive belt connecting the engine pulley to the deck and the PTO system. Ensure pulleys are free of debris and rotate smoothly for consistent belt tracking.

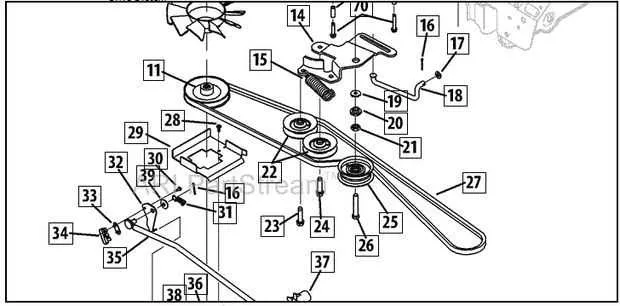

Follow the specific routing pattern indicated in the diagram: loop the belt around the engine pulley first, then guide it through the idler pulleys, maintaining the correct orientation of V-belts. Incorrect routing can cause slipping, uneven cutting, or damage to the mower deck components.

Use a belt tension gauge or manually apply pressure to confirm the belt maintains proper engagement with all pulleys. Replace any worn or cracked belts immediately, and keep the diagram accessible during future maintenance to avoid errors in reinstallation. Regular inspection of the routing and tension extends the lifespan of both the belt and mower deck components.

Cub Cadet 1050 Belt Diagram Guide for Accurate Installation and Maintenance

Position the mower deck on a level surface and ensure the ignition is off before starting any belt work. Identify the main drive belt and routing path using the official Cub Cadet 1050 belt diagram for reference.

Loop the belt around the engine pulley first, keeping it aligned with the edges of the pulley to prevent slipping. Follow the diagram carefully, routing the belt around each idler pulley and tensioner in the correct sequence.

Check the belt for any cracks, fraying, or glazing before installation. Replace worn belts to maintain proper tension and prevent skipping during operation. Use the tensioner pulley to apply appropriate tension, ensuring the belt sits snugly without excessive force.

Inspect all pulleys for wear or debris. Clean any accumulated grass, dirt, or rust that could interfere with smooth rotation. Lubricate moving components lightly if the manufacturer’s instructions allow, avoiding over-lubrication.

After installation, rotate the belt manually to confirm smooth movement and correct alignment. Start the engine briefly to verify the belt tracks properly under load, listening for unusual noises that may indicate misalignment or tension issues.

Perform regular checks of belt condition and routing every 25 hours of operation or before heavy mowing sessions. Keep a spare belt on hand to minimize downtime in case of sudden wear or damage.

Step-by-Step Routing of the Cub Cadet 1050 Deck and Engine Belts

Position the tractor on a level surface and engage the parking brake. Remove the deck to access pulleys clearly. Identify the main drive belt connecting the engine crankshaft to the deck drive pulley. Route the belt over the crankshaft pulley first, ensuring it sits in the pulley groove without twisting.

Guide the belt over the idler pulleys following the tension path marked on the deck. Pass the belt under the idler spring, maintaining proper spring tension to keep the belt taut. Ensure the belt wraps around the deck spindles in the correct order, starting with the left spindle, then the center, and finally the right spindle. Confirm that the belt sits securely in all spindle grooves.

Check the routing of the engine belts. Loop the engine belt around the alternator pulley, then under the tensioner, and finally over the engine pulley. Adjust the tensioner to achieve proper belt tension without forcing the belt. Turn the engine pulley by hand to verify smooth rotation and correct alignment of all belts.

Reinstall the deck carefully, making sure the belt remains in position. Lower the deck and recheck belt tension. Operate the PTO lever slowly to ensure the deck engages smoothly and the belt moves without slipping. Make final adjustments to idler positions if necessary to maintain consistent belt alignment.

Identifying Individual Belts and Pulleys for Proper Replacement

Locate the engine drive belt first by following it from the crankshaft pulley to the deck and idler pulleys. Check the belt for cracks, fraying, or glazing before removal. Note the routing pattern, which typically loops around the crankshaft pulley, idler pulleys, and spindle pulleys on the mower deck.

Inspect the deck drive belt by tracing it along the mower deck pulleys. Identify the spindle pulleys for each blade; these usually have a bolt at the center. Ensure the belt sits properly in the grooves and observe the tensioning idler, which maintains belt tension during operation.

Check the idler pulleys individually. Most idlers are spring-loaded or fixed with a bolt. Look for smooth rotation and any signs of wear or wobble. Replace any pulley that shows excessive play, damaged bearings, or rusted components to prevent belt slippage.

Match replacement belts by length, width, and profile. Use part numbers when possible to ensure compatibility with the Cub Cadet 1050. Verify that each pulley aligns correctly with the new belt before tightening any fasteners.

After installing new belts, rotate the pulleys by hand to confirm smooth movement and proper tracking. Adjust idler tension if necessary, and double-check that the belt sits correctly in all grooves to prevent premature wear or disengagement during operation.

Troubleshooting Common Belt Issues and Adjustments on the 1050 Model

Inspect the deck and engine belts regularly for fraying, cracks, or glazing. Replace any belt showing visible wear to prevent slipping or breakage during operation.

Check belt tension by pressing down at the midpoint of the longest span. A properly tensioned deck belt should deflect about 1/2 inch under moderate pressure. Engine belts typically require 1/4 to 3/8 inch deflection. Adjust the tension using the idler pulley or adjustment bolts as indicated in the Cub Cadet 1050 belt diagram.

Listen for squealing noises while the mower is running. Squeals often indicate a loose or misaligned belt. Realign pulleys and adjust tension to eliminate noise. Lubricate pivot points on idler pulleys to maintain smooth movement.

Inspect pulleys for wear or debris. Bent or worn pulleys can cause the belt to ride off-track. Replace damaged pulleys and clean any buildup to ensure smooth operation.

Check belt routing against the official diagram before starting the engine. Incorrect routing can cause slipping, poor deck engagement, or excessive wear. Follow the specified path around the engine crankshaft, deck spindles, and idler pulleys.

• Replace cracked or frayed belts immediately.
• Maintain proper tension: deck belt ~1/2 inch, engine belt 1/4–3/8 inch deflection.
• Clean and inspect pulleys for alignment and wear.
• Use the idler pulley to adjust belt tracking as needed.
• Verify routing with the 1050 belt diagram before operation.

Perform these checks periodically, especially before heavy mowing sessions, to maintain smooth performance and prevent unexpected downtime.
