Ariens Ikon X 42 Belt Diagram and Maintenance Guide
To properly maintain your Ariens Ikon X 42, refer to the belt diagram for guidance. This diagram provides a visual reference for belt routing and positioning, helping you to avoid costly mistakes during replacement or maintenance.
When replacing the drive belts on the Ikon X 42, make sure to follow the diagram closely to ensure the belts are properly aligned. Incorrect routing can lead to premature wear or even damage to the engine and components.
Pay close attention to the tension specifications as well. Ensure the belts are neither too tight nor too loose, as this can affect the overall performance of your lawn mower. Regularly check the belt condition to prevent breakdowns during operation.

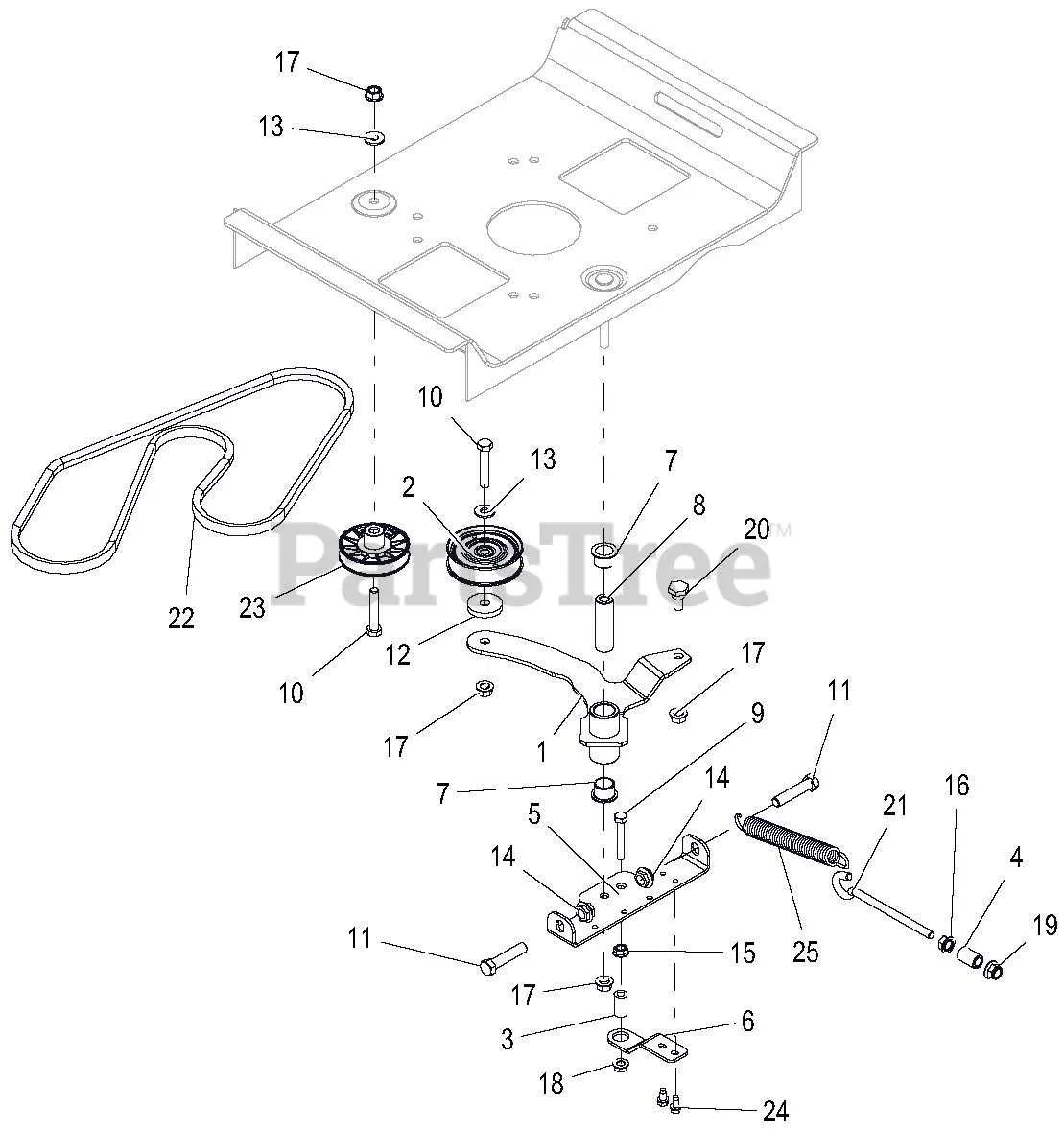

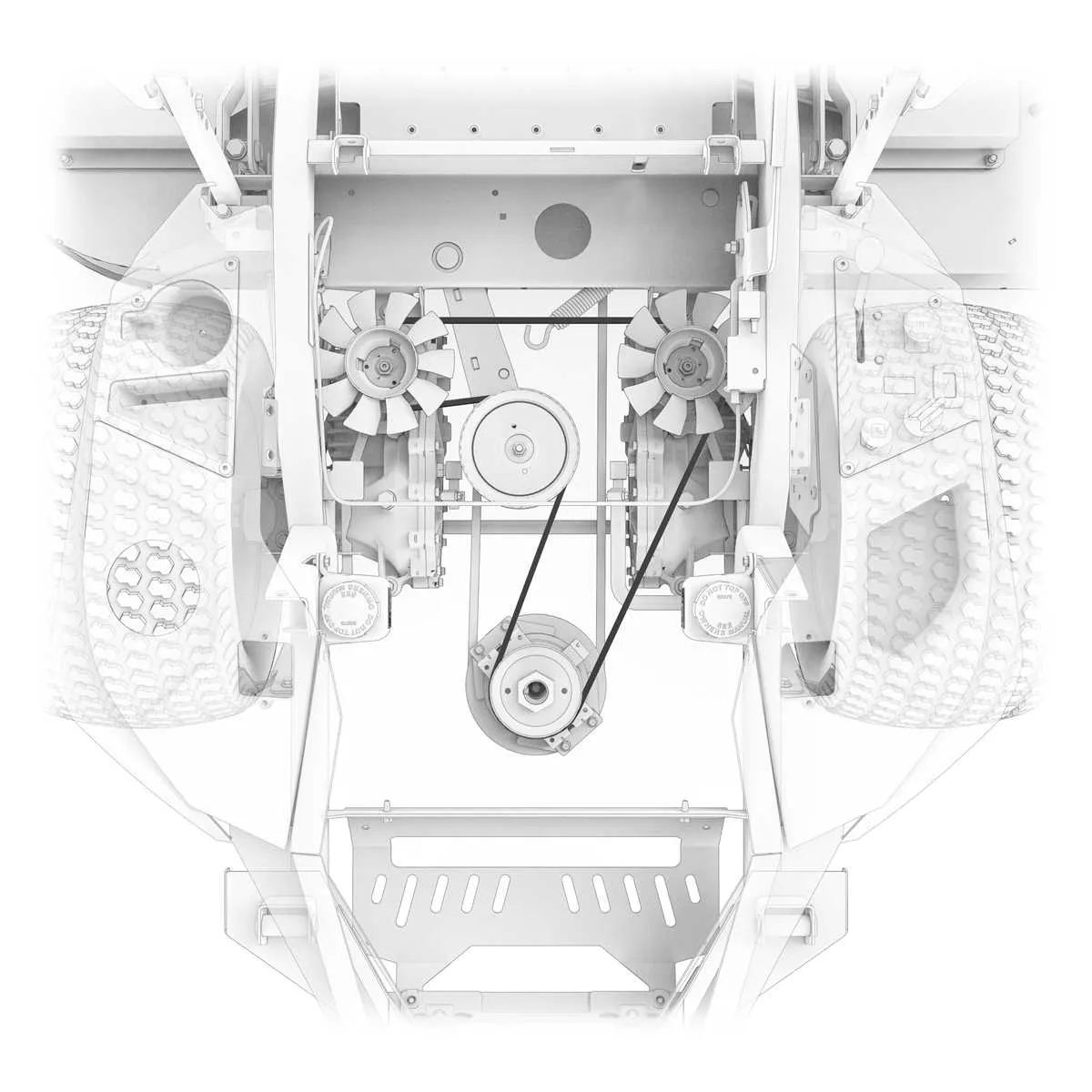

Ariens Ikon X 42 Belt Diagram
The Ariens Ikon X 42 lawn mower uses a belt system that connects the engine to the deck, enabling the cutting blades to rotate. Proper understanding of the belt diagram is crucial for maintenance and troubleshooting. When inspecting the belt, ensure that it is routed correctly through the pulleys and tensioners to avoid improper functioning.
The diagram highlights the exact placement of the drive belt, idler pulley, and tensioner. Follow the diagram to replace a worn-out belt or adjust the tension. Start by loosening the tensioner, remove the old belt, and carefully route the new belt according to the diagram. Make sure the belt sits properly on each pulley, and that it is not twisted or misaligned.
If the belt is slipping or not moving correctly, check for any debris or damage to the pulleys that might obstruct the belt’s movement. Also, verify the belt’s wear. A worn-out belt can reduce efficiency and cause performance issues. Regular inspections and replacements will keep the system running smoothly.
How to Identify the Correct Belt for the Ariens Ikon X 42
To identify the correct belt for the Ariens Ikon X 42, start by checking the model number and the specifications of the mower. The most accurate way is to refer to the owner’s manual, which provides detailed belt dimensions and part numbers. If the manual is unavailable, search for the specific model online to access manufacturer specifications.
Next, confirm the belt size by measuring the existing belt or inspecting the old one. Use a tape measure to determine the length and width, ensuring the new belt matches these dimensions. Pay attention to the belt’s material, as it affects its durability and performance. The Ariens Ikon X 42 typically uses a reinforced belt to handle the mower’s load.
Additionally, cross-reference the part number found in the manual or on the existing belt with available replacement options at local dealers or online stores. Confirm that the part number aligns with Ariens’ recommendations to avoid compatibility issues.
If uncertain, visit a dealer who specializes in Ariens equipment, or consult a technician to verify the correct belt type. Always ensure that the belt fits snugly without excessive slack or tightness to ensure optimal mower function.
Step-by-Step Guide to Replacing the Belt on the Ariens Ikon X 42
Begin by ensuring the mower is turned off and the key is removed to avoid any accidents.
1. Lift the mower – Use a suitable jack or lift to raise the front of the mower, providing enough clearance to access the belt area.
2. Remove the deck belt cover – Unscrew the bolts securing the belt cover to expose the belt and pulleys. Keep the screws in a safe place.
3. Release the tension – Locate the tension spring that holds the belt in place. Use a wrench to carefully release the tension from the spring, allowing you to remove the belt.
4. Remove the old belt – Slide the old belt off the pulleys and remove it from the mower. Inspect the pulleys for any signs of wear or damage before continuing.
5. Install the new belt – Position the new belt around the pulleys according to the diagram for the Ariens Ikon X 42 model. Ensure it is routed correctly and sits securely on each pulley.
6. Reattach the tension spring – Reinstall the tension spring, ensuring the belt is taut but not too tight. This will ensure optimal performance of the mower.
7. Check alignment – Confirm that the belt is properly aligned and sitting in the grooves of the pulleys. A misaligned belt can cause premature wear.
8. Reattach the belt cover – Once the belt is properly installed and aligned, secure the belt cover back in place with the screws.
9. Lower the mower – Carefully lower the mower back to its normal position.
10. Test the mower – Start the mower and check for proper operation. Listen for any unusual sounds that may indicate a misalignment or incorrect installation.
By following these steps, you will have successfully replaced the belt on your Ariens Ikon X 42 mower.
Troubleshooting Common Belt Issues on the Ariens Ikon X 42
If the belt on your Ariens Ikon X 42 is slipping or breaking, first check for proper tension. A loose belt will result in poor performance and can cause premature wear. Adjust the tensioner to ensure the belt is tight enough for proper function. Regularly inspect the belt for wear and replace it if cracks or fraying are present.
Check the pulleys for alignment and debris. Misaligned pulleys can cause the belt to wear unevenly and may lead to belt failure. Clear any debris or grass buildup around the pulleys to prevent this issue.
Examine the belt routing diagram to confirm that the belt is installed correctly. Incorrect routing can lead to excessive friction or misalignment, causing the belt to wear out faster. Ensure the belt follows the path shown in the diagram and is not twisted.
If the belt keeps slipping off, inspect the idler pulleys. Worn idler pulleys or bearings can lead to improper tension and belt misalignment. Replace any damaged pulleys or bearings to maintain proper belt function.
Finally, consider the environmental conditions. Excessive moisture, dirt, and debris can cause the belt to slip or degrade faster. Regular cleaning and maintenance can prevent these issues and prolong the life of the belt.
