Ariens Edge 52 Deck Belt Diagram and Installation Guide

The Ariens Edge 52 deck belt is a critical component for the proper functioning of the lawnmower. It drives the blades, ensuring they spin at the right speed. If the belt is worn or damaged, it can lead to poor cutting performance or even cause the mower to stop working entirely. Replacing or inspecting the deck belt regularly is important to maintain smooth operation.

Begin by identifying the belt’s location in the mower. The Ariens Edge 52 deck belt runs from the engine pulley to the deck, and understanding its path helps with both troubleshooting and replacement. Always ensure the mower is turned off and the spark plug is disconnected before performing any work on the belt system.

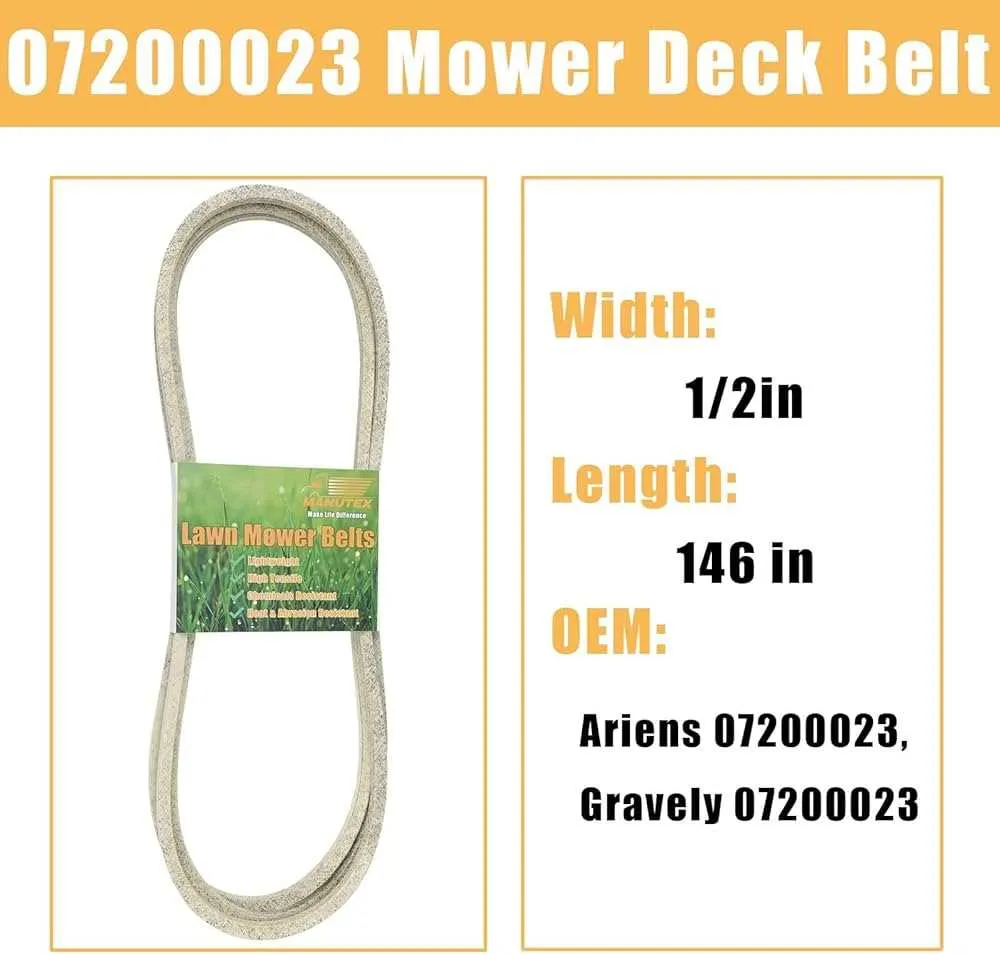

When replacing the deck belt, it’s vital to use the correct part number as specified by Ariens. A mismatch can cause improper tension and damage to other components. Carefully follow the manufacturer’s diagram for routing the belt through the pulleys, keeping the path clear of any obstacles that could interfere with the belt’s movement.

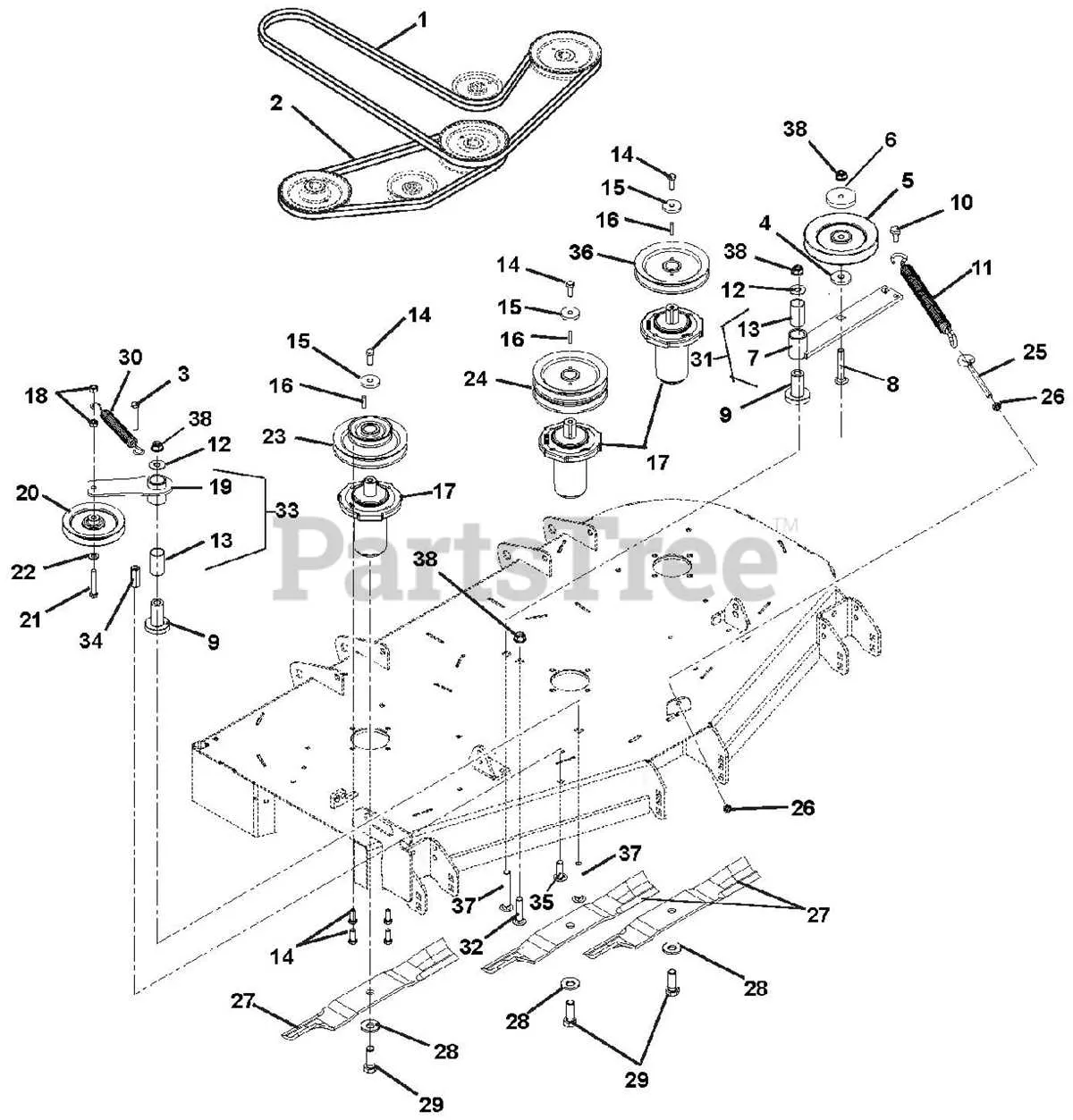

Ariens Edge 52 Deck Belt Diagram

To replace or repair the Ariens Edge 52 deck belt, begin by identifying the correct routing and components. The diagram provides a clear guide on how the belt should loop around pulleys and spindles to ensure proper functionality.

The belt should be positioned over the idler pulley and spindle pulleys in specific directions. Ensure the belt tension is maintained correctly to avoid slipping or damage during operation. Misrouting the belt can lead to premature wear or malfunctioning of the mower deck.

Pay attention to the direction in which the belt moves, especially when replacing it. The orientation of the pulleys plays a crucial role in maintaining optimal performance. Before installing a new belt, inspect the pulleys for any signs of wear or damage to prevent further complications.

Use the provided diagram to cross-check the belt’s placement with each pulley and spindle. Make sure the belt is seated securely and is free from any twists or bends that could affect its operation. Regularly check the belt and replace it when signs of wear, such as fraying or cracking, appear.

Understanding the Components of the Ariens Edge 52 Deck Belt System

The Ariens Edge 52 Deck Belt System is made up of several key components that work together to power the mower’s cutting deck. Each part plays a specific role in ensuring smooth operation and effective grass cutting. Here’s a breakdown of the main components:

• Deck Belt: This is the primary belt that connects the engine’s pulley to the cutting deck. It transfers power to the deck, allowing the blades to rotate. Regular inspection for wear or damage is necessary to maintain optimal performance.
• Pulley System: The pulleys guide the deck belt and provide tension, ensuring the belt remains in place and operates at the right speed. They should be checked for any misalignment or wear to prevent the belt from slipping or breaking.
• Idler Pulley: This component helps maintain tension on the belt, preventing it from becoming too loose. A faulty idler pulley can lead to improper belt tension, causing inefficient blade rotation.
• Blade Spindle: This is where the cutting blades are mounted. It is connected to the deck belt, and as the belt turns, it drives the spindle to rotate the blades.
• Clutch Mechanism: This component allows the operator to engage or disengage the blades when necessary. When the clutch is engaged, the deck belt is tightened, powering the blades.

Each of these parts needs to be in good condition for the Ariens Edge 52 to function properly. Regular inspection of the belt, pulleys, and other components can prevent costly repairs and extend the life of your mower.

Step-by-Step Instructions for Installing the Deck Belt on the Ariens Edge 52

Begin by raising the mower deck to its highest position. This will provide enough clearance for the belt installation.

Next, remove the deck from the mower chassis. Disconnect any linkages and fasteners securing the deck to the mower. Make sure to keep track of all parts for reassembly.

After the deck is removed, locate the old belt. Note its position and routing to help guide the installation of the new belt.

Take the new belt and position it around the pulleys, starting from the engine pulley. Ensure the belt is properly seated in all grooves to avoid slippage.

Pass the belt over the spindle pulleys and idler pulleys, following the exact path as the original belt. Pay close attention to the tensioner pulley to avoid misalignment.

Once the belt is routed, check its tension. Adjust the idler pulleys if needed to ensure proper tension. The belt should have a slight amount of slack, but not be too loose.

Reinstall the mower deck back onto the chassis, securing it with the same fasteners and linkages removed earlier.

Finally, test the mower by engaging the blades to ensure the belt runs smoothly. If there is any unusual noise or slippage, double-check the belt routing and tension.

Common Problems and Troubleshooting Tips for the Ariens Edge 52 Deck Belt

If the deck belt is slipping or breaking, inspect it for signs of wear, cracks, or damage. Replace the belt if you notice any visible signs of deterioration. Ensure the belt is properly aligned and tensioned according to the manufacturer’s guidelines.

If the mower is making unusual noises, check if the belt has become loose or misaligned. A loose belt can cause slippage, resulting in squealing or grinding sounds. Adjust the tensioner to ensure the belt fits tightly around the pulleys.

Another common issue is difficulty in engaging or disengaging the deck. This could indicate a problem with the tension spring or pulley system. Check for any rust, dirt, or debris that may be obstructing the pulleys. Clean the system thoroughly, and lubricate the moving parts as needed to restore smooth operation.

If the belt is not turning the blades efficiently, it may be stretched beyond its useful life. Inspect the blade assembly and pulleys for any damage or wear. Replacing the belt with a new one should improve performance, but also check for other mechanical issues such as worn bearings or bent blades that could cause resistance.

In case the deck is not rotating at all, check the belt routing against the diagram. If it’s not routed correctly, it can prevent proper movement. Verify that the belt path follows the manufacturer’s recommended route and that there are no obstructions in the way.

For recurring issues, regularly clean the deck and belt area to avoid the buildup of grass, dirt, and debris. Regular maintenance will prolong the life of both the deck belt and the mower itself.
