Ariens 52 Belt Guide Diagram for Proper Maintenance and Adjustment
If you’re having trouble with your Ariens 52-inch mower belt, understanding the belt guide diagram can make all the difference in resolving the issue quickly. The belt guide diagram provides a clear and straightforward guide to ensuring the correct routing of the drive belts, which are crucial for smooth operation. This guide helps prevent improper wear and tear, reducing the risk of future breakdowns.
Start by ensuring the belt is positioned properly in the diagram’s recommended slots. This is key for maintaining the right tension and alignment. Once the belts are correctly routed, the system works efficiently, minimizing strain on the engine and ensuring that all components function as they should. Always check the condition of the belt and replace it if you notice any cracks or excessive wear.
Another important aspect to check is the belt’s alignment with pulleys. Misalignment can lead to inefficient operation and accelerated damage. The Ariens 52 belt guide diagram shows the exact alignment for each component, so follow it closely to maintain your mower’s performance. Regular inspection and maintenance according to the guide will extend the lifespan of the mower and prevent more expensive repairs in the future.

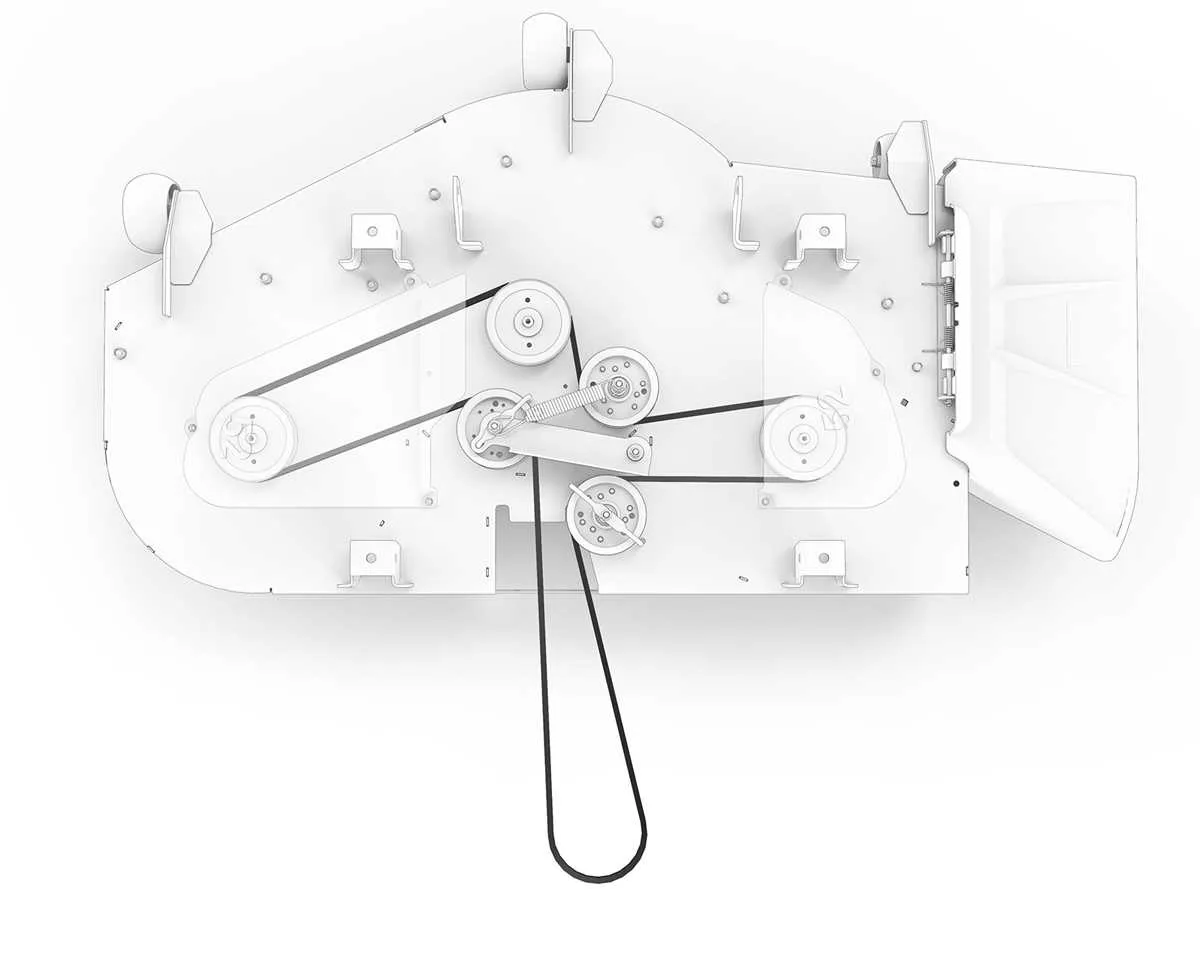

Ariens 52 Belt Guide Diagram
To maintain your Ariens 52 mower, refer to the belt guide diagram for proper installation. This diagram shows the correct routing of the drive belt, ensuring smooth operation and preventing unnecessary wear.
The belt should be routed through the idler pulley system, with the correct tension maintained to avoid slippage. The idler pulleys should be positioned in such a way that they provide adequate tension without overloading the belt, which could lead to premature failure.
Make sure the belt follows the exact path indicated in the diagram. Any deviation can lead to misalignment, which could affect the mower’s performance. The guide typically includes detailed instructions for both the main drive belt and any secondary belts, outlining which pulleys they should pass through and where they should be secured.
If you notice any signs of excessive wear, like fraying or cracking, replace the belt immediately to avoid damaging other components. Keeping the belt clean and free from debris also helps prolong its life.
Finally, always check the belt’s condition after performing maintenance or replacing components. Refer to the diagram to verify the belt’s routing and ensure everything is correctly aligned. This will help keep your mower operating at its best for longer periods.
How to Read the Ariens 52 Belt Guide Diagram for Optimal Belt Alignment
Focus on understanding the key components of the Ariens 52 belt guide diagram. The diagram indicates the correct routing of belts within the system, showing each pulley’s position and how the belts interact with them. Start by locating the engine pulley, the transmission pulley, and any idler pulleys, which are crucial for smooth belt movement.
Look at the direction of the belt travel in the diagram. Pay attention to the orientation of each pulley. The belt needs to follow this path precisely to avoid any misalignment. Misalignment can cause unnecessary wear, poor performance, or even damage to the belt system.
Identify the belt tensioning system on the diagram. Tension should be applied evenly to prevent slippage or excess wear. If the diagram shows a spring-loaded tensioner, ensure it maintains proper tension for the system’s optimal function. If it’s an adjustable tensioner, refer to the recommended settings listed in the guide.
Cross-reference the diagram with the physical setup. Compare the positions of each pulley and belt as shown in the diagram with your actual machine. Small discrepancies in pulley positions can significantly affect belt alignment and performance.
| Pulley | Position | Purpose |
|---|---|---|
| Engine Pulley | Front, near the engine | Drives the belt system |
| Transmission Pulley | Near the gearbox | Transfers power to the wheels |
| Idler Pulley | Midway along the belt | Adjusts belt tension |
| Spring Tensioner | Connected to the idler pulley | Maintains correct belt tension |
Double-check the alignment after installation. If any part of the belt appears off-center or the diagram indicates an incorrect path, adjust accordingly. Misalignment could lead to belt slipping, excessive wear, or potential damage to the system.
Refer to the Ariens 52 belt guide diagram whenever performing maintenance or troubleshooting. Keeping the diagram on hand ensures you follow the right procedure, leading to longer-lasting belts and better machine performance.
Step-by-Step Instructions for Replacing the Belt Using the Ariens 52 Belt Guide Diagram
Locate the Ariens 52 belt guide diagram and have it ready for reference before starting. This will help you identify the correct routing for the new belt.
1. Disconnect the power: Ensure the machine is turned off and disconnected from the power source to avoid any accidents while working on it.
2. Lift the cover: Use the appropriate tools to remove any covers or panels obstructing access to the belt and pulleys. Keep all screws or fasteners in a safe spot.
3. Loosen the tension: Using a wrench or ratchet, carefully loosen the belt tensioner. This will relieve pressure on the existing belt, making it easier to remove.
4. Remove the old belt: Take note of how the old belt is routed around the pulleys. Carefully slide it off, starting with the larger pulley and moving towards the smaller one.
5. Install the new belt: Reference the Ariens 52 belt guide diagram to ensure the new belt is routed correctly around the pulleys. Place the new belt on the pulleys one at a time, starting from the smallest pulley.
6. Tighten the tension: Re-adjust the belt tensioner and tighten it to the manufacturer’s recommended setting. Check that the belt is not too tight or too loose. It should have some slack but remain secure around the pulleys.
7. Test the installation: Turn on the machine briefly and observe the belt’s operation. Ensure it runs smoothly and there is no unusual noise or slippage.
8. Reassemble the cover: Once satisfied with the belt installation, replace the covers or panels you removed earlier and secure them with the appropriate screws.
Following these steps will ensure a smooth replacement of the belt on your Ariens 52, keeping the machine in optimal condition for its next use.
Common Issues and Troubleshooting Tips When Using the Ariens 52 Belt Guide Diagram
Check the belt tension regularly. If it’s too tight or too loose, it will affect performance. Adjust it according to the diagram specifications for proper tension.
Misalignment of the belt can lead to premature wear. Make sure the pulleys and guides are correctly aligned. If you notice any misalignment, adjust the positioning based on the diagram instructions.
- Inspect pulleys for damage or wear.
- Ensure the belt runs smoothly over all guides and pulleys.
- Replace any components that appear worn out or damaged.
If the belt frequently slips off or loses contact with the pulleys, inspect the belt guides. Worn or damaged guides can cause tracking issues. Replace any worn-out guides to keep the belt in place.
A noisy system is often a sign of friction. If you hear squeaking or grinding noises, lubricate the moving parts lightly. Ensure the bearings are properly greased and free from dirt or debris.
- Check the bearings for any damage or rust.
- Replace any bearings that show wear.
Inspect the belt for any signs of damage like fraying or cracks. If the belt shows any wear, replace it immediately. A damaged belt can cause further damage to the system.
Excessive vibration often indicates loose or misaligned parts. Tighten any loose bolts and check the alignment of all components. This will help reduce vibration and improve the overall performance.
